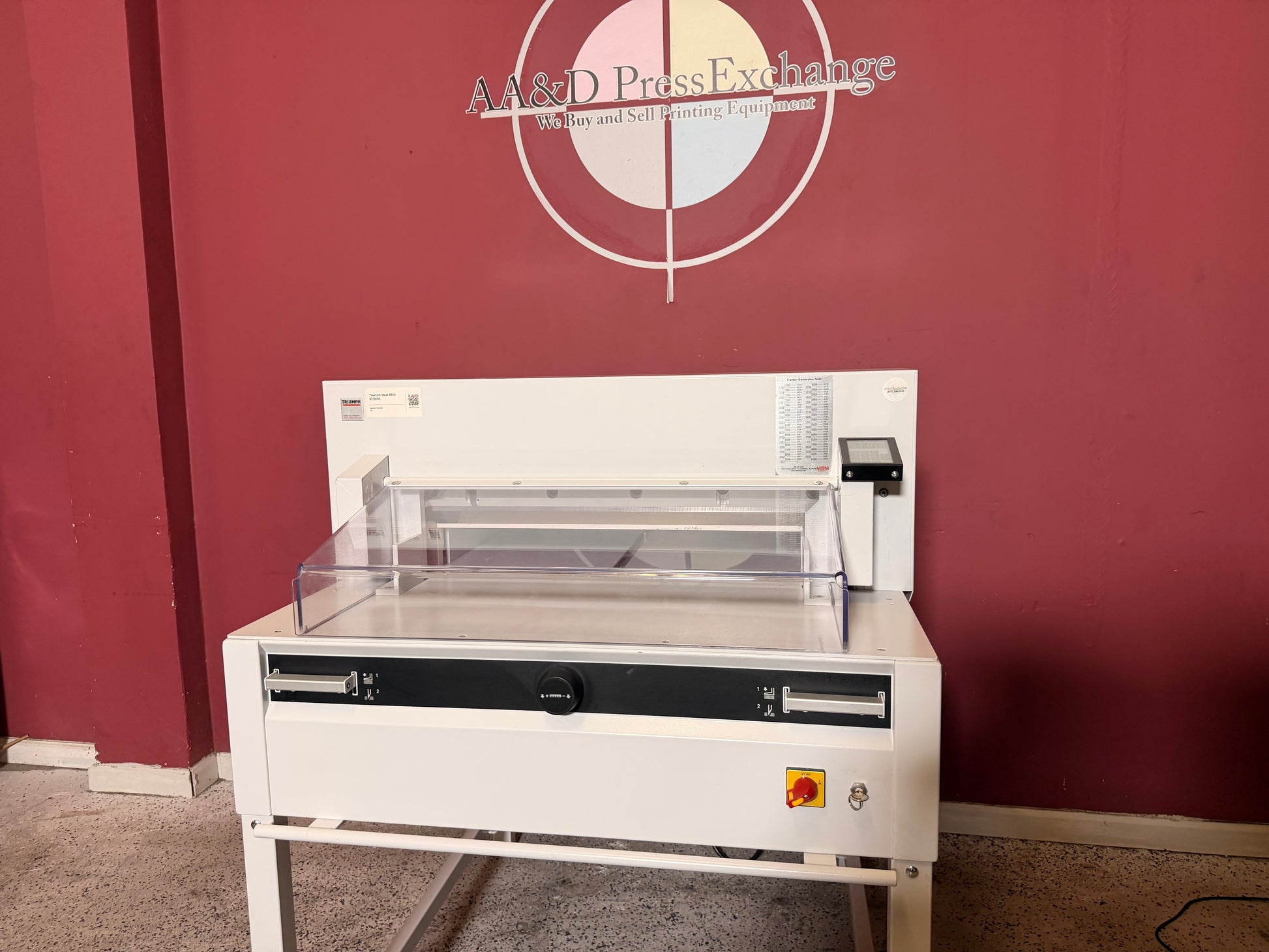

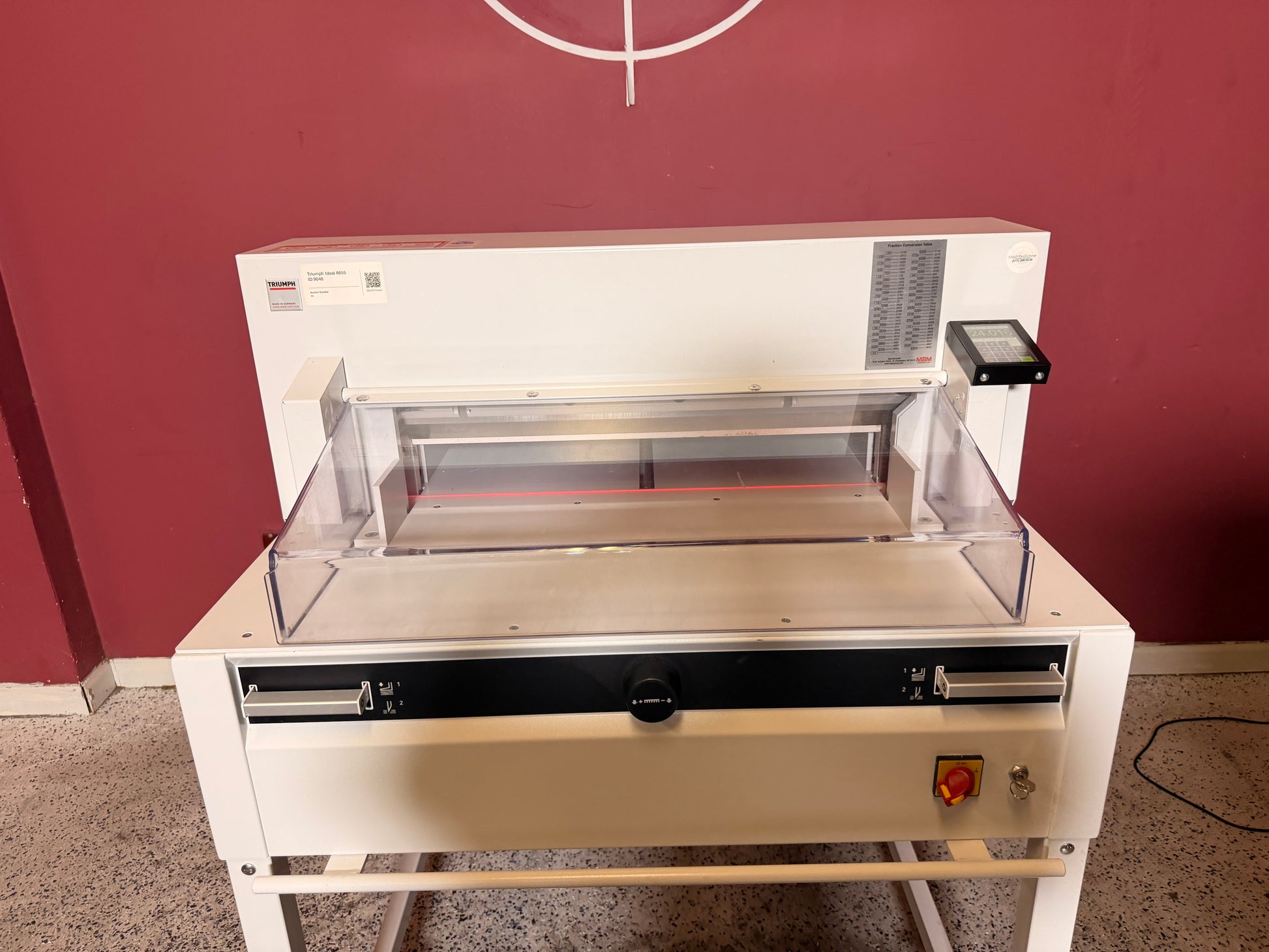

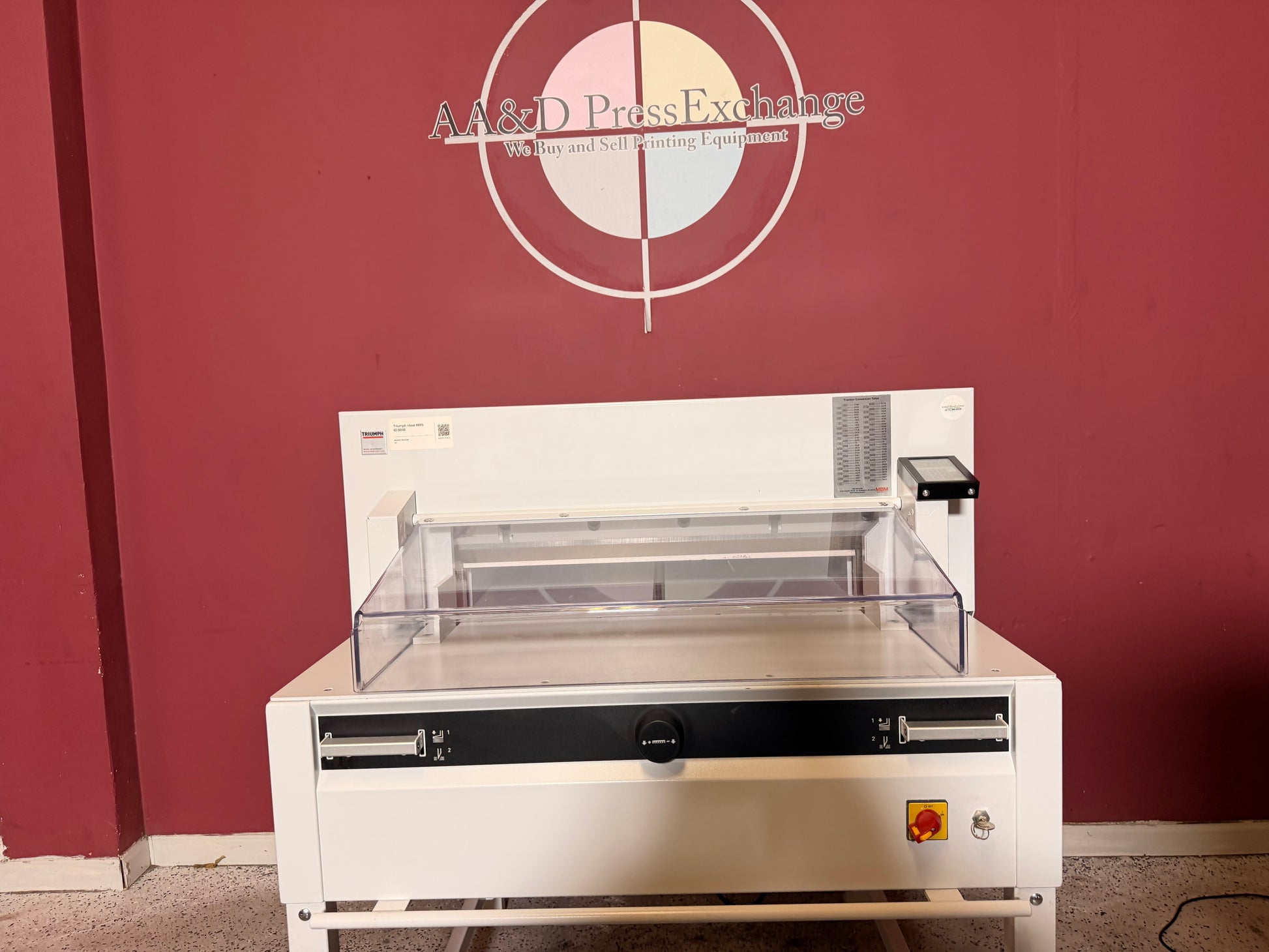

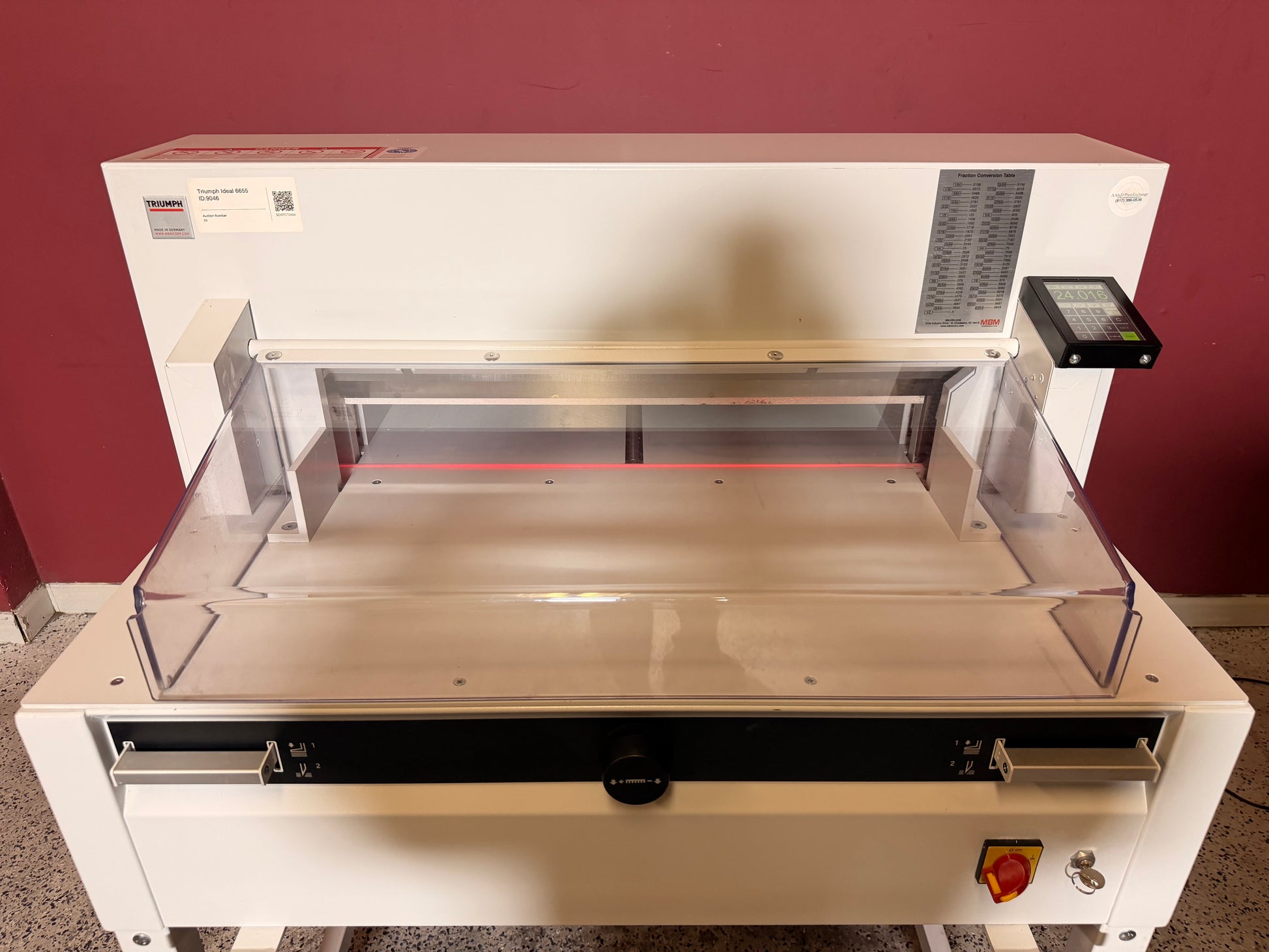

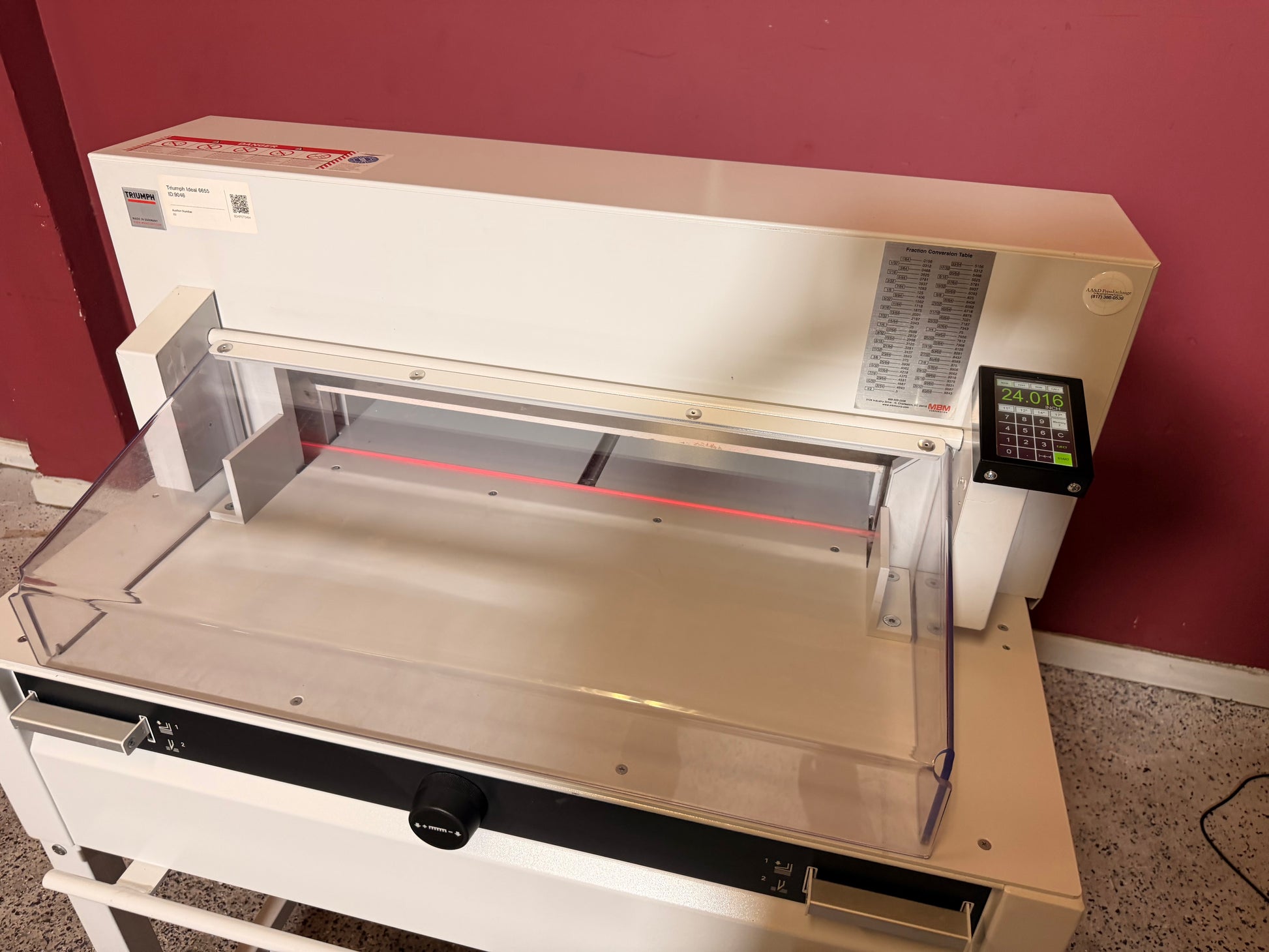

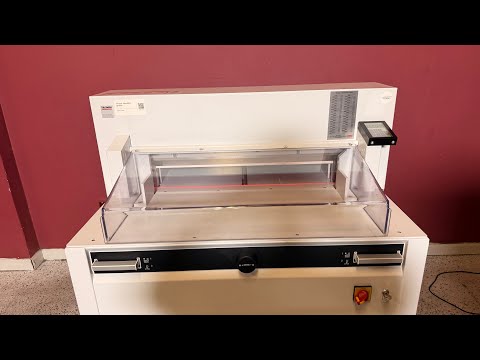

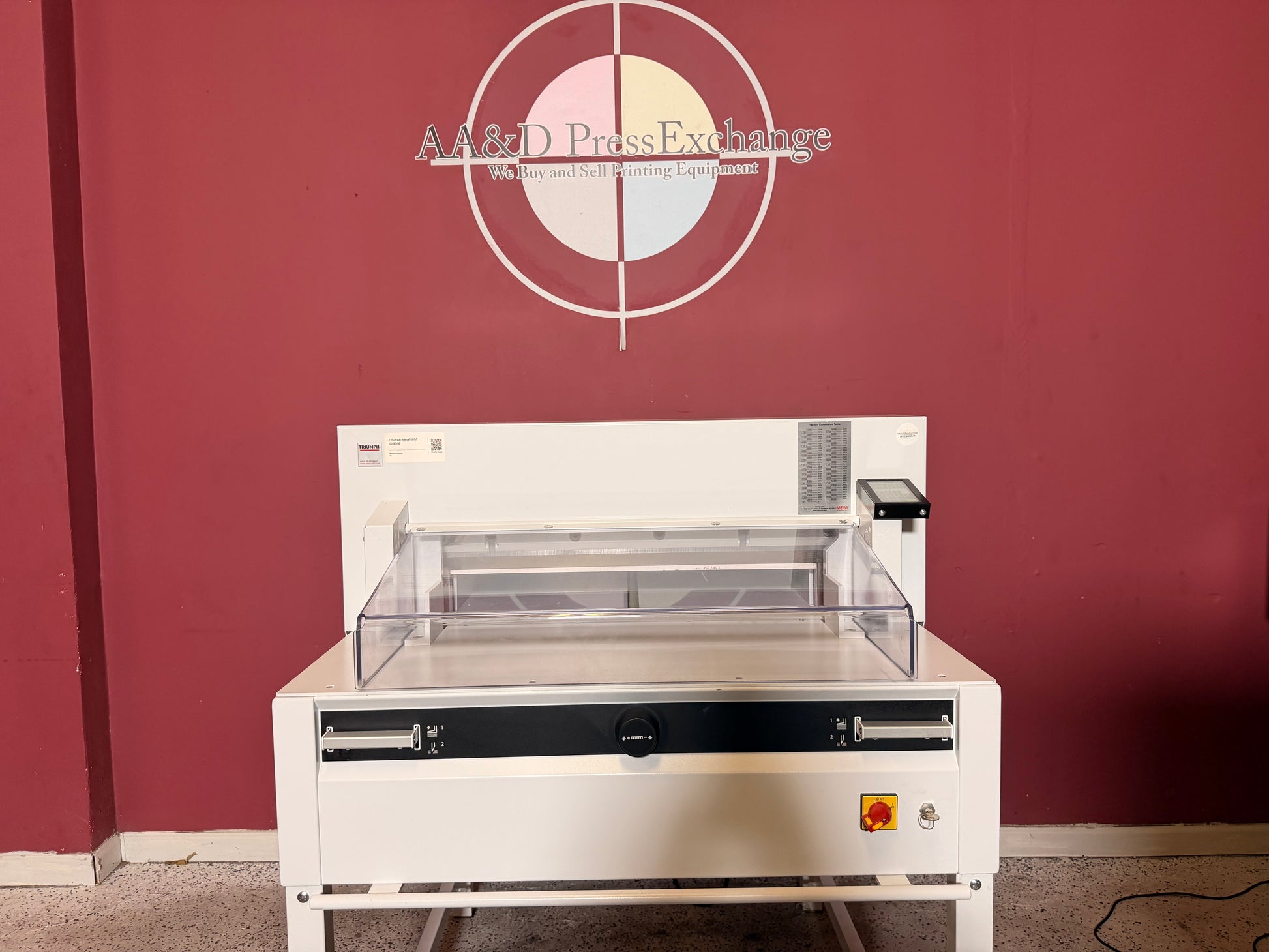

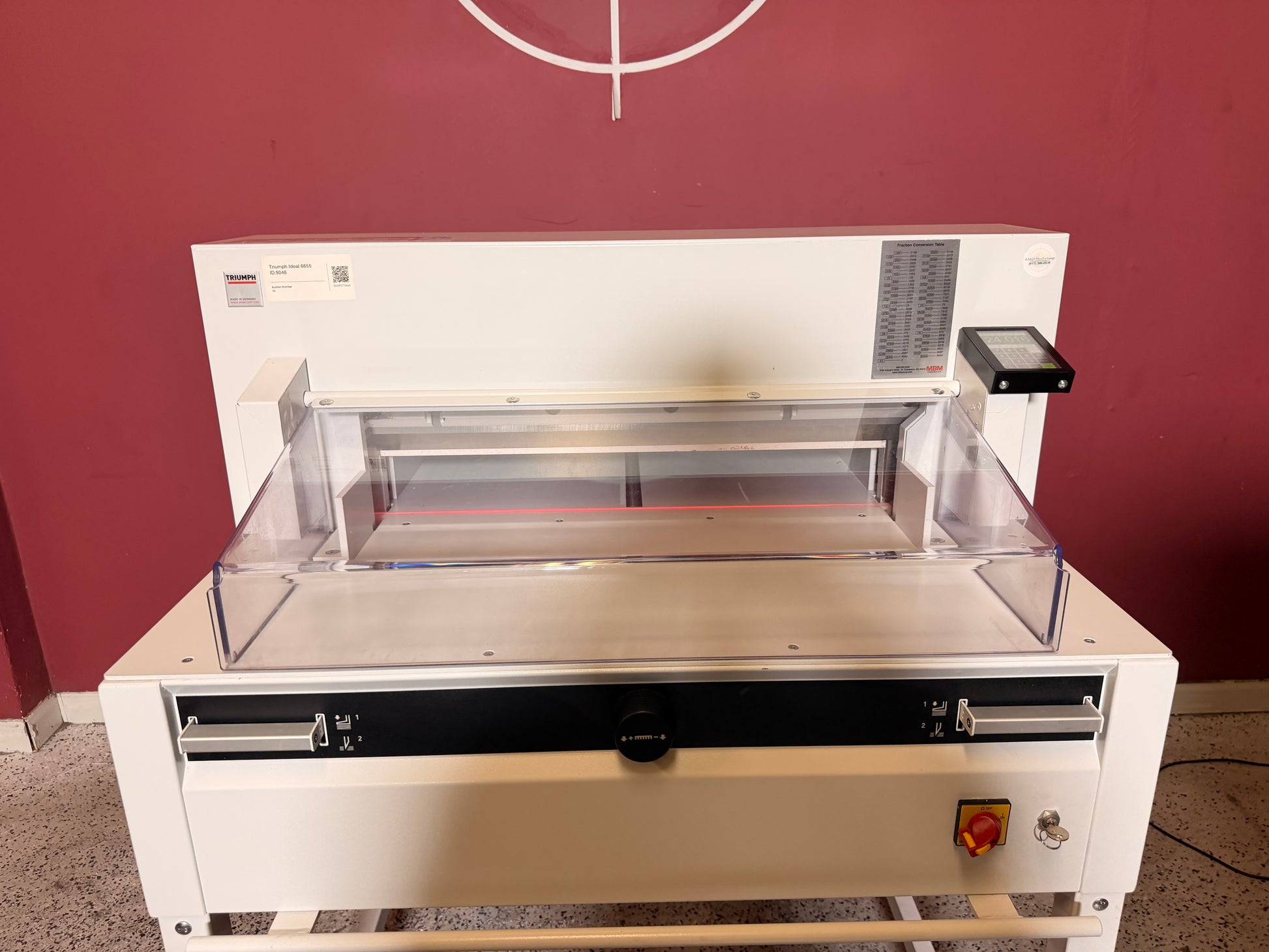

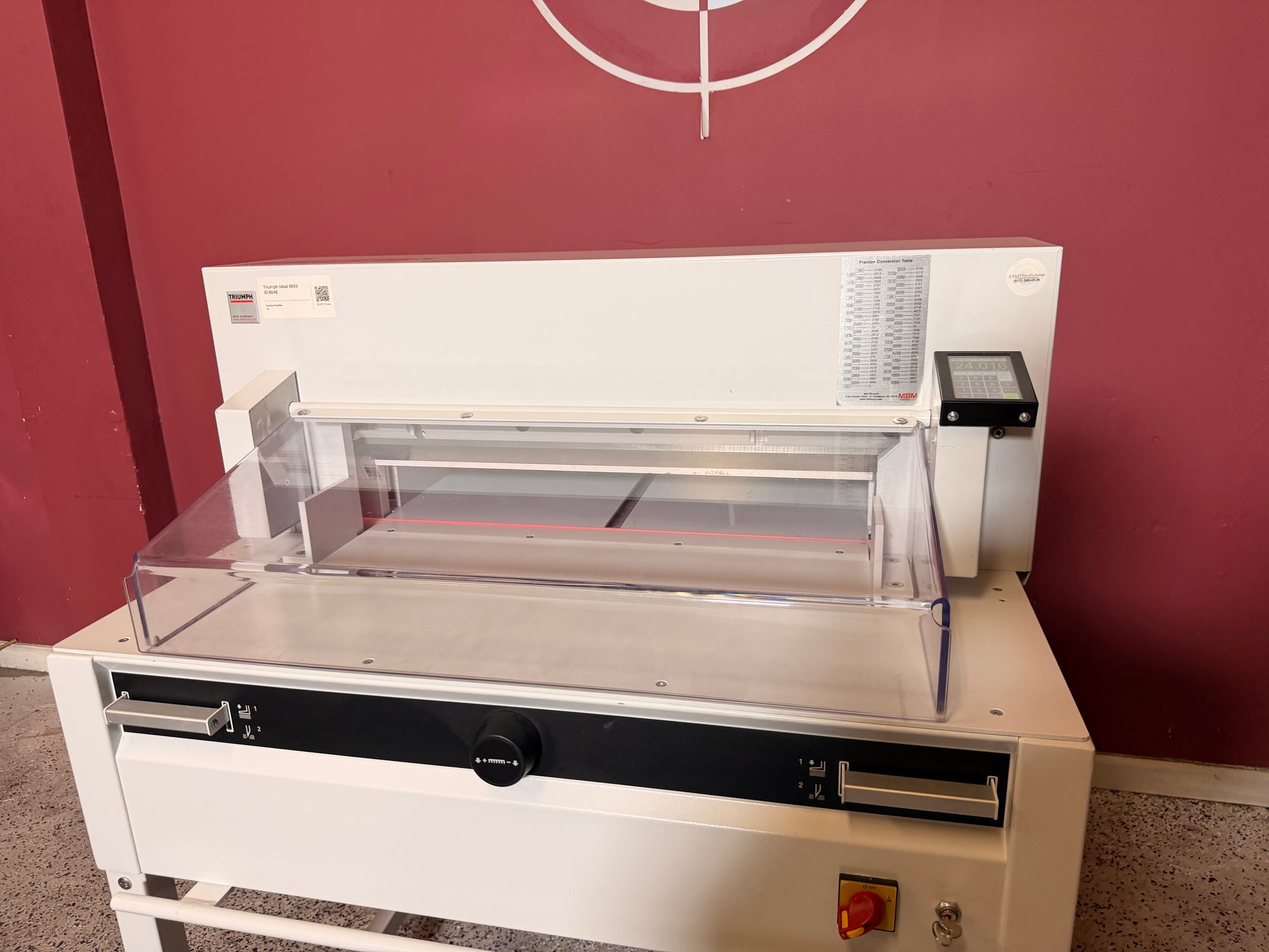

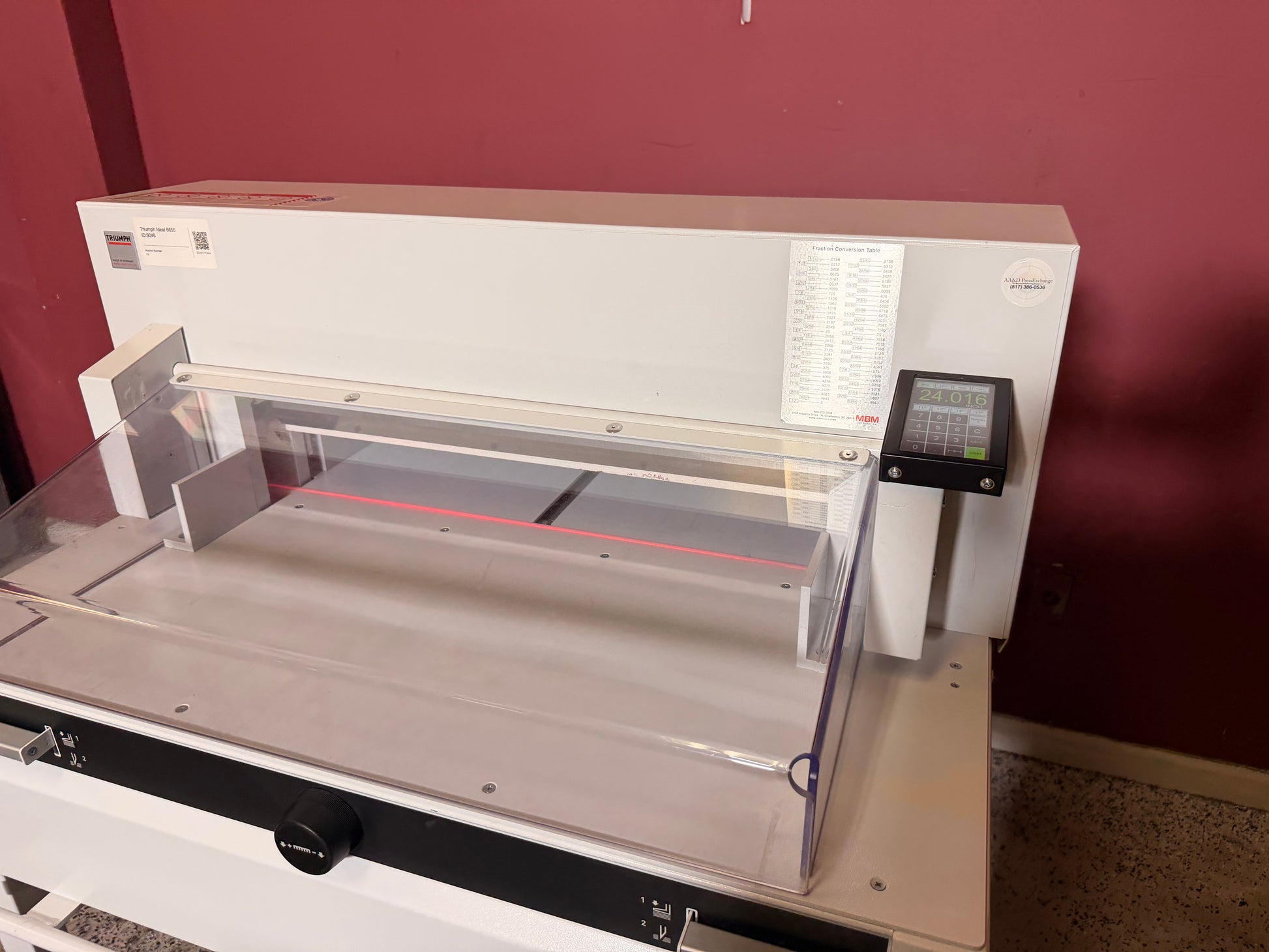

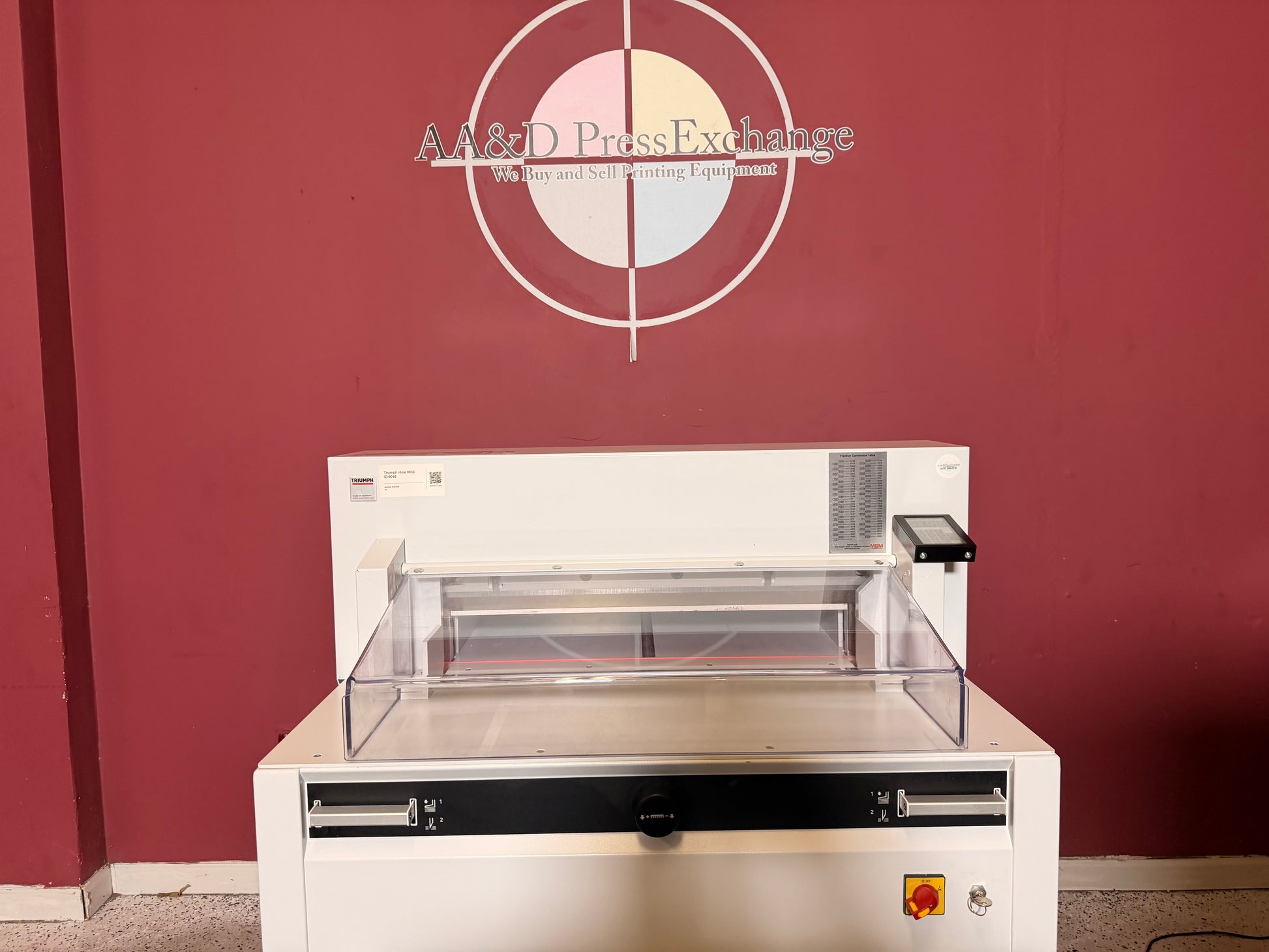

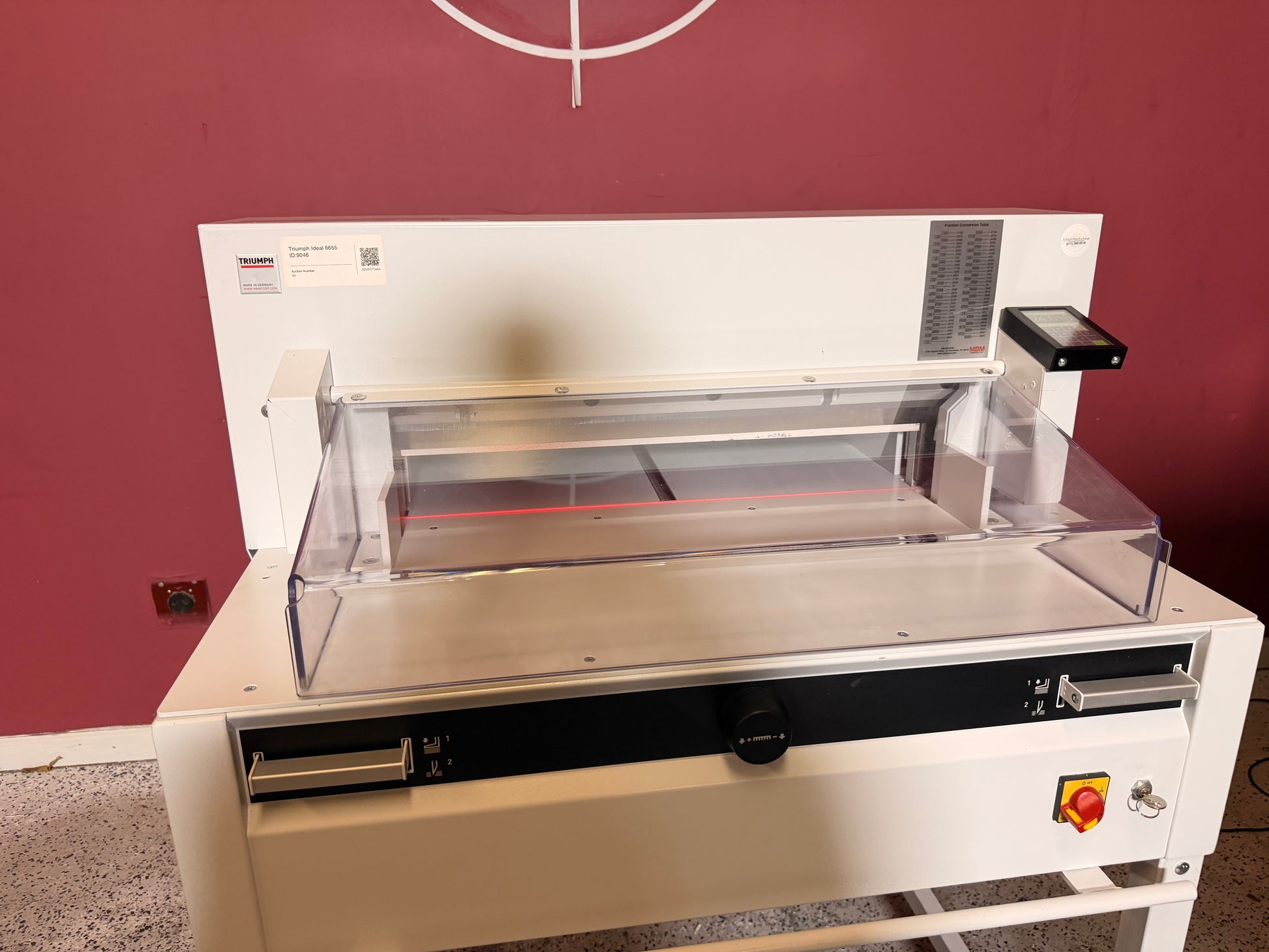

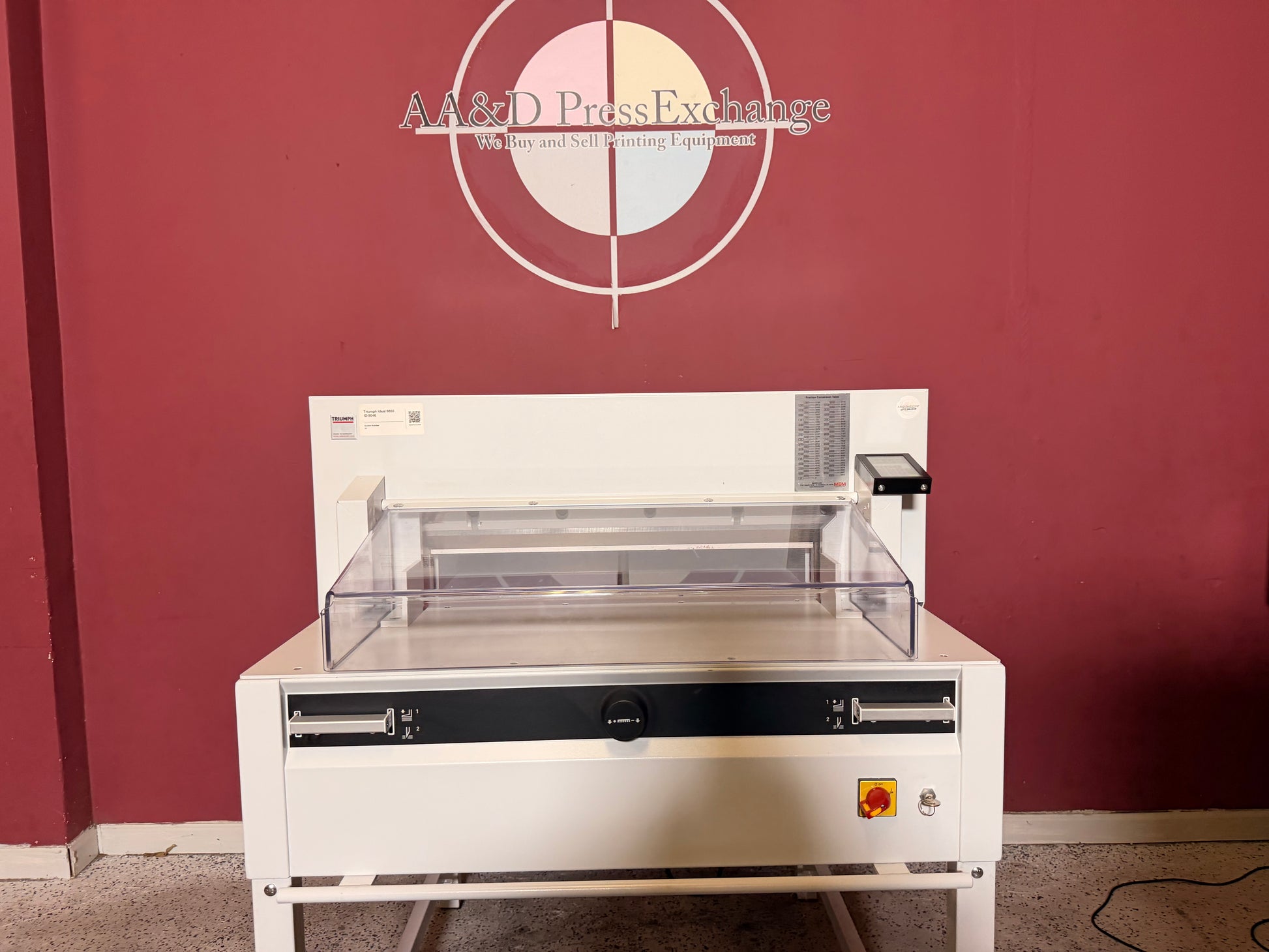

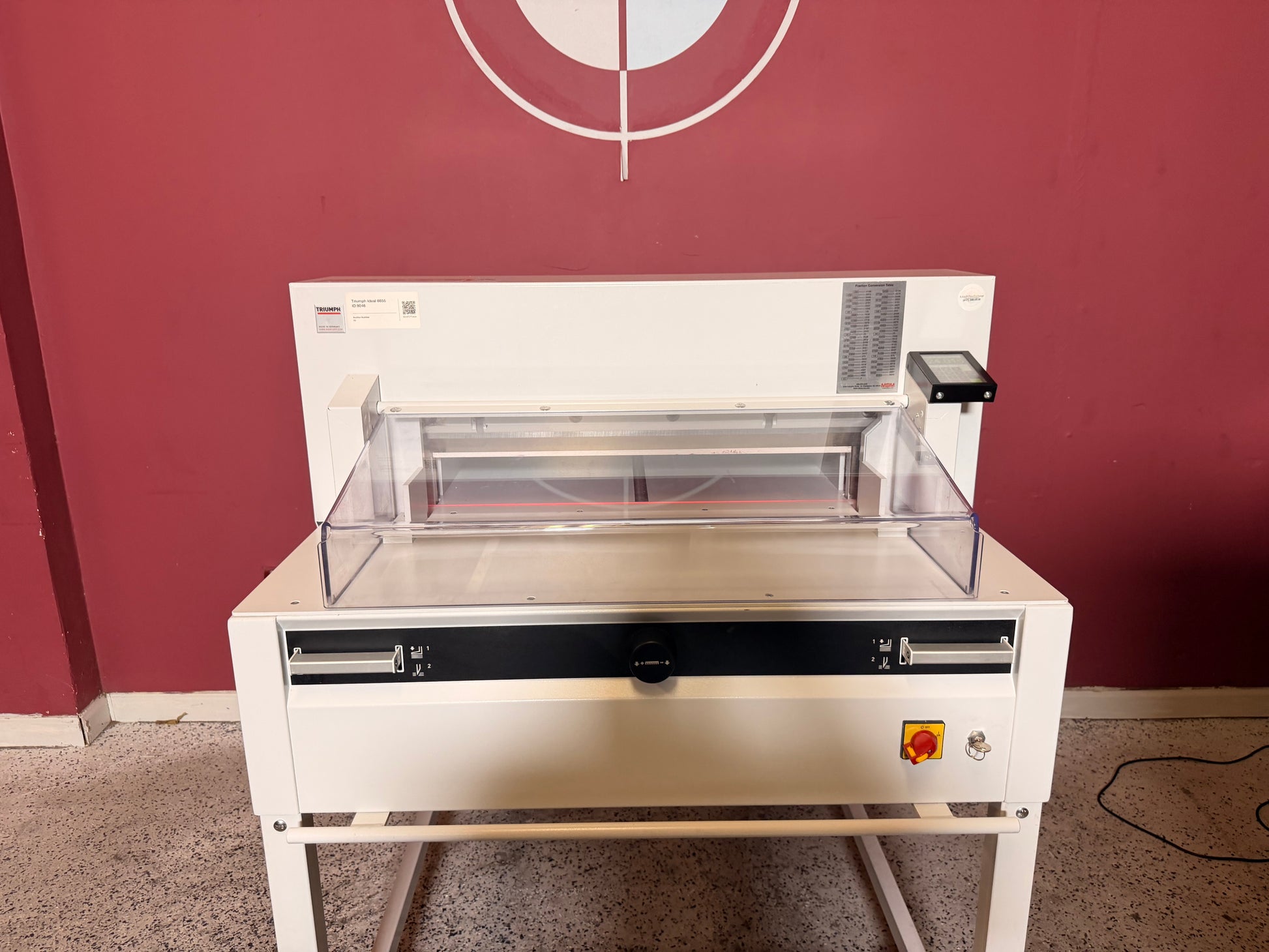

Programmable paper cutter with automatic clamp, power back gauge, and digital touchpad. Cutting width is a full 25 1/2 inches.
Do you find yourself cutting the same types of jobs over and over? The programmable Triumph 6655 stores up to 99 projects with up to 99 separate steps each! Cut a lot of postcards? Need to trim the same size flyers every month? Whatever the task, save the programs and create the perfect cuts time after time with a few taps on the touchpad.
Comprehensive SCS safety package: patented EASY CUT electronic blade activation bars for true two-hand operation; transparent, electronically controlled front safety guard; safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.
Features:
Ergonomic, 37 inch working height.
Electric blade and clamp drive.

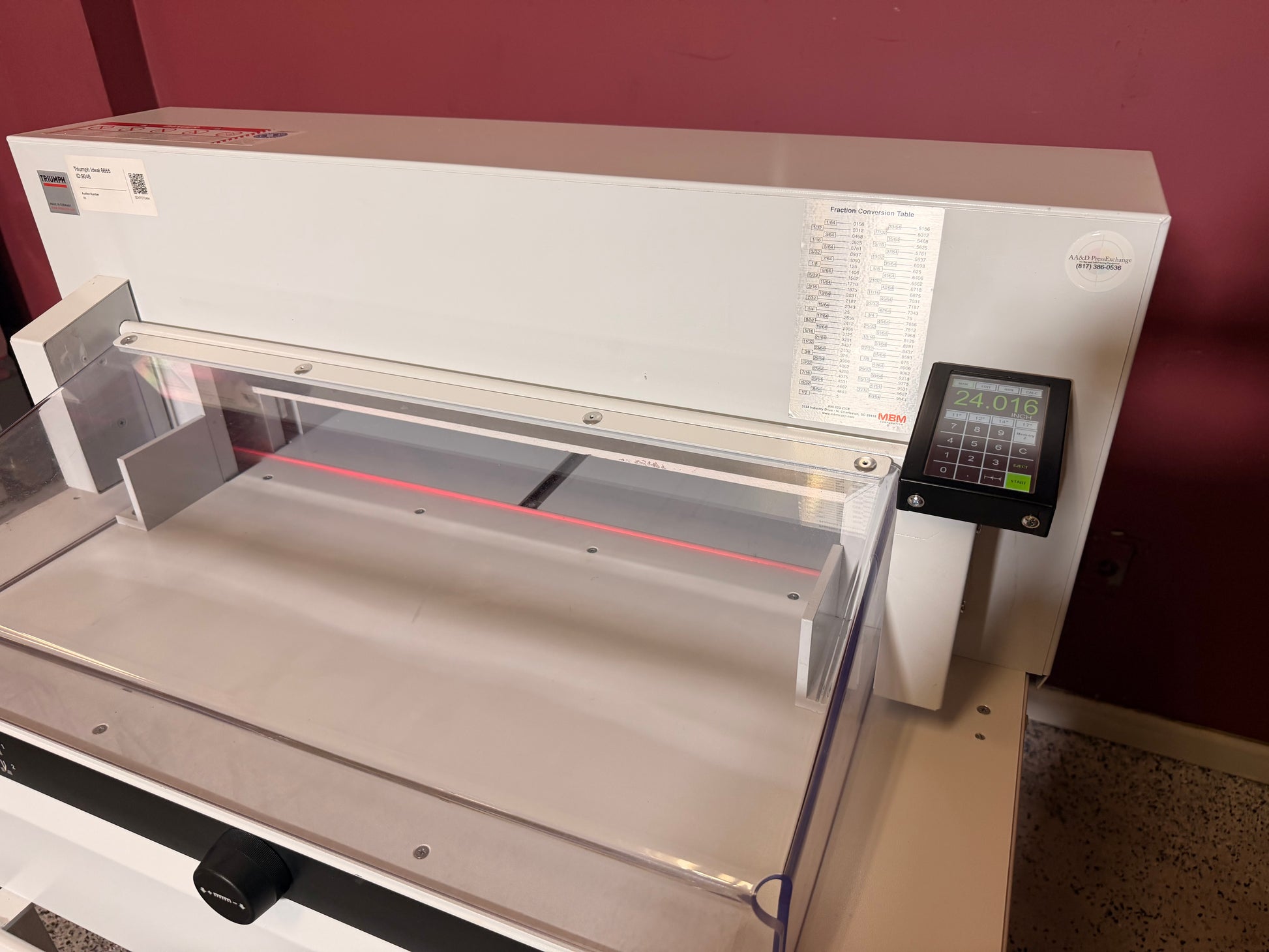

Electric back gauge drive with touchpad for easy programming.
Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch.
Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step).
Pre-programmed for standard paper sizes.
Memory key for repeat cuts.
Automatic SET function for reference measurement and EJECT function for pushing out paper.
Self-diagnostic system with error indication on display.
Electronic hand wheel with variable speed control for manual back gauge setting.
Bright, LED optical cutting line.
Adjustable, spindle guided back gauge with narrow separations and plastic gliders.
Dual side guides on front and rear tables.
High quality, German steel blade.
Solid steel blade carrier and adjustable blade guides.
All-metal construction.

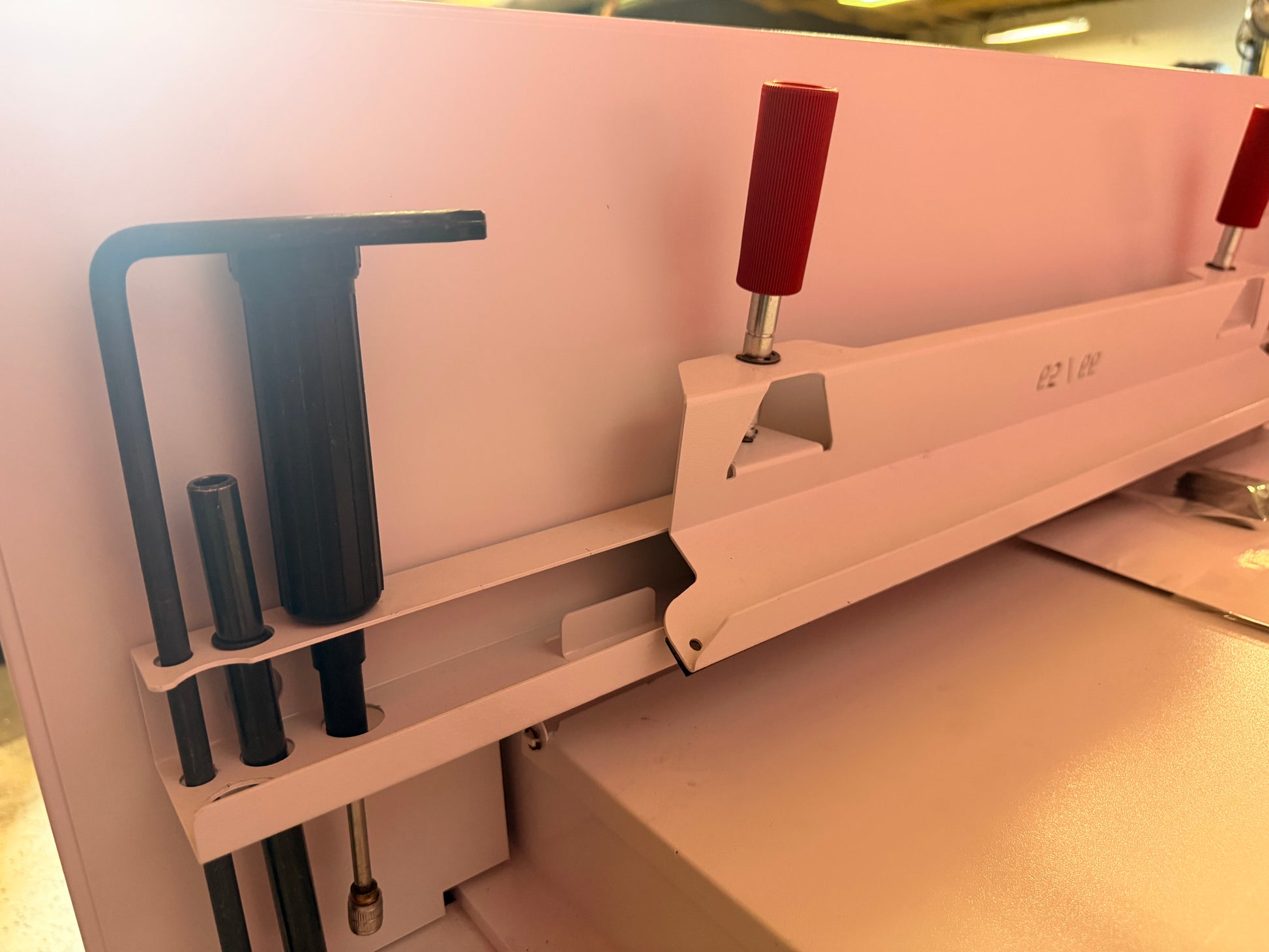

Includes stand with storage shelf, easy-access tool holder, and paper blocking tool.
Optional side tables increase work surface.
Specifications:
Cutting Width: 25 1/2 inches
Cutting Height: 3 inches
Narrow Cut: 1 inches
Length Behind Blade: 24 inches
Electrical requirements: 115 V, 20 A, 60 Hz
Motor output, horsepower: 2
Dimensions (D x W x H), inches: 48 x 39 x 51 Width with side tables: 61 1/2 inches
Shipping weight, pounds: 772 Shipping weight with side tables: 792 pounds
