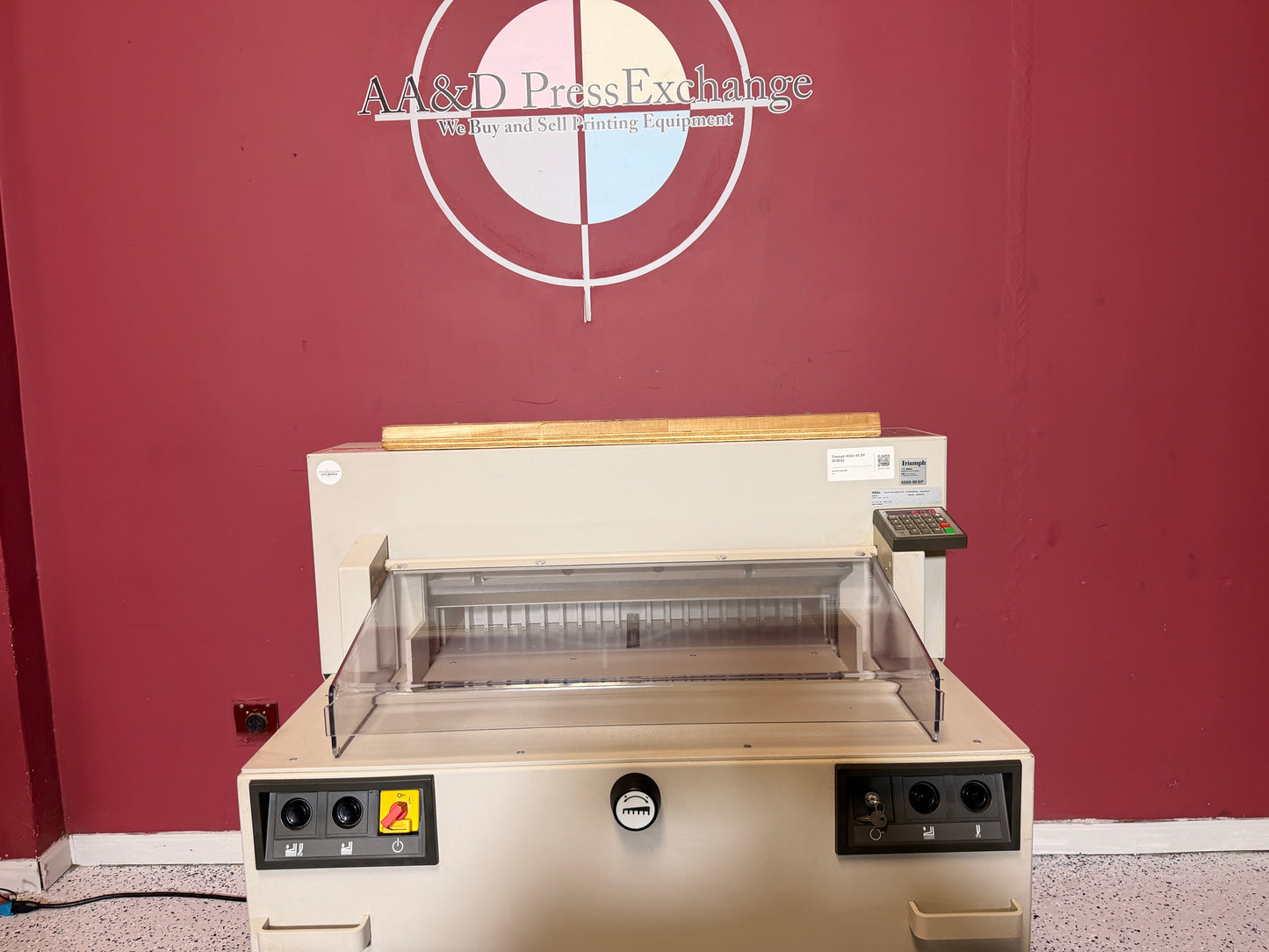

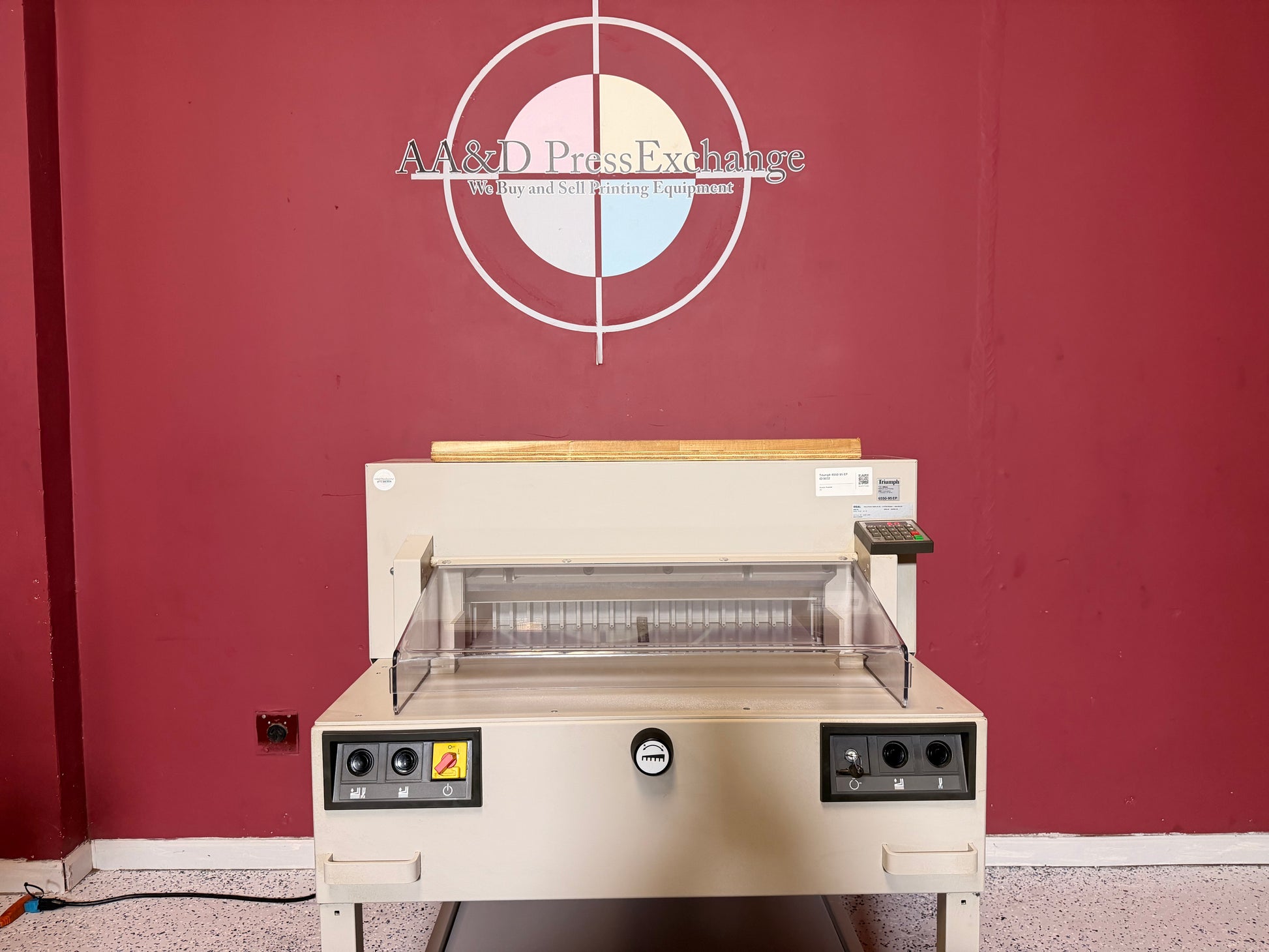

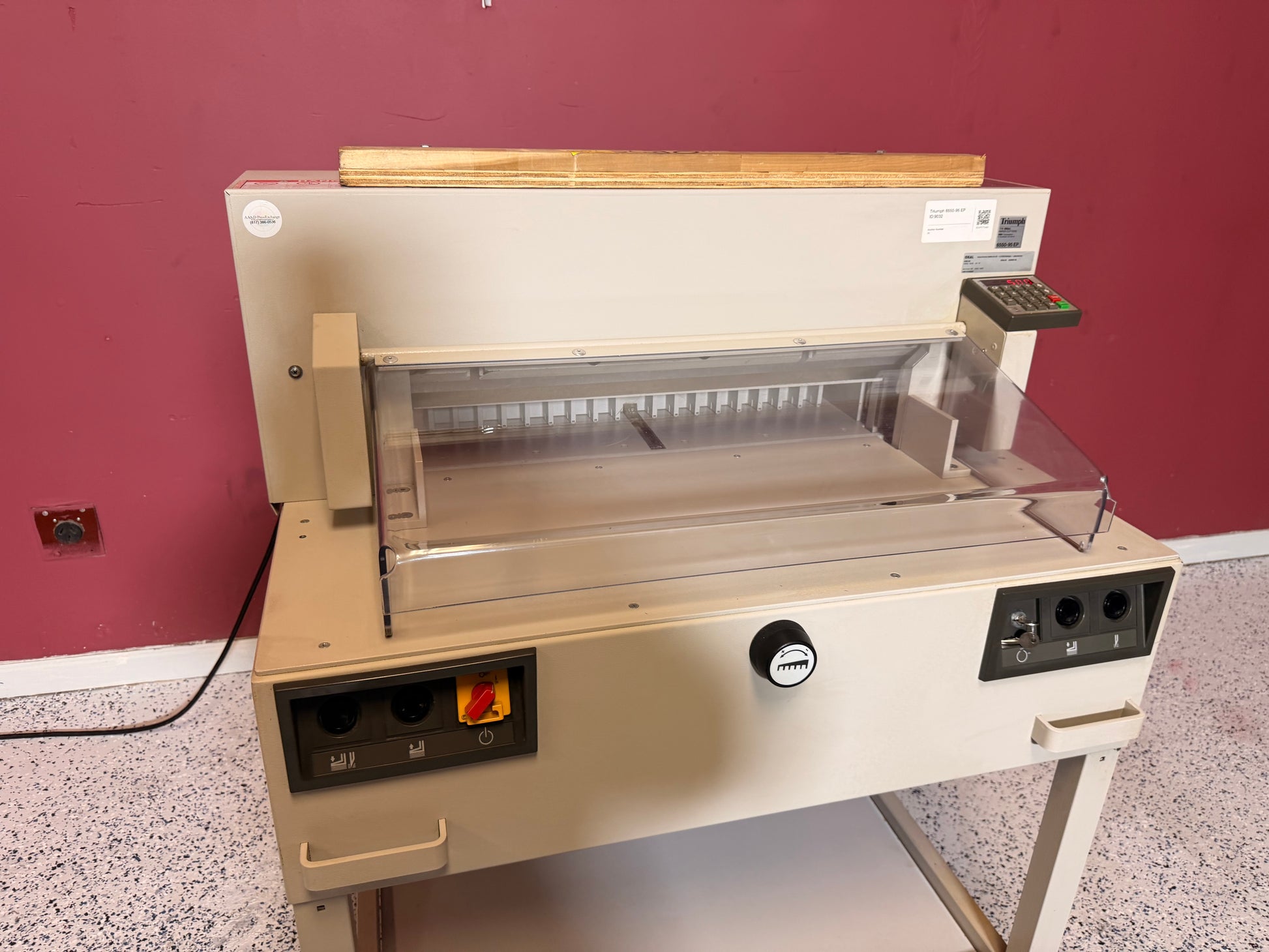

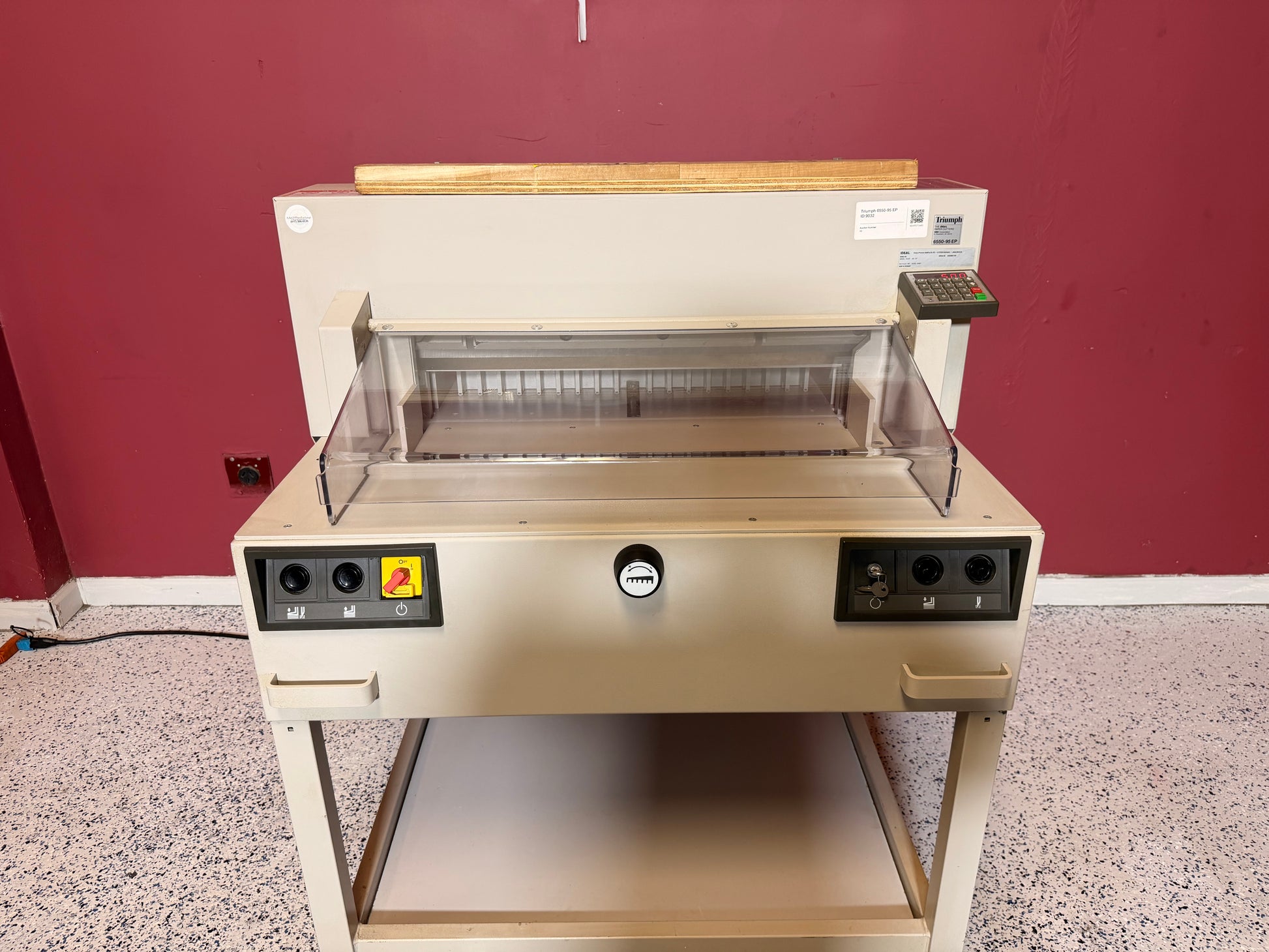

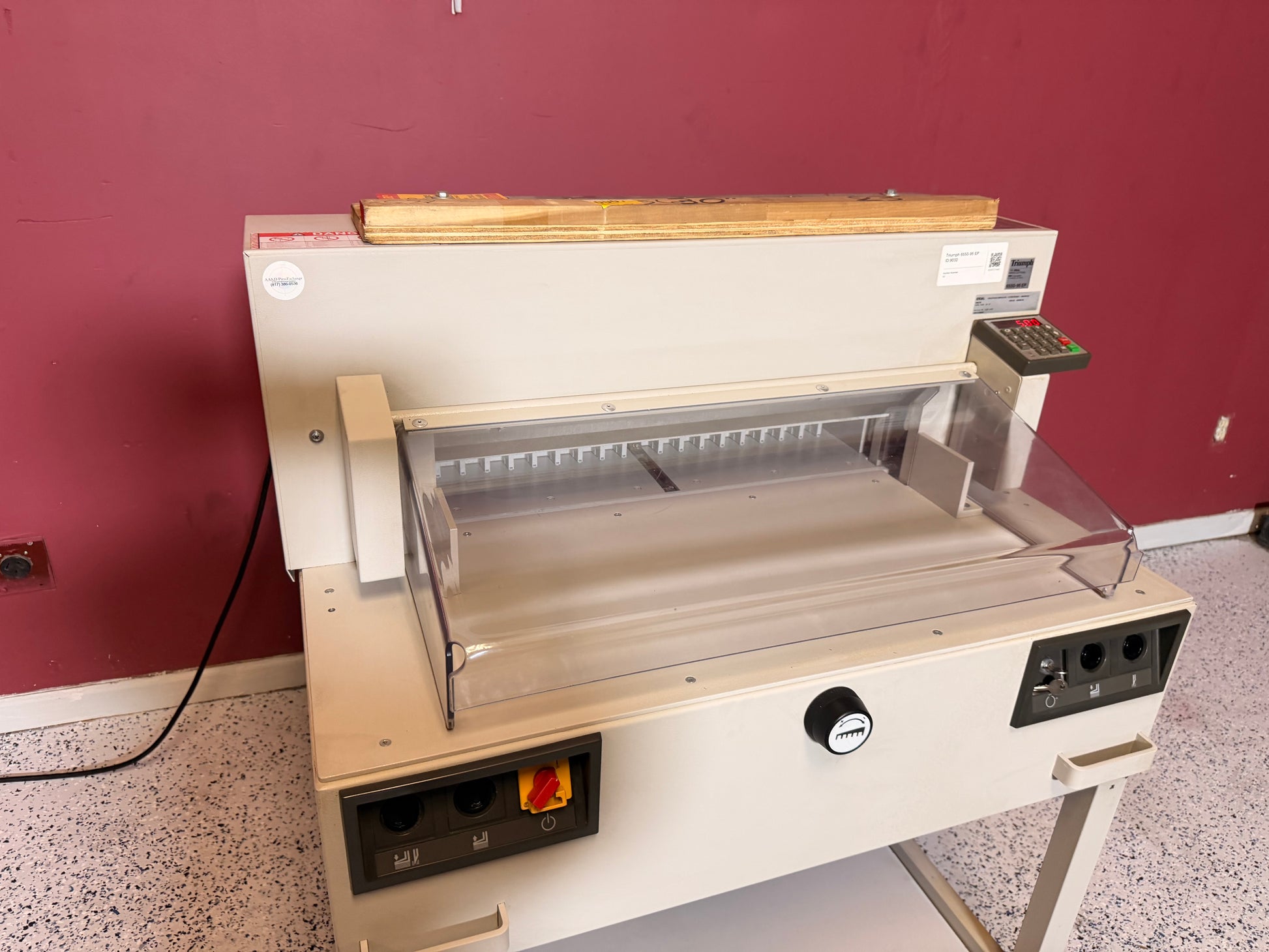

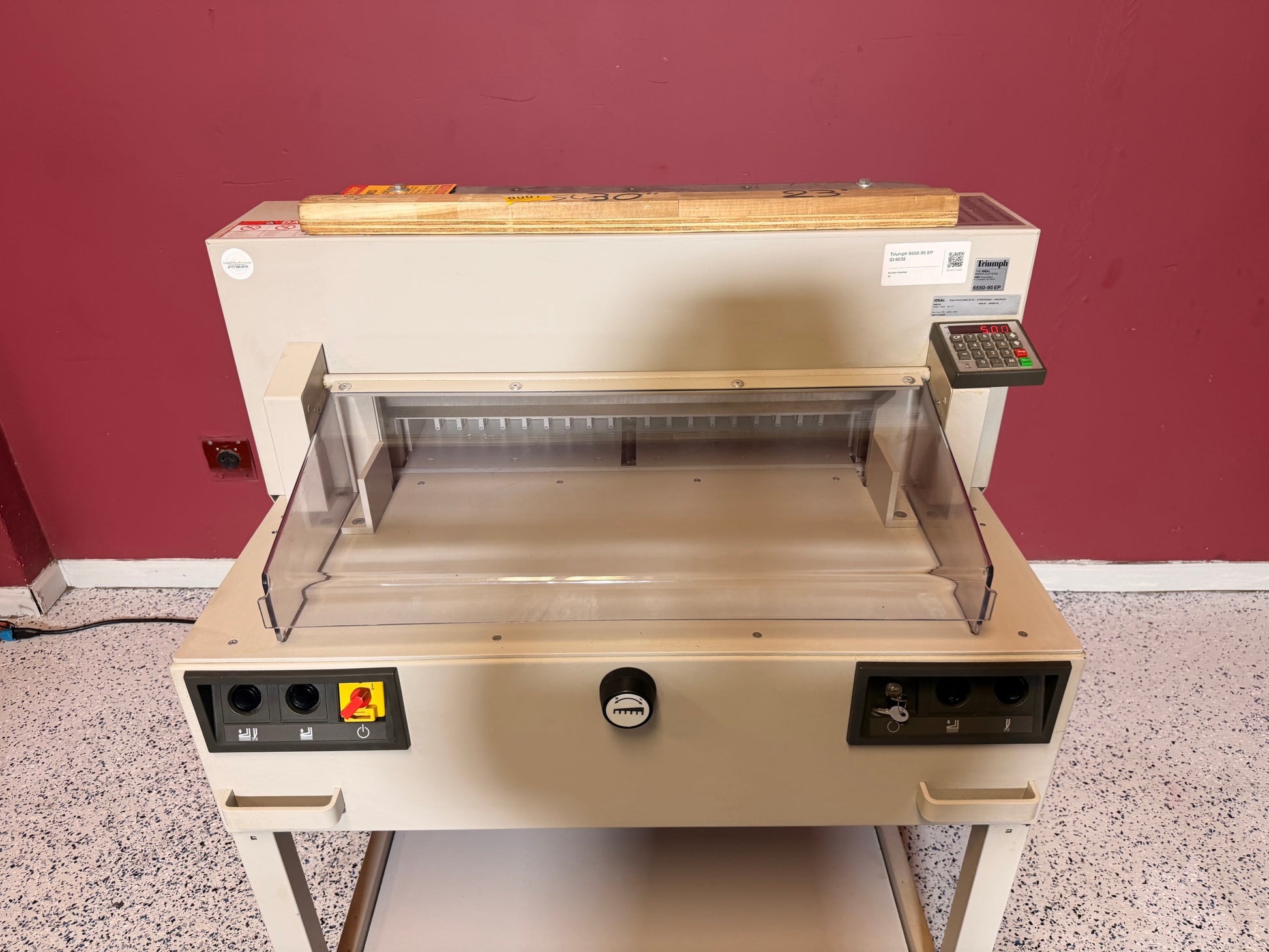

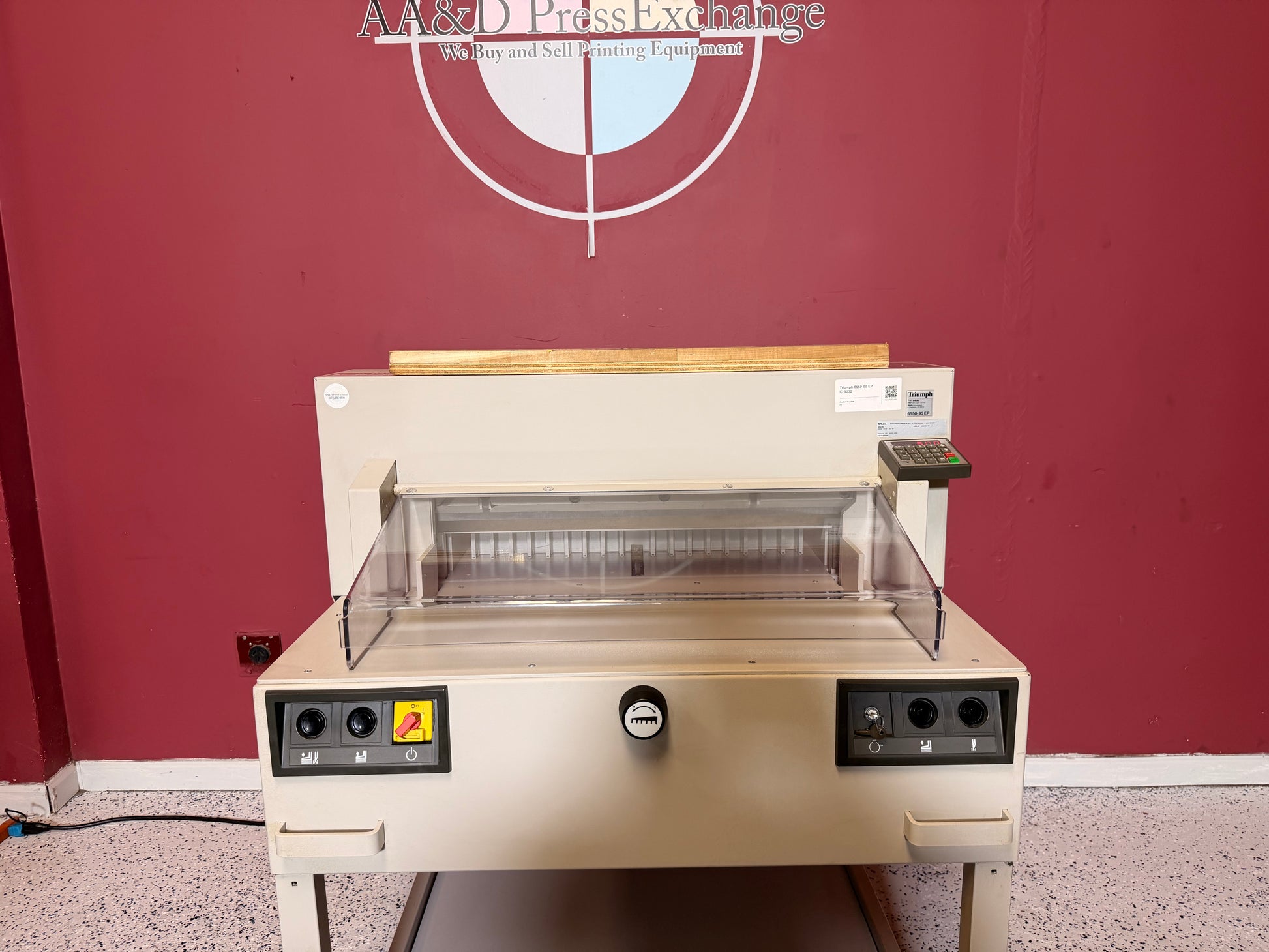

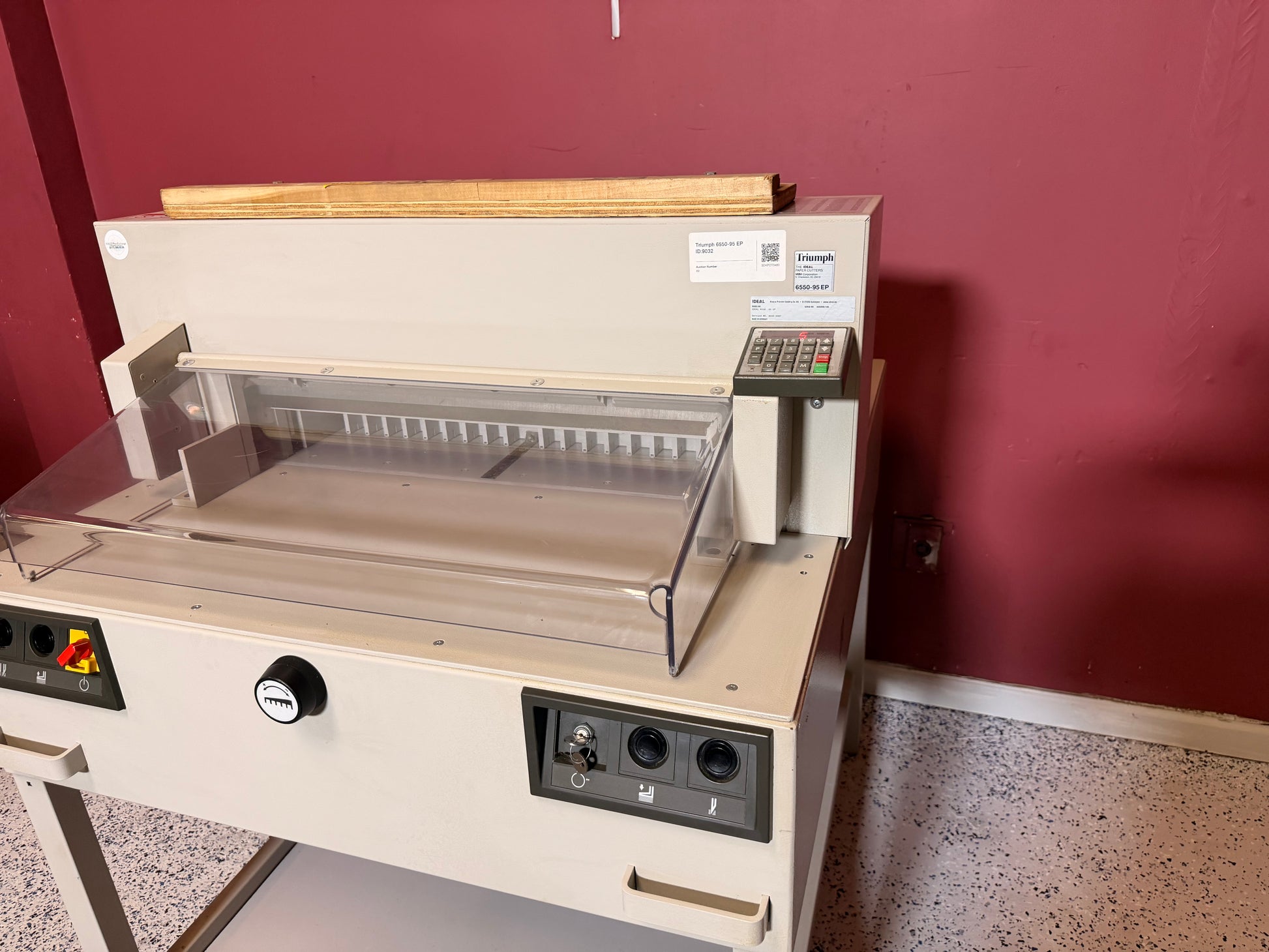

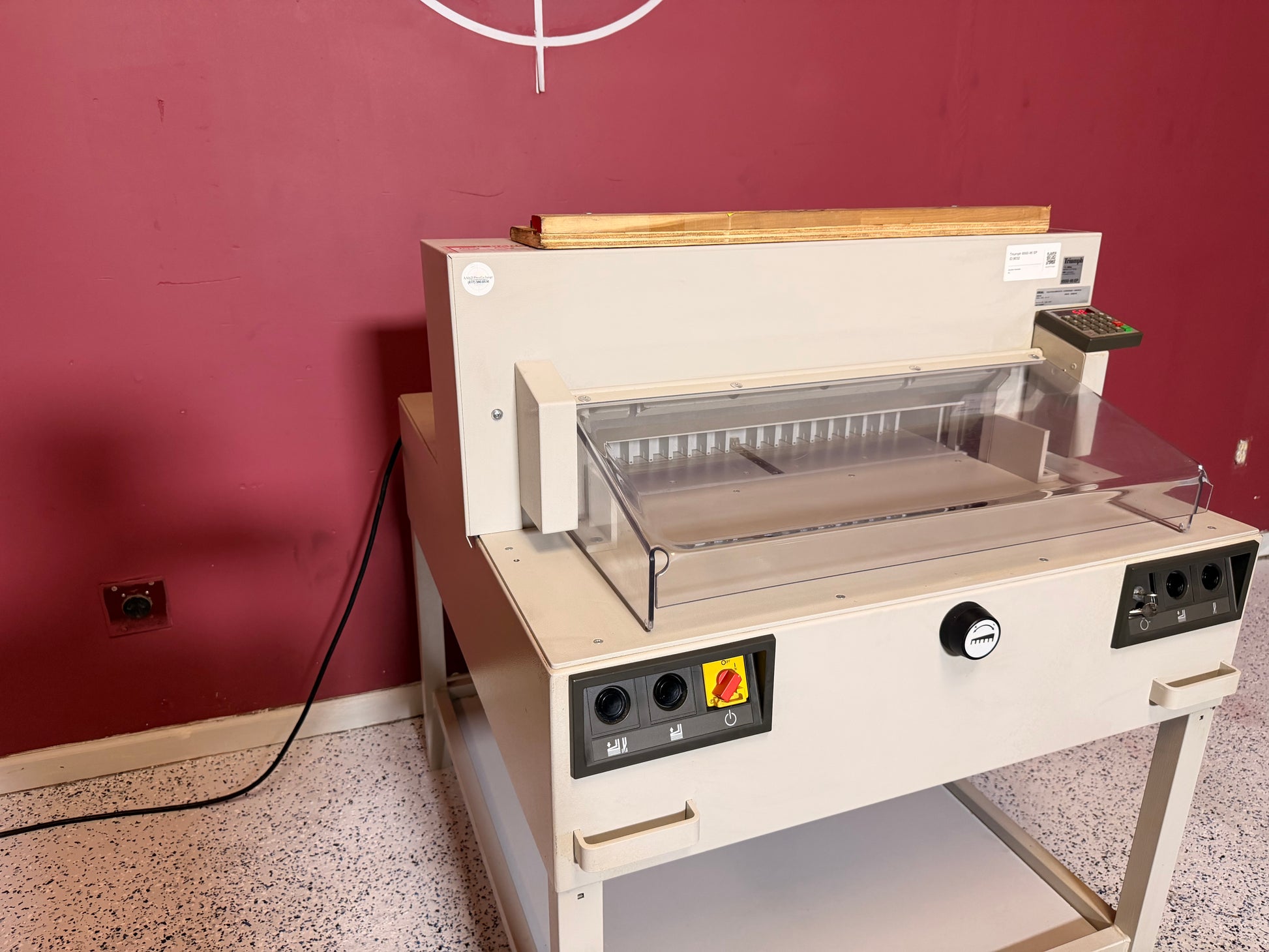

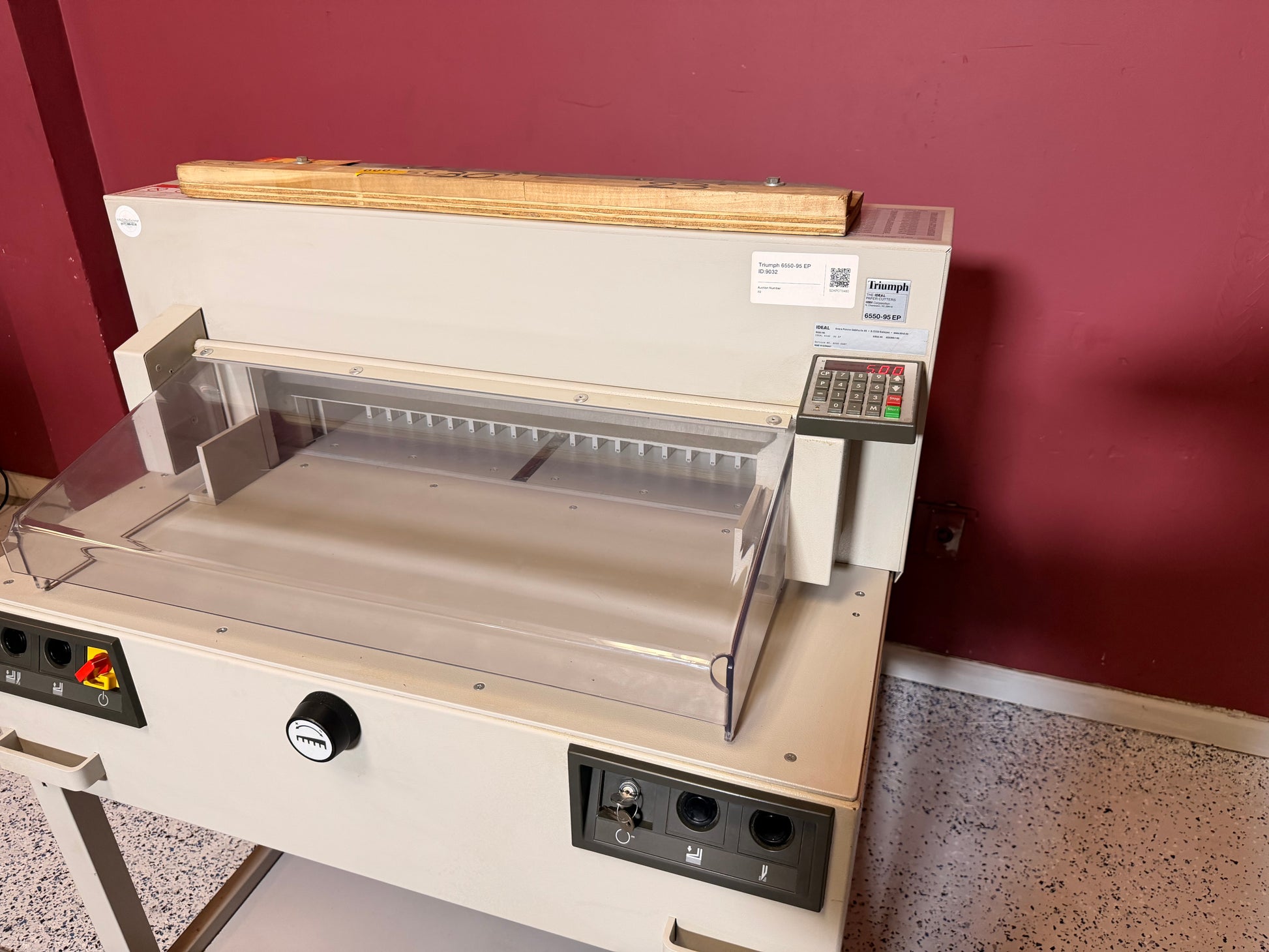

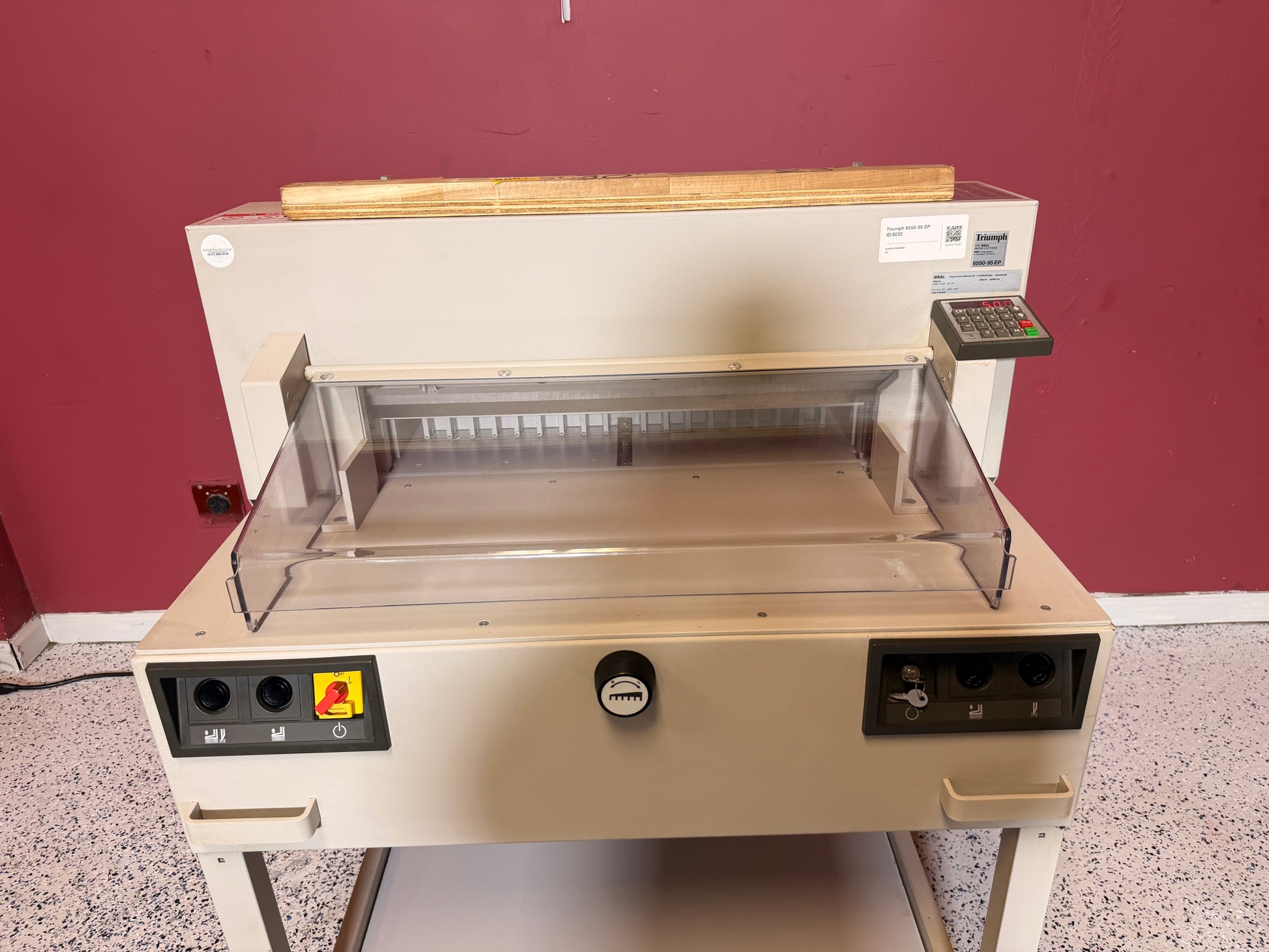

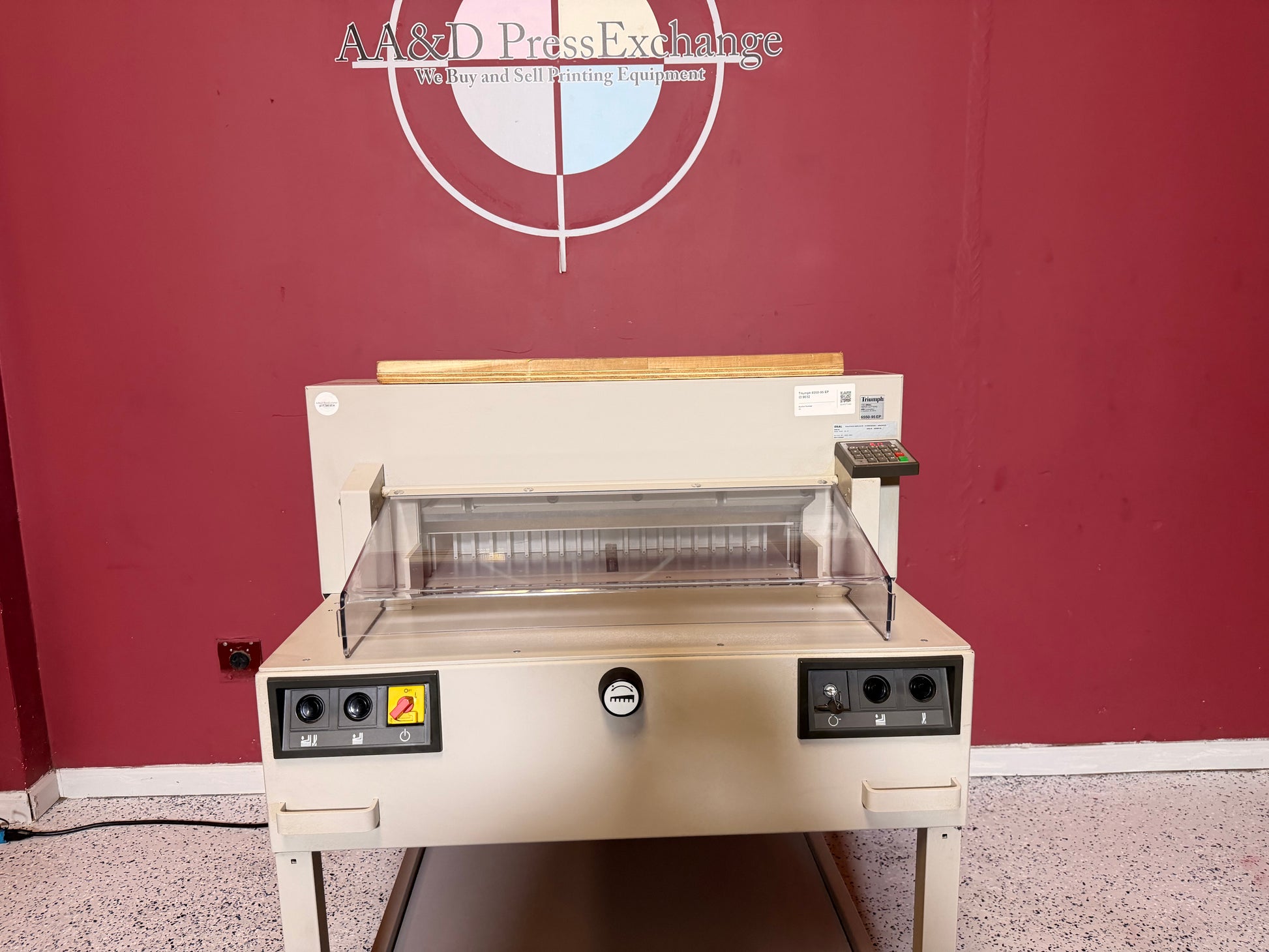

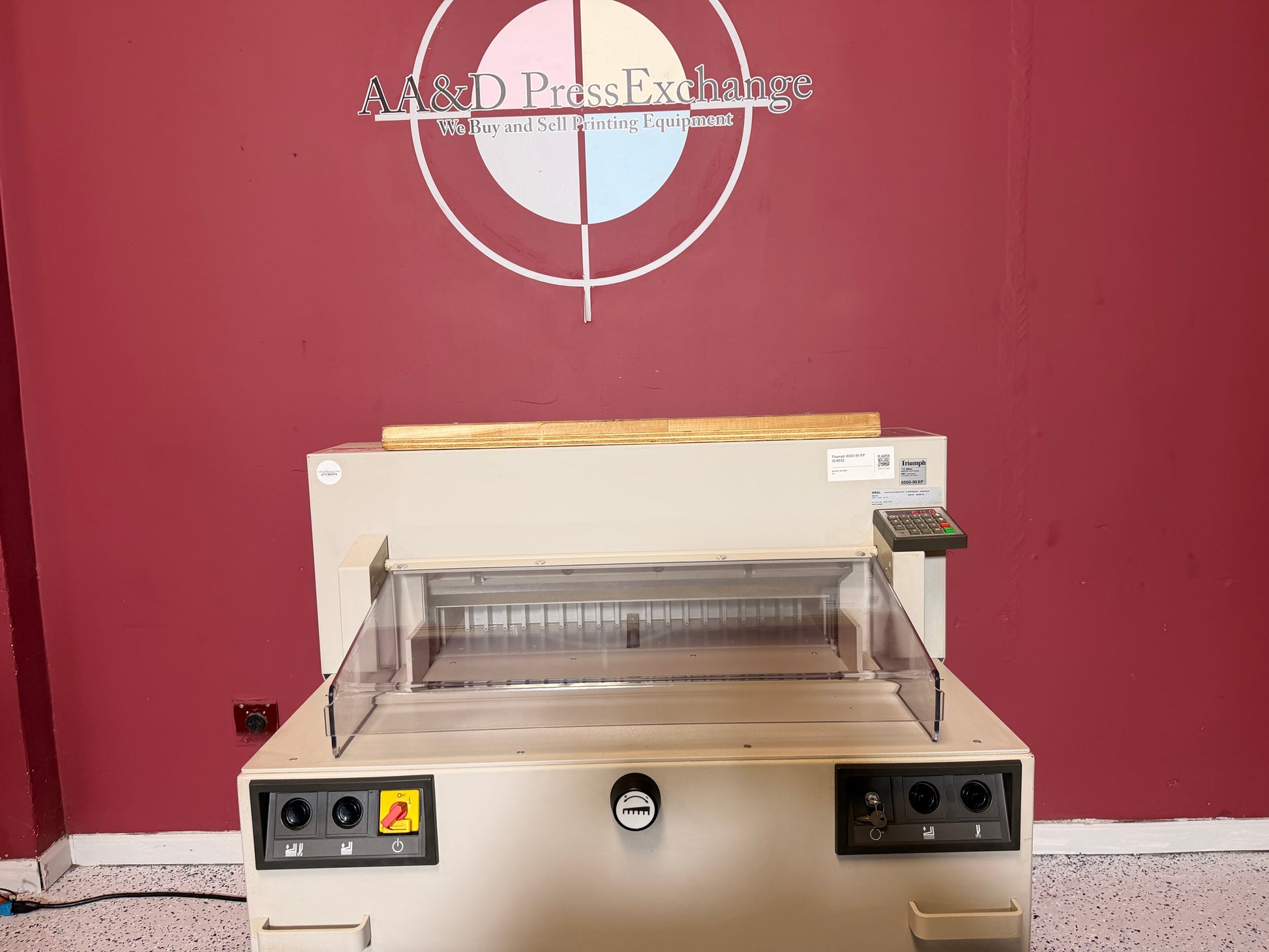

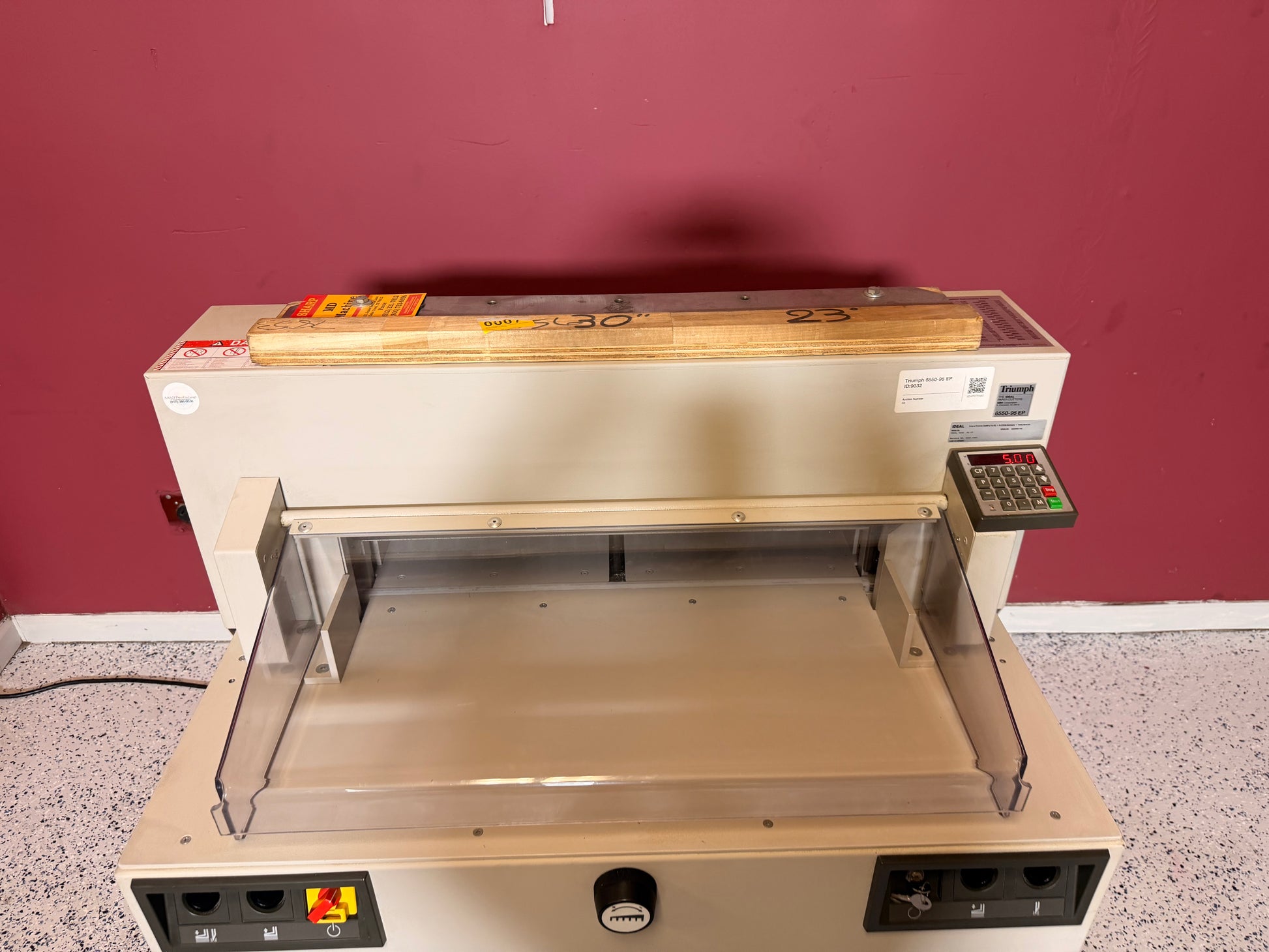

The Triumph Ideal 6550-95 EP is a programmable guillotine paper cutter engineered for demanding print shops and binderies handling large-format jobs. With electric drives for blade, clamp, and back gauge, it delivers high-volume cutting on sheets up to 25.5 inches wide and 3 inches thick.
Features:
Ideal for trimming posters, brochures, and parent stock
All-metal build ensures durability
Advanced programming and safety features boost efficiency and protect operators
Up to 25 cuts per minute
Specifications:
Max cutting width: 25.5 inches (650 mm)
Max cutting height: 3.15 inches (80 mm)
Minimum cut: 1 inch (25 mm)
Table depth in front of blade: 24 inches (610 mm)
Cutting length behind blade: 25.5 inches (650 mm)
Clamp: electric with adjustable pressure
Back gauge: electric programmable drive
Blade drive: electric with Solingen HSS steel blade
Programs: 99 programs with up to 99 steps each
Safety system: SCS with IR light curtain, rear safety cover, two-hand operation, safety lock with key
Power supply: 115 V, 60 Hz, 20 A dedicated circuit
Dimensions with stand (W × D × H): 38.5 × 41 × 53 inches
Working height: 37 inches
Weight: approximately 725 lbs (330 kg)
