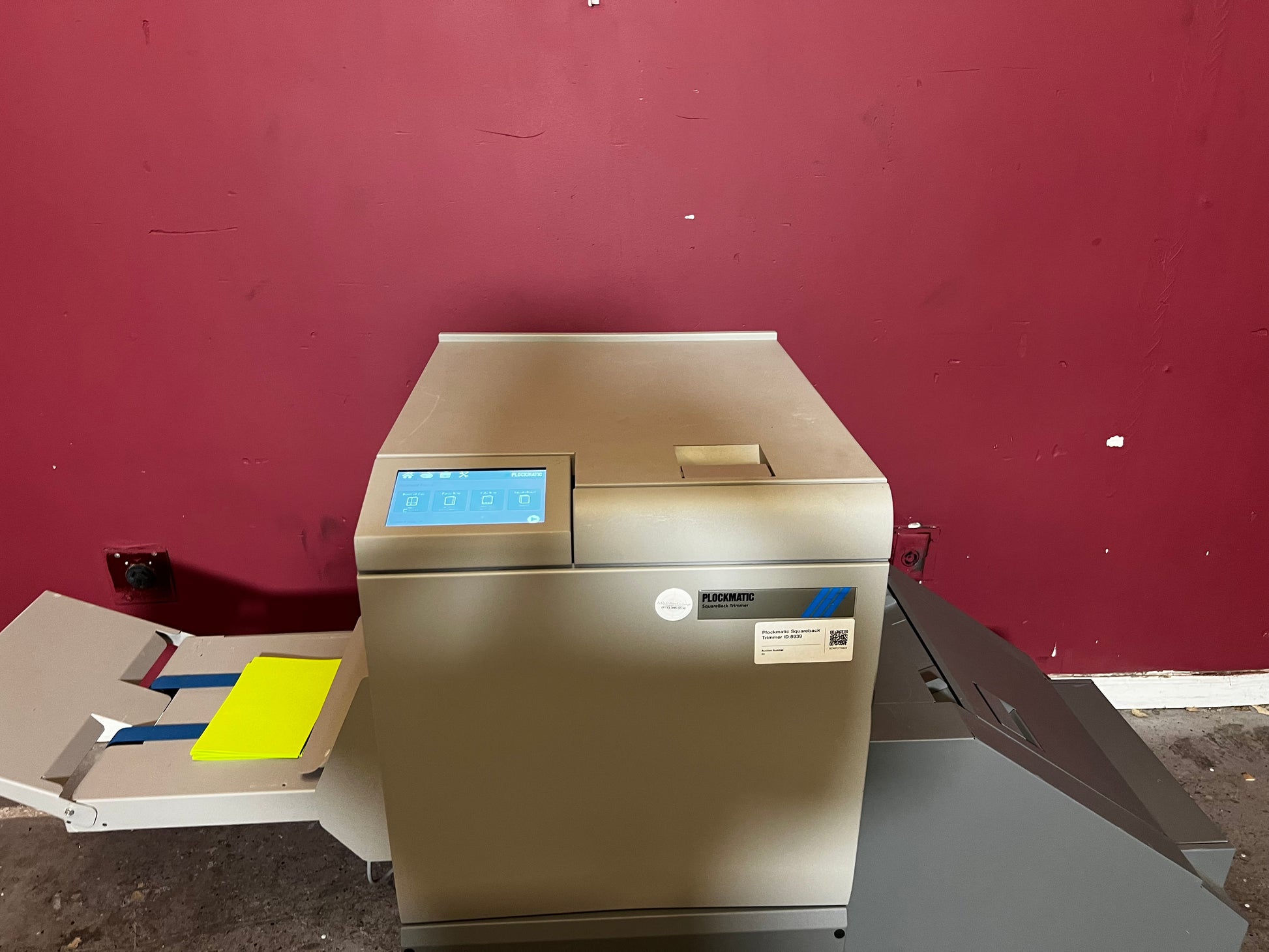

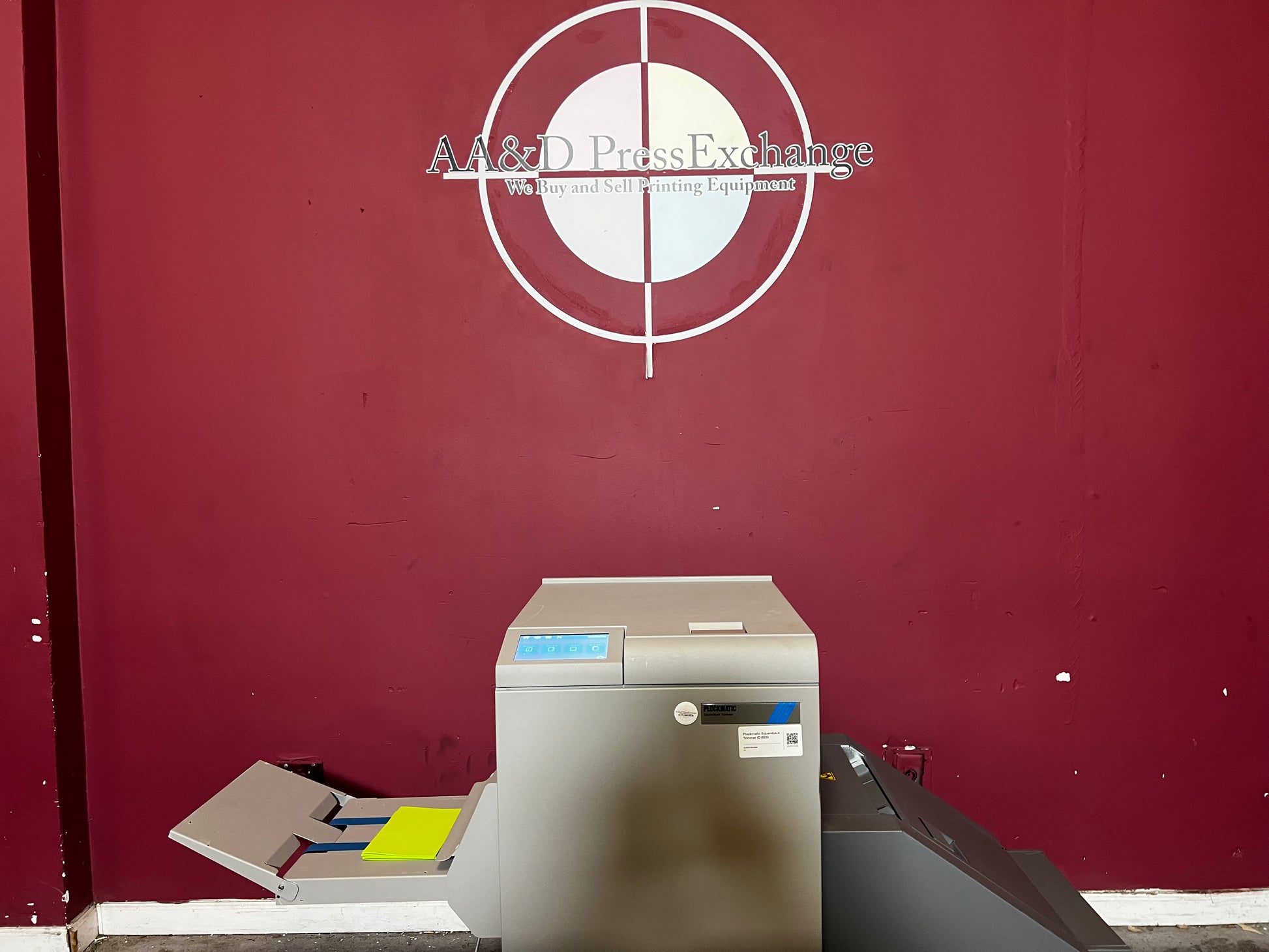

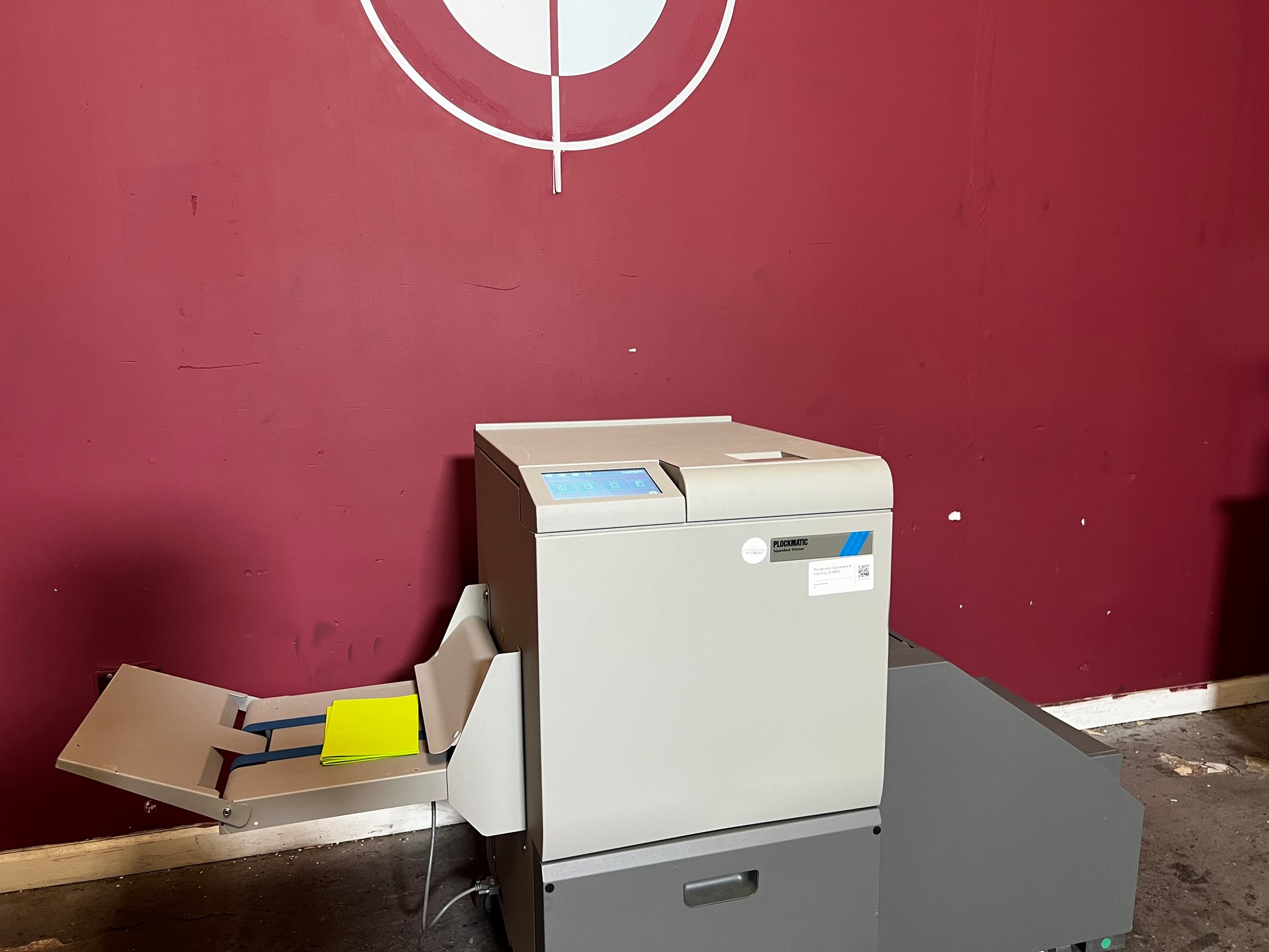

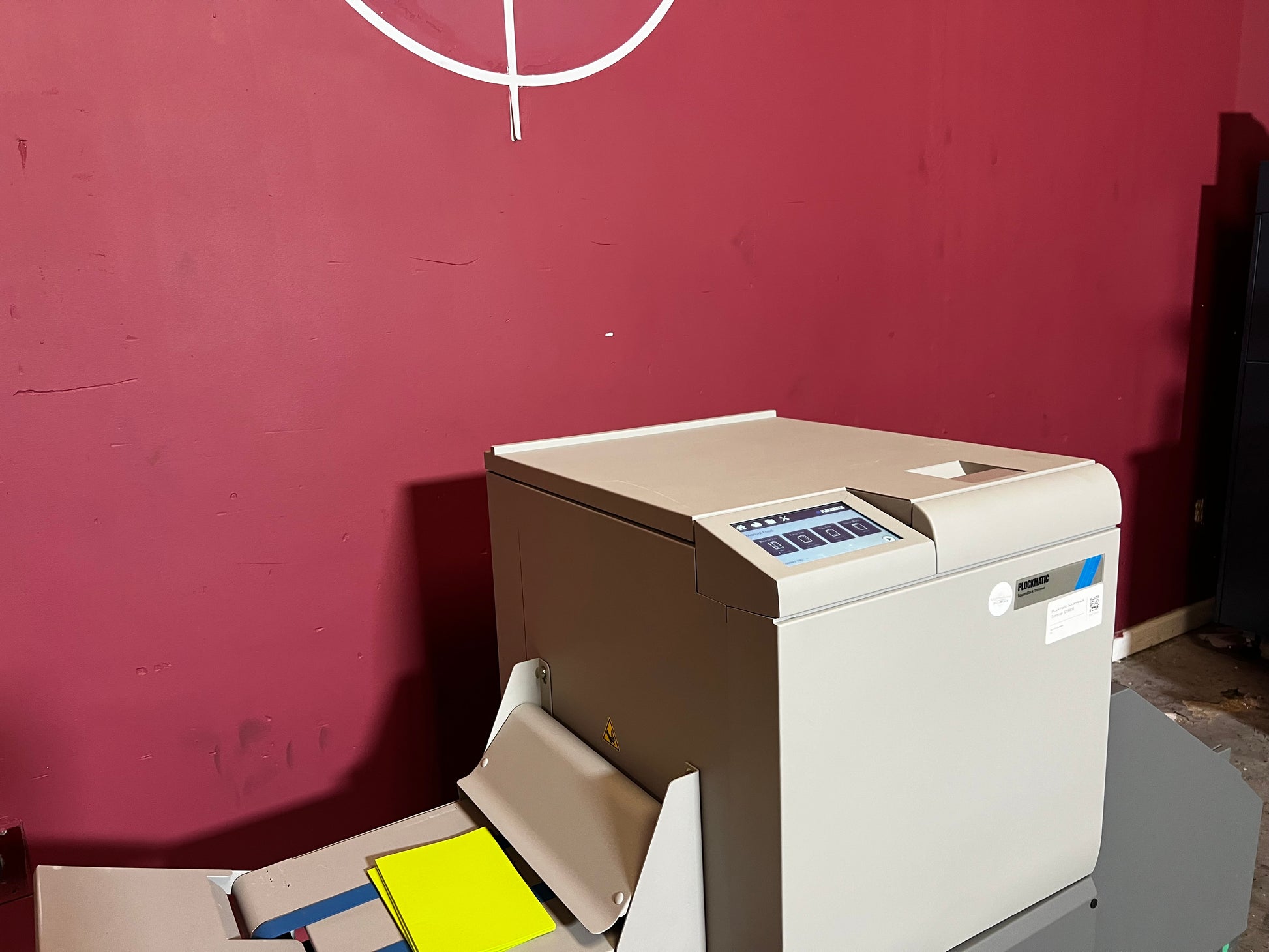

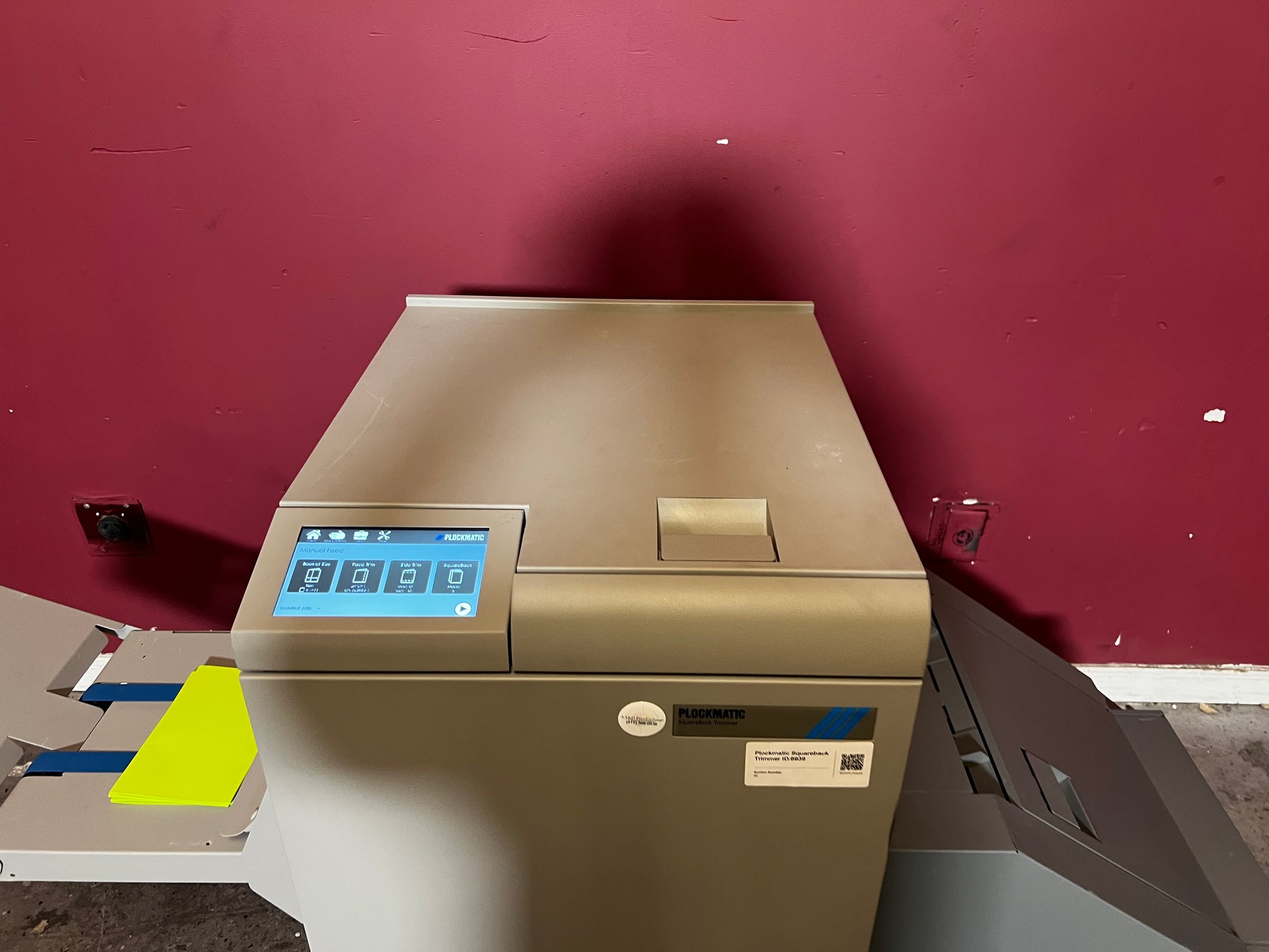

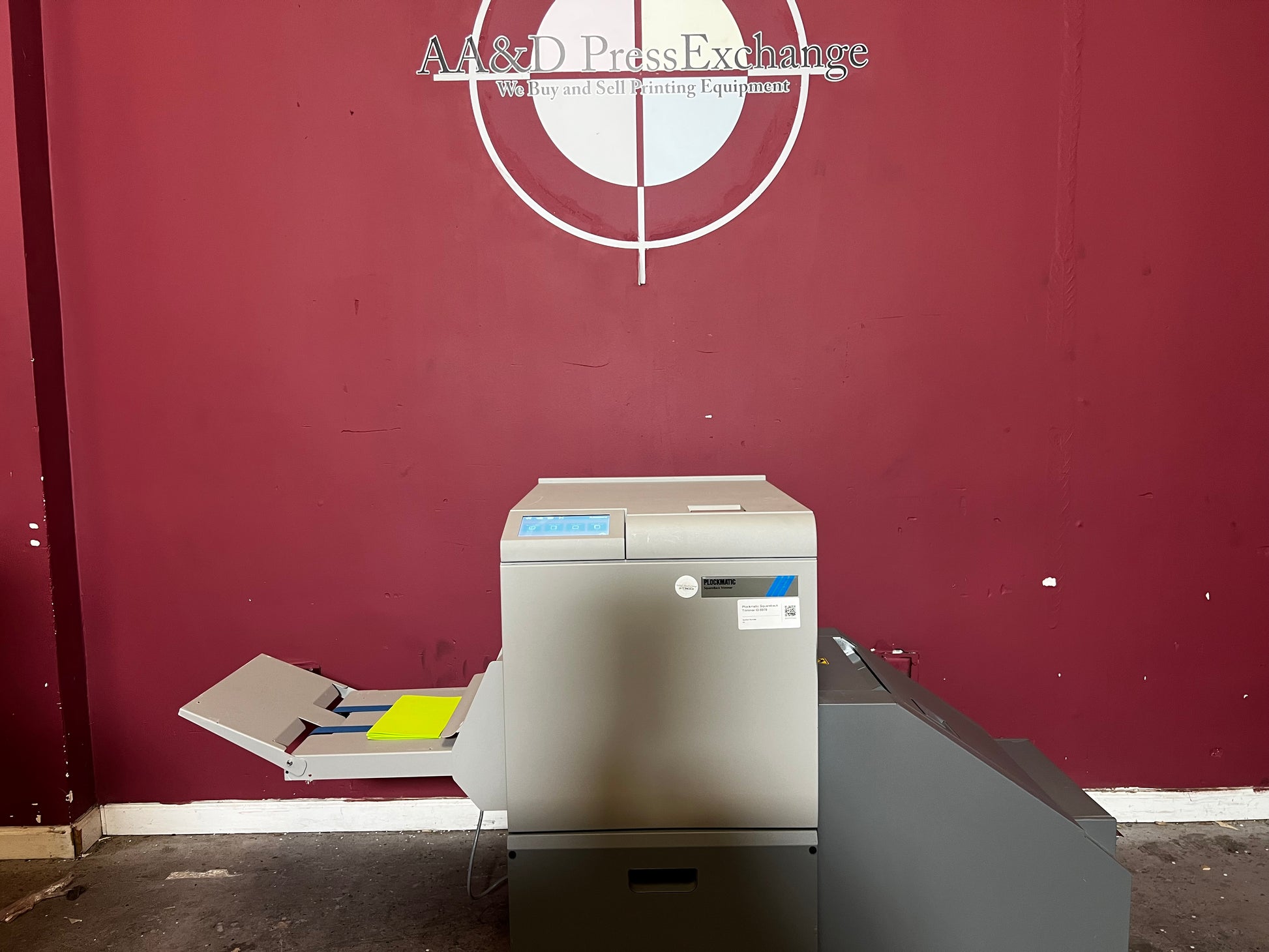

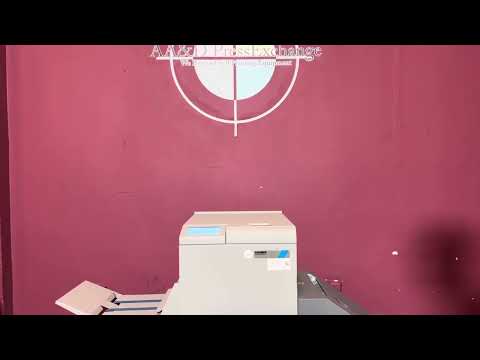

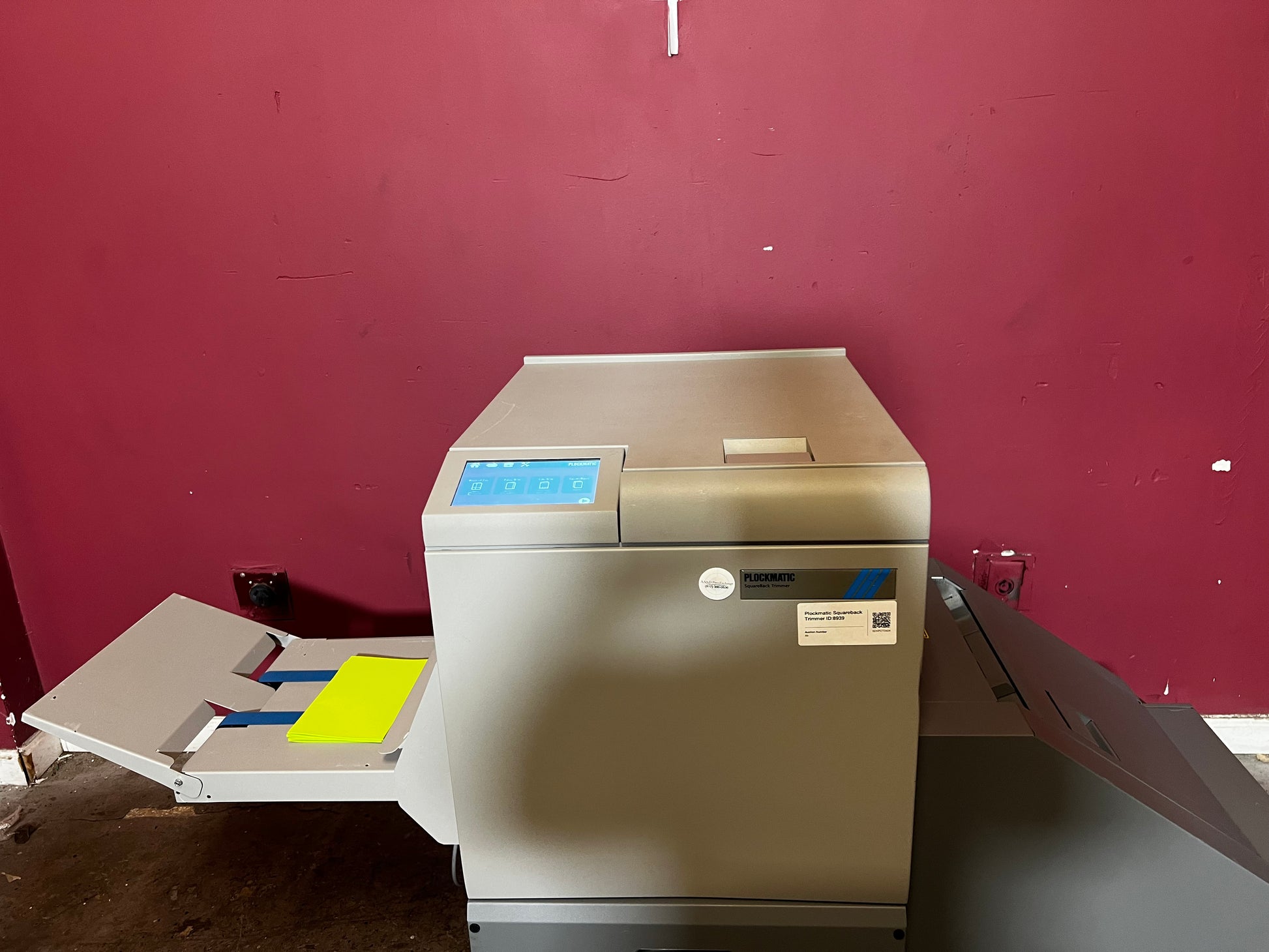

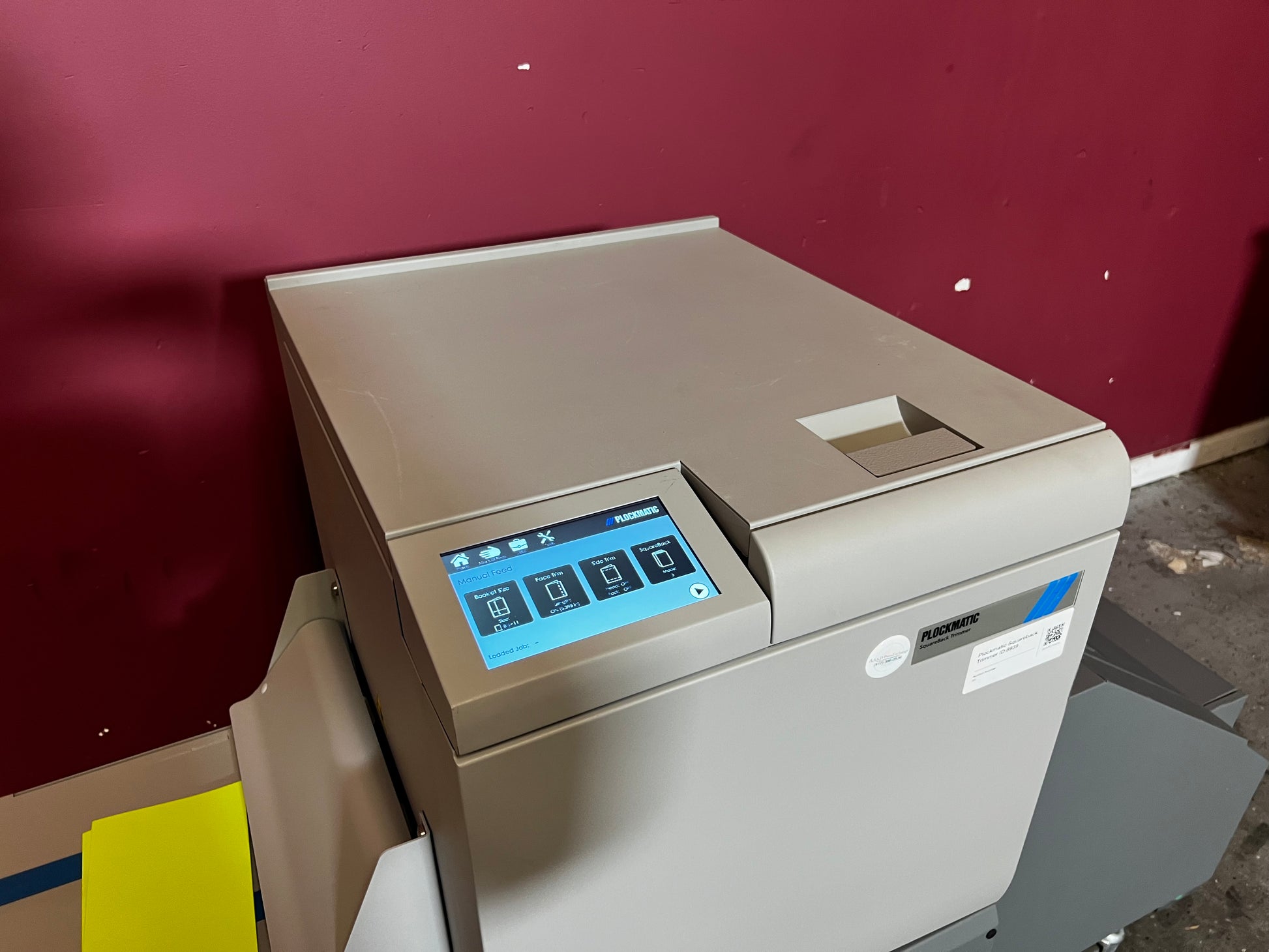

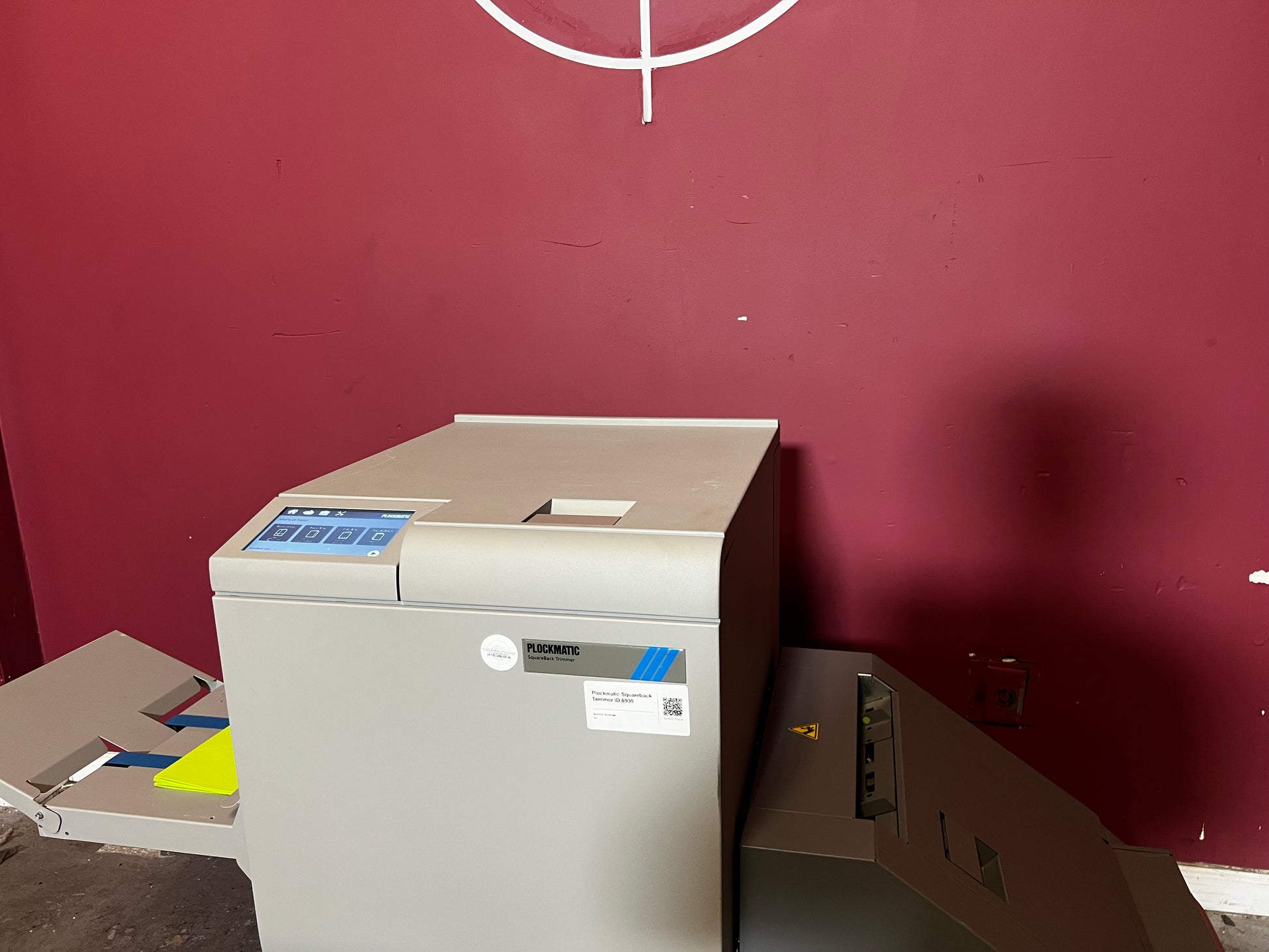

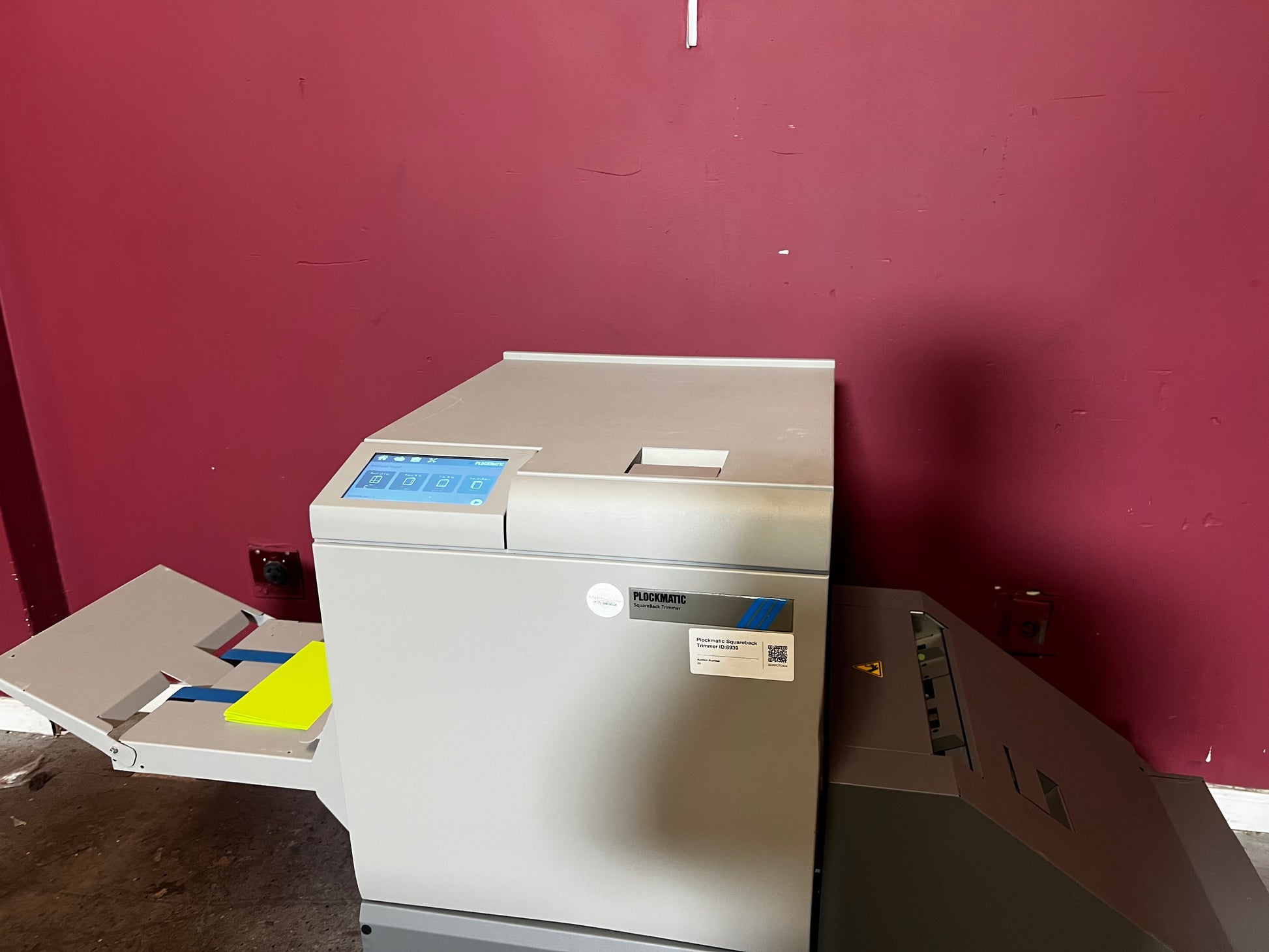

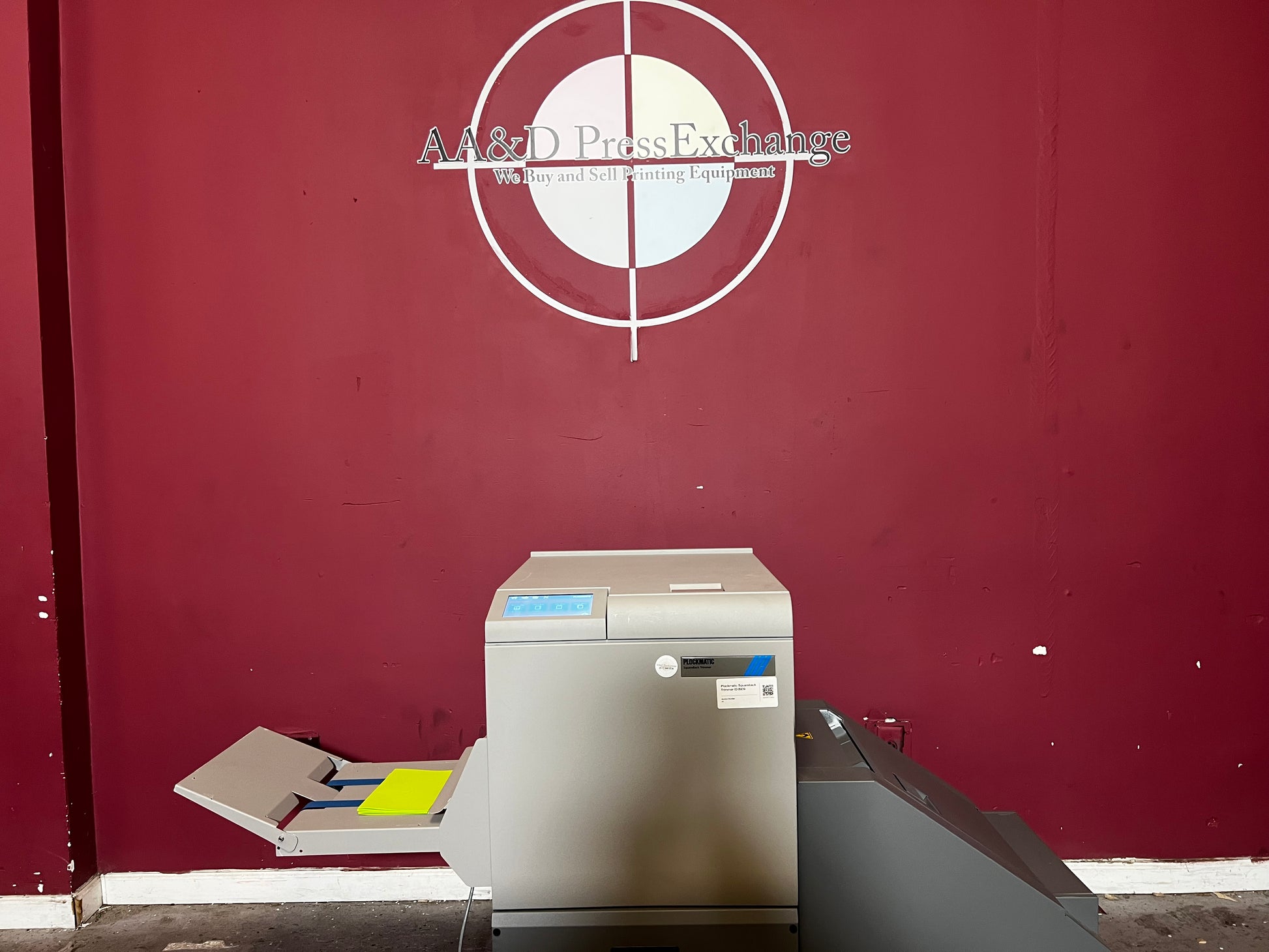

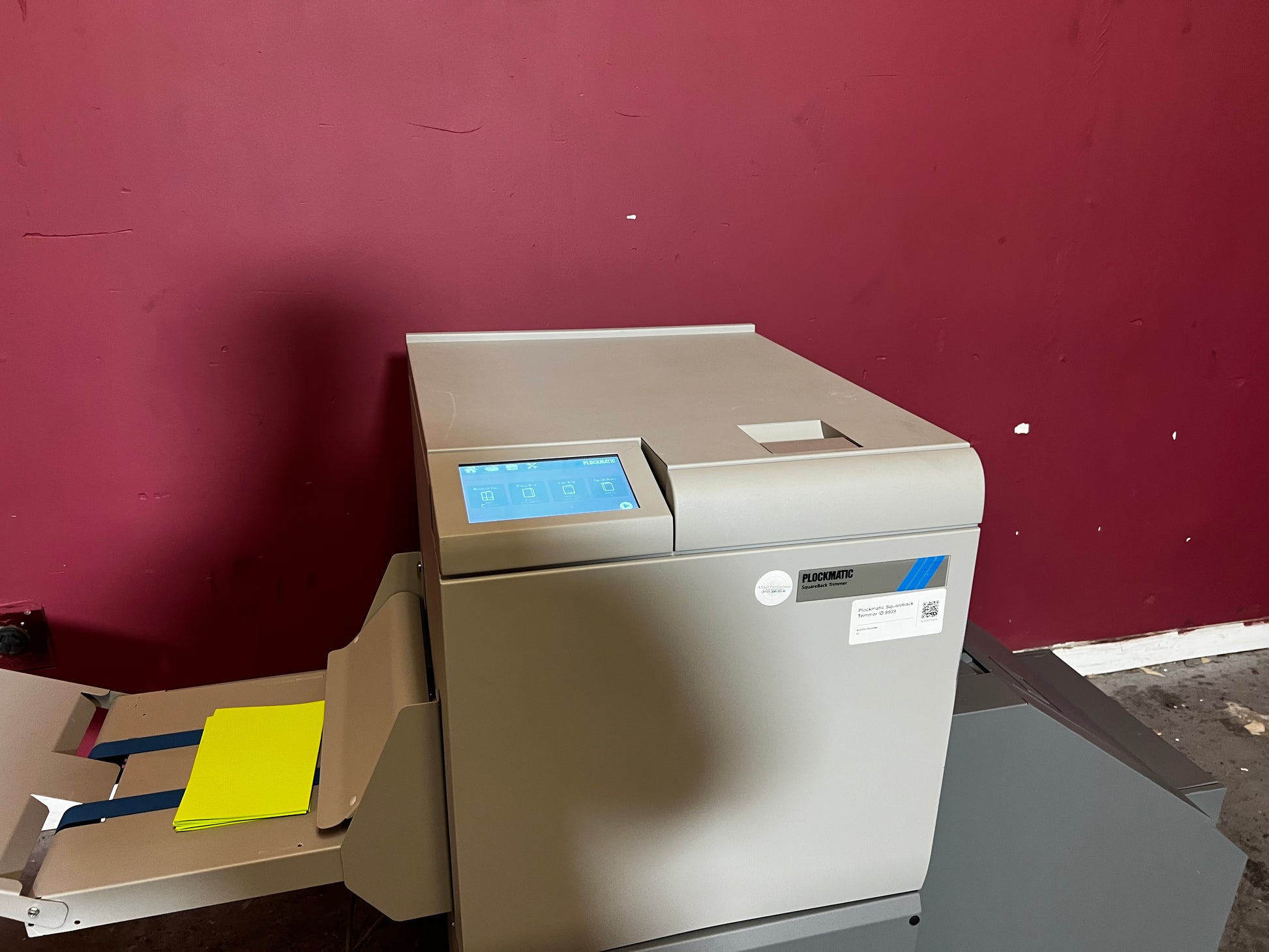

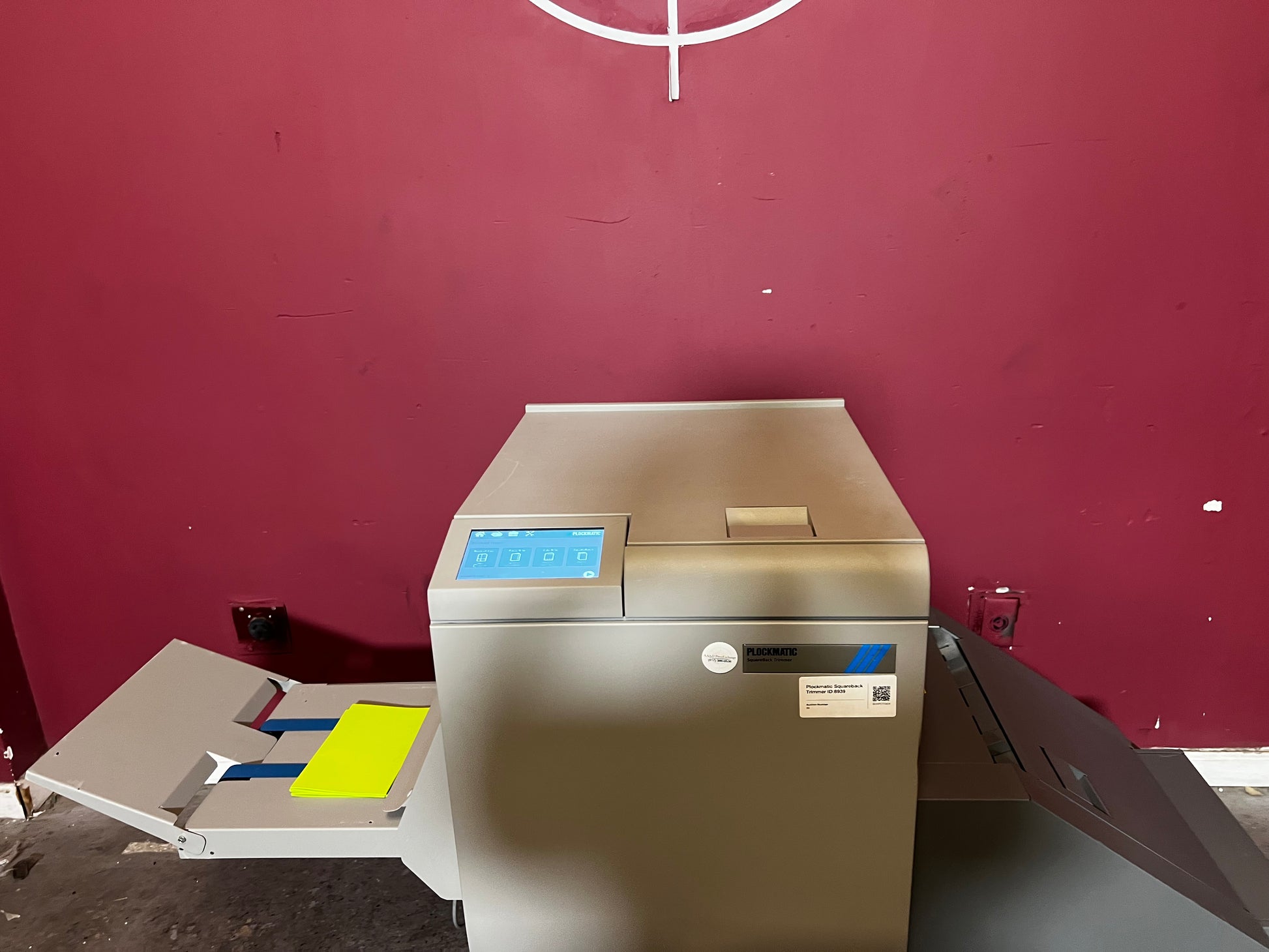

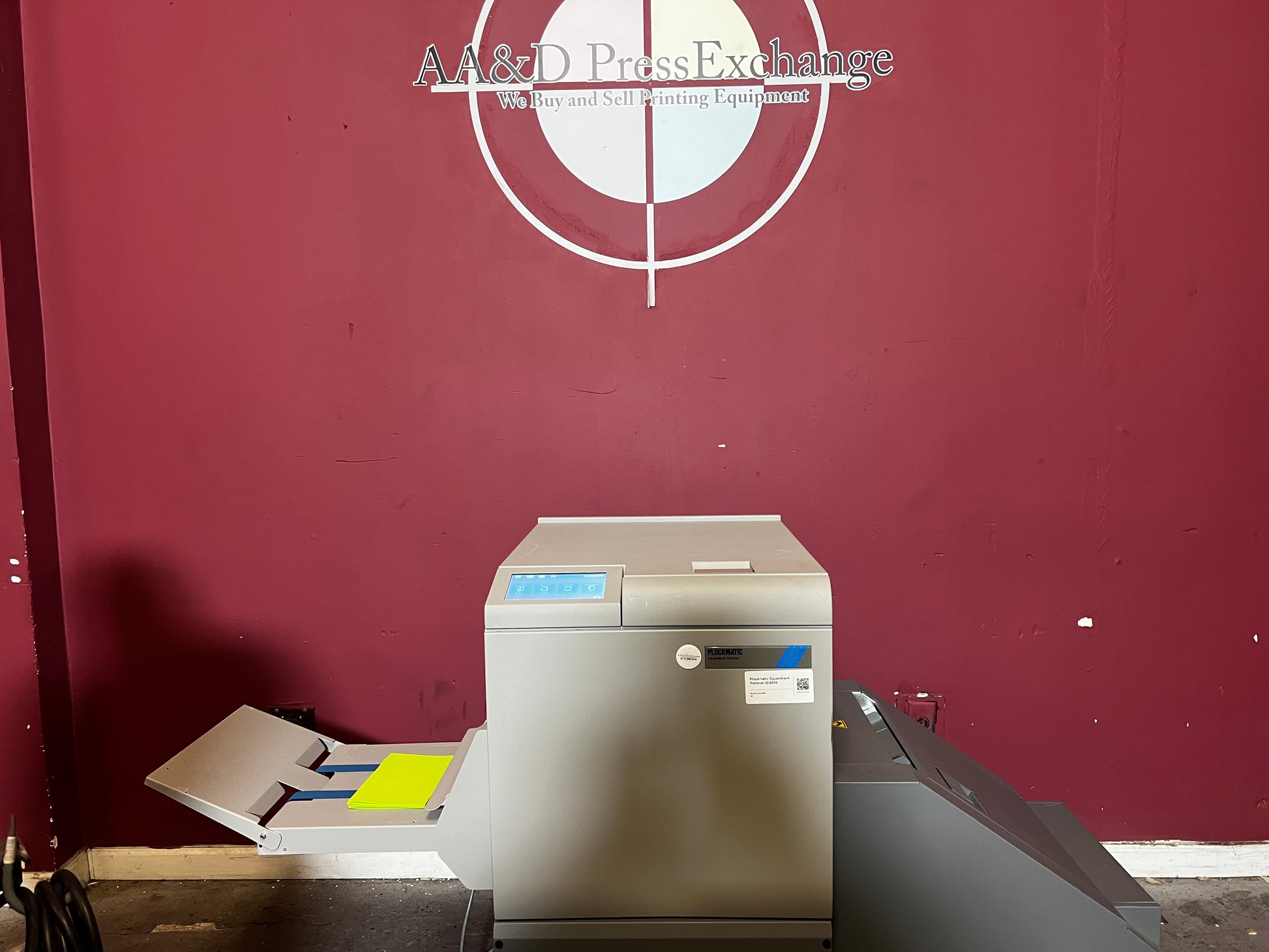

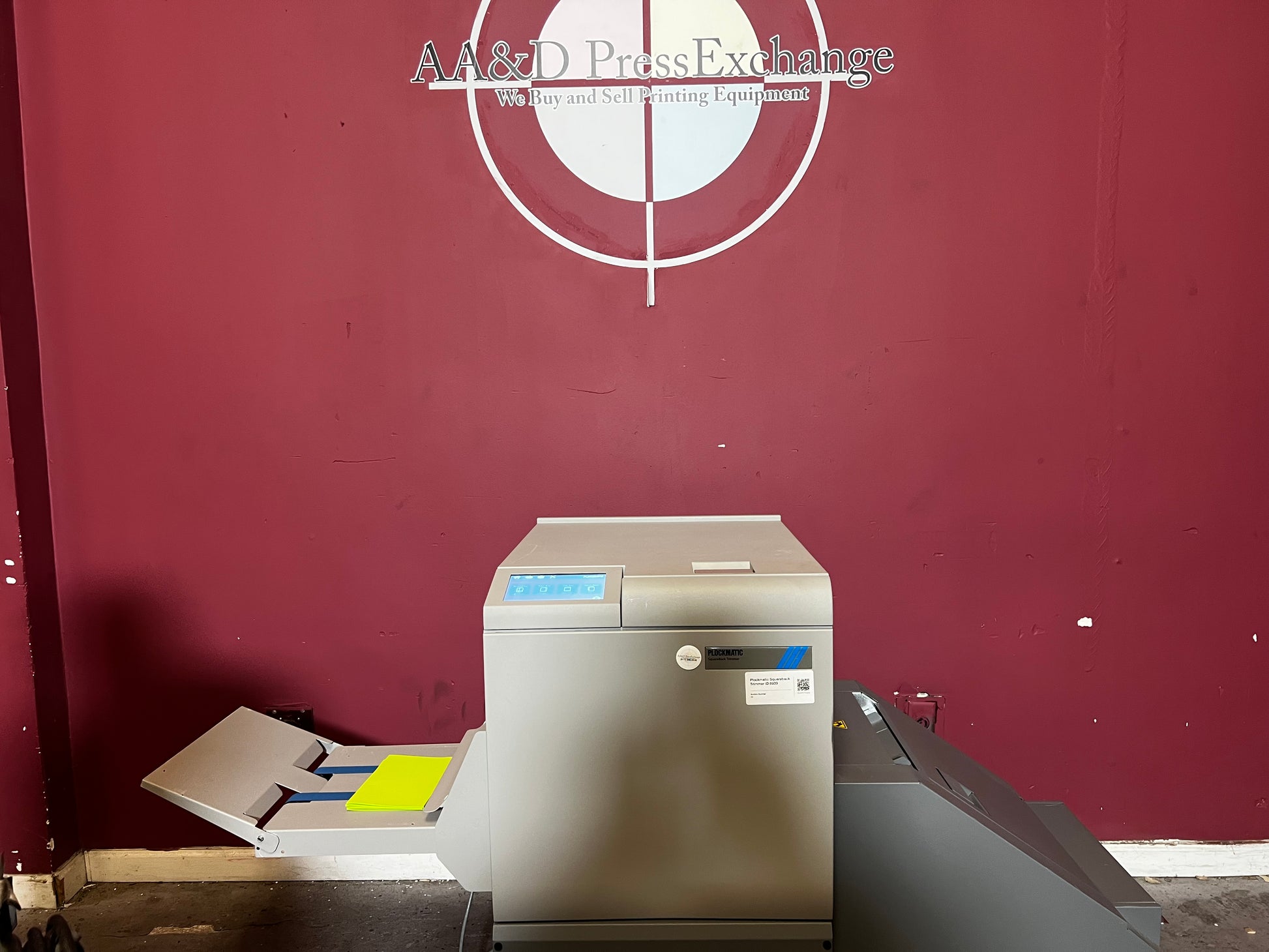

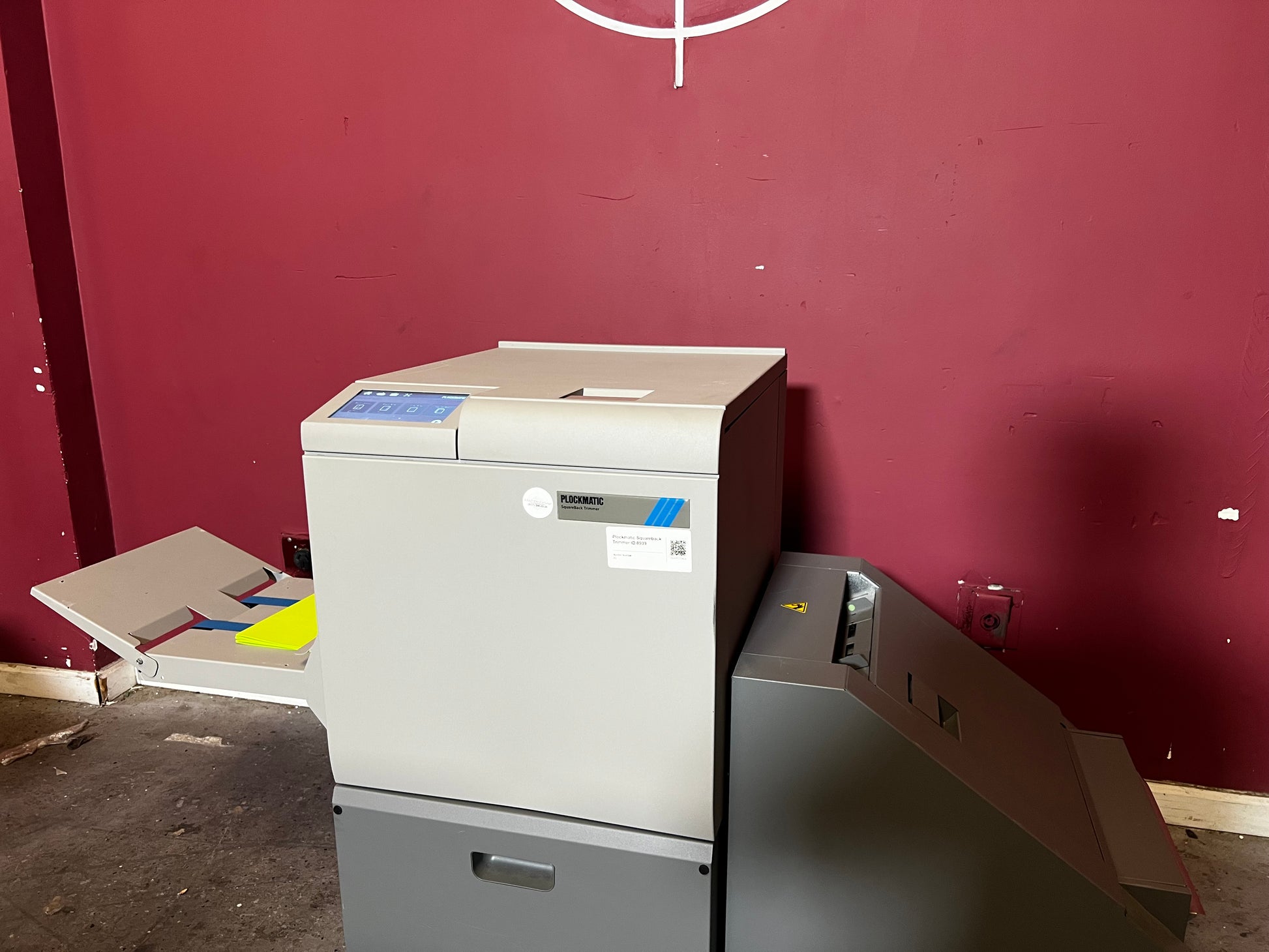

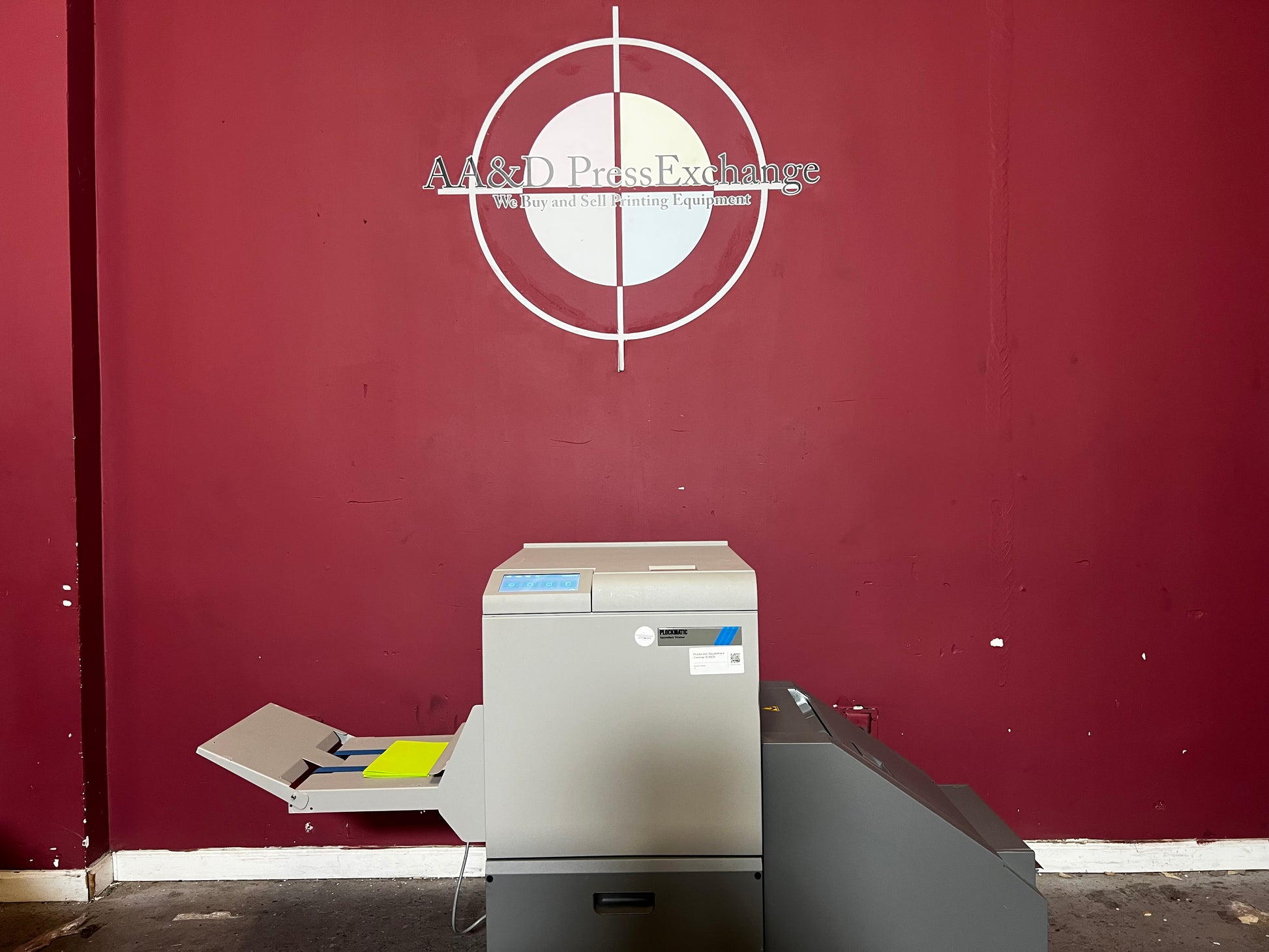

Plockmatic Squareback Trimmer includes crate and shipping.

Meter : 78,000

Specifications

Plockmatic SquareBack Trimmer

Both offline and inline

Incoming Book (Min.)180mm x 128.5mm

Incoming Book (Max.)320mm x 243.9mm

Outgoing Book (Min.)182mm x 100mm

Face trimming (Min.)1mm

Face trimming (Max.)210mm

Side trim (Max.)24mm

Set thickness: Side trimming mode (Max.)9 sheets 80gsm

Set thickness: Hand Feed mode (Max.)20 sheets 80gsm

Set thickness in Inline mode (Max.)30 sheets 80gsm

Paper Weight (Min.)64gsm uncoated, 100gsm coated

Paper Weight (Max.)300gsm (350gsm supported on some media)

Compatible Print Engines

Ricoh Pro™ C5400 Series

Ricoh Pro™ C7500 Series

Ricoh Pro™ C9500 Series

Ricoh Pro™ 8400 Series

Interface

Ricoh SR5120
