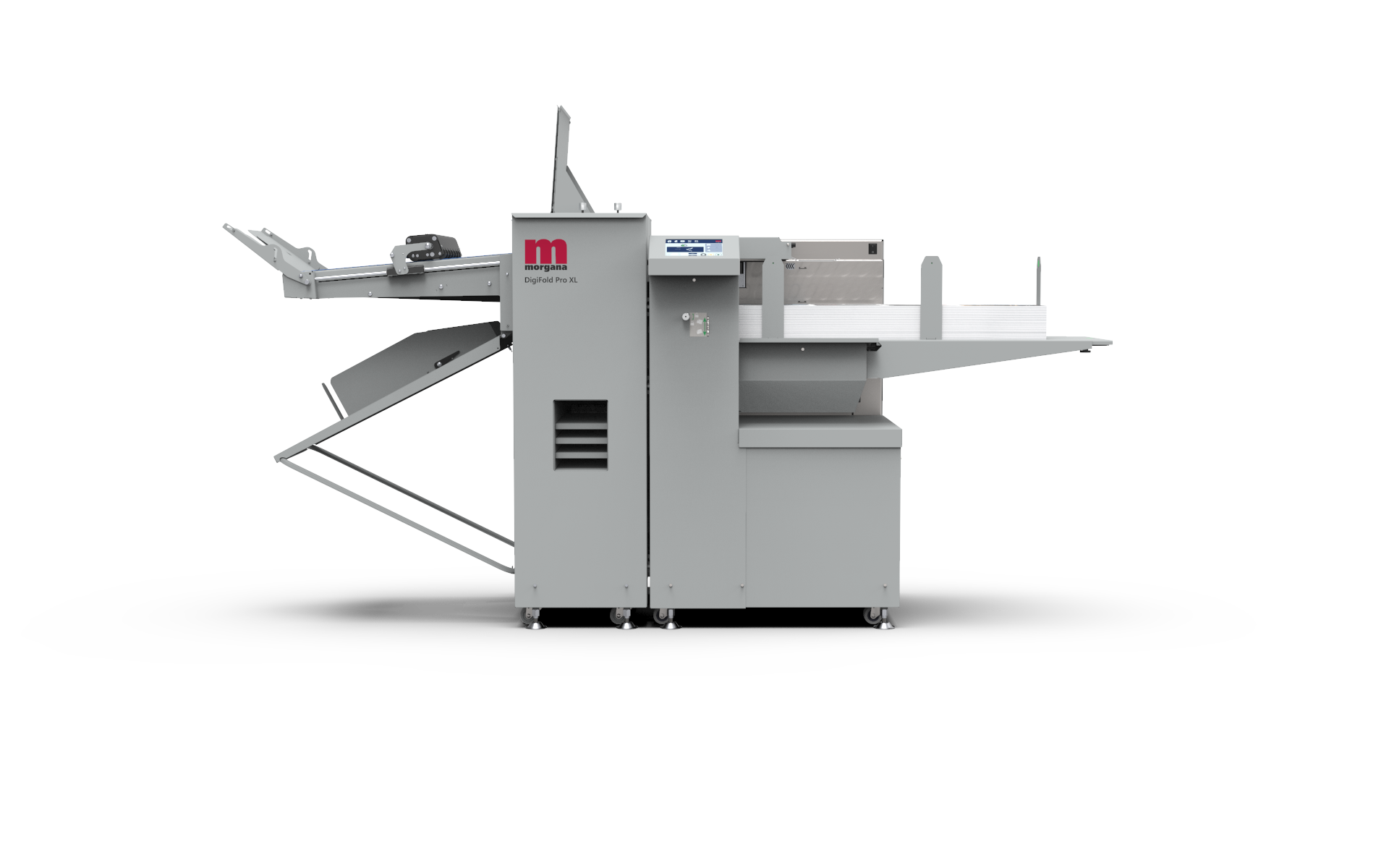

Morgana DigiFold Pro XL

The Morgana DigiFold Pro XL is the latest addition to the DigiFold family. Developed on the well proven Morgana DigiFold Pro, built with our unique, open design, suction feeder that handles stock sizes from 210 – 1300mm / 8.3’’ – 51’’  in length. This heavy-duty automatic creasing and folding system is designed to complement mid to high volume digital and offset production presses.

The Morgana DigiFold Pro XL is designed to complement the long sheet capabilities enabled in the production printers of today. It features a standard pull-out extension that enables sheet sizes up to 1300mm / 51’’. This opens the door to new applications, such as covers for landscape booklets, book covers for oversized perfect bound books, multi-panel brochures and many other applications made from these long sheets.



Specifications

Morgana DigiFold Pro XL

Max loading capacity 200mm / 7.8’’*
*100mm / 4’’ for sheet lengths above 700mm / 27.5’’

Max paper size W x L: 385mm / 15’’ x 700mm / 27.5’’*
*385mm / 15" x 1300mm / 51" with extension table

Min paper size W x L:
93mm / 3.89’’ x 210mm / 8.25’’

Max paper thickness:
400gsm / 0.015’’

Min paper thickness:
80gsm / 0.0035’’

Max sheets per hour:
6000 Sheets per hour, A4/half fold, one crease only 7,500. DynaCrease standard, Static crease optional

Max number of creases per sheet:
30 (with optional static creasing tool)

Min crease to crease distance
0.1mm / 0.0039’’

Stacker capacity
120

Footprint with table extension
2765mm / 108.85" x 730mm / 28.74"
