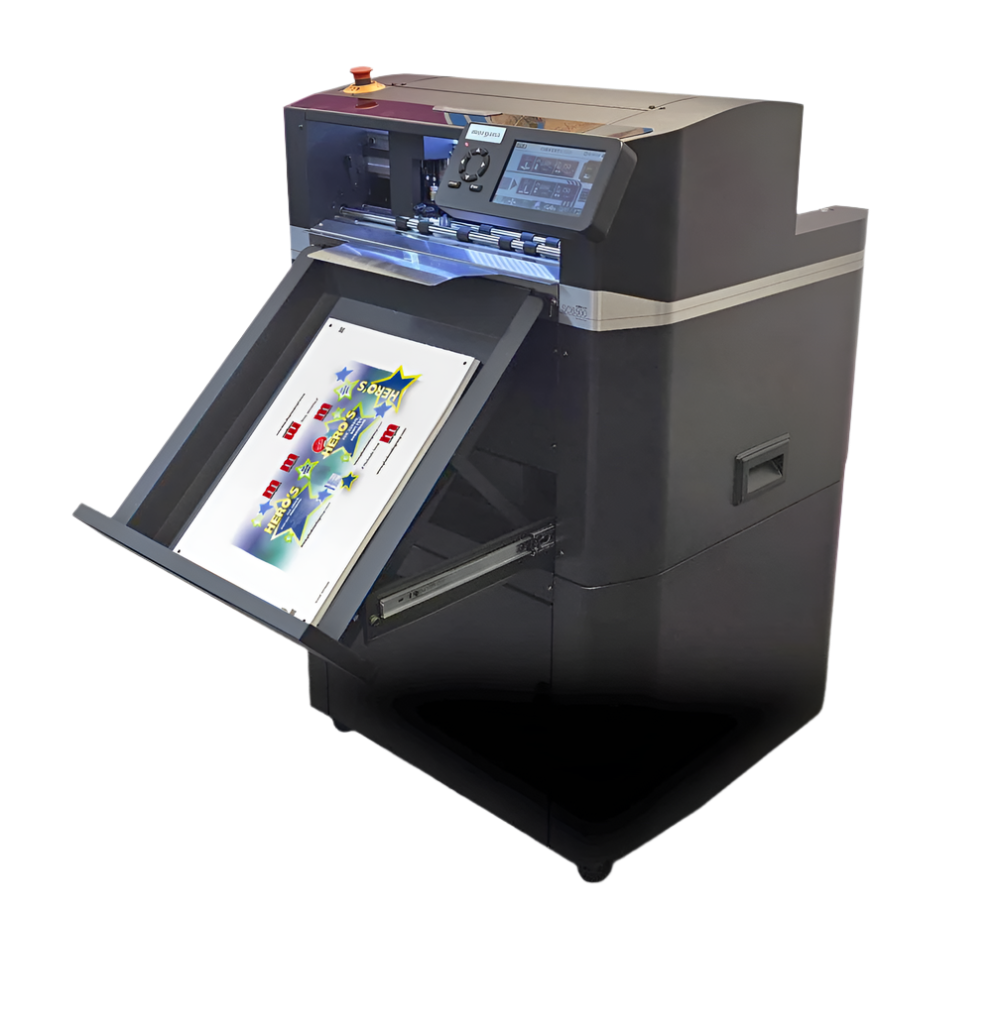

Morgana ColorCut SC6500


Morgana ColorCut SC6500 – Automated sheet fed digital die-cutter for sheet card and labels with creasing

Building on the successful SC6000 series, the new SC6500 offers a new ‘No Wires’ working environment.

The SC6500 is a compact dual tool digital cutter offering a highly advanced and reliable high capacity (1,000 sheets) auto-sheet feeder to cut and crease light sheet card (up to 350micron), or labels, to any shape without any set up costs.

With its unique and reliable vacuum belt feeder, the SC6500 can be left to cut unattended, while the camera registration system automatically retrieves cut files by reading the QR codes on each sheet.

The ‘No Wires’ working environment allows users to operate the cutter without being connected to a PC or to learn a new software program. This especially suits the production and manufacturing environments, where a fast turn around time is essential.



Specifications

ColorCut SC6500

Minimum Media Size 180 (w) x 279mm (l) / 7.08" (w) x 10.98" (l)
Maximum Media Size 340 (w) x 710mm (l) / 13.38" (w) x 27.95" (l)
Maximum Working Area (dependent on media) 330 x 700mm / 12.99" x 27.55"
Width 770mm (820mm inc. screen) / 30.3" (32.3" inc. screen)
Depth 850mm / 33.5"
Height 1230mm / 48.4"
Weight 115kgs / 254lb
Max Speed 1060mm per second / 41.7" per second
Power Supply AC 110-220V 50/60Hz, 0.5A
Connectivity USB (1 connection to PC is required)
Data Buffer External PC
Feeder Capacity 85mm / 3.34" stacker height (Up to 1,000 sheets for auto-sheet feed, based on 80gsm / 21lb bond media)
Tooling Twin head (1 x cutter 1 x creaser)
