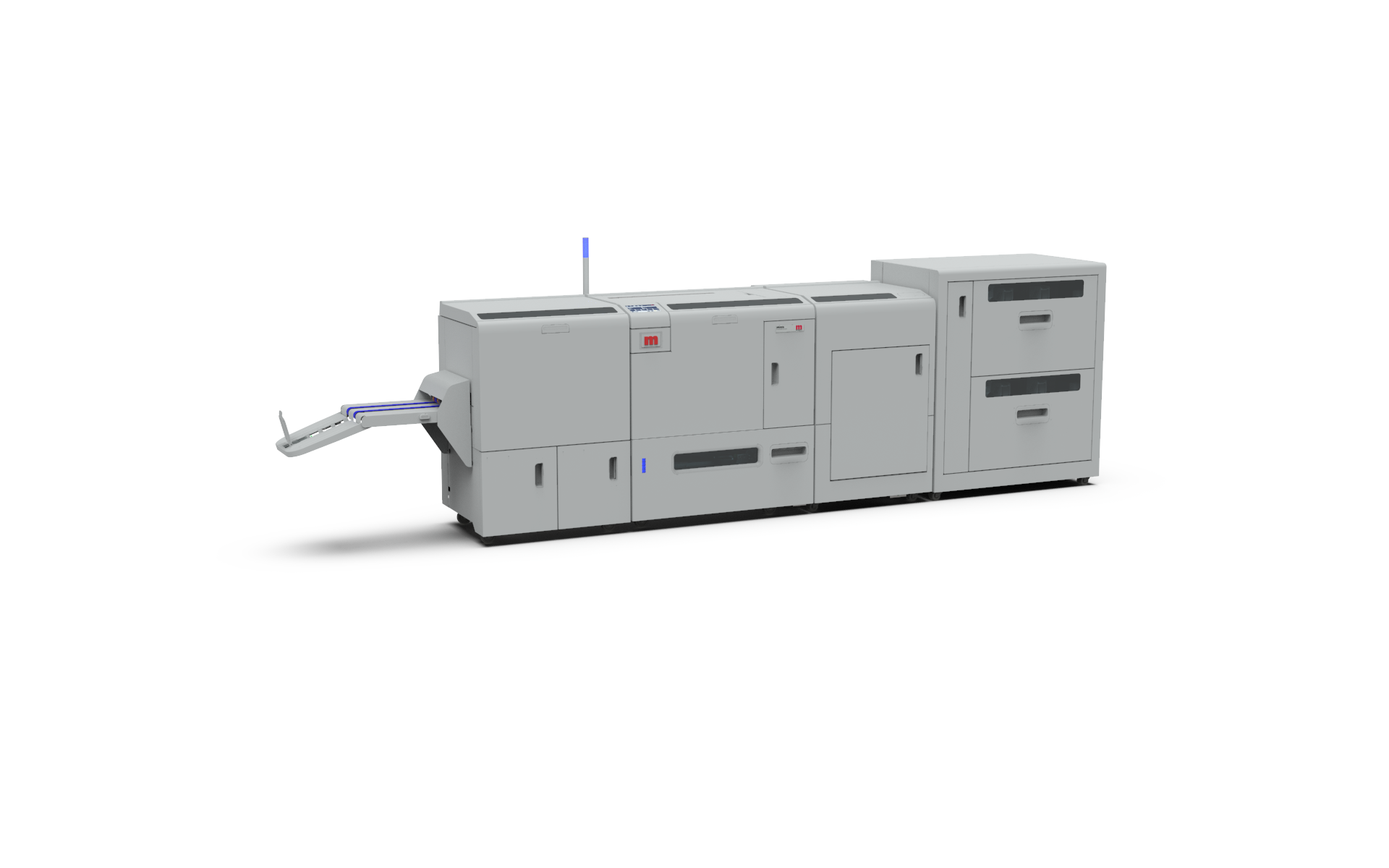

The NEW Morgana BM5000 series booklet makers produce booklets in a variety of sizes – A4 / US Letter landscape, A6 / 6″ x 4″ 2-up and more.

The all NEW Morgana BM5000 series booklet maker series is the latest member of the Plockmatic Group booklet making family. Engineered for mid-to-high volume customers with the highest quality and functionality requirements.

With an increasing number of printing systems available to handle larger cut-sheet sizes, A4 / US letter landscape and oversize booklets can now be produced easily and cost-effectively. The new BM5000 Series delivers these new applications by handling up to 620mm / 24.5″  long sheets.

The BM5035S/5050S, with its optional 4 stitching head configuration, lets you finish jobs that have been imposed 2 up on a sheet, 30 sheets only when using four stitch heads. This functionality offers you higher productivity and reduced costs per book.



Key Features


Morgana BM5035/BM5050

  • Paper Size Min: 206 x 210mm / 8.1″ x 8.27″ to Max: 320 x 620mm / 12.6″ x 24.4″
  • Stock Range: 65 – 300gsm / 18lb bond – 110lb cover dependent on paper

Set thickness:

  • Minimum set thickness: 1 sheet 80gsm / 20lb bond (when folded makes an 4 pageleaflet)
  • Maximum set thickness: 3.5mm / 0.39” and 5mm / 0.197” (approx. 50 sheets of 80gsm / 20lb bond)



Morgana BM5035S / BM5050S

  • Paper Size Min: 120 x 210mm / 4.73” x 8.27” to Max: 320 x 620mm / 12.6” x 24.4”
  • Stock Range: 65 – 300gsm / 18lb bond – 110lb cover dependent on paper

Set thickness:

  • Minimum set thickness: 1 sheet 80gsm / 20lb bond (when folded makes an 4 page leaflet)
  • Maximum set thickness with two stitch heads: 3.5mm / 0.39” and 5mm / 0.197” (approx. 50 sheets of 80gsm / 20lb bond)
  • Maximum set thickness with four stitch heads: 3mm / 0.118” (approx. 30 sheets of 80gsm / 20lb bond)

Book thickness:

  • Maximum finished book: book thickness – 10mm / 0.39″ (approx 200 pages 80gsm / 20lb bond)
  • Stapling – Easy change, low maintenance, heavy duty staple cartridges
  • Staples per cartridge: 5000

Book thickness:

  • Maximum finished book with two stitch heads: 10mm / 0.39″ (approx 200 pages 80gsm / 20lb bond)
  • Maximum finished book with four stitch heads: 6mm / 0.236″ (approx 120 pages 80gsm / 20lb bond)
  • Stapling – 2 or 4 ISP Stitch heads
  • Staples per spool – Approx. 50.000





Specifications

Morgana BM5035/BM5050

Paper size minimum 206 x 210mm / 8.1″ x 8.27″
Paper size maximum 320 x 620mm / 12.6″ x 24.4″
Stock Range 65 – 300gsm / 18lb bond – 110lb cover dependent on paper
Minimum set thickness 1 sheet 80gsm / 20lb bond (when folded makes an 4 page leaflet)
Maximum set thickness 3.5mm / 0.39” and 5mm / 0.197” (approx. 200 pages of 80gsm / 20lb bond.
Maximum finished book thickness 3.5mm / 0.39” and 5mm / 0.197” (approx. 200 pages of 80gsm / 20lb bond.
Staples per cartridge 5000

Morgana BM5035S/BM5050S

Paper size minimum 120 x 210mm / 4.73” x 8.27”
Paper size maximum 320 x 620mm / 12.6” x 24.4”
Stock Range 65 – 300gsm / 18lb bond – 110lb cover dependent on paper
Minimum set thickness 1 sheet 80gsm / 20lb bond (when folded makes an 4 page leaflet)
Maximum set thickness 3.5mm / 0.39” and 5mm / 0.197” (approx. 200 pages of 80gsm / 20lb bond.
Maximum finished book thickness 10mm / 0.39″ (approx 200 pages 80gsm / 20lb bond)
Staples per spool Approx 50.000


VFX Dual Bin Feeders

No. of bins 2
Bin capacity 2 x 270mm / 10.6”
Sheet size, max 350 x 660mm / 13.8” x 26”
Sheet size, min 120 x 210mm / 4.72” x 8.26”
Paper weight uncoated, min 64gsm / 16 lb Bond
Paper weight coated, min 105gsm / 28 lb Bond
Paper weight, max 300gsm / 110 lb Cover *350gsm / 130 lb Cover supported on some media
Center registration Yes
Air separation Yes
Error detection Double feed, misfeed, empty bin, paper jam
Dimensions H1260 x W1017 x D700 mm / H49.6” x W40” x D27.6”
Weight 250kg / 551lbs
