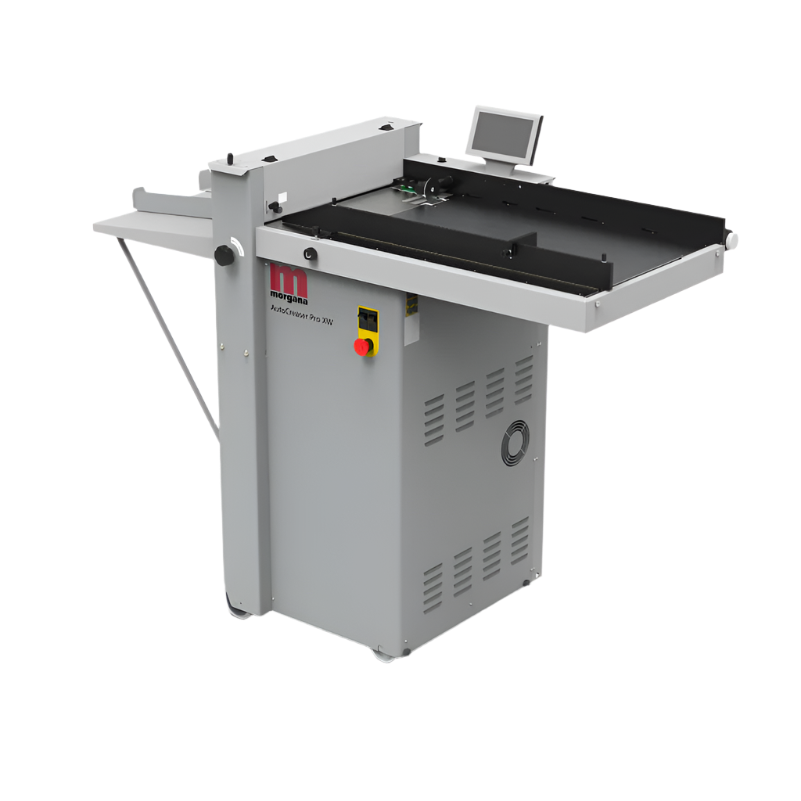

Morgana AutoCreaser Pro XW
The Morgana AutoCreaser Pro XW is the latest in Morgana range of high-speed creasers designed to eliminate the problem of cracking that occurs when folding digitally printed output. It is equally effective when creasing conventionally printed card, laminated or cross-grained stock.
Specifications
AutoCreaser Pro XW
Max. sheet size
700 x 500mm / 27.5” x 19.7”
Min. sheet size (in automatic mode)
210 x 140mm / 8.5” x 5.5” (100mm / 3.9” wide sheets supported with ‘Narrow Sheet Kit’)
Max. paper thickness
0.4mm / 0.0157” (varies according to hardness, type of fold, and substrate)
Max. no. creases per sheet
16
Min. distance between creases
0.1mm / 0.004”
Max. no. stored programmes
Unlimited
Min. crease distance from leading edge
2.5mm / 0.1”
Speed per hour (A4 in half)
8500
Speed per hour (A5 in half)
11000
Feeding system bottom suction feed
Dimensions
L:1500mm / 59” H: 1224mm / 48.2” W: 682mm / 26.8”
Weight
166kg / 365.9lb (+ 50kg / 110.2lb packing)
Power requirement
1 phase 230v 50/60Hz
Sound power level
78 dB(A)
