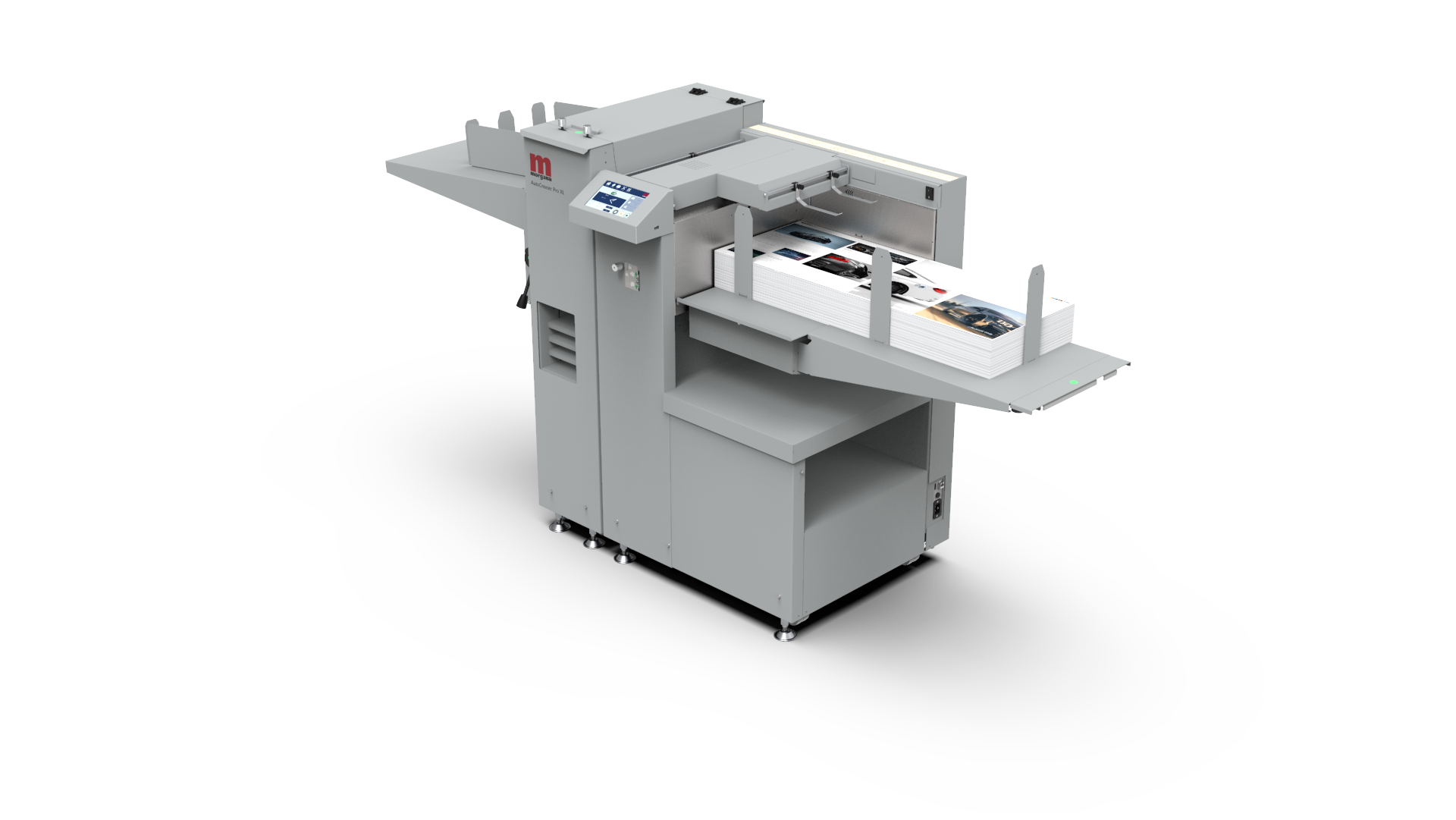

Morgana AutoCreaser Pro XL
The Morgana AutoCreaser Pro XL paper creasing system is an easy to use automatic paper creasing system with a cost efficient vacuum top feeder. The unique creasing rule in the AutoCreaser Pro XL eliminates paper tearing and therefore cracking.
Specifications
AutoCreaser Pro XL
Max loading capacity 200mm / 7.8’’*
*100mm / 4’’ for sheet lengths above 700mm / 27.5’’
Max paper size W x L:385mm / 15’’ x 700mm / 27.5’’*
*385mm / 15" x 1300mm / 51" with extension table
Min paper size W x L:93mm / 3.89’’ x 210mm / 8.25’’
Max paper thickness:4 00gsm / 0.015’’
Min paper thickness: 80gsm / 0.0035’’
Max sheets per hour: 8500
Max number of creases per sheet: 30
Min crease to crease distance 0.1mm / 0.0039’’
Stacker capacity 120
Stacker max paper size W x L 385mm / 15’’ x up to 900mm / 40’’
Footprint with table extension L2540mm / 100’’ x W730mm / 28.7’’ x H 1074mm / 45.5’’
Options
Cross Perforation Kit
Narrow creasing blade
Ultra narrow creasing blade
Standard Static Creaser Blade (2nd crease blade kit including cross perforation kit)
