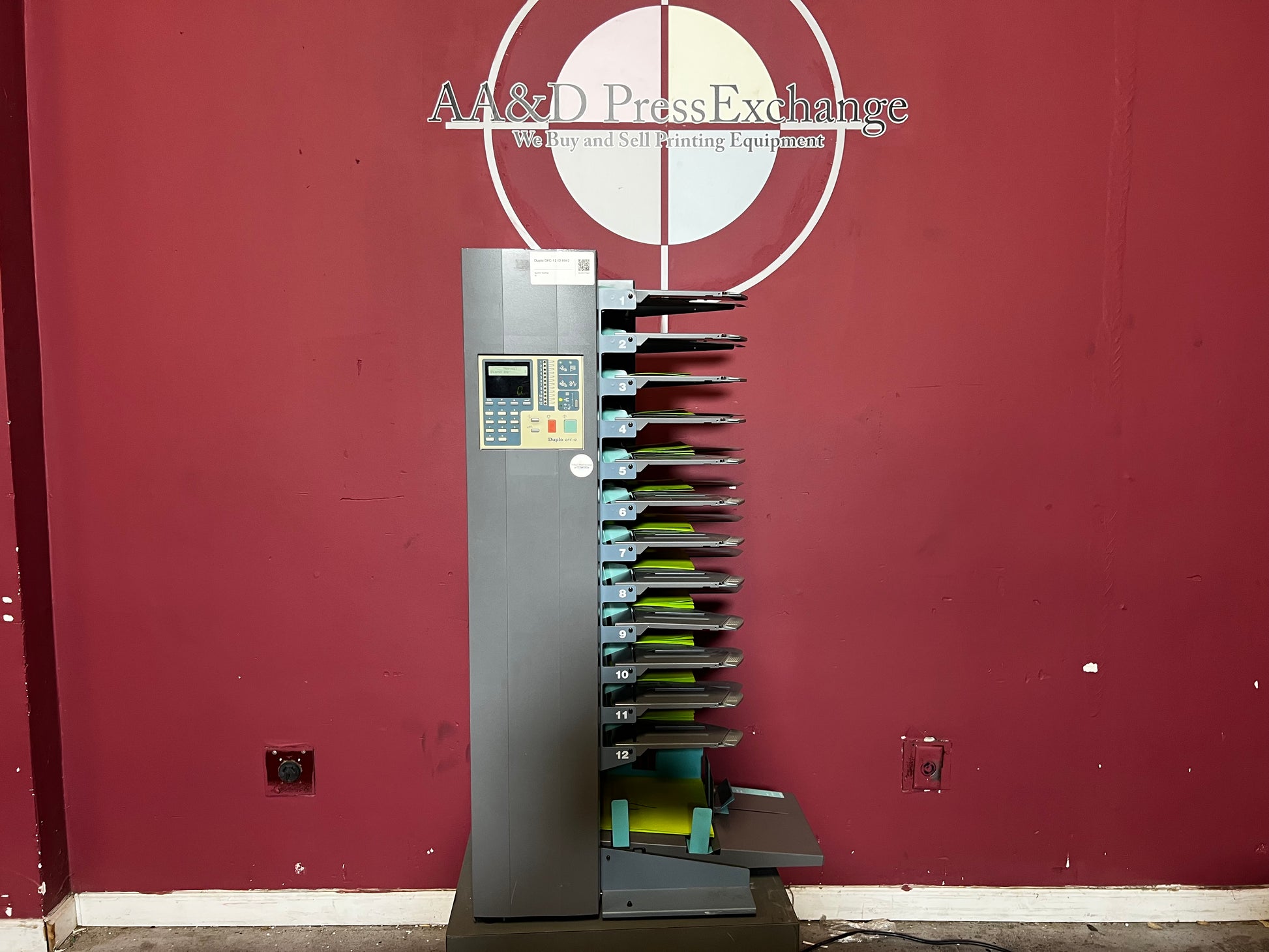

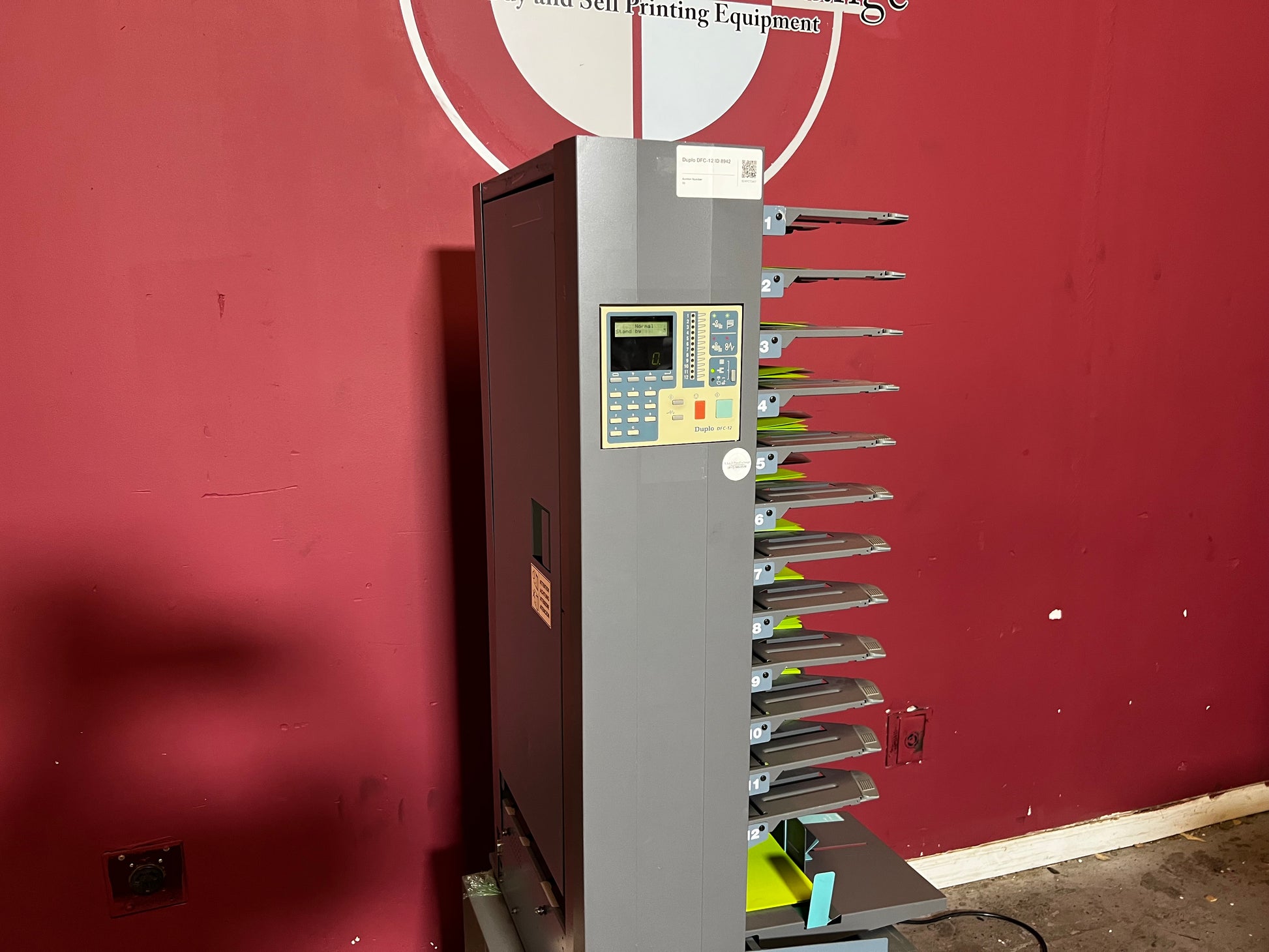

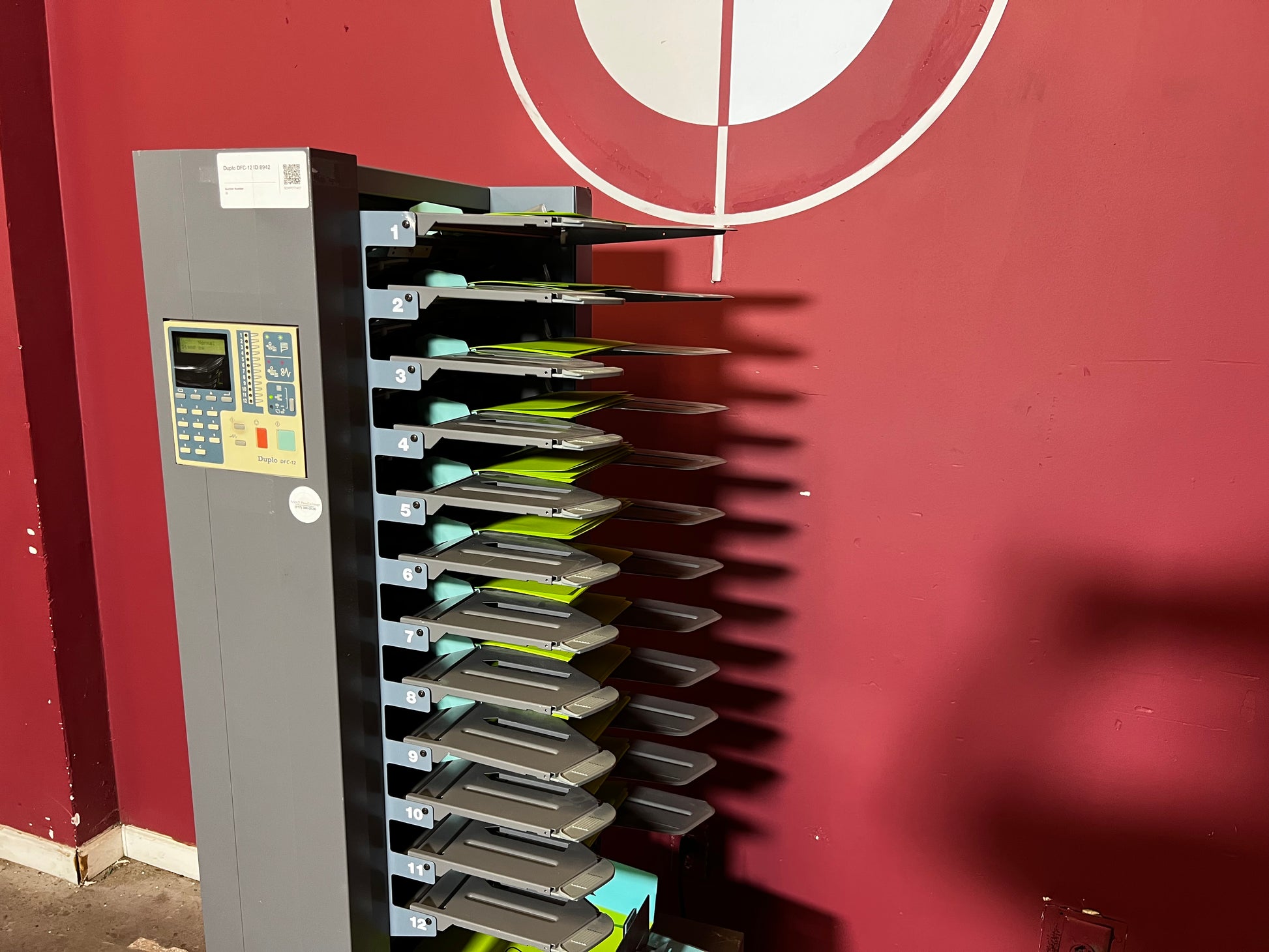

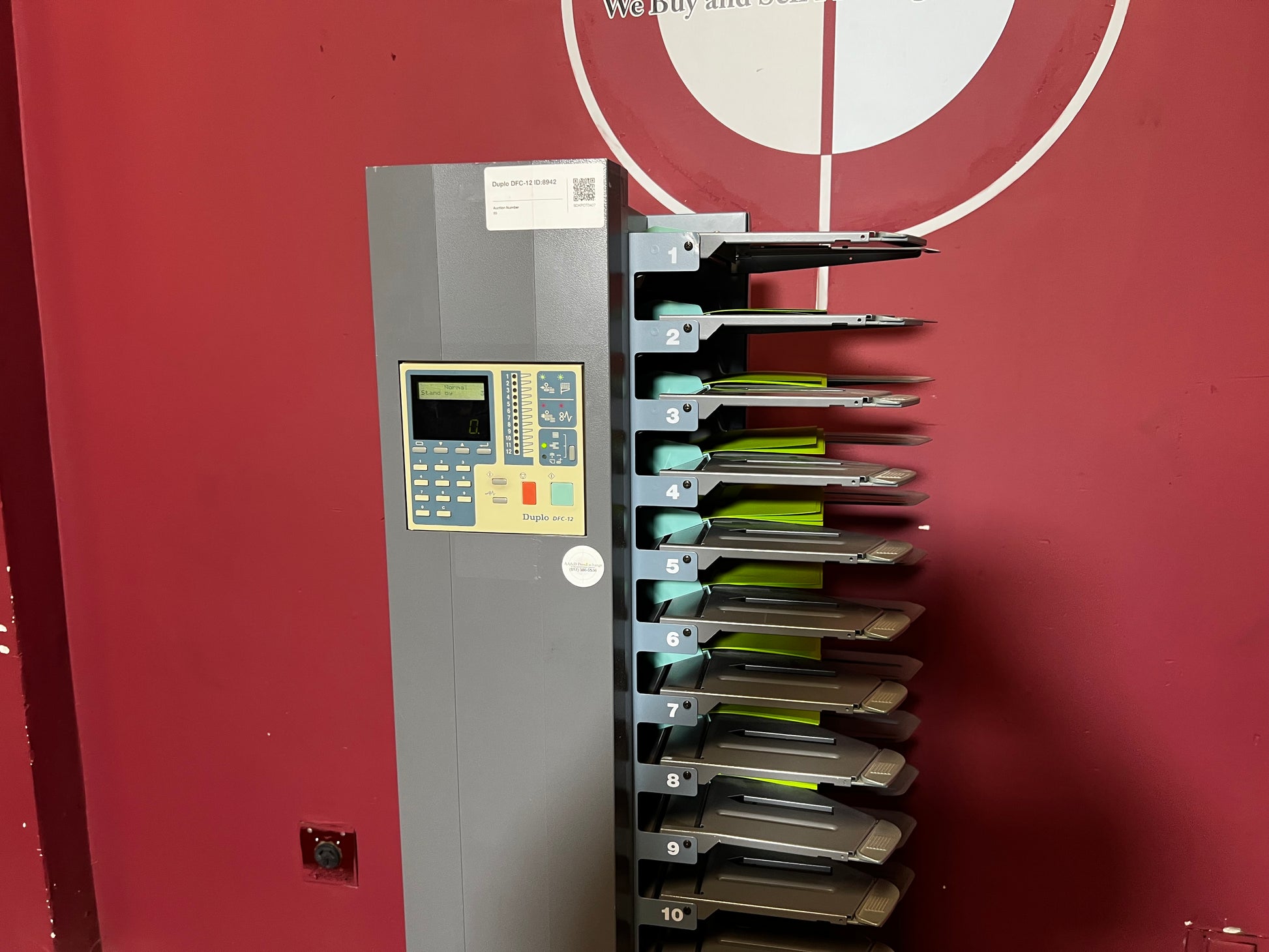

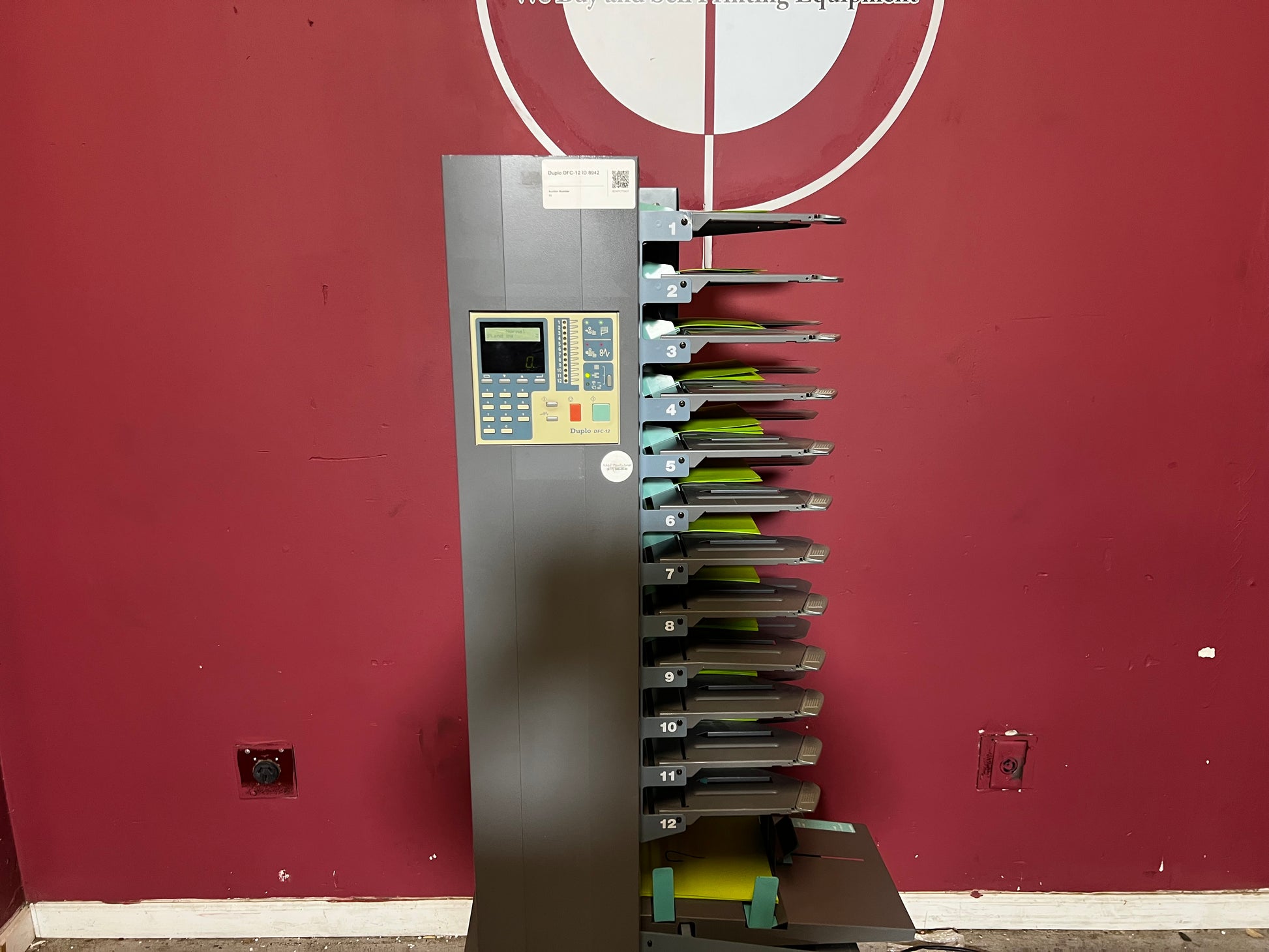

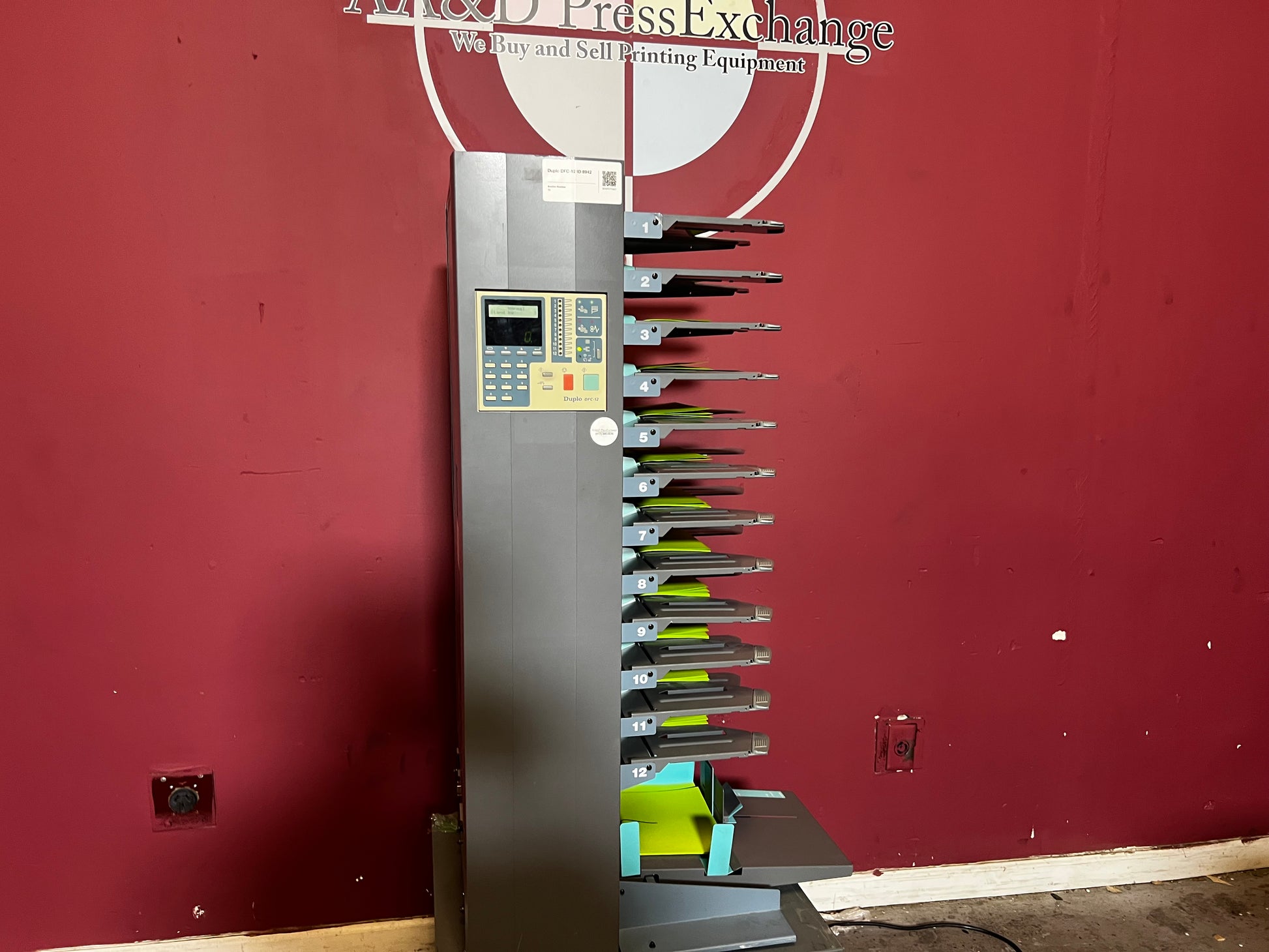

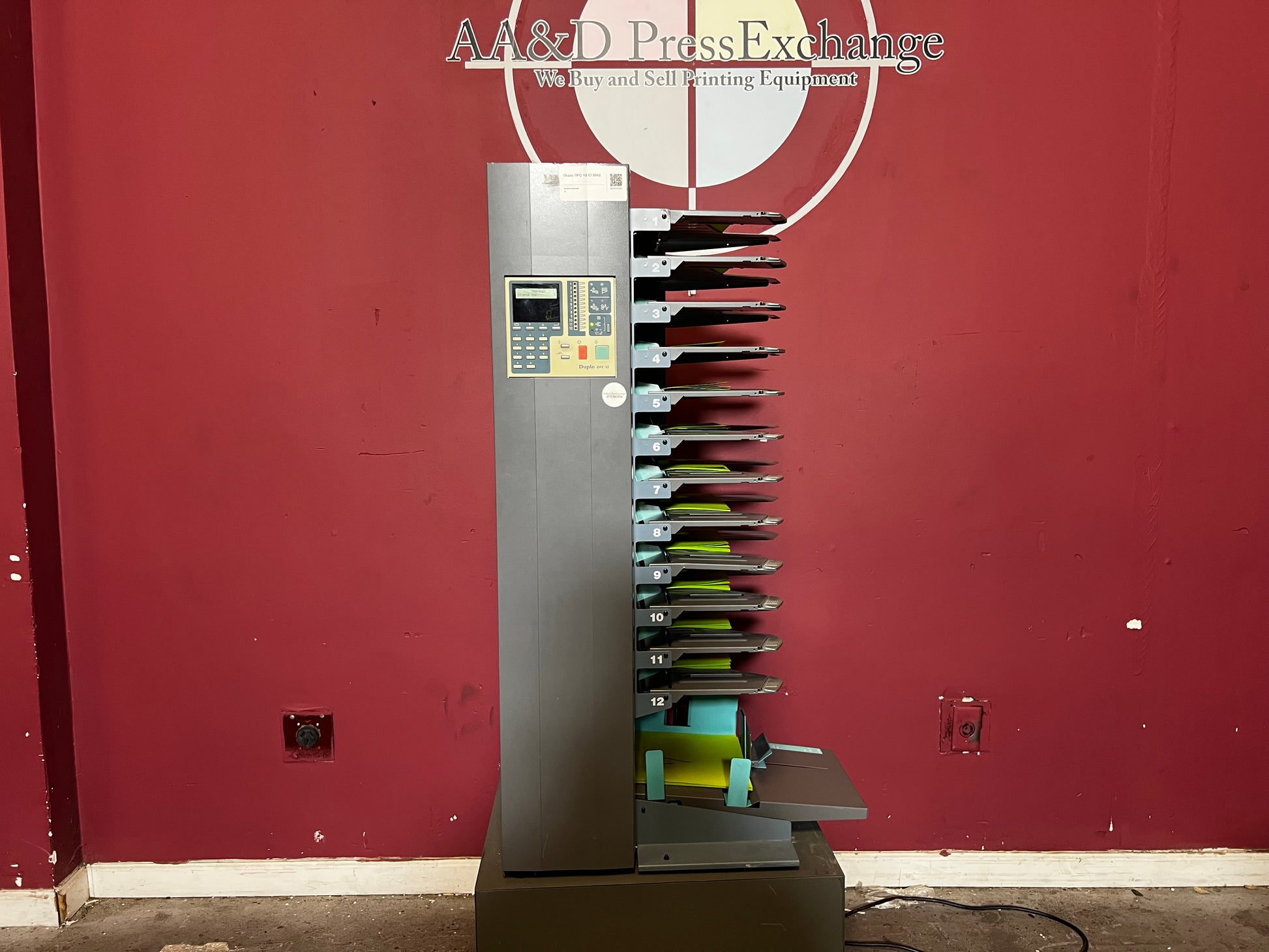

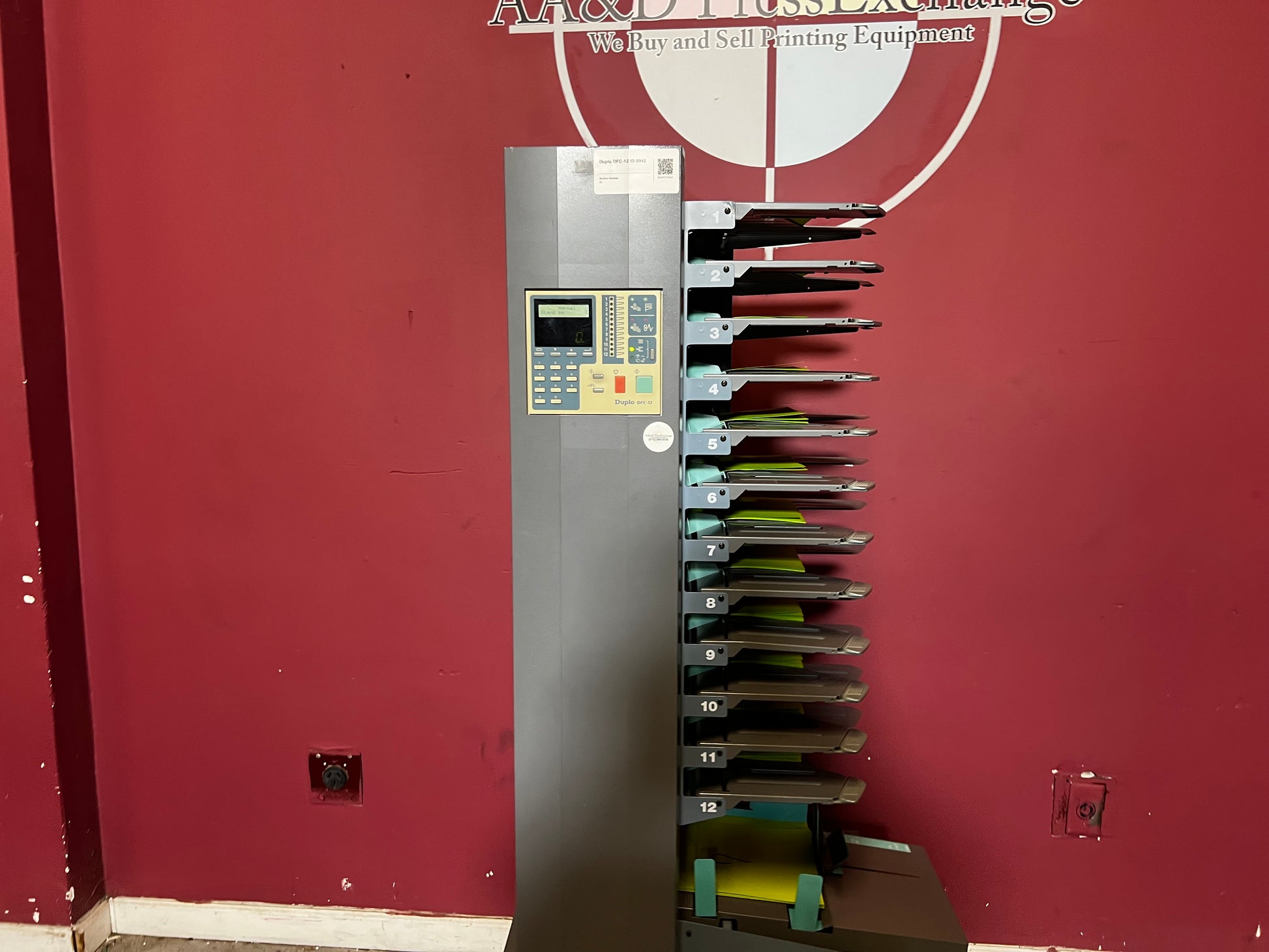

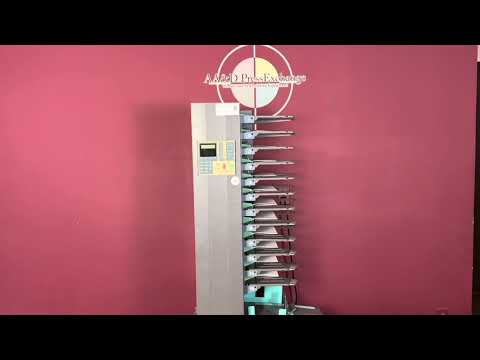

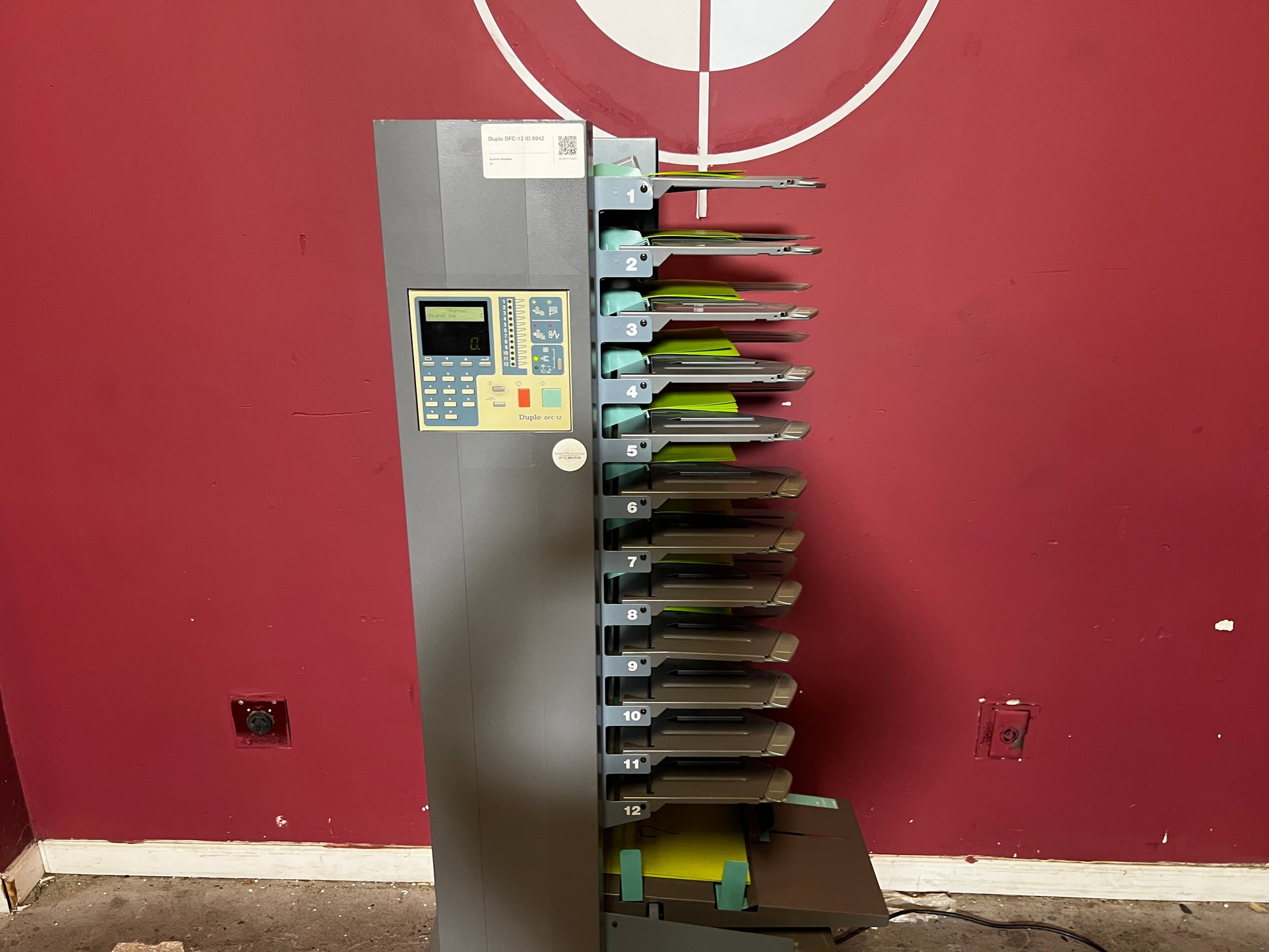

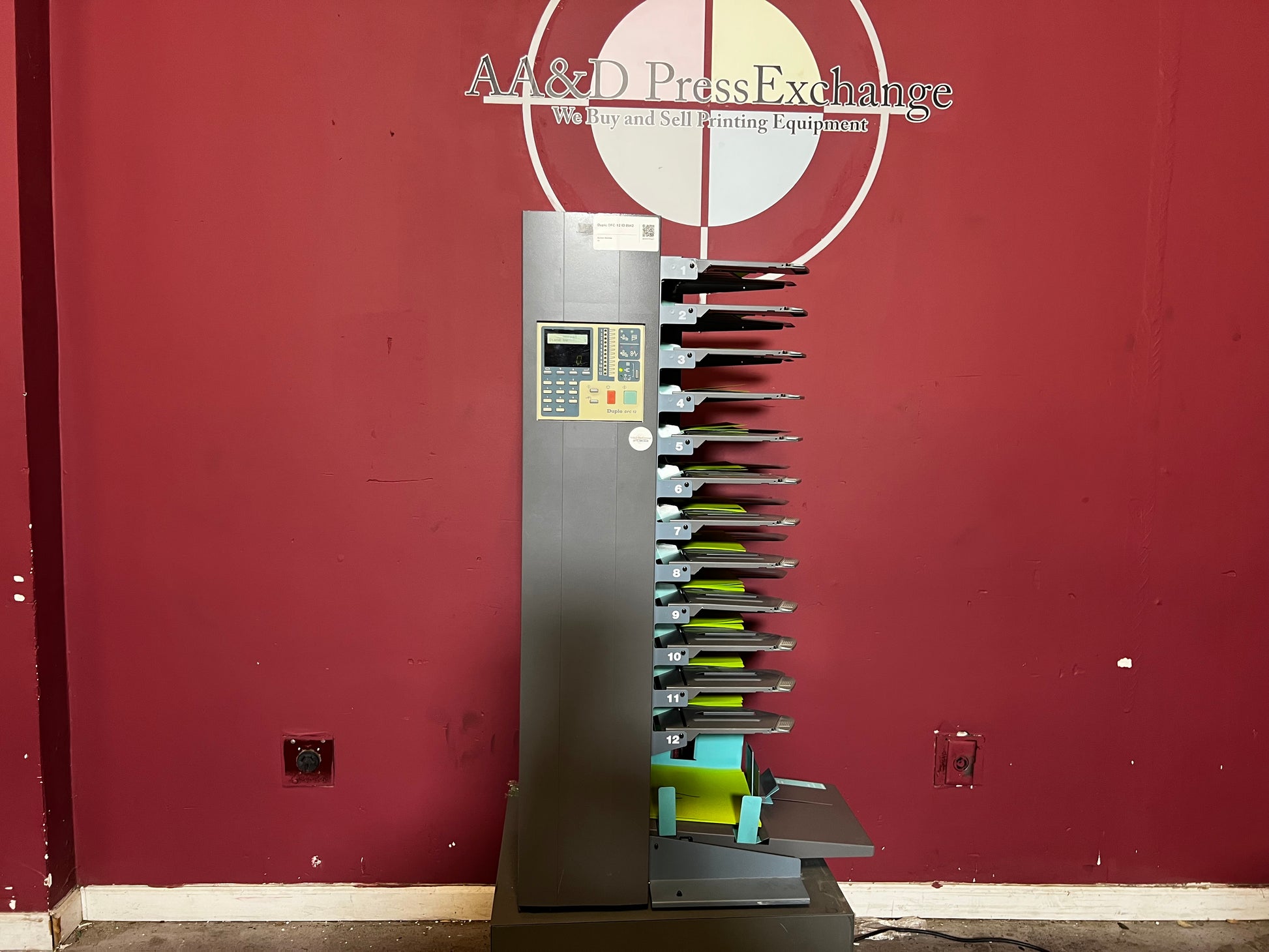

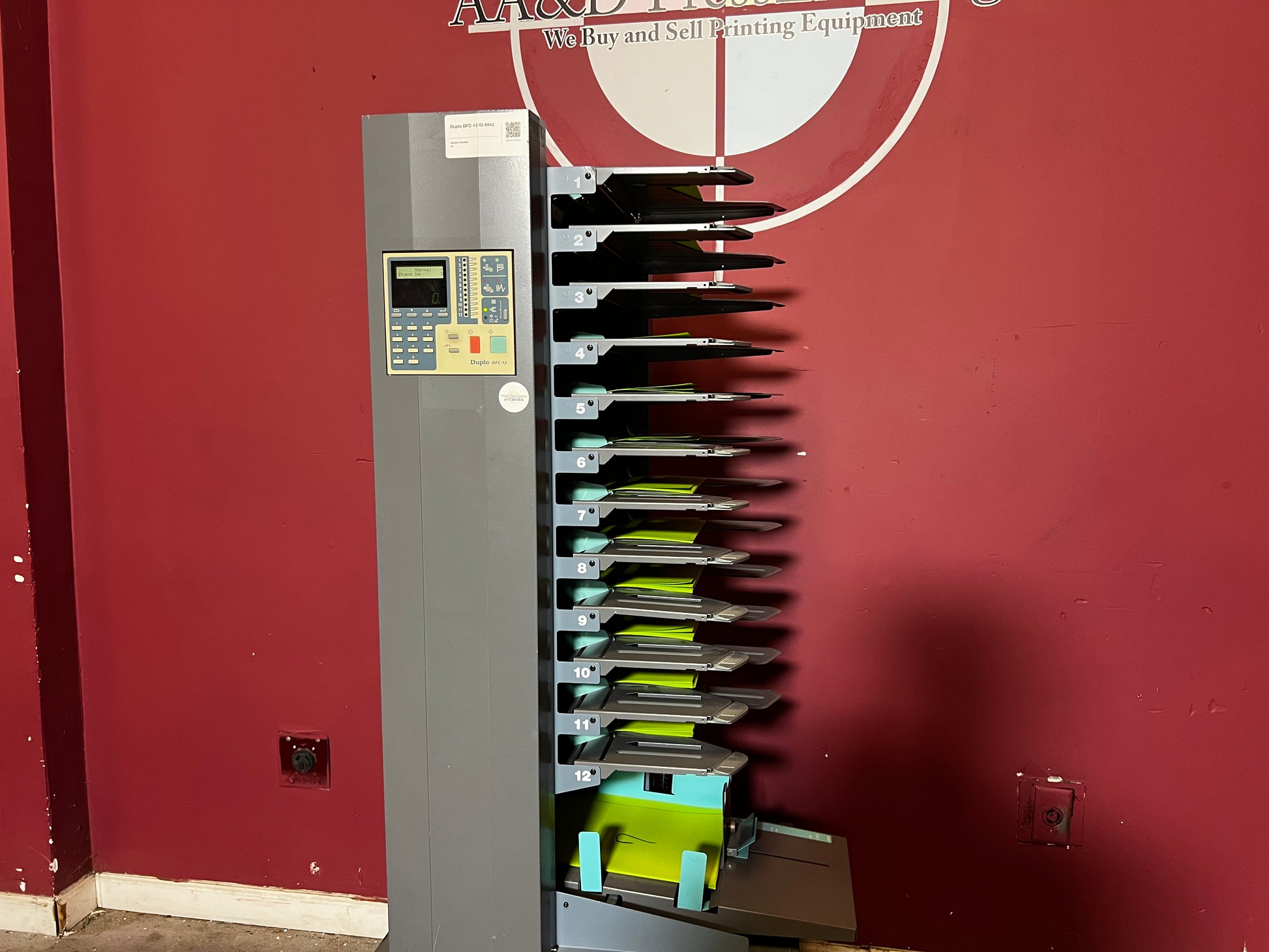

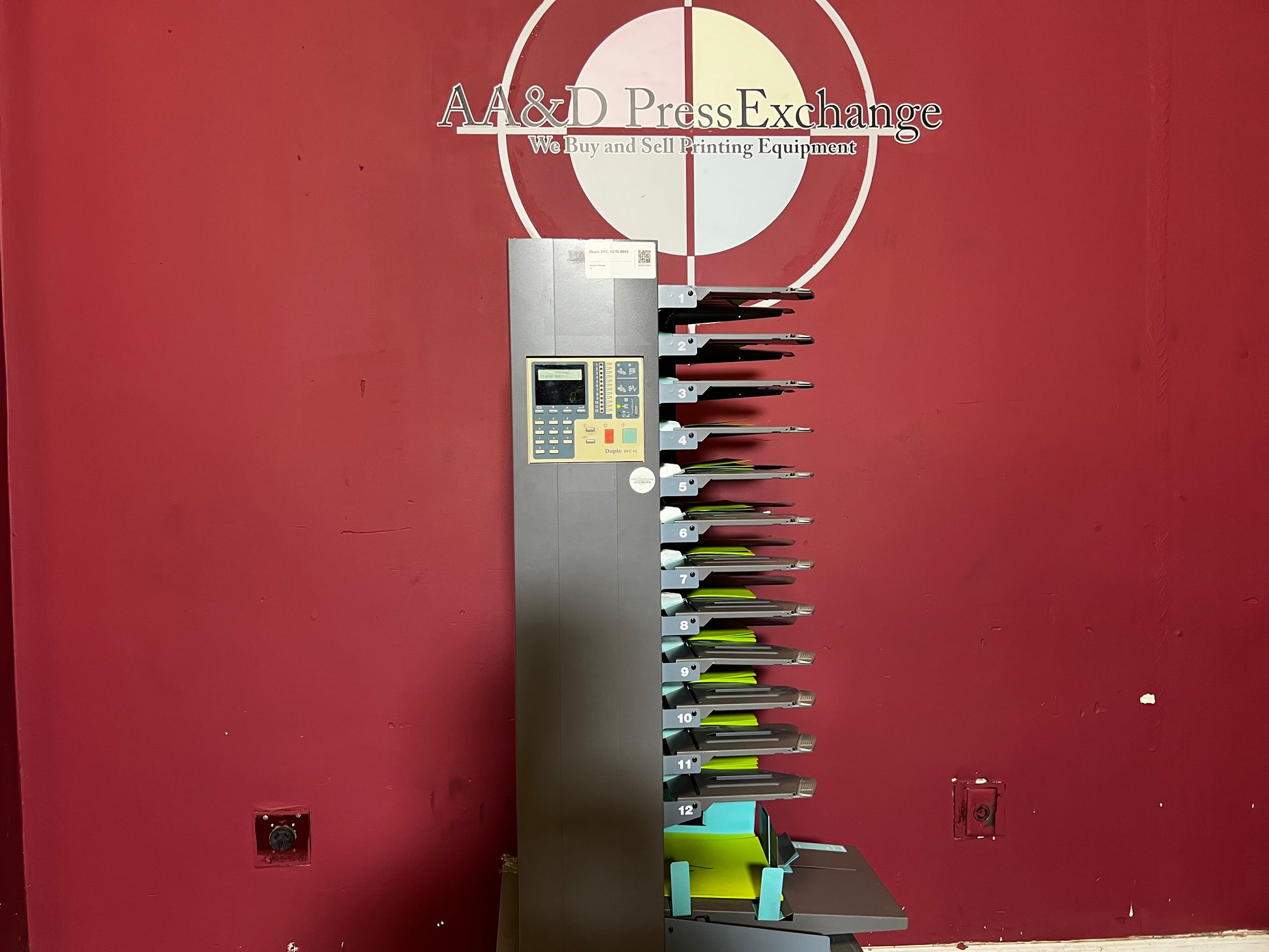

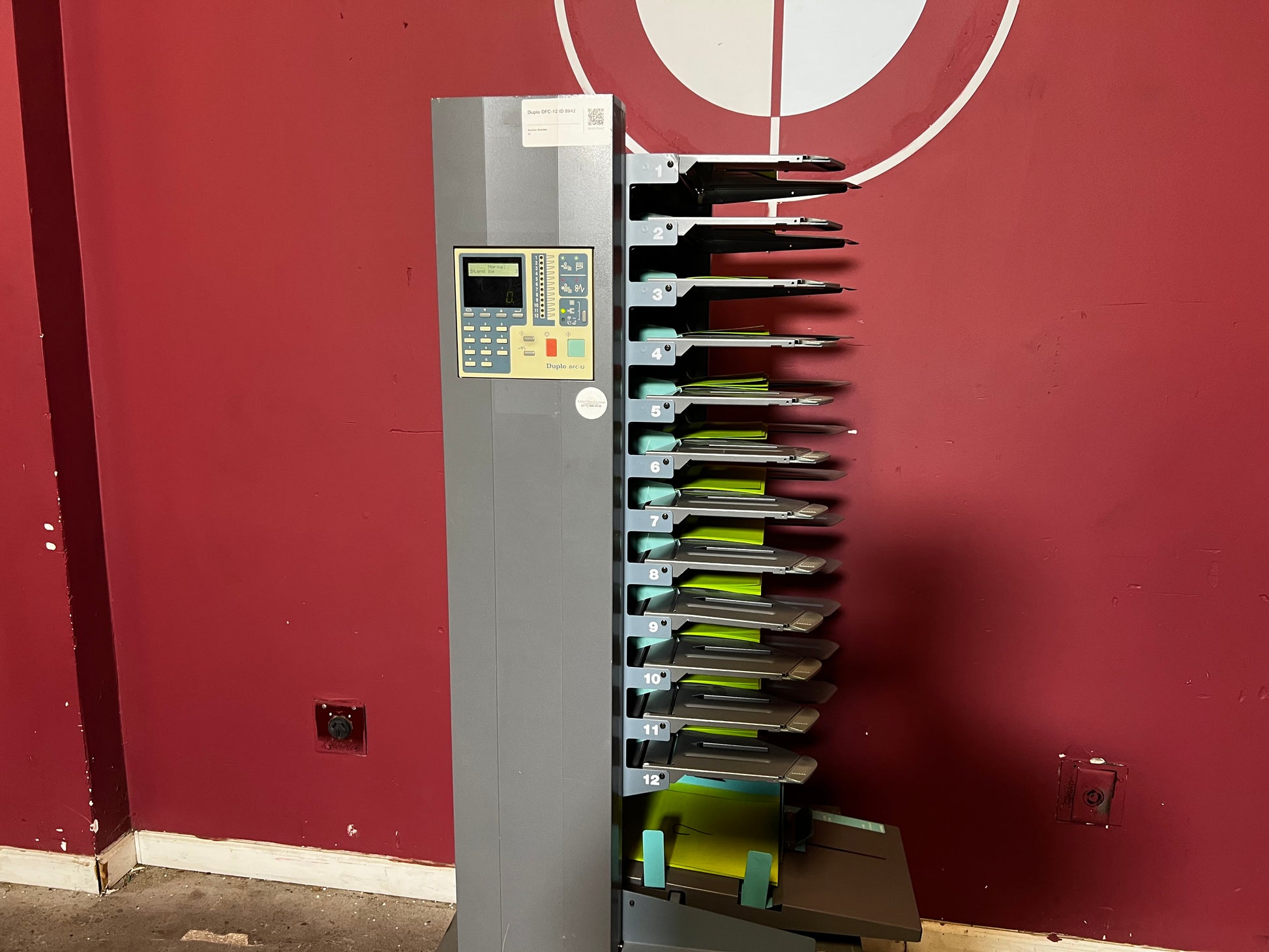

Duplo takes the desktop collator and finishing concept beyond the standard. The rugged and reliable DFC-12/24 Collator in-line with the DBM-120 Bookletmaker offers small commercial printers, quick printers, in-plant printers, and offices a cost-effective solution to their collating and finishing needs.
COLLATOR SPECIFICATIONS
Number of Bins 12
Paper Size (Min./Max.) 5.83” x 8.27” to 12.6” x 17.72”
Feed Bin Capacity 1.1”
Receive Bin Capacity 2.76”
Speed Up to 65 sets per minute or 3,900 sets per hour
Programming Alternating Program (link 2 bins), Interleave
Program (slip sheet), Block Program
Paper Feed Bin Detections Misfeed, double-feed, paper jam
Error Detections Paper feed error, conveyance cover open/close,
paper receive bin full, bin empty, misfeed, doublefeed,
paper jam, downstream processing device
error, number of interleaves error
Power Consumption 100 – 240V AC 50/60Hz 2.8 – 1.2A
Dimensions (LxWxH) 12-bin 33” x 22” x 45”
Weight 165 lbs. (per tower)

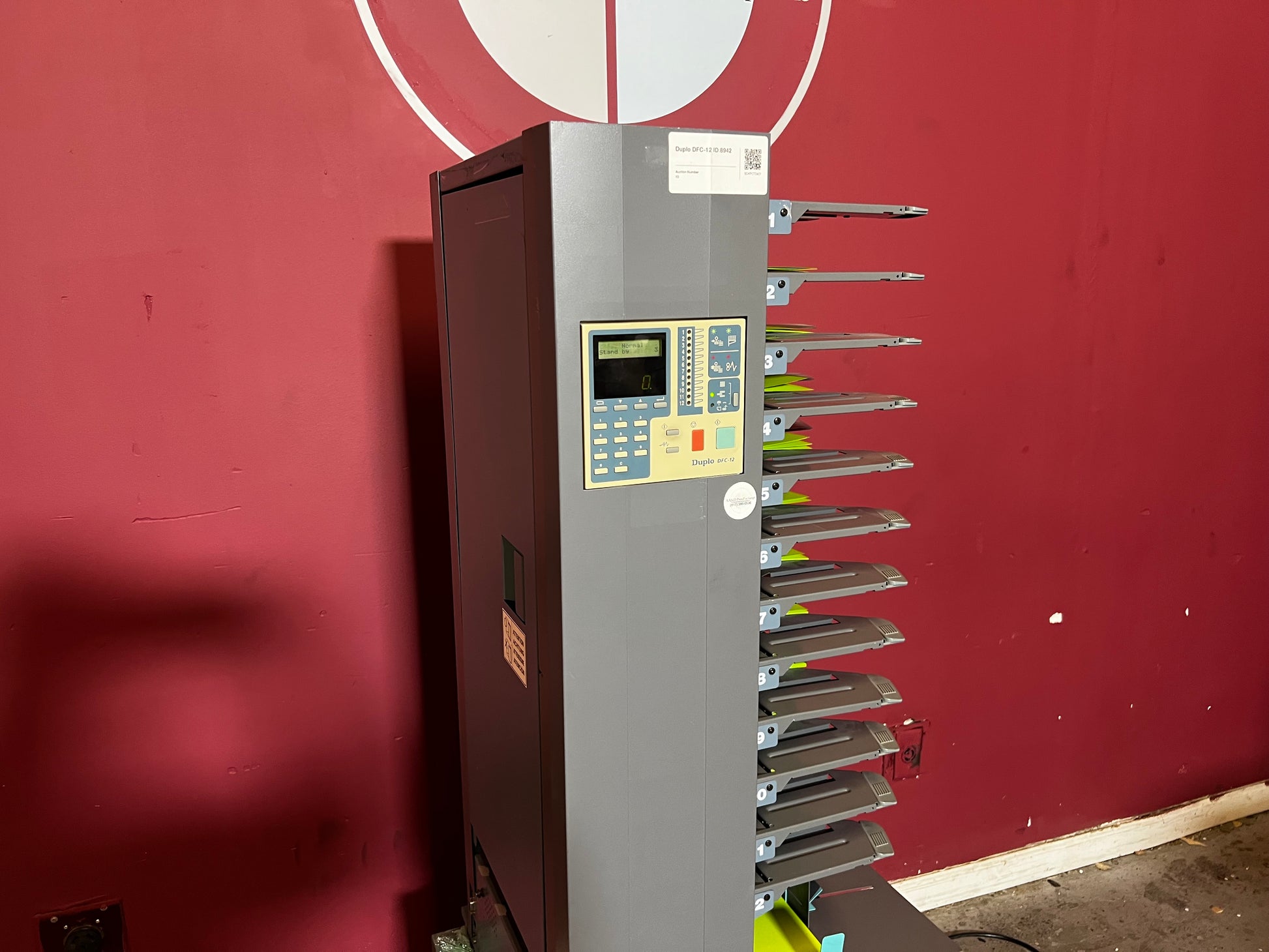

Other Features LCD window displays current operating status/
mode; 4-digit ascending/descending counter;
quickly and easily feed wide range of stocks with
tray tension and separator control; overlap function
allows operator to vary sheet overlapping for more
efficient running of the most difficult stocks; reset
button sets up all detectors; programming mode
allows operator to load stock while machine runs
