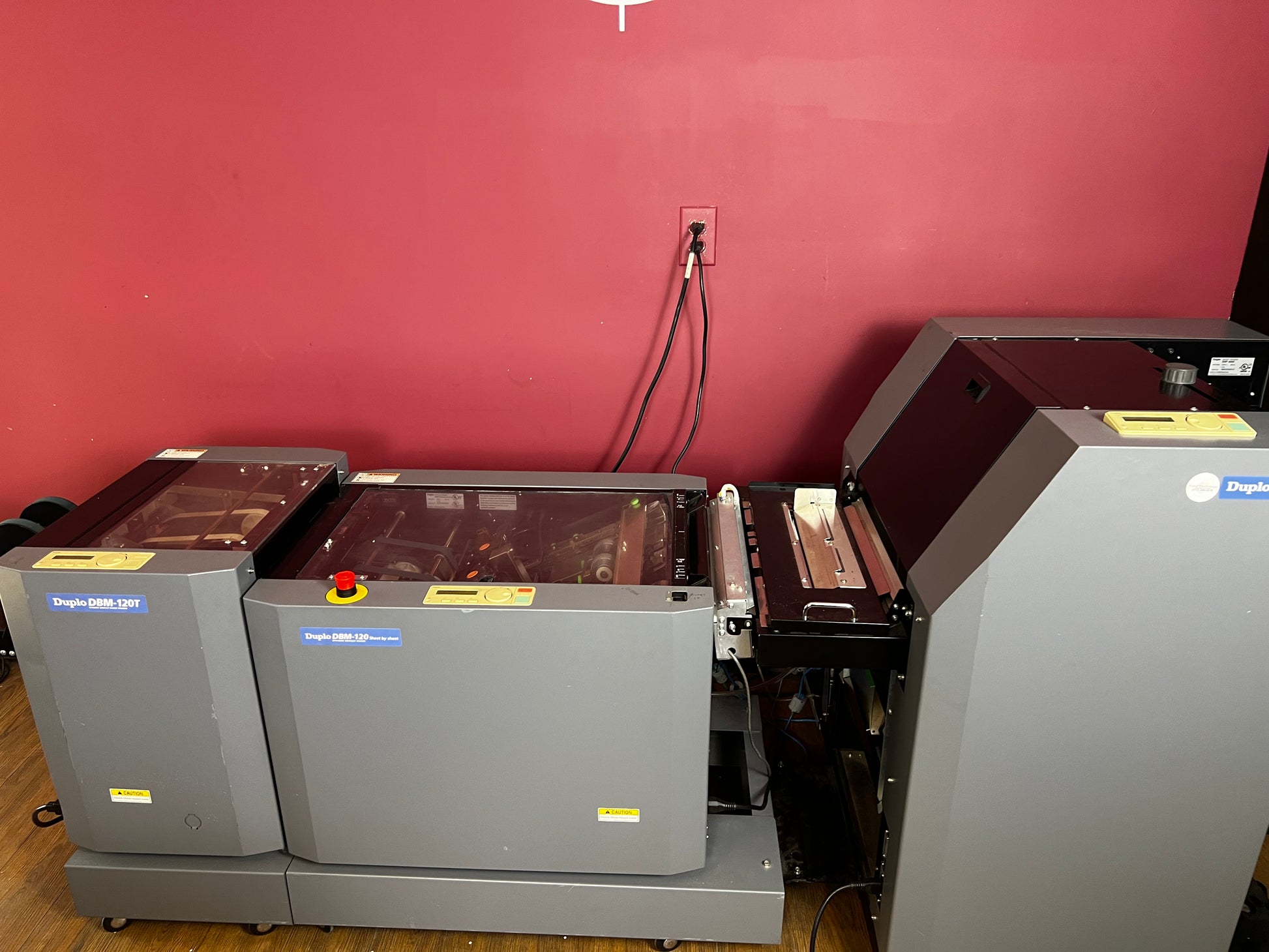

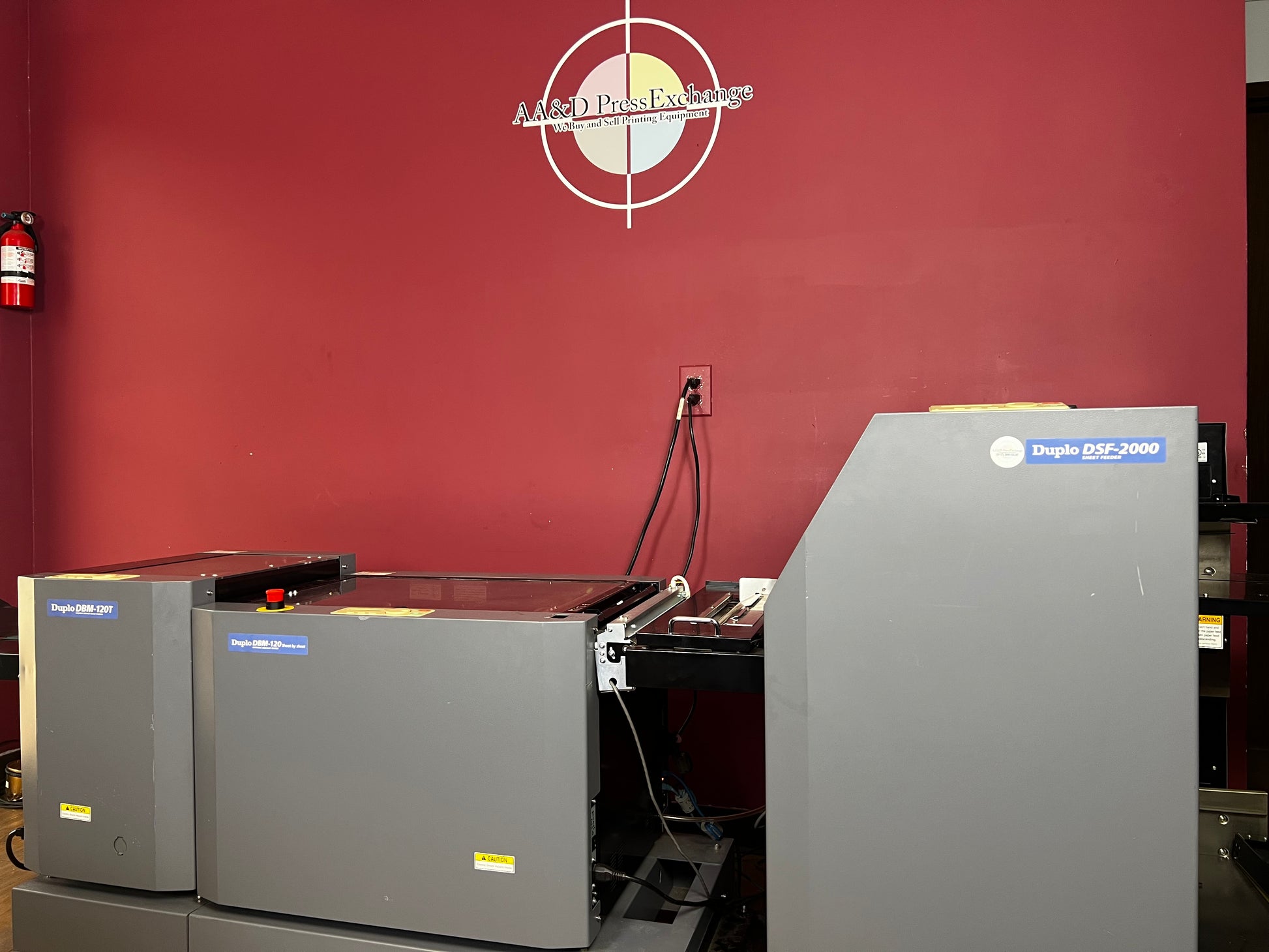

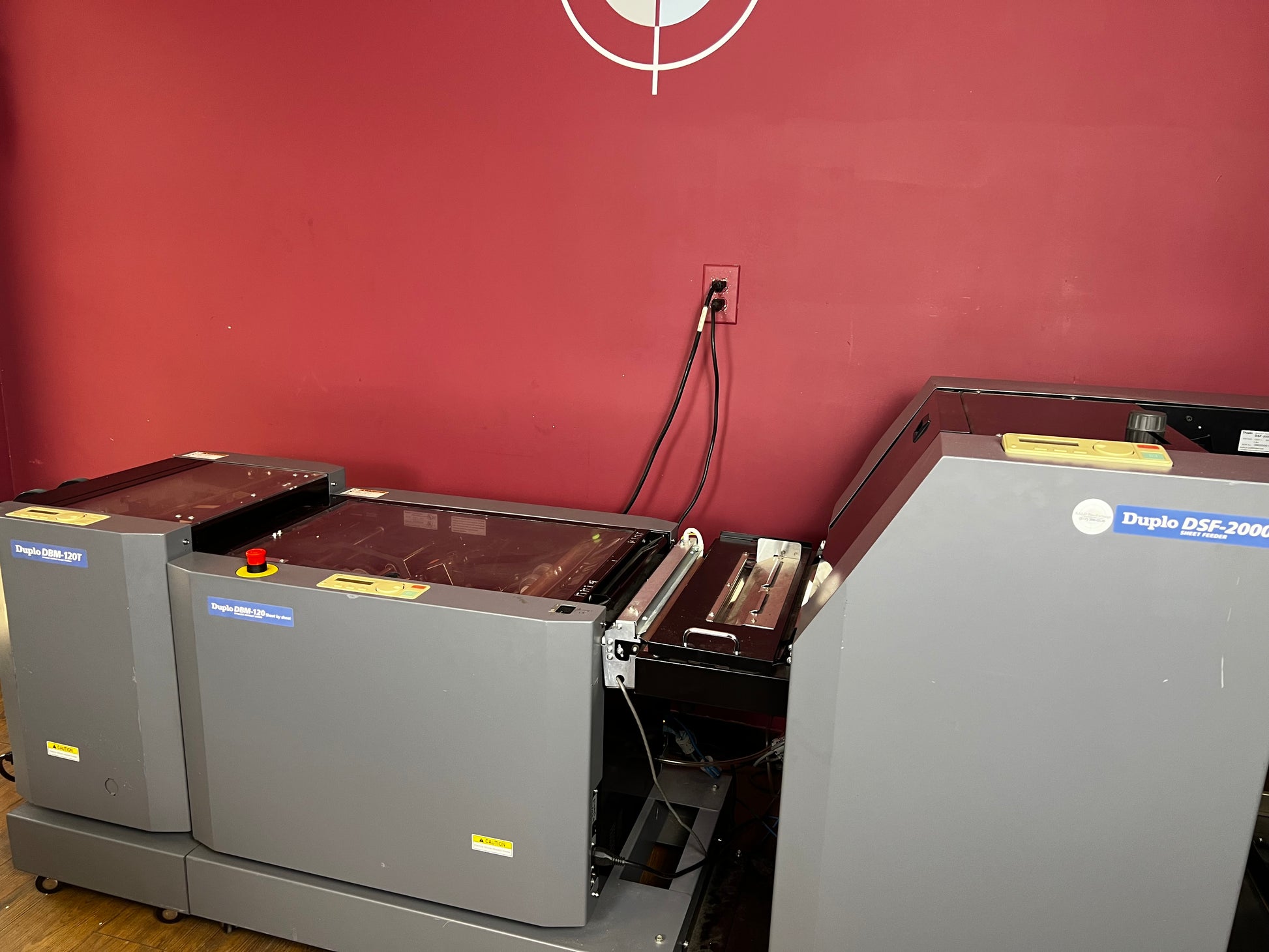

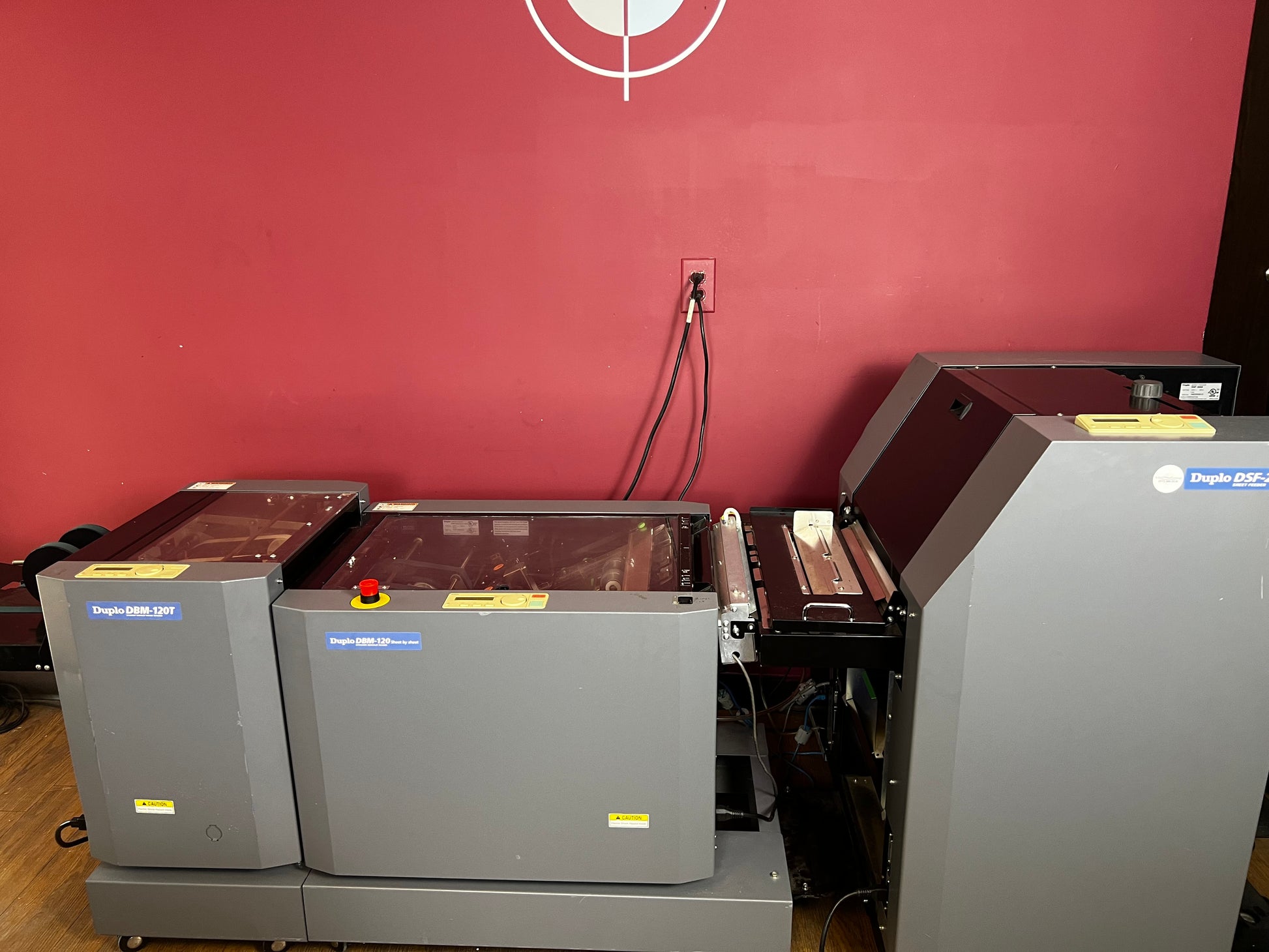

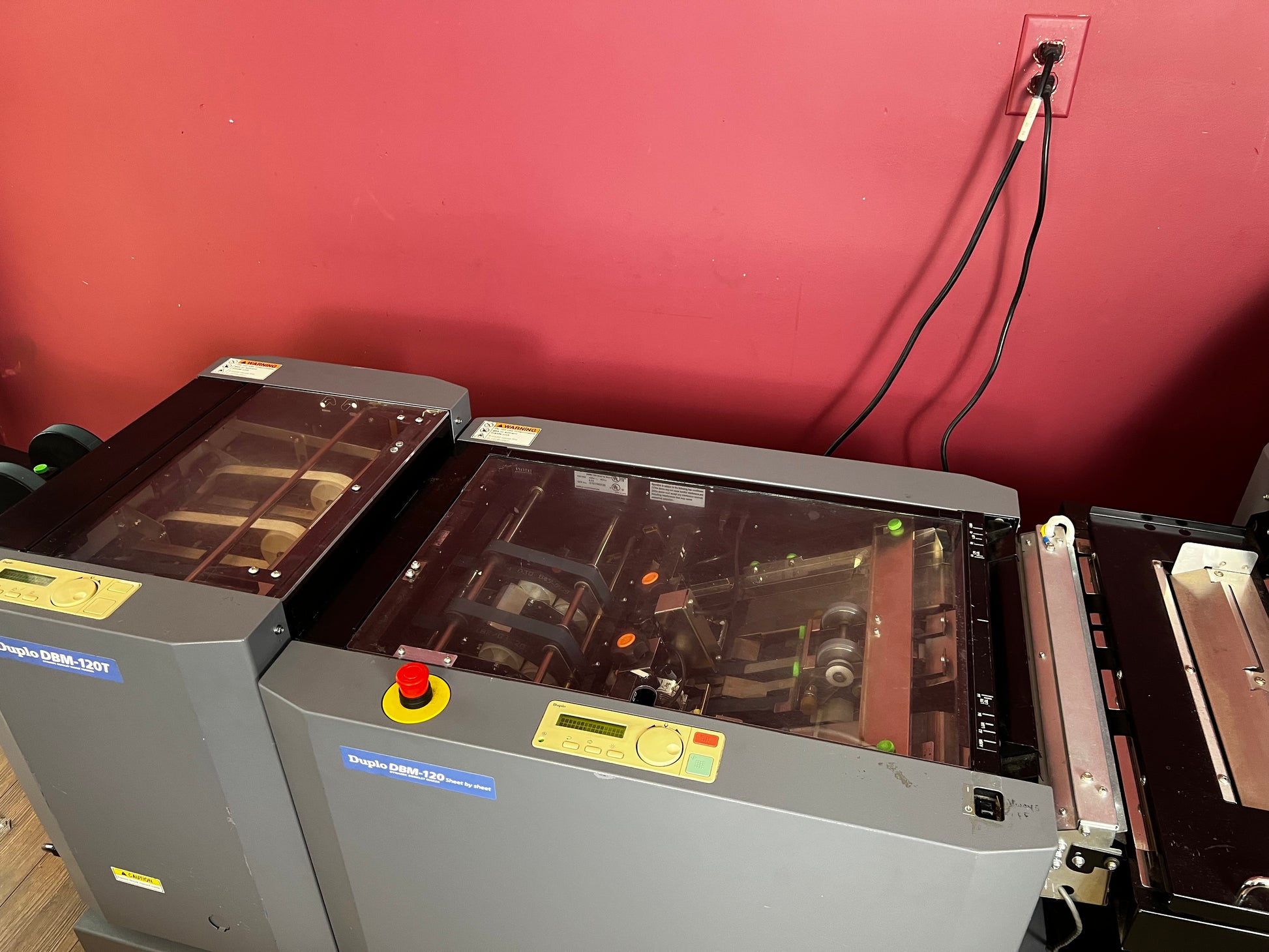

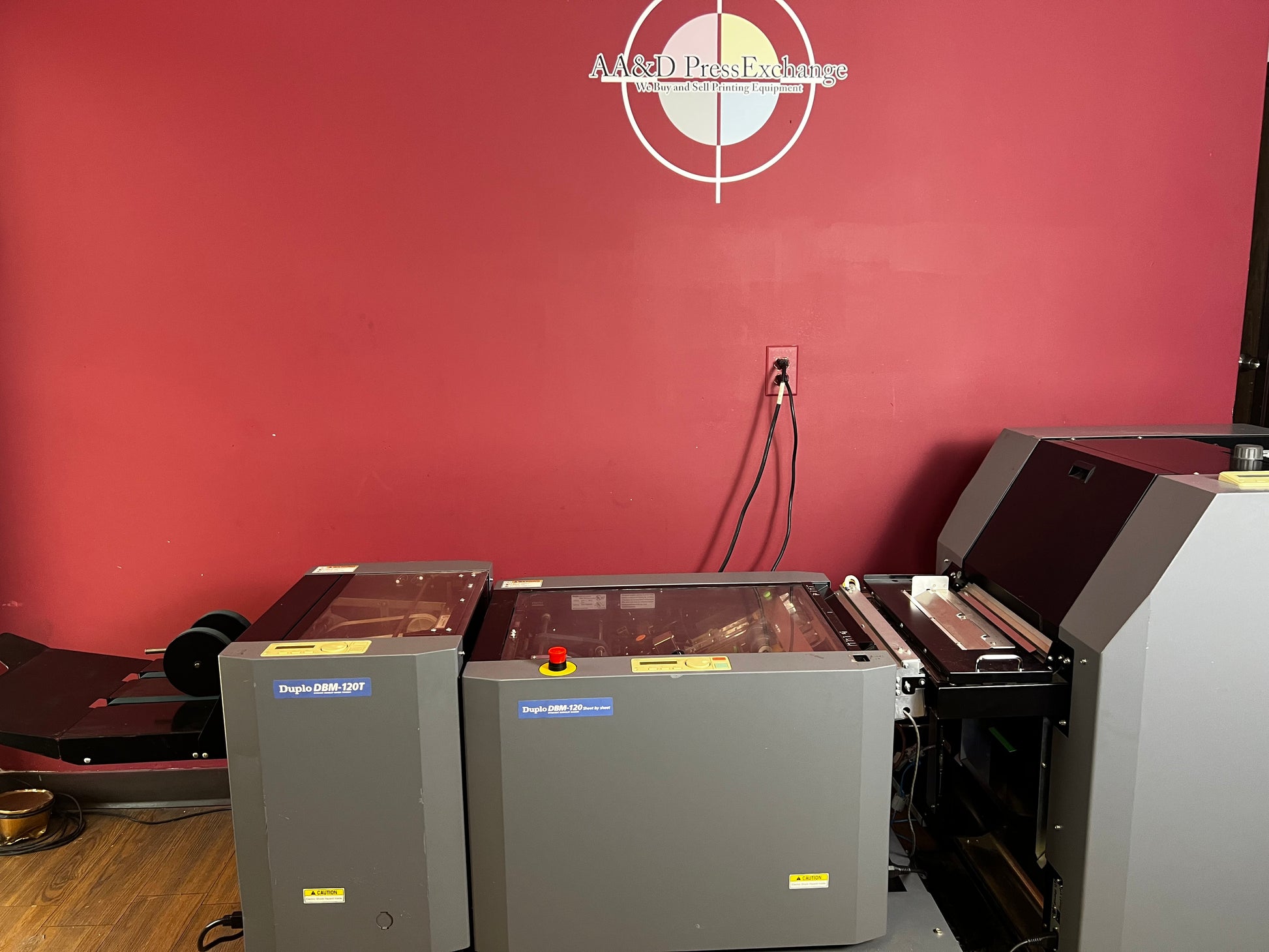

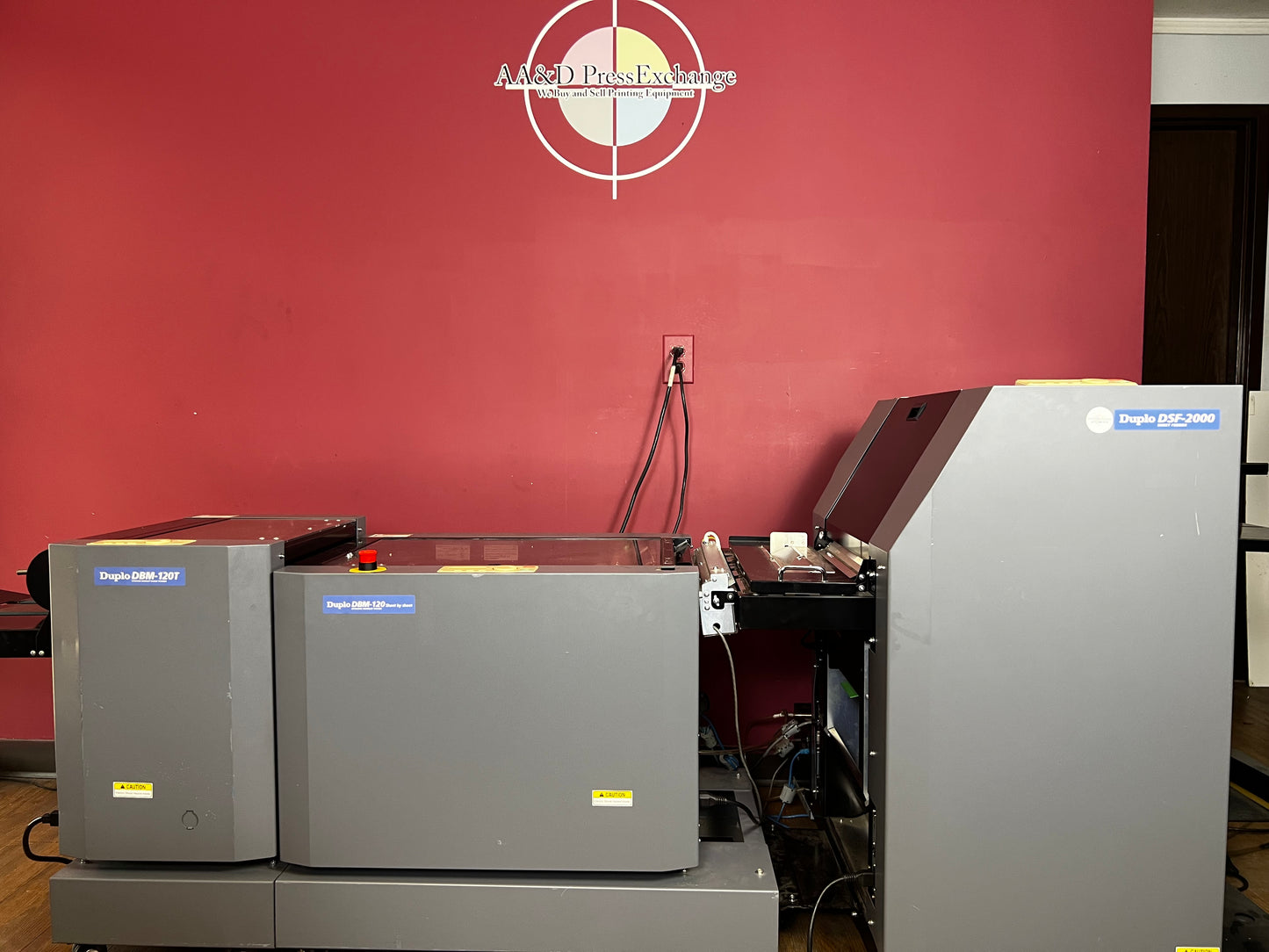

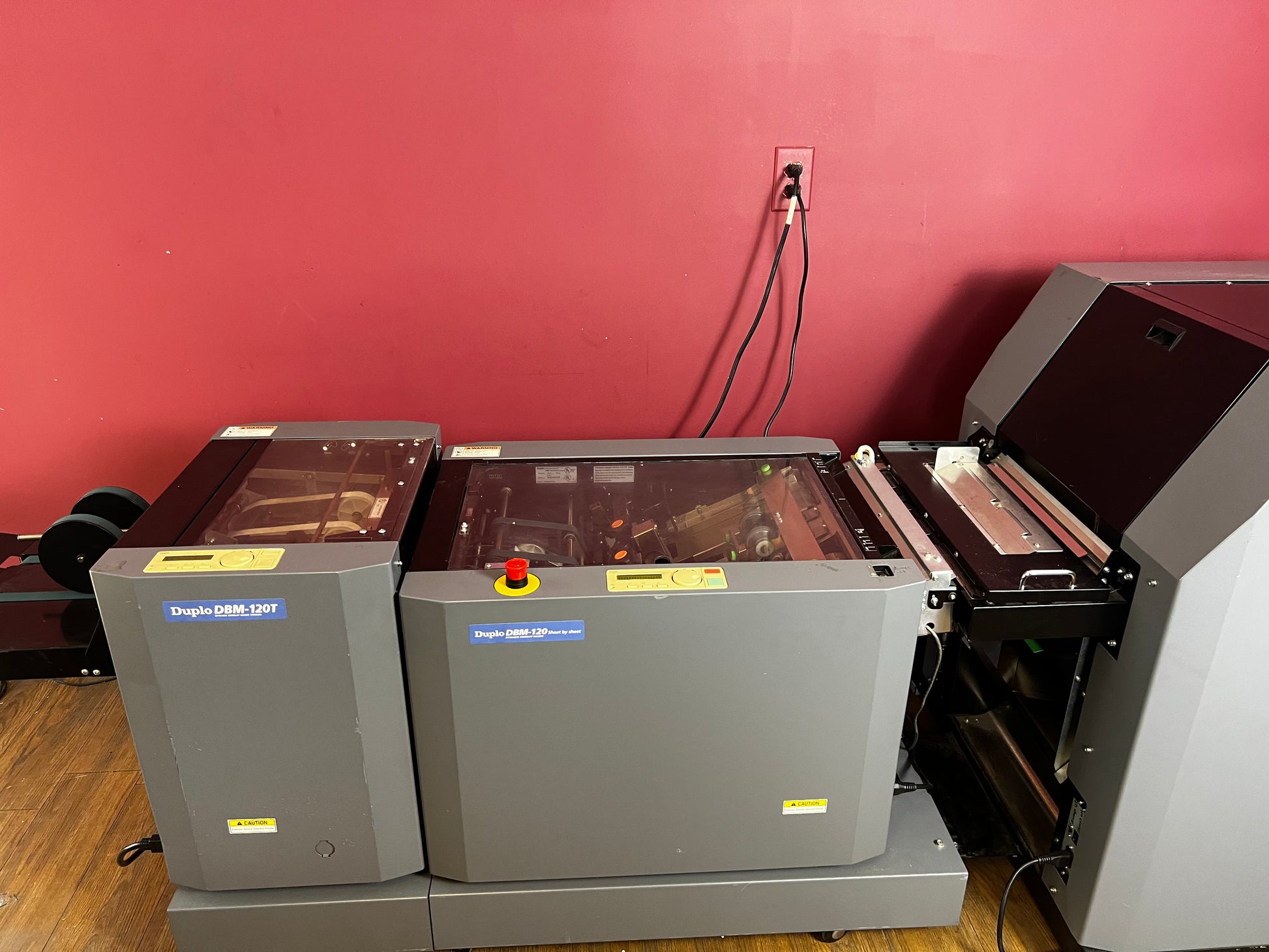

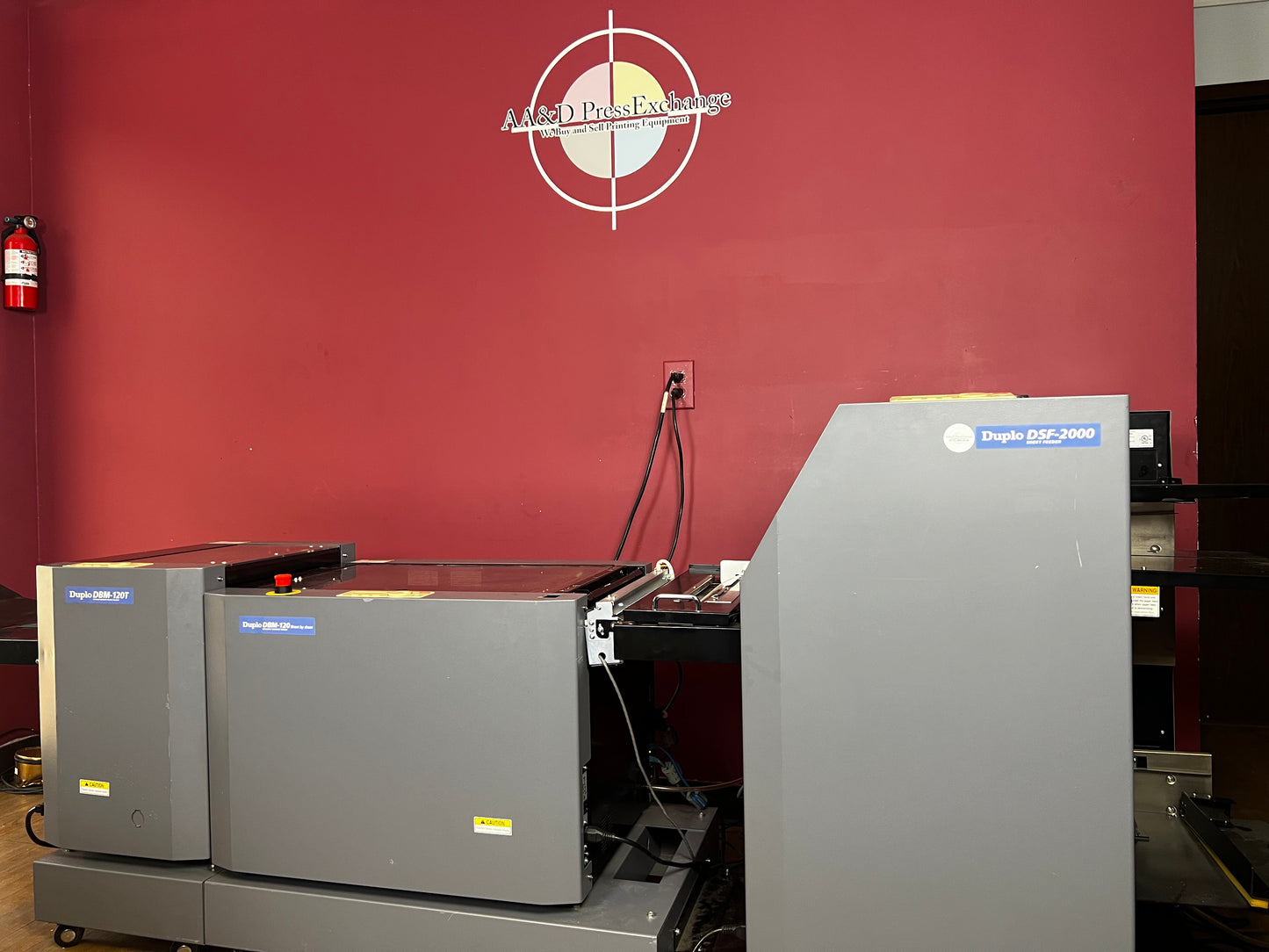

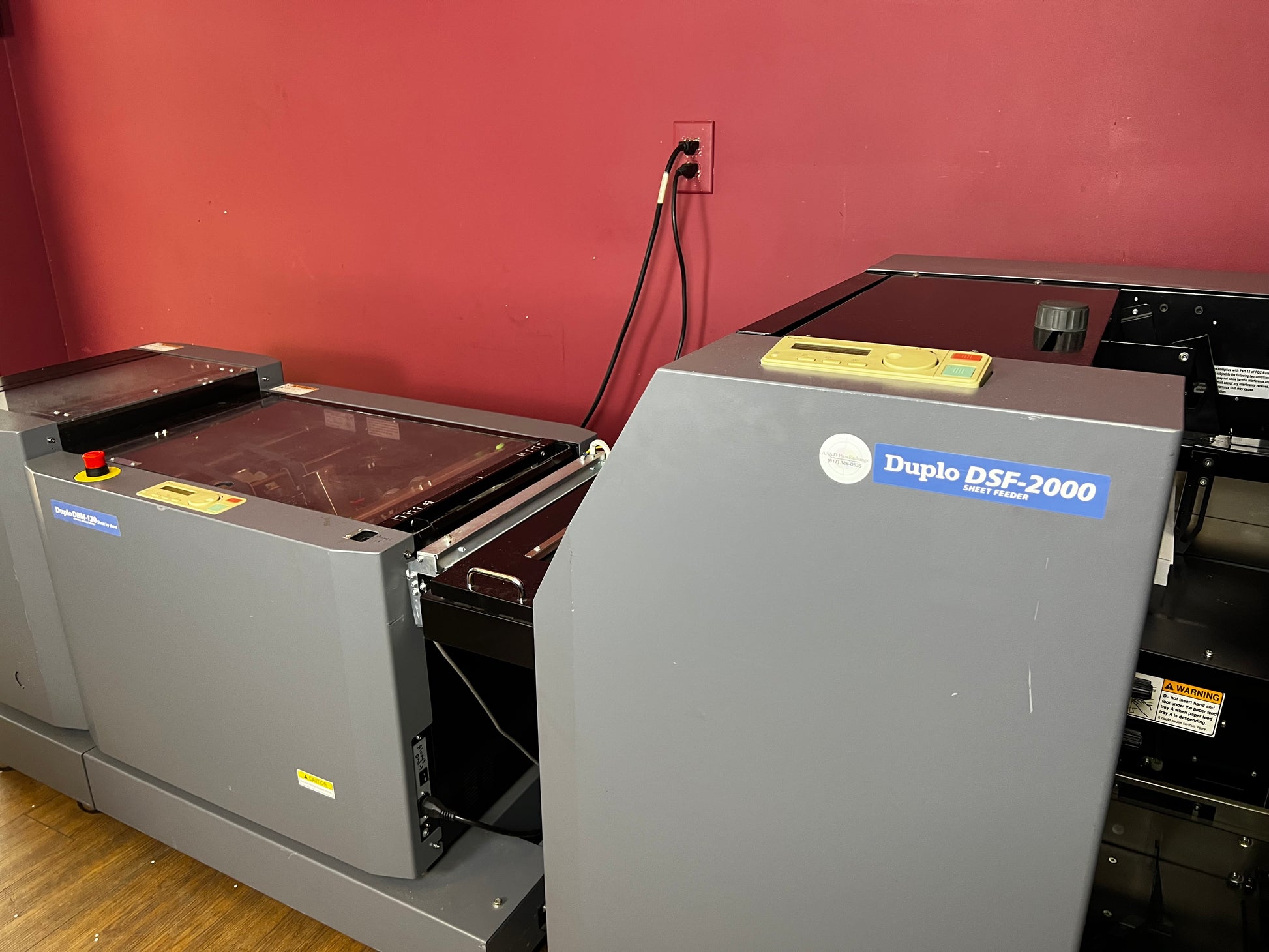

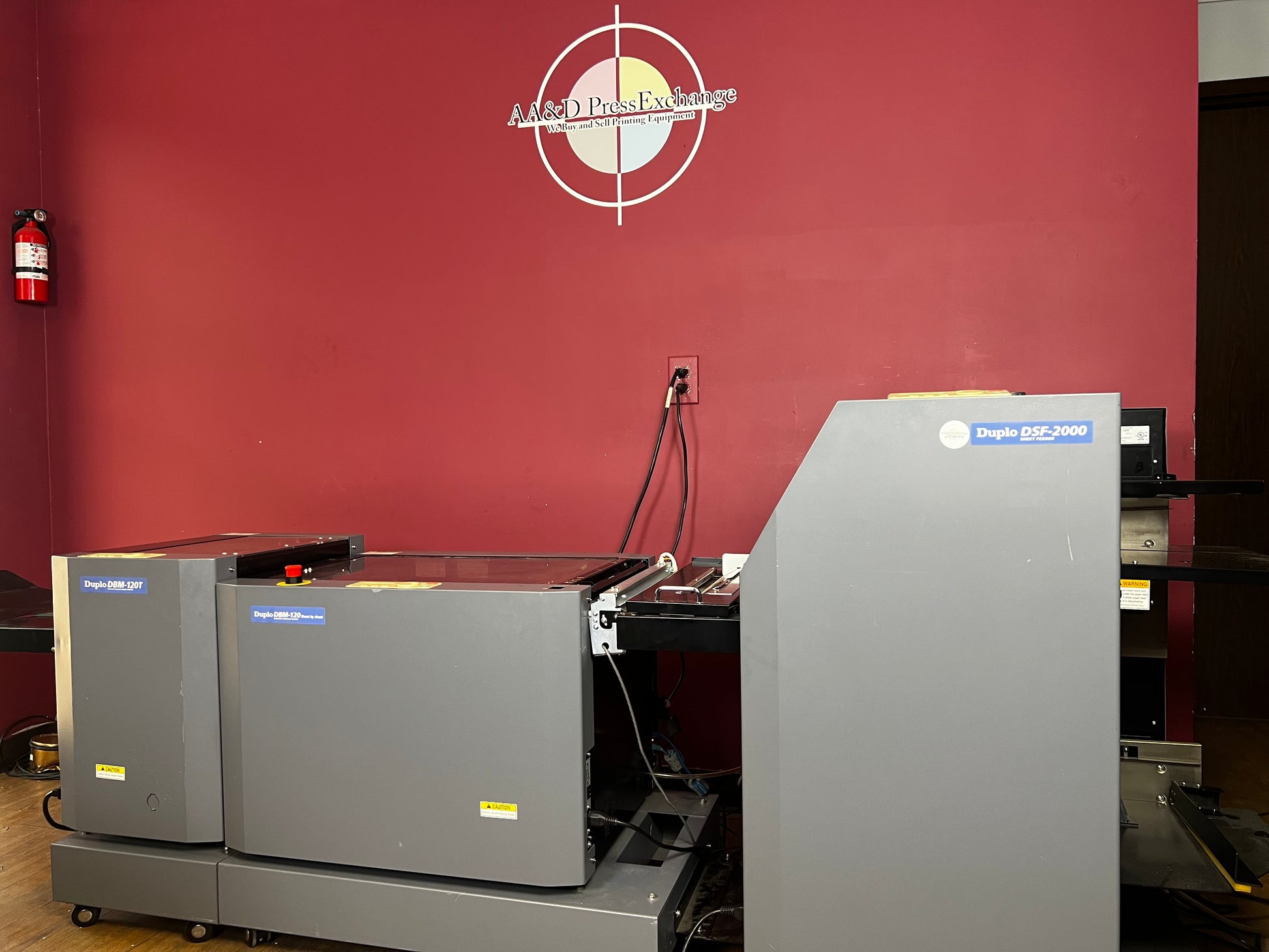

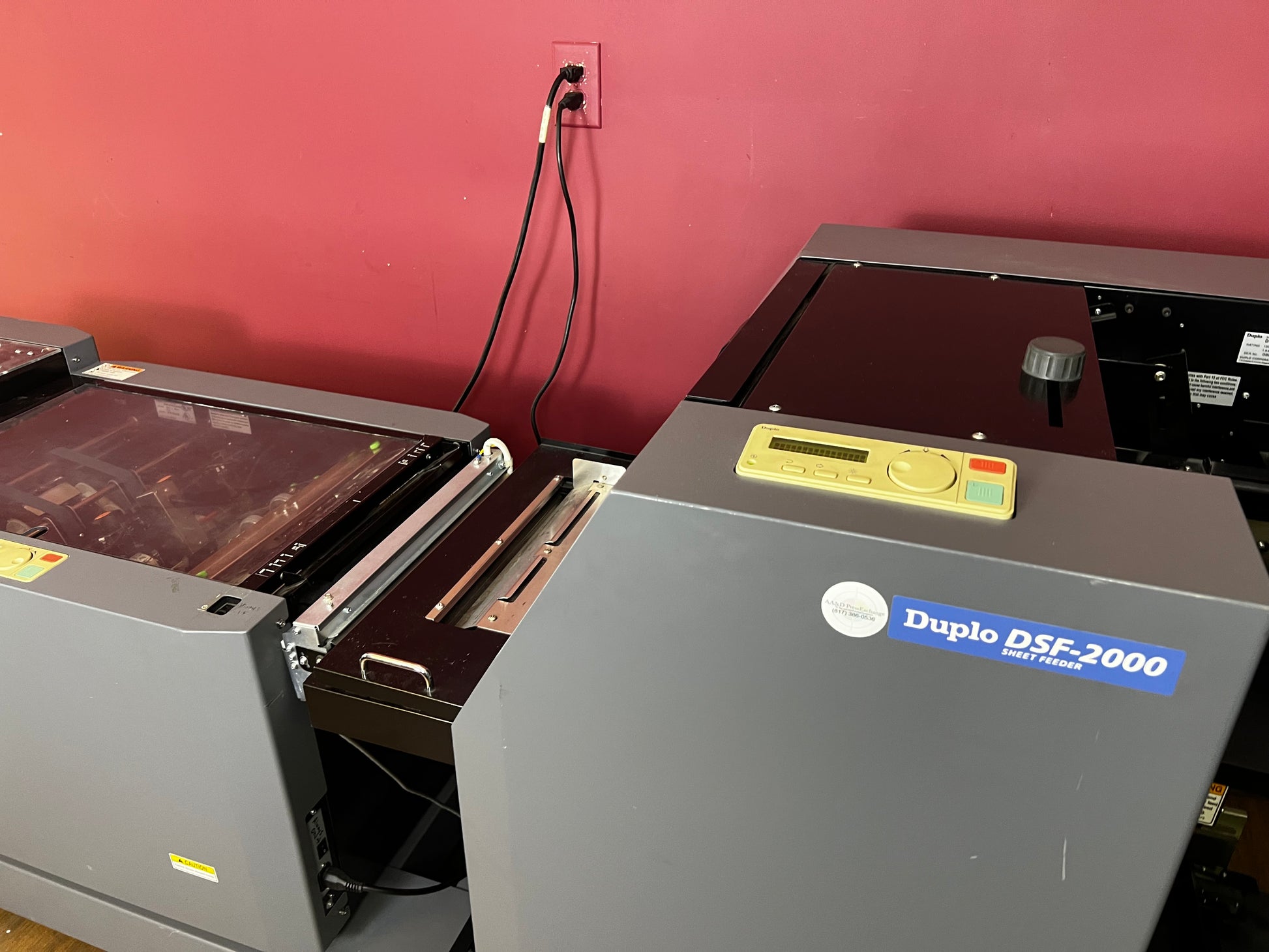

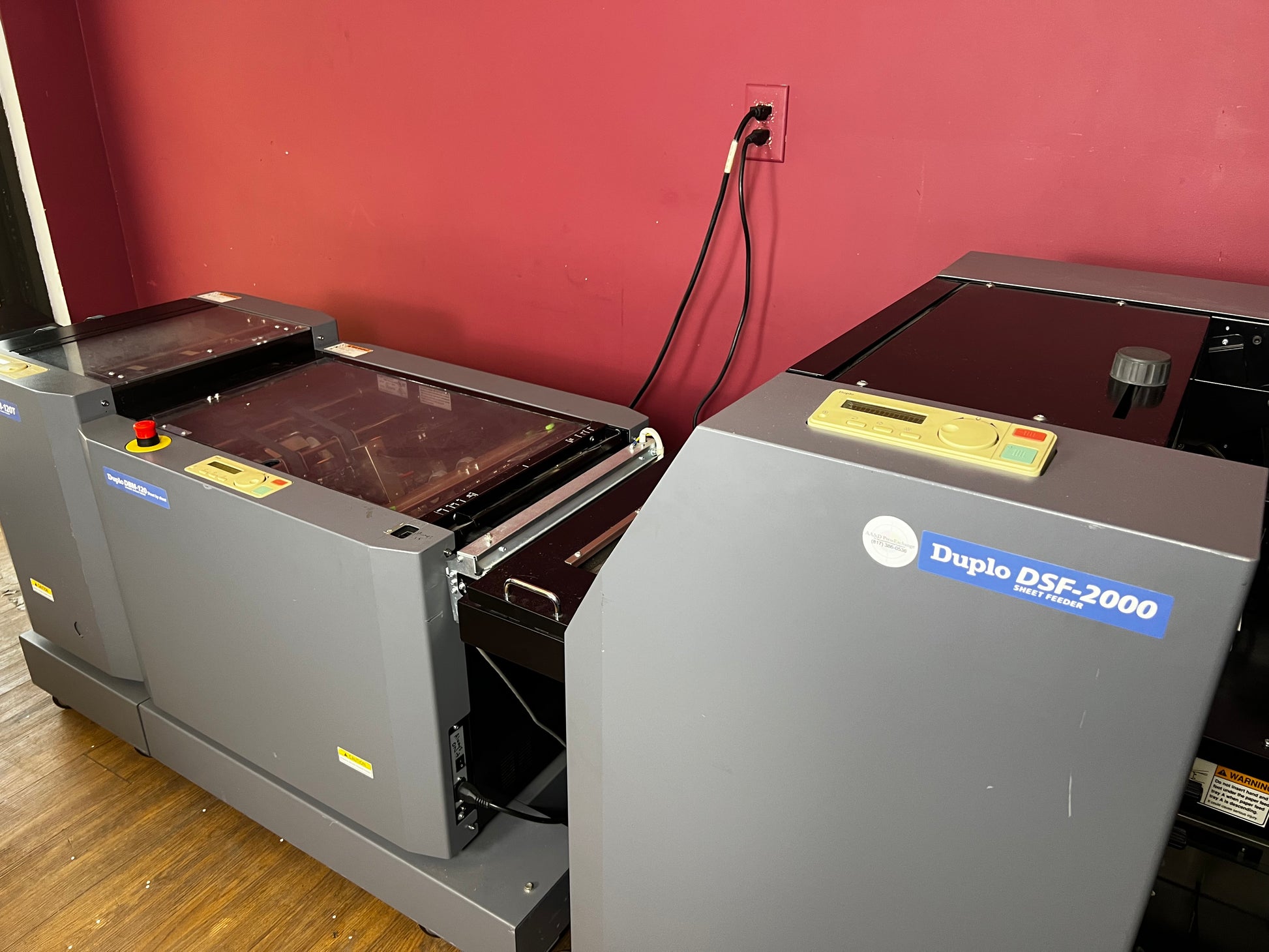

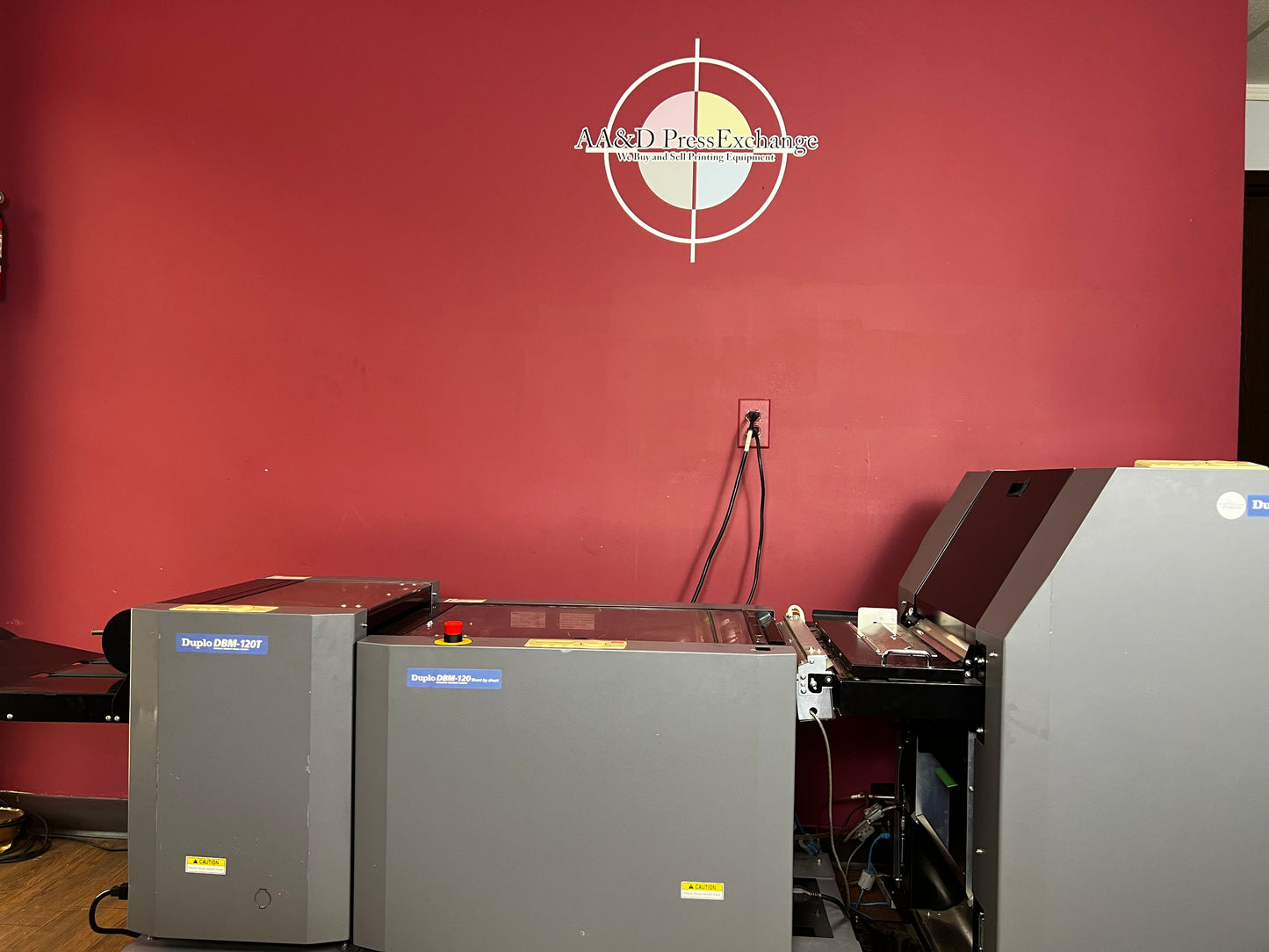

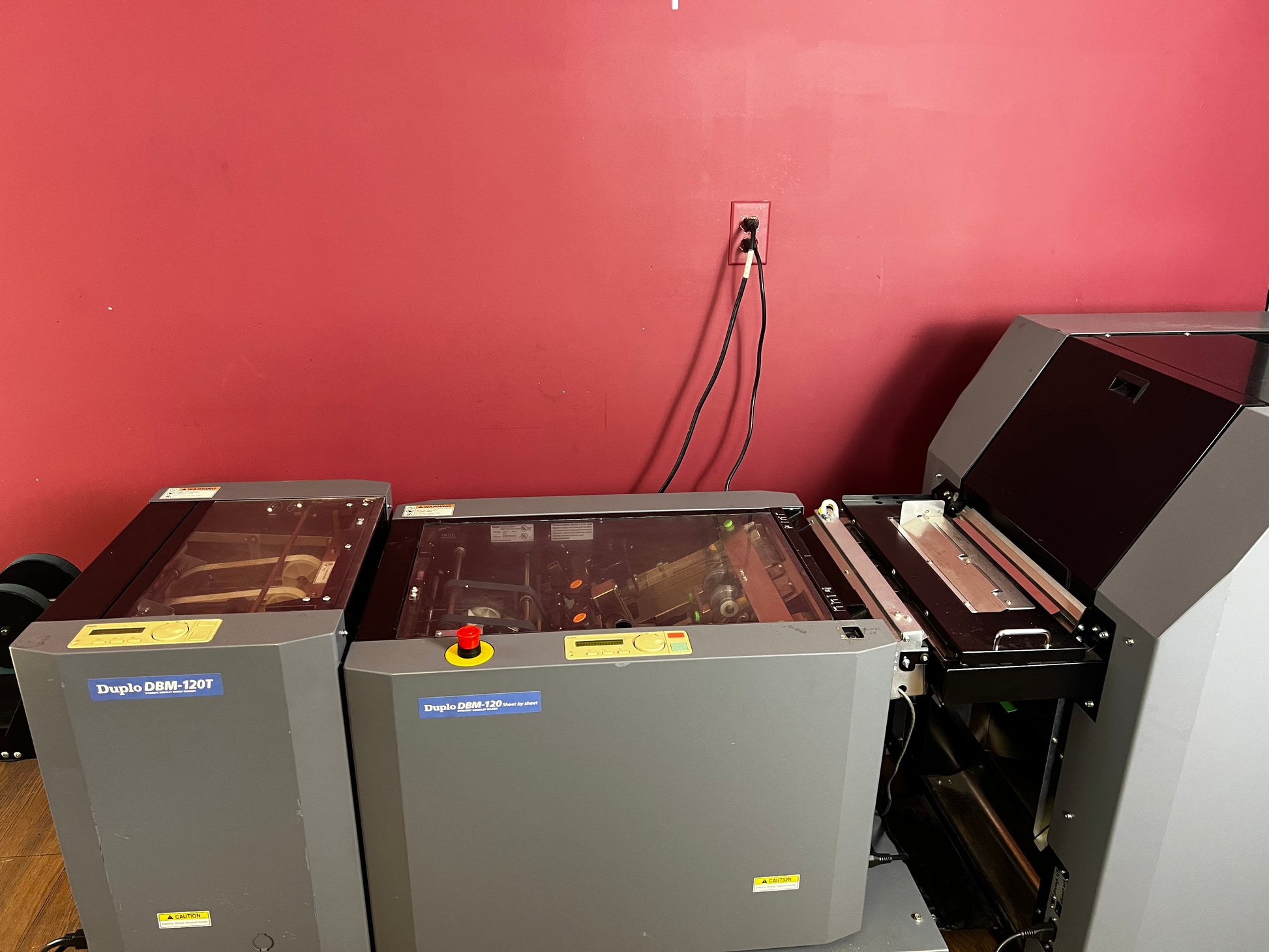

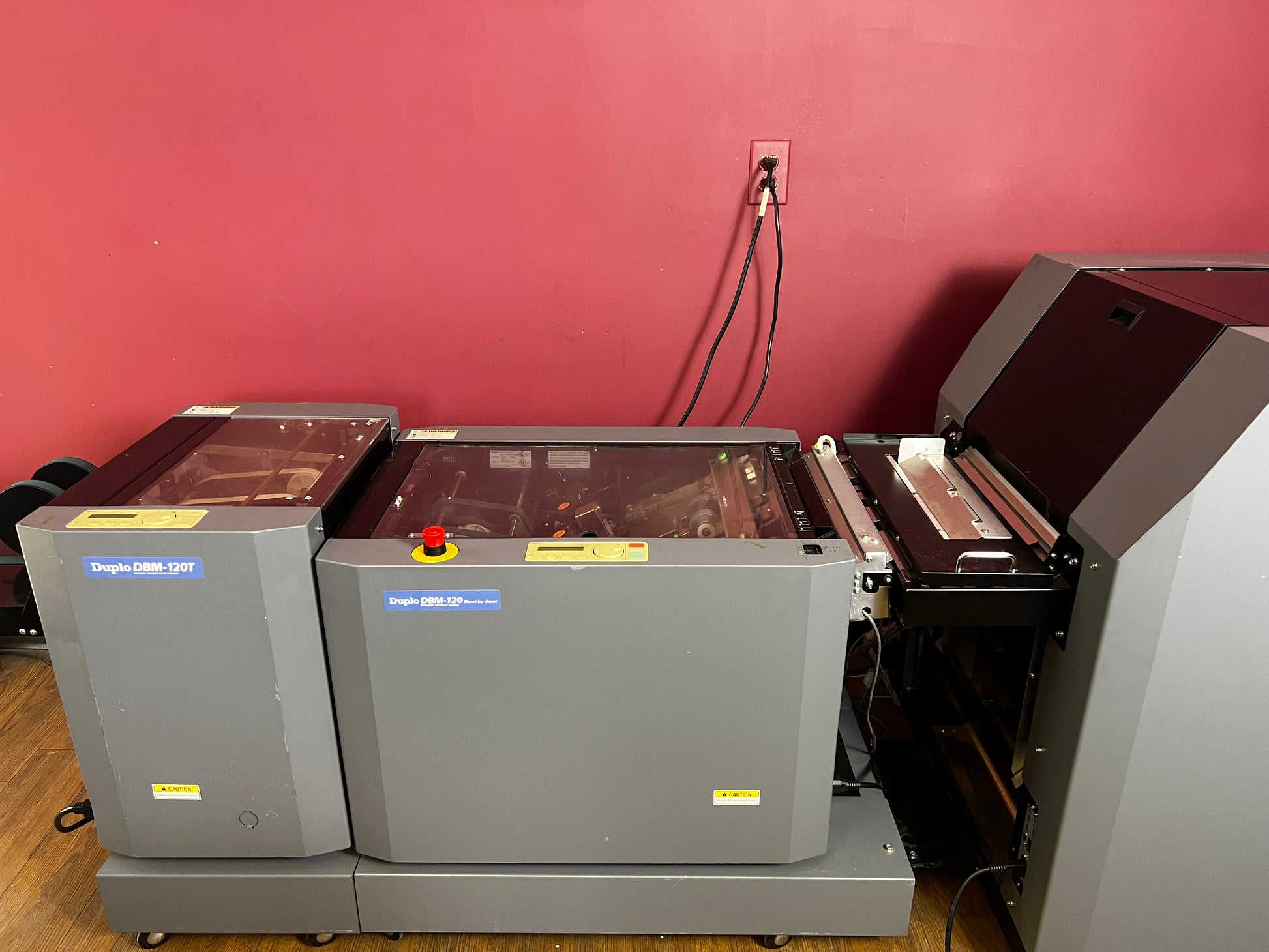

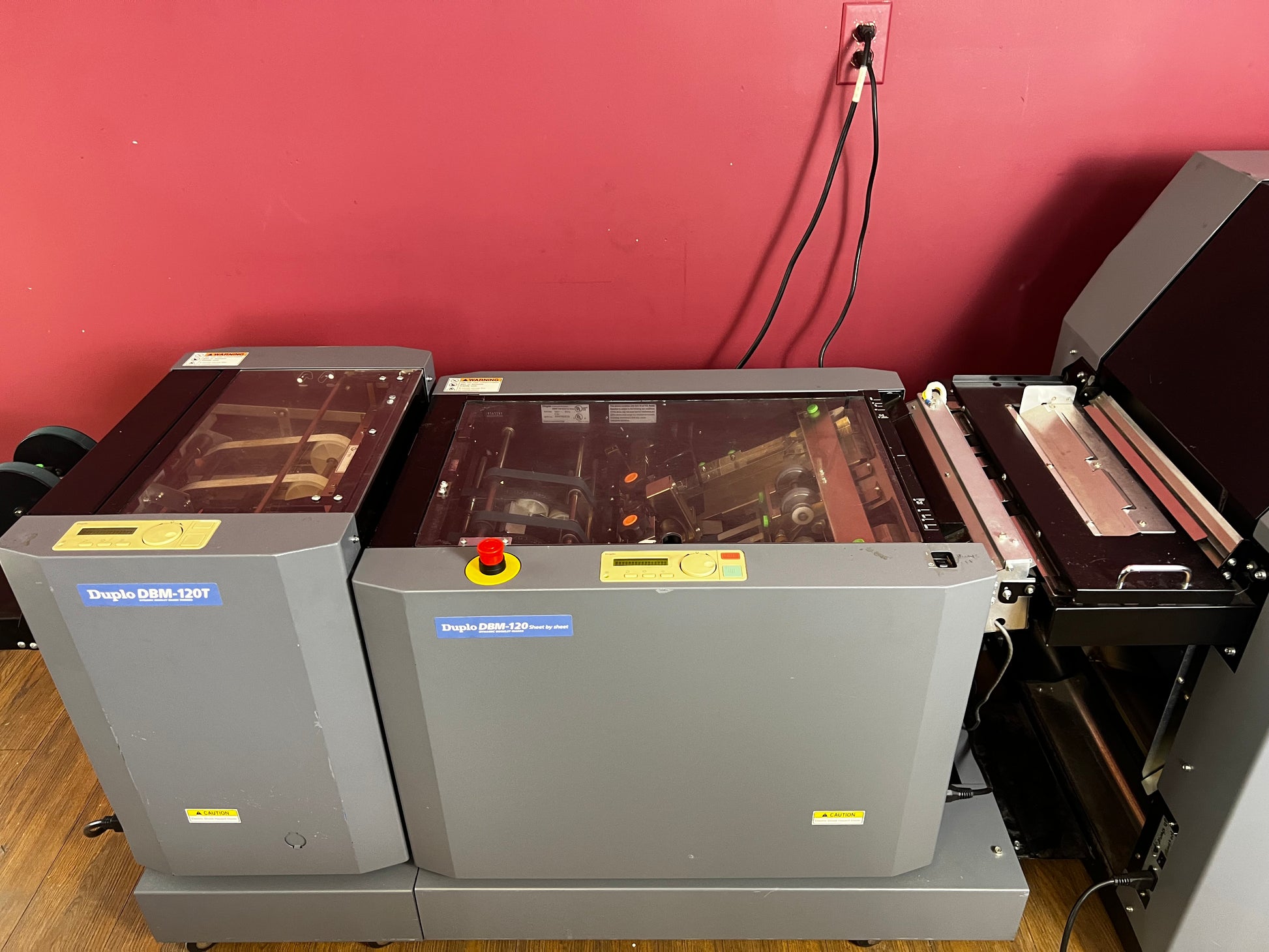

Booklet Maker Specifications
Paper Size (Min./Max.) 7.87” x 7.87” to 12.60” x 17.72”
Corner Stapling Paper Size 8.5” x 11”
Side Stapling Paper Size (Min./Max.) 5.47” x 7.87” to 9.09” x 12.60”
Paper Types Bond, NCR, some coated and card stocks
Speed Up to 2,400* sets per hour (10 sheets of 8.5” x 11”)
Paper Capacity Up to 20* sheets of 20 lb.
Number of Staple Heads 2
Staple Head Positions 5
Pre-set Paper Sizes for Automatic Set-up 8.5” x 11”, 8.5” x 14”, 11” x 17”
Programmable Memory Settings 10 pre-set and 3 custom paper sizes
Stapler Capacity 5,000 staples
Power Consumption 120V 60Hz 2A
Dimensions (LxWxH) 28” x 22” x 23”
Weight 183 lbs.
Min./Max. Booklet Size (before trim) 3.94” x 7.87” to 8.86” x 12.60”
Paper Capacity Up to 20* folded sheets of 20 lb.
Speed Up to 2,400* sets per hour
Pre-set Paper Size 8.5” x 11”, 8.5” x 14”, 11” x 17”
Trim Margin Up to 0.79” (3mm default cut)
Power Consumption 120V 60Hz 2.1A
Dimensions (LxWxH) 15” x 22” x 23” (37” x 22” x 23” with conveyor)
Weight 124 lbs.
