DigiBook 450 PUR Binder Product Details

DigiBook 450 PUR Binder Product Details

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out

This item is not for sale and is provided for informational purposes only. We are not an authorized dealer.

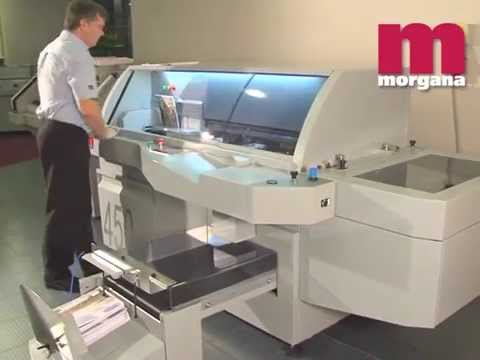

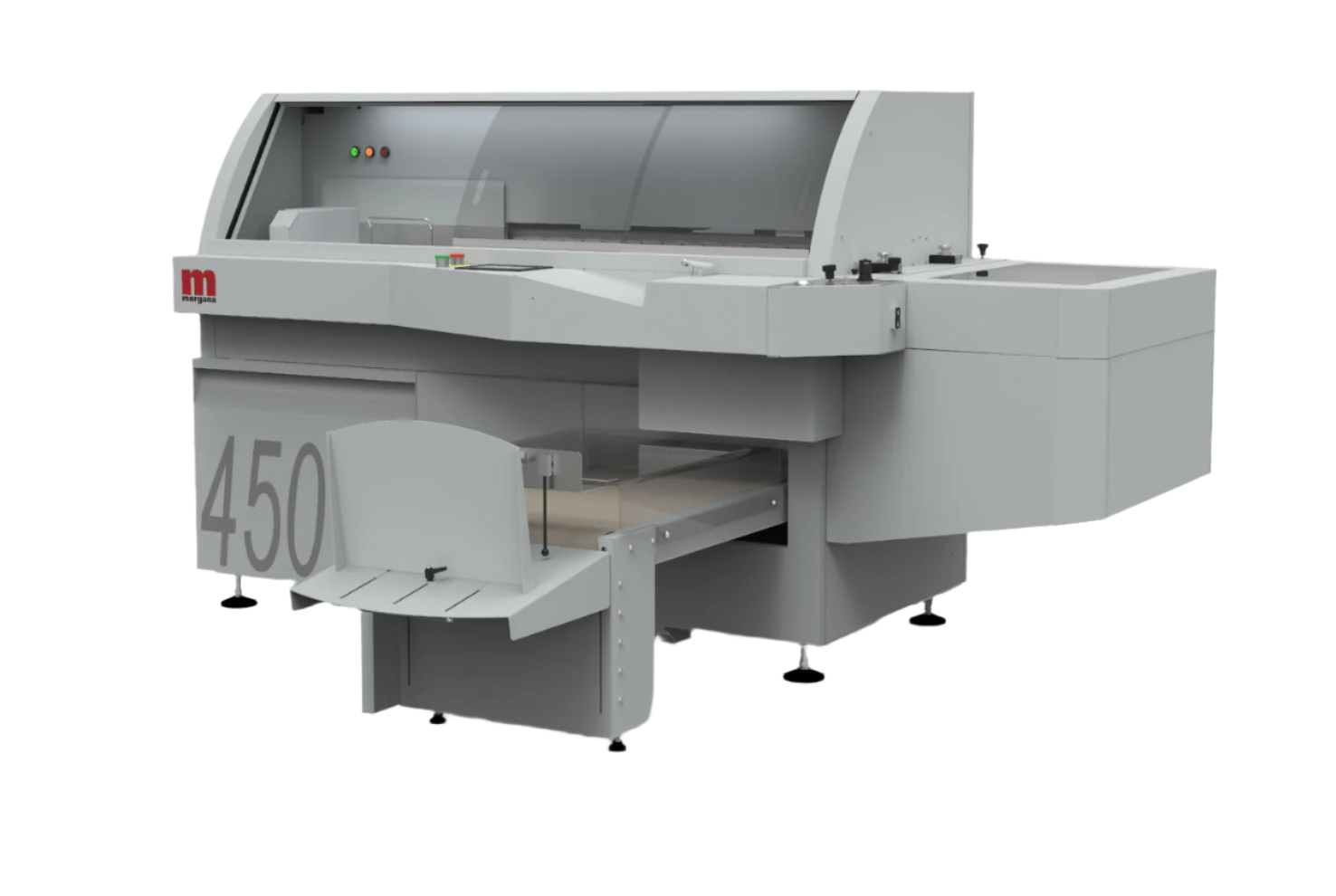

DigiBook 450 PUR Binder – Perfect Binding Machine


The DigiBook 450 PUR Binder machine is ideally suited to litho and digital printers who require medium to long runs of PUR perfect bound books to a professional standard.

This innovative machine is equipped with a patented closed gluing system, the spine and side gluing is applied by a slot applicator for the utmost quality and accuracy.

The DigiBook 450 comes as standard with an automatic cover feeder to give increased production of up to 450 books per hour. The cover feeder can also be equipped with an optional scoring attachment which will eliminate the need to pre-crease covers.





Specifications

Technical Specifications

Speed Up to 450 books per hour
Number of clamps 1
Touch screen Yes
Spine length: Max / Min 450mm/100mm
Book Height: Max / Min 325mm/120mm


Technical Specifications

Book/spine thickness 2 – 50mm
Cover dimension max 700mm x 450mm
Cover dimension min 240mm x 120mm
Electrical Requirements 16amp, 3 phase, + E + N, 400v 50/60hz
Maximum cover weight 400gsm
Dimensions L 2585mm x W 2090mm x H 1370mm
Product Weight 850kg
Shipping Weight 1155kg
