We are now offering a 30-day warranty on all electronic parts for our Plockmatics.
AA&D PressExchange can help crate or palletize this item and also help arrange shipping to your location.
!!FREE CRATING!!

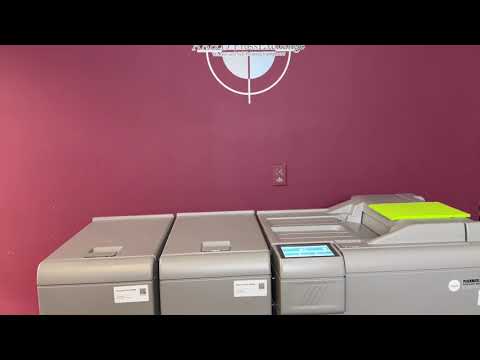

CONTACT US FOR VIDEO!

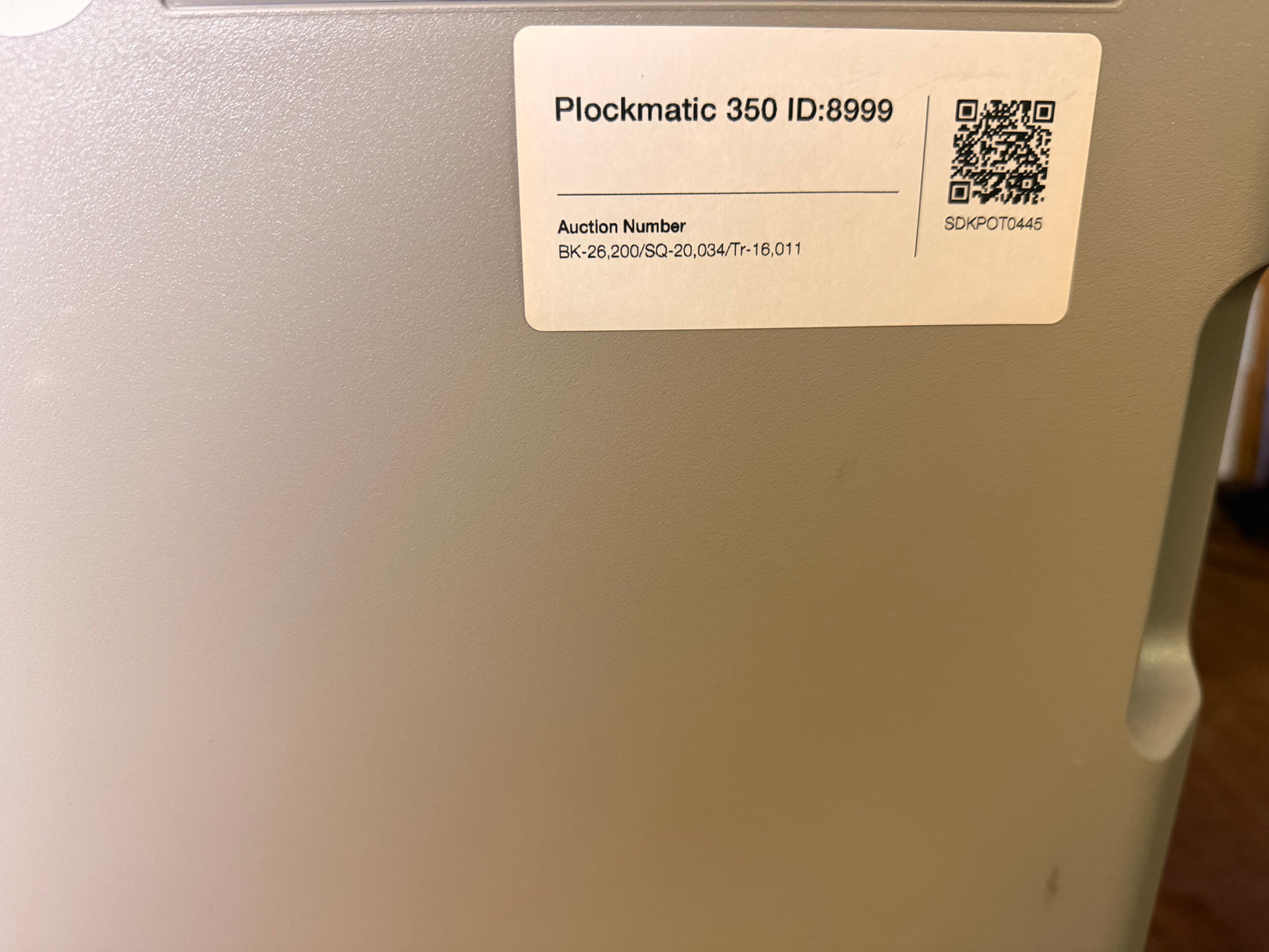

Bookletmaker - 26,200
Squarespine - 20,034
Trimmer - 16,011
Booklet Maker
Speed Maintain engine speed*
*Actual speed depends on number of sheets per booklet
Standard paper sizes A4, A3, B4, 8.5x11”, 8.5x14”, 9x12”, 11x17”, 12x18”, SRA4, SRA3, Custom size possible
Paper size (min) Width 206 mm / 8.1” Length 275 mm / 10.8”
Paper size (max) Width 320 mm / 12.6” Length 457.2 mm / 18”
Paper weight uncoated (min) 64 gsm / 16 lb Bond
Paper weight coated (min) 105 gsm / 28 lb Bond
Paper weight (max) 300 gsm / 110 lb Cover*
*350 gsm/132lb Cover supported on some media
Set size (stapled folding) 2-50 sheets PBM500, 2-35 sheets PBM350 (80 gsm / 20 lb Bond)
Set size (non stapled folding) 1-2 sheets
Offline use Yes
Noise emission 62dB
Rotate, Crease, Bleed Trimmer module
Paper sizes Same as Booklet Maker
Minimum trimming 5+5 = 10 mm / 0.39”
Maximum trimming 30+30 = 60 mm / 2.36”
Asymmetrical trimming Yes
Face Trimmer module
Paper sizes Same as Booklet Maker
Minimum trimming 1 mm / (0.0394”)*
*When trimming SRA3 (450 mm) Booklets minimum trimming is 5 mm, when trimming 18" Booklets minimum trimming is 9 mm.
Maximum trimming 25 mm / (0.984”)
The Trimmer support “multi-cut” operation. This allows customers to create a 105 mm/4.35” long booklet cut down from a larger sheet size.
BookFold module
Paper sizes Same as Booklet Maker
Set size (stapled folding) Same as Booklet Maker
Power source From Booklet Maker
Paper sizes Same as Booklet Maker
Paper weight (min) 64 gsm / 18 lb Bond
Paper weight (max) 250 gsm / 93 lb Cover
Cover Feeder capacity 20 mm / 0.79”: Approx. 200 sheets of 80 gsm paper or approx. 200 sheets 20 lb Bond paper
Power source From Booklet Maker
The Cover Feeder dimensions are included in the Booklet maker dimensions and will not add to the footprint.
Stacking capacity Up to 1000 A4 / 8.5x11” sized booklets of 4 sheets
Note: These specs have been taken from the manufacturer's website for a brand new item. There may be mention of optional accessories/supplies, which may or may not be included with the used item actually being sold here. There may have been improvements in production specifications between the used item's date of manufacture and brand new items. To be clear, you are bidding on the item in the photographs, not the item described in the manufacturer's latest literature or description below. If there is no link to the video of the item you are bidding on, we have not tested the machine. Our testing does not go any further than what is shown in the video. Minimal Inspection done.
