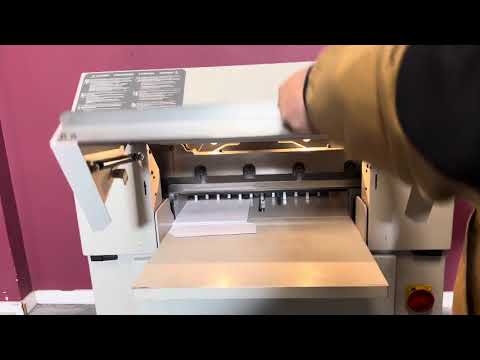

Challenge Titan 200
Maximum Cutting Width: 20″ / 50.8cm
Minimum Cut (without false clamp plate): 1/2″ / 13mm
(with false clamp plate): 1-7/8″ / 48mm
Maximum Cut Depth: 20″ / 50.8cm
Clamp Opening (without false clamp plate): 3-1/4″ / 8cm
(with false clamp plate): 3″ / 7.6cm
Clamping Method: Hydraulic and Manual
Backgauge Control: Power
DIMENSIONS
Table Space (in front of knife): 15-1/4″ / 39cm
(behind knife): 20″ / 51cm
Overall Height: 53″ / 135cm
Overall Width: 36″ / 91cm
Overall Length: 49-5/8″ / 126cm
Net Weight (approximate): 795 lbs / 361 kg
Shipping Weight (approximate): 920 lbs / 418 kg
ELECTRICAL
1-1/2 H.P. 1 Phase, 60 Hz, AC
230 Volts, 12 Amps (service size 15 Amps)
