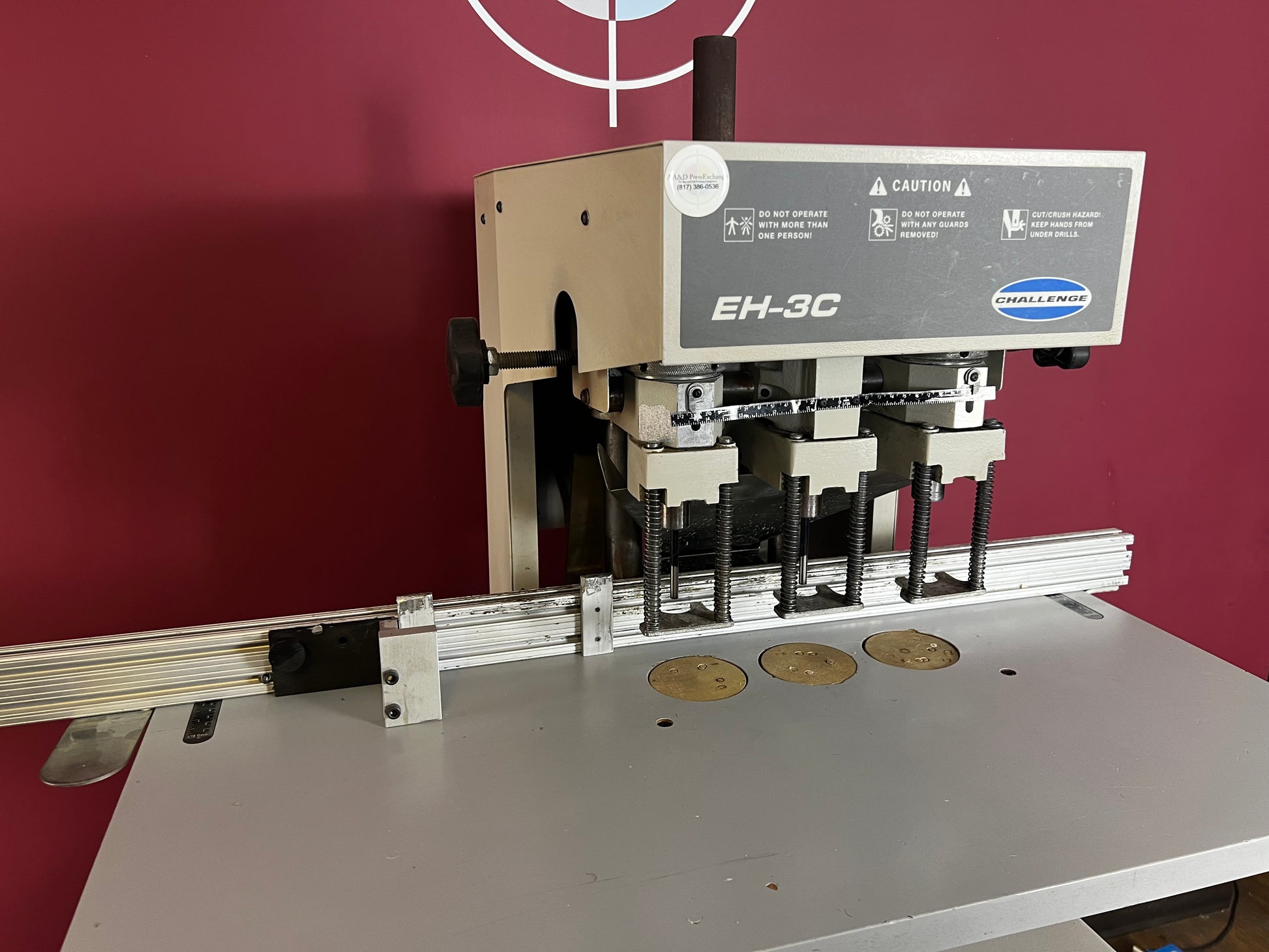

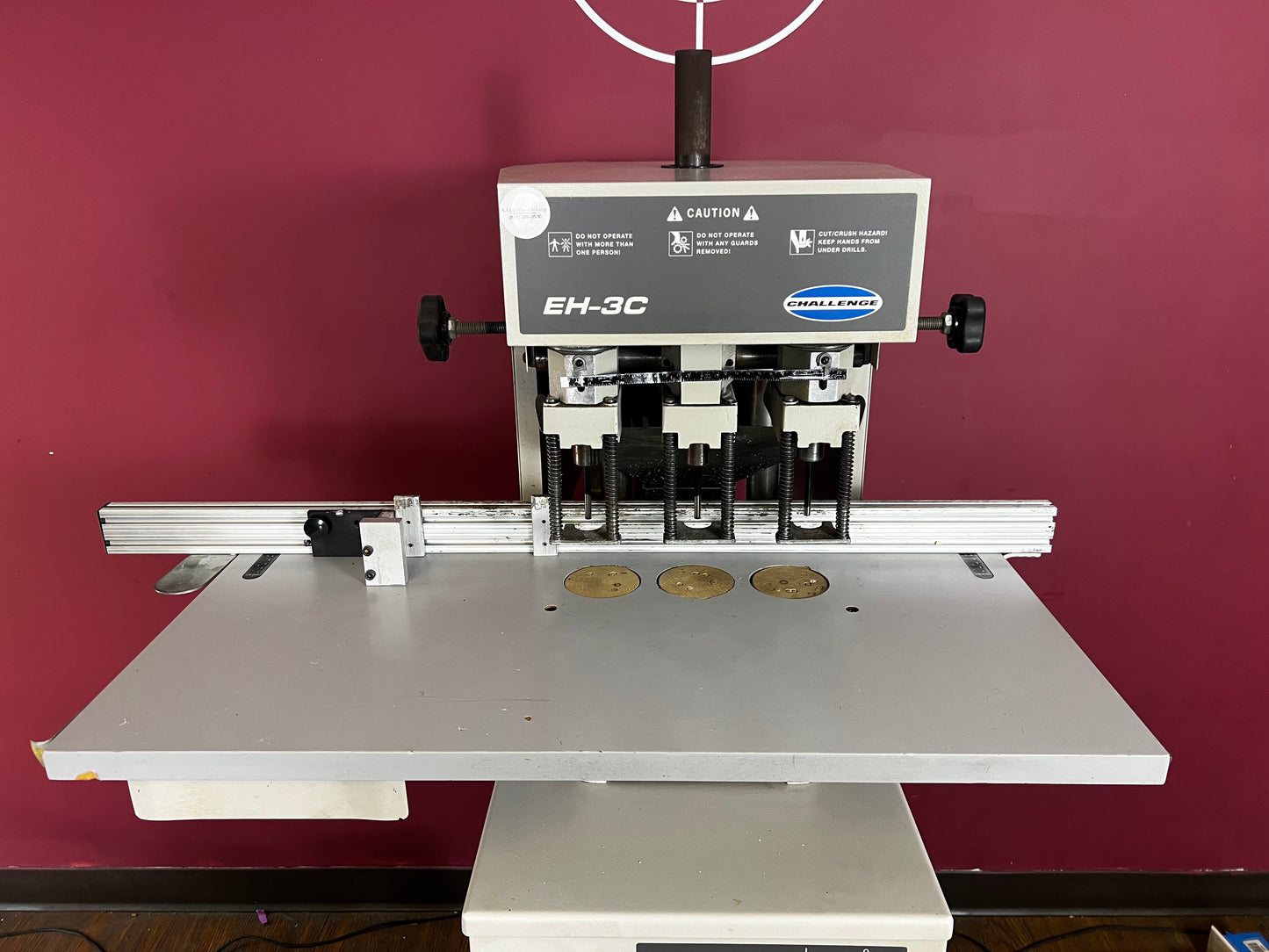

• Used Challenge EH-3C Paper Drill Three-Spindle Hydraulic Drill Front View – AA&D PressExchange

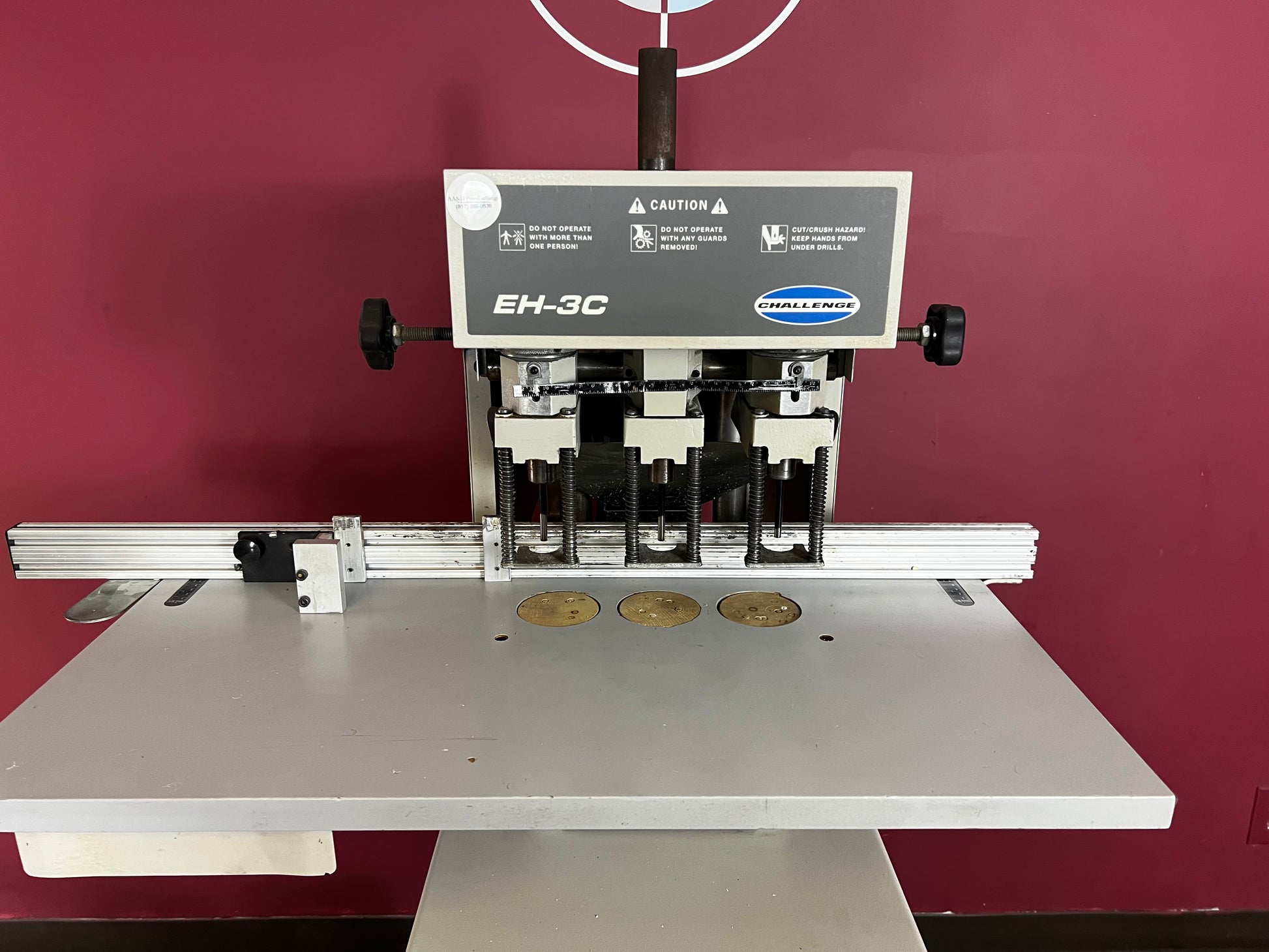

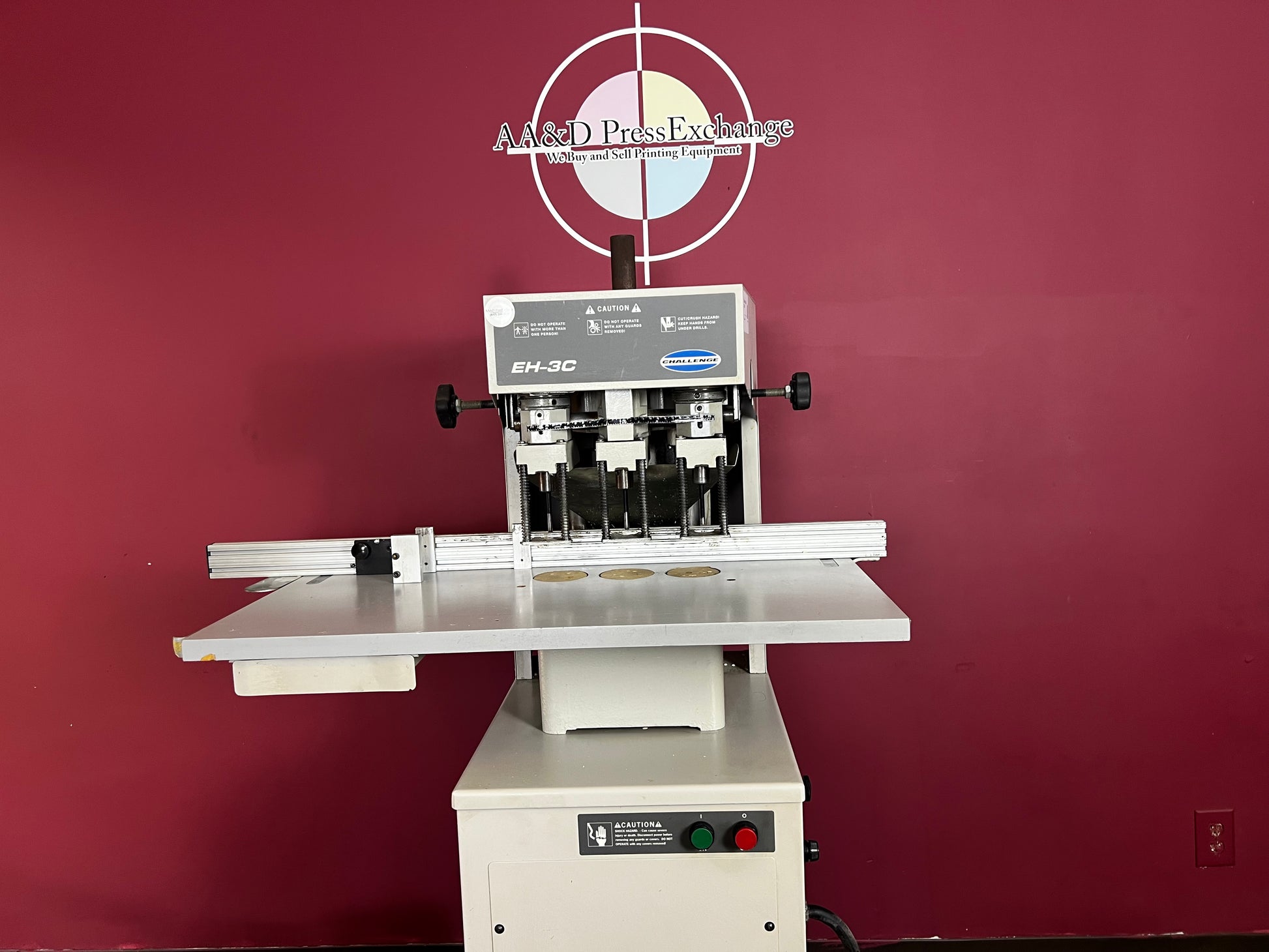

  • Used Challenge EH-3C Hydraulic Paper Drill with Adjustable Backgauge – AA&D PressExchange

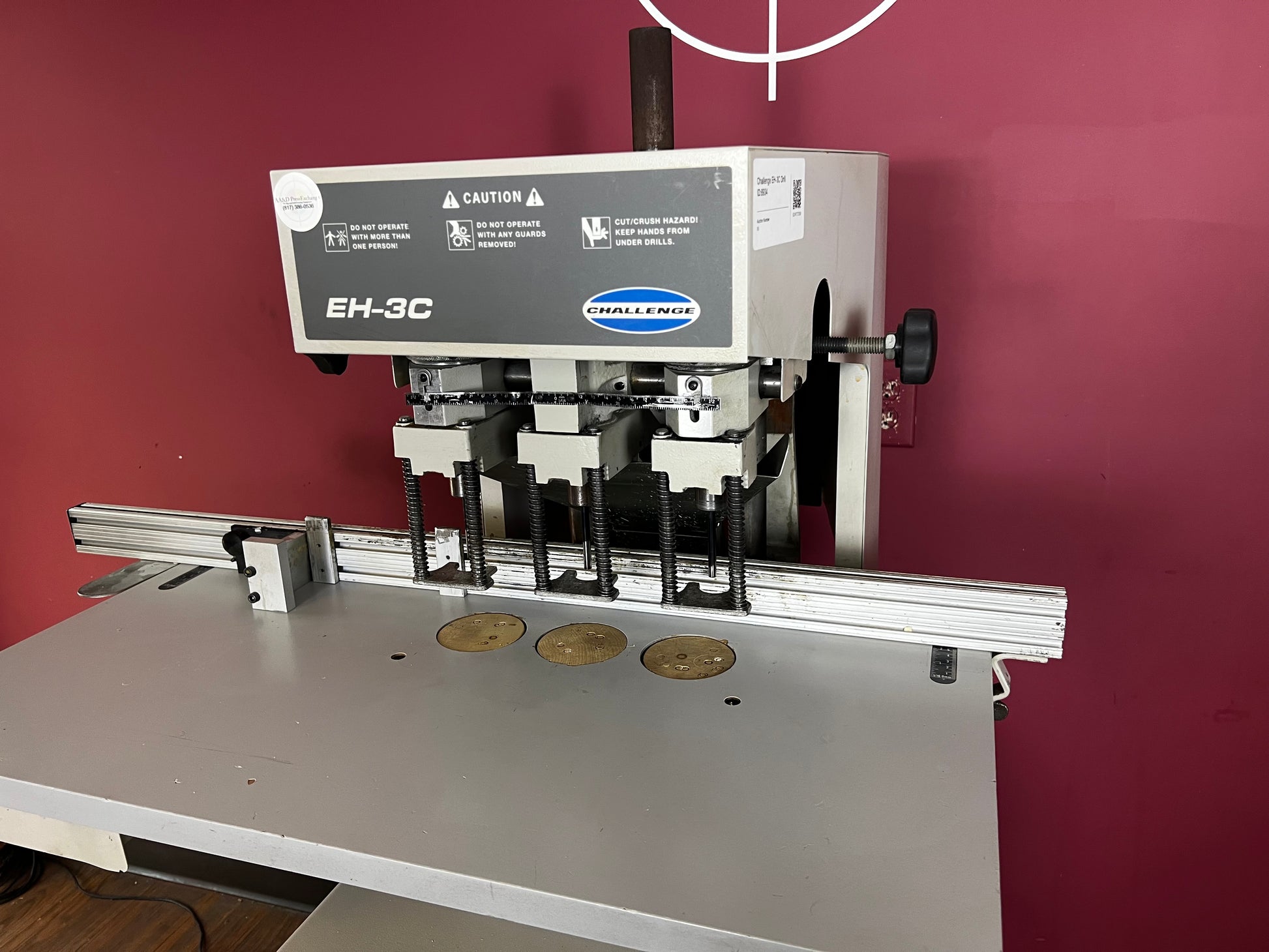

  • Used Challenge EH-3C Paper Drill with Automatic Drill Return – AA&D PressExchange

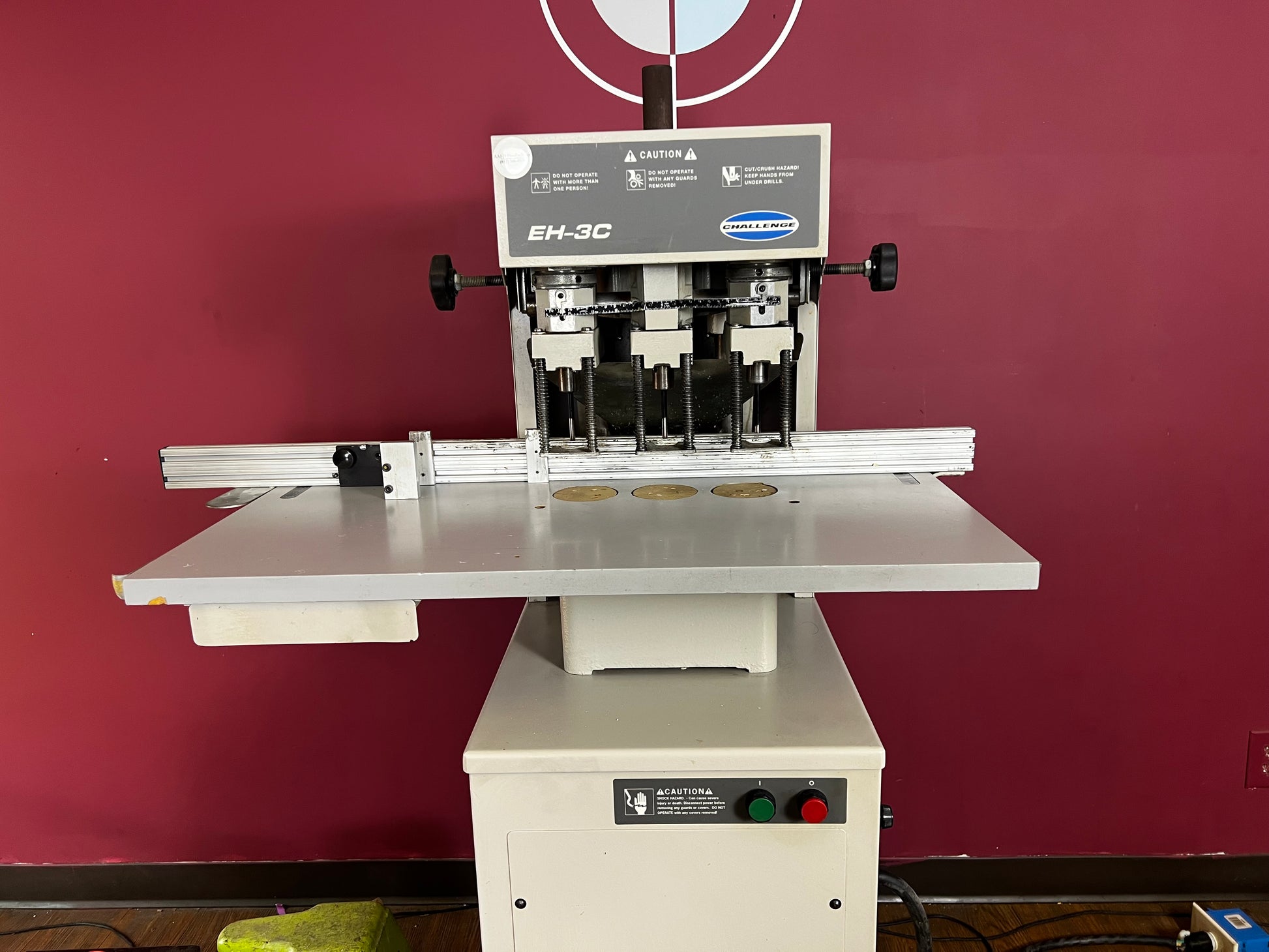

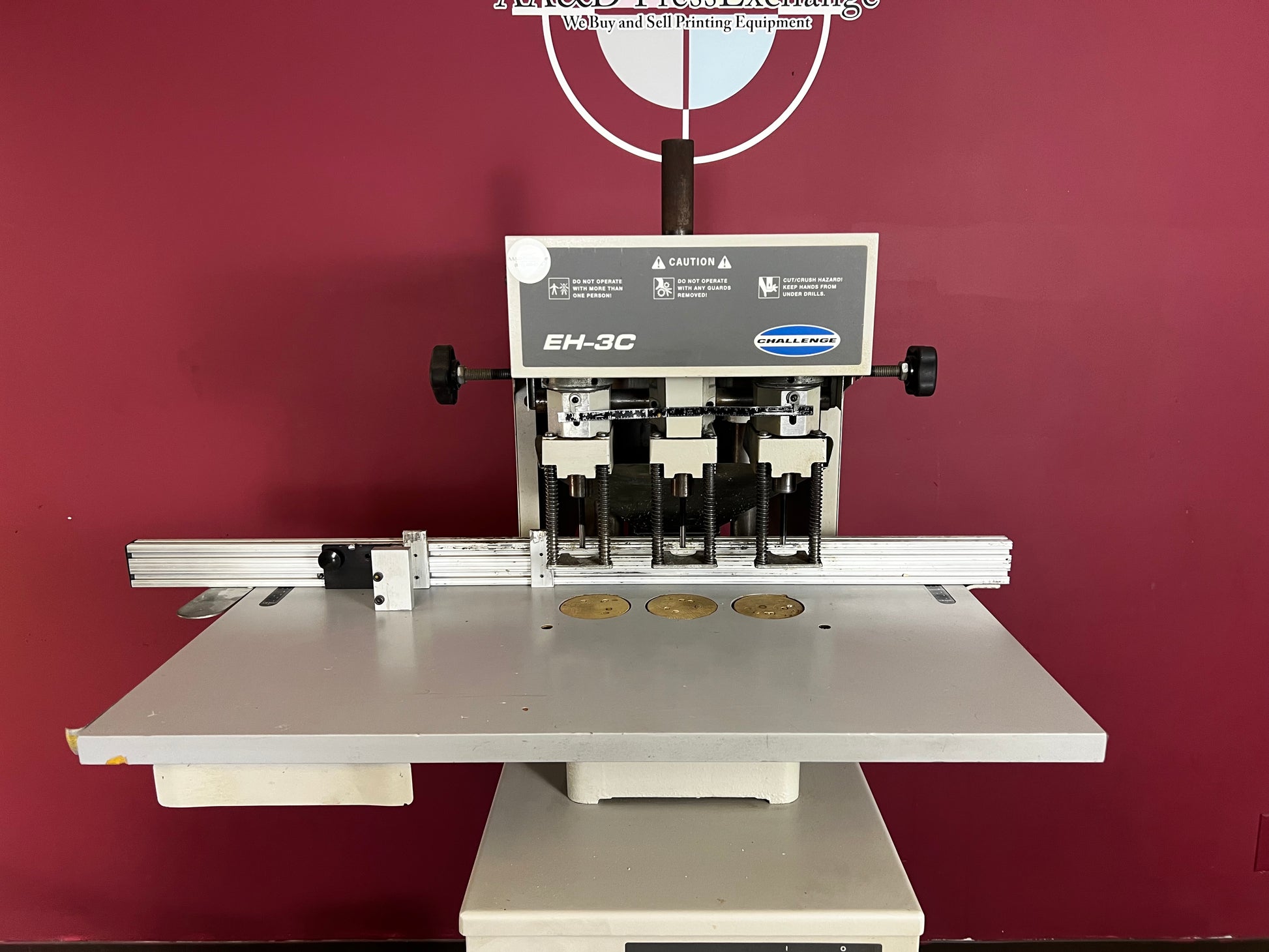

  • Used Challenge EH-3C Paper Drill Heavy-Duty Three-Spindle Machine – AA&D PressExchange

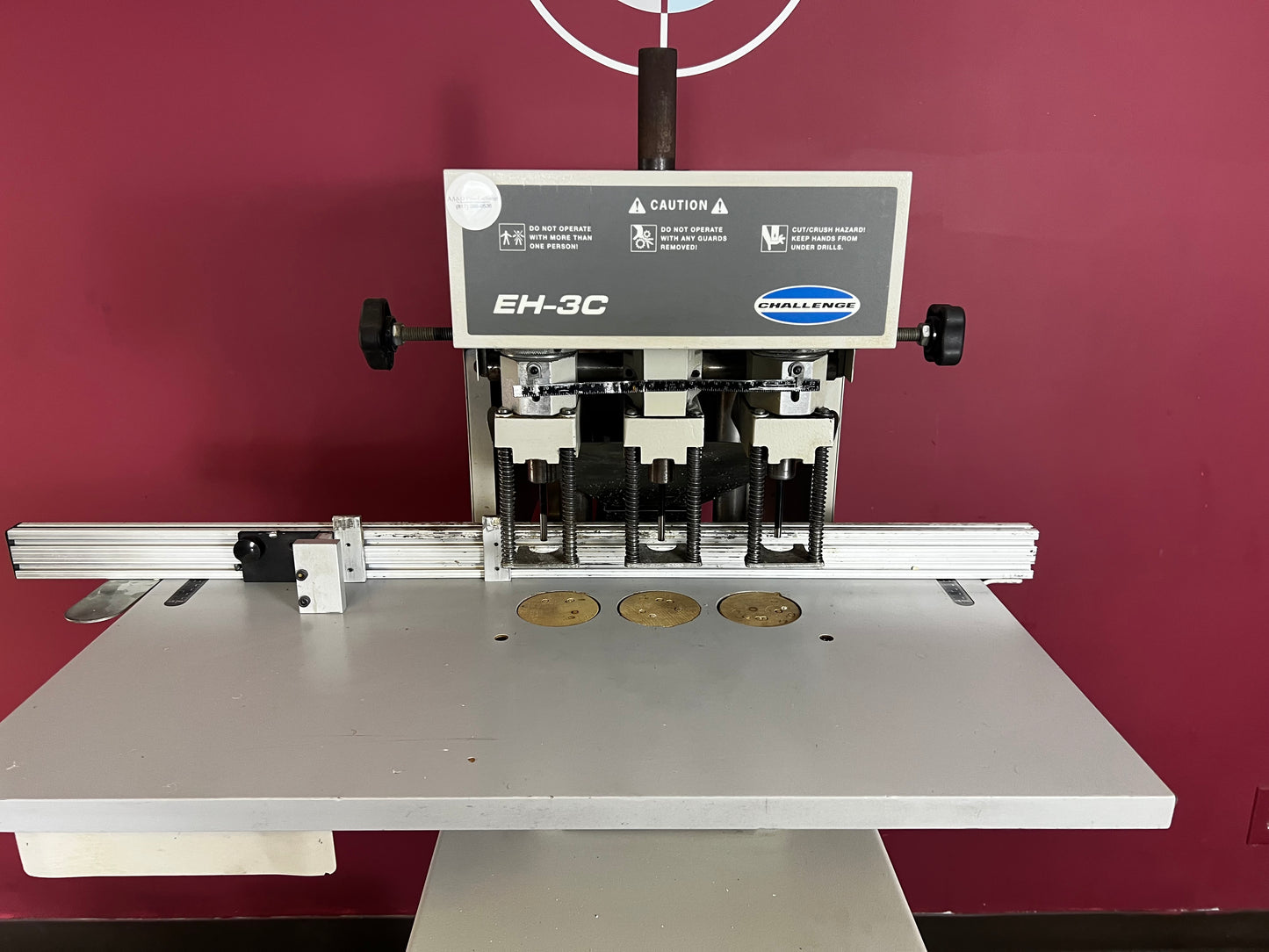

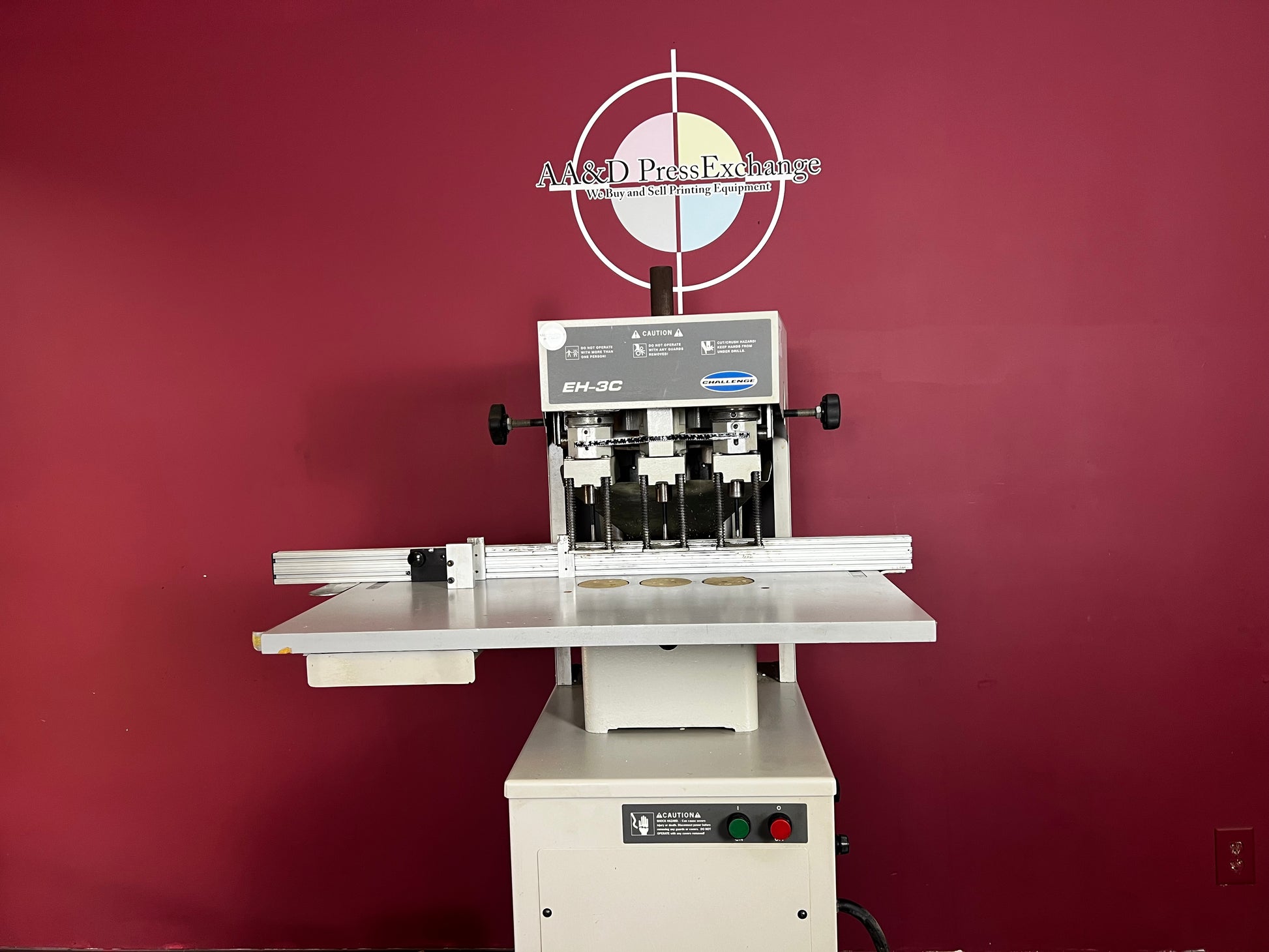

  • Used Challenge EH-3C Hydraulic Paper Drill Side View – AA&D PressExchange

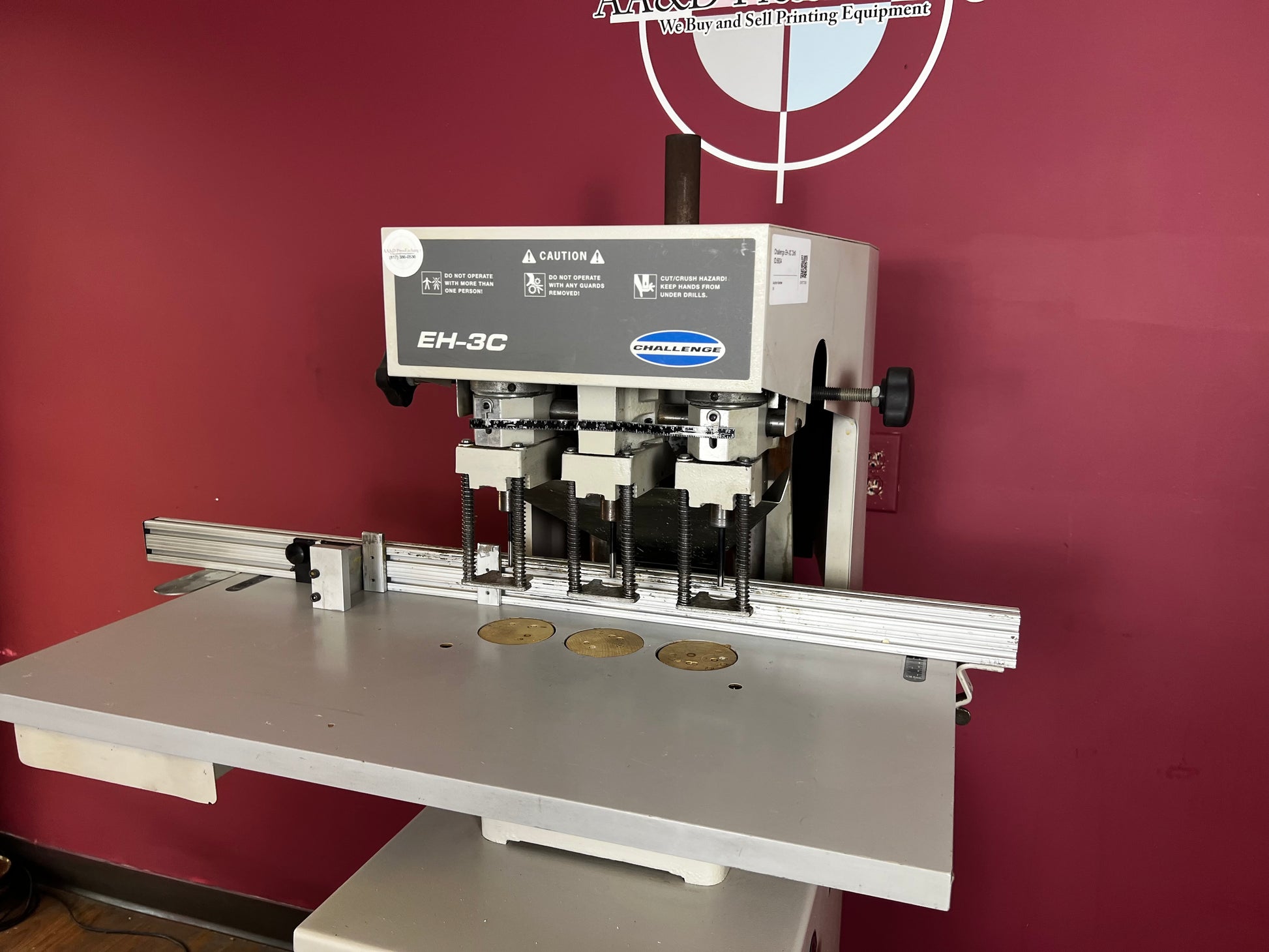

  • Used Challenge EH-3C Paper Drill for High-Volume Paper Drilling – AA&D PressExchange

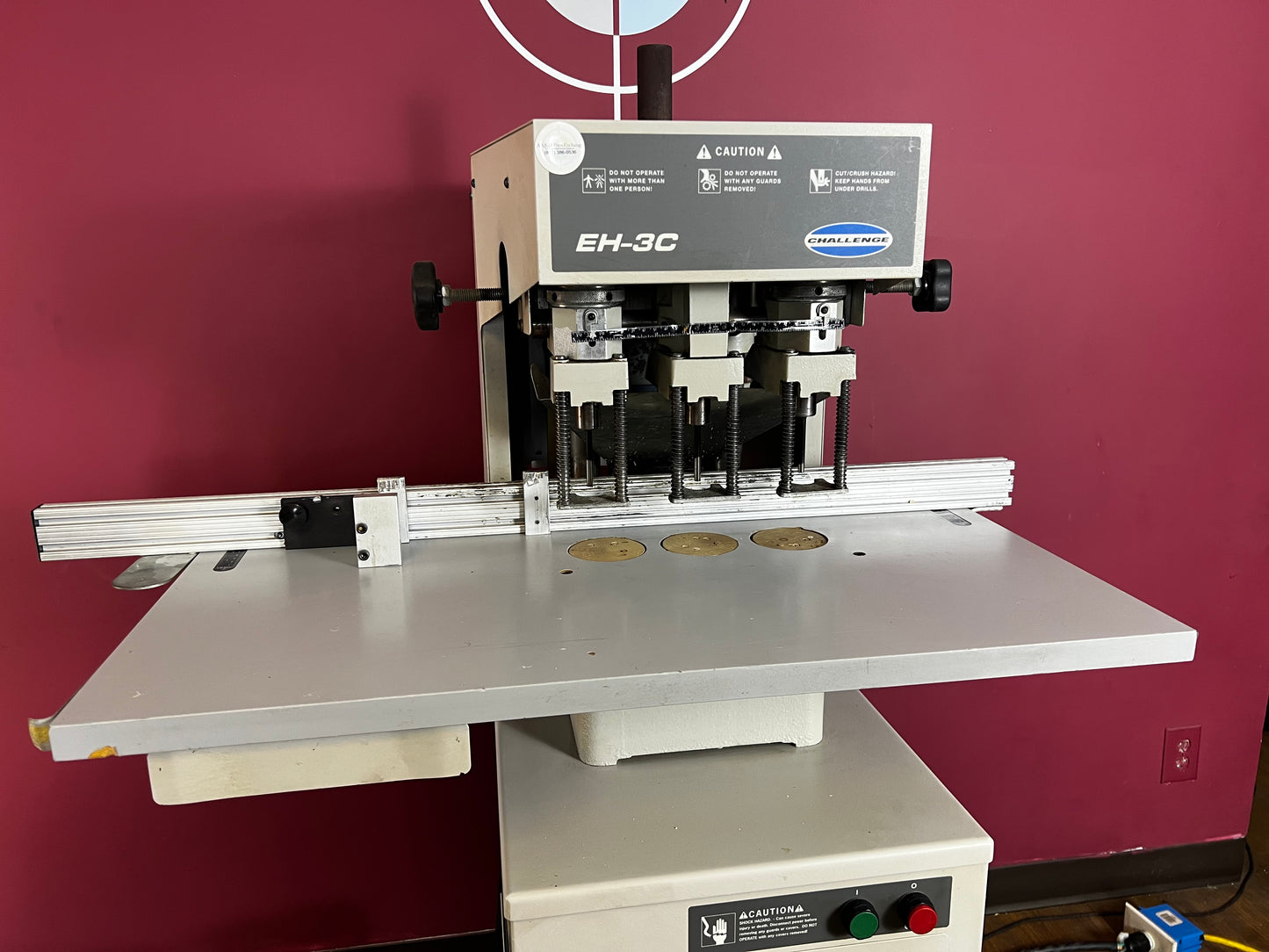

  • Used Challenge EH-3C Paper Drill with Fast Head Adjustments – AA&D PressExchange

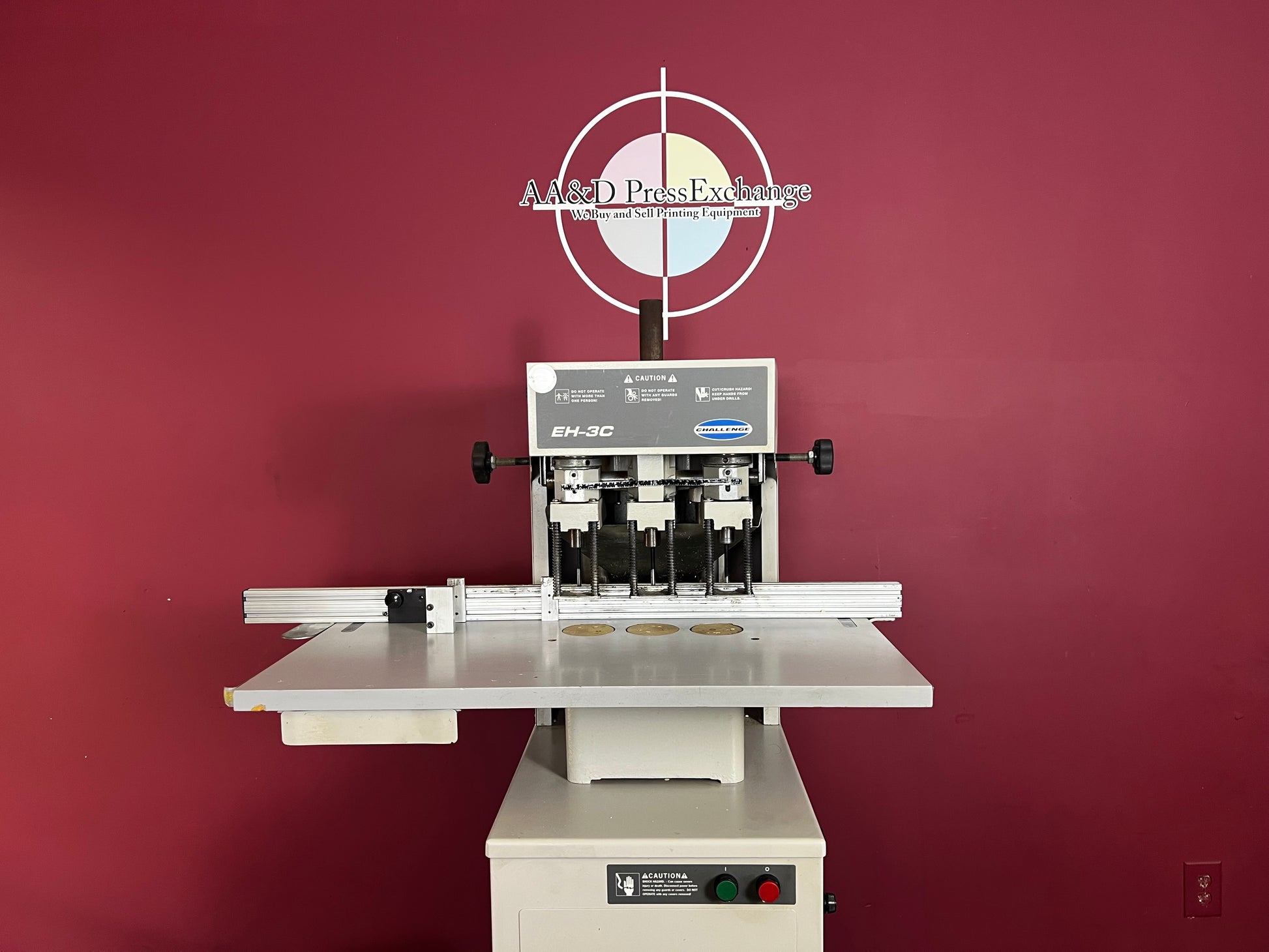

  • Used Challenge EH-3C Paper Drill Print and Bindery Equipment – AA&D PressExchange
  • Used Challenge EH-3C Three-Spindle Paper Drill Close-Up – AA&D PressExchange
  • Used Challenge EH-3C Paper Drill with Hydraulic Operation – AA&D PressExchange
  • Used Challenge EH-3C Paper Drill with Adjustable Paper Stops – AA&D PressExchange
  • Used Challenge EH-3C Paper Drill Commercial Bindery Equipment – AA&D PressExchange
1 12

AA&D PressExchange

Challenge EH-3C Paper Drill

Challenge EH-3C Paper Drill

$3,500.00 USD
$3,500.00 USD
Sale Sold out
Max. Lift Capacity 2.5"
Operation Hydraulic (foot pedal-activated)
Drill Actuation Method Heads lower to table
Drill Heads 3 Moveable
Drill Bits Included 3 @ 1/4" + 3 @ 5/16"
Bit-to-Bit Range 2.75" - 4.5"
Range between Outside Bits 5.5" - 9"
Range from Bit to Backguage 0-5"
Range from Left Side Guide to Left Bit 0-14.5"
Table Size 19.5" x 31.5"
Table Height 37"
Electrical 220 v / 1 ph / 60Hz / 17 amps (service size 30 amps)
Dimensions 41.5" W x 59.25" H x 36" D
Weight 520 lbs.
Shipping Weight 570 lbs.
