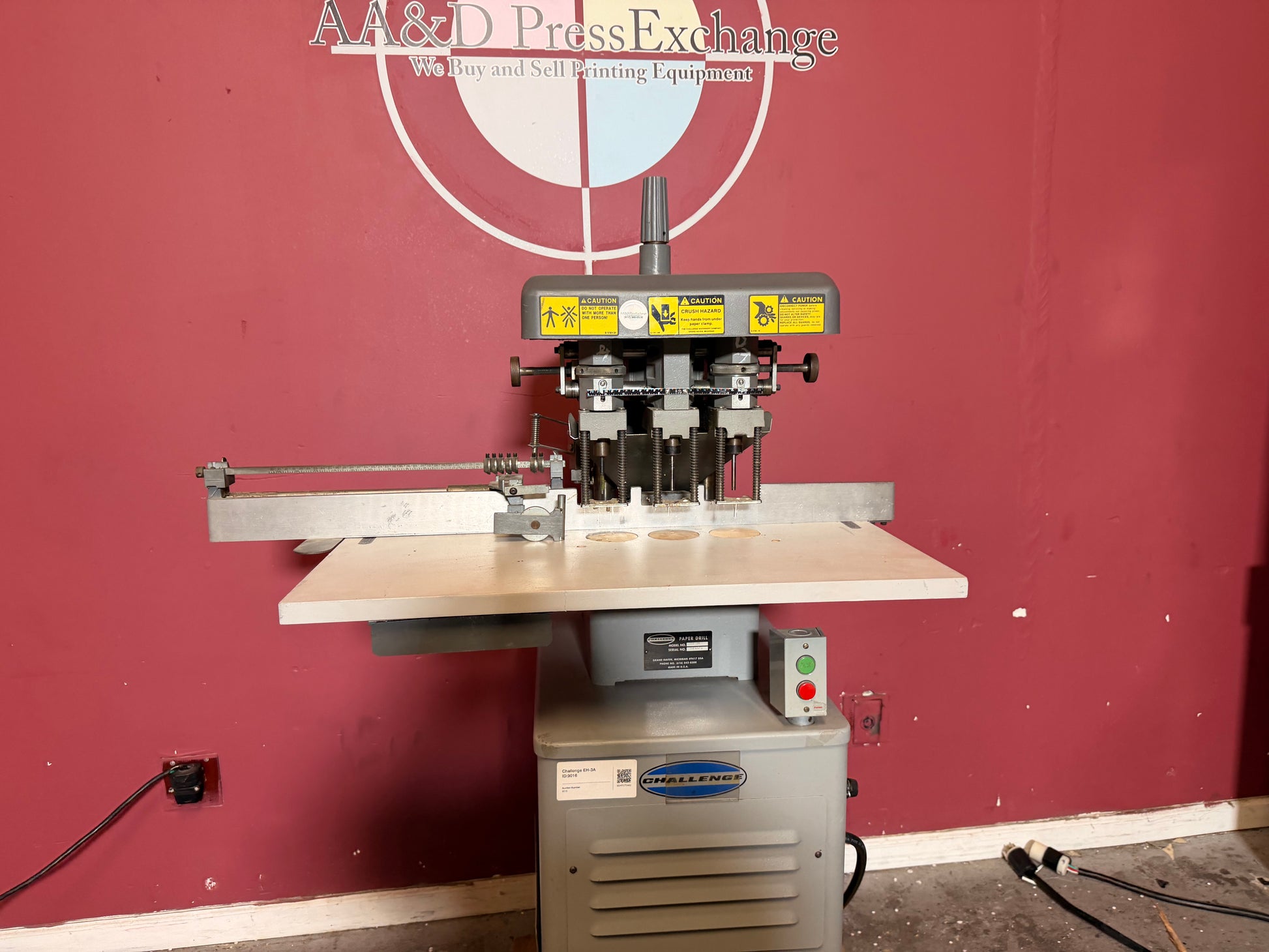

• Used Challenge EH-3A Paper Drill front view heavy-duty 3 spindle hydraulic machine

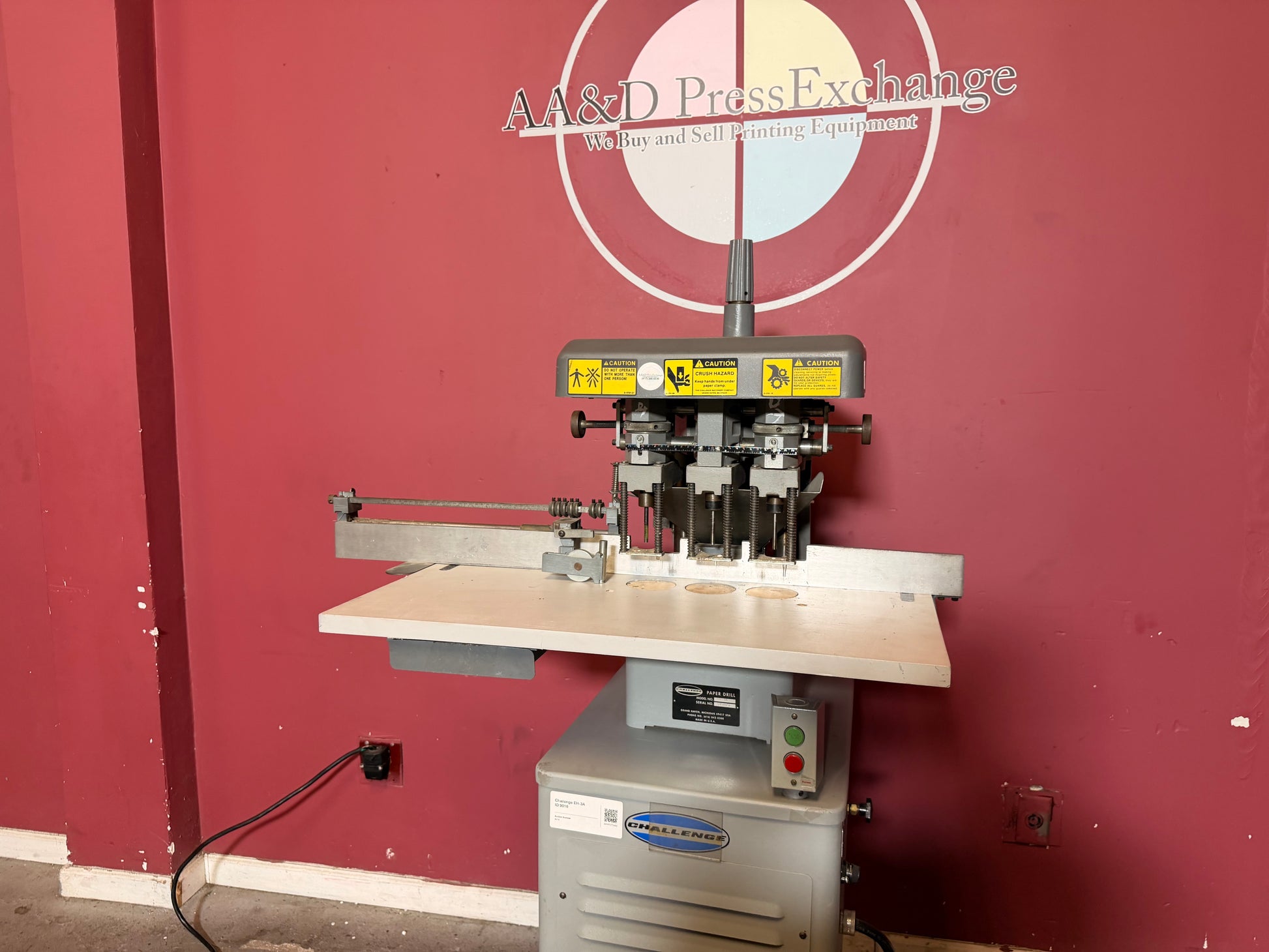

  • Used Challenge EH-3A Paper Drill side view showing challenge 3 hole paper drill configuration

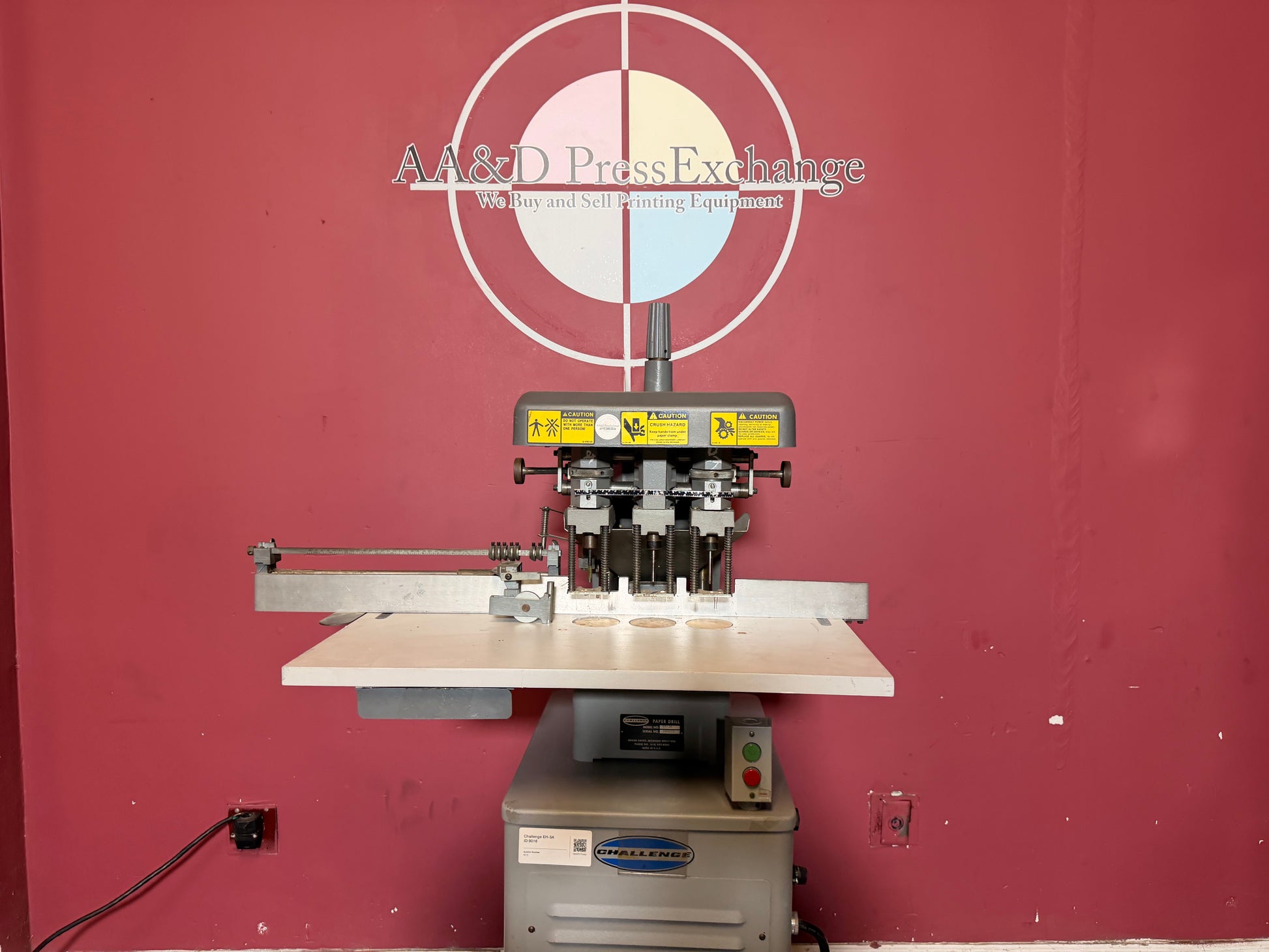

  • Used Challenge EH-3A Paper Drill drilling area with 2.5 inch stack capacity

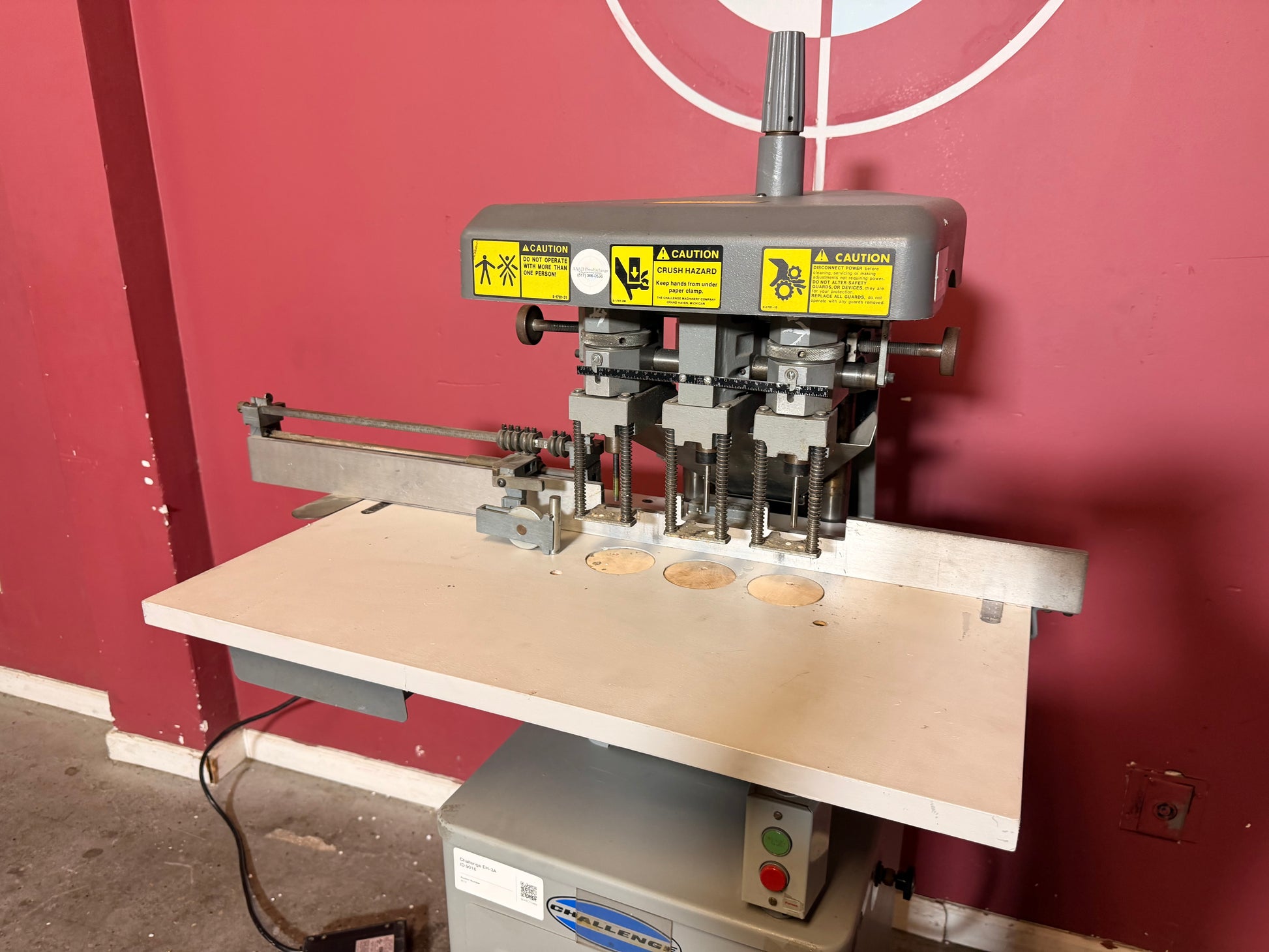

  • Used Challenge EH-3A Paper Drill control panel and hydraulic system detail

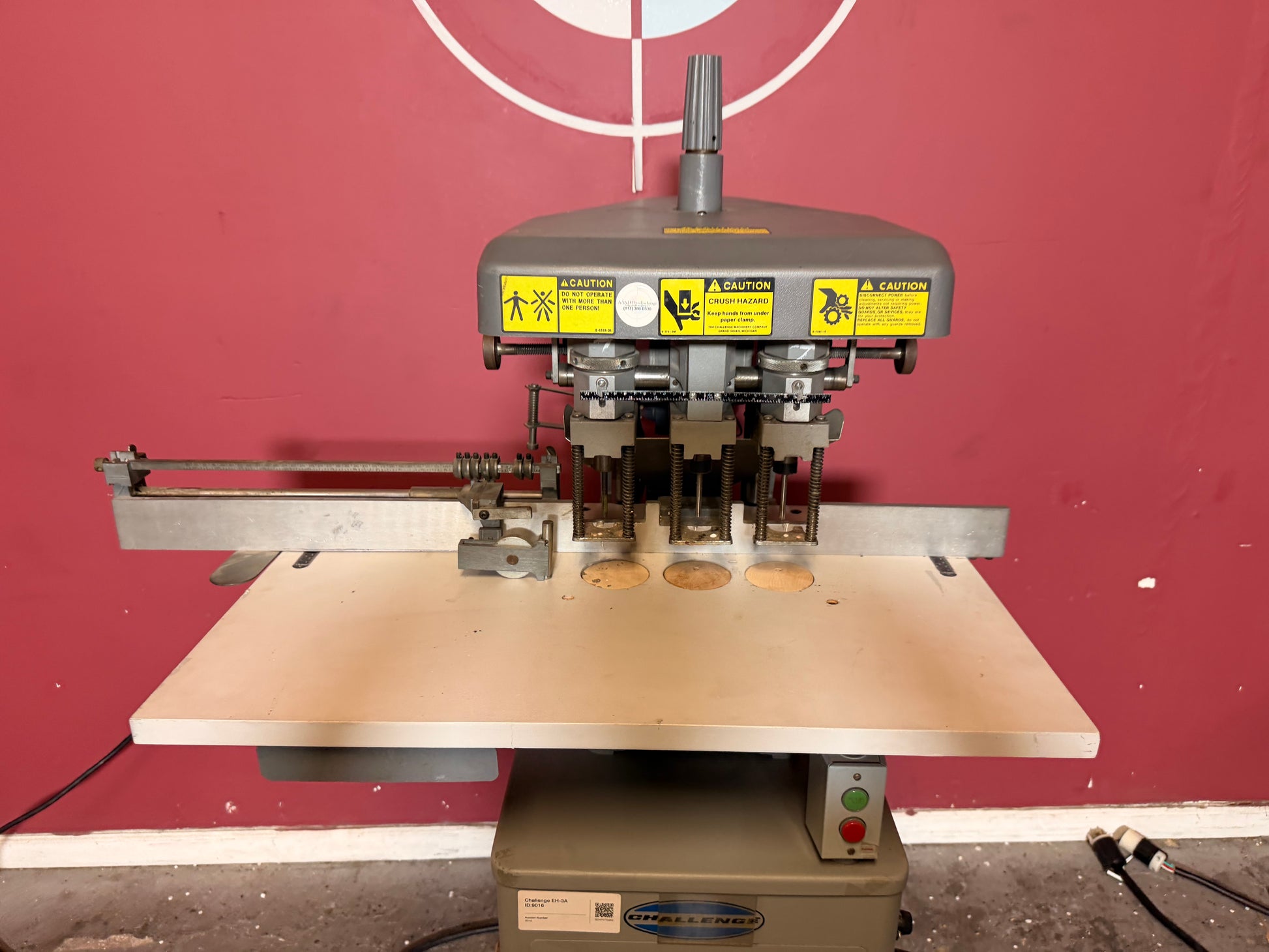

  • Used Challenge EH-3A Paper Drill foot pedal operation on challenge 3 hole paper drill

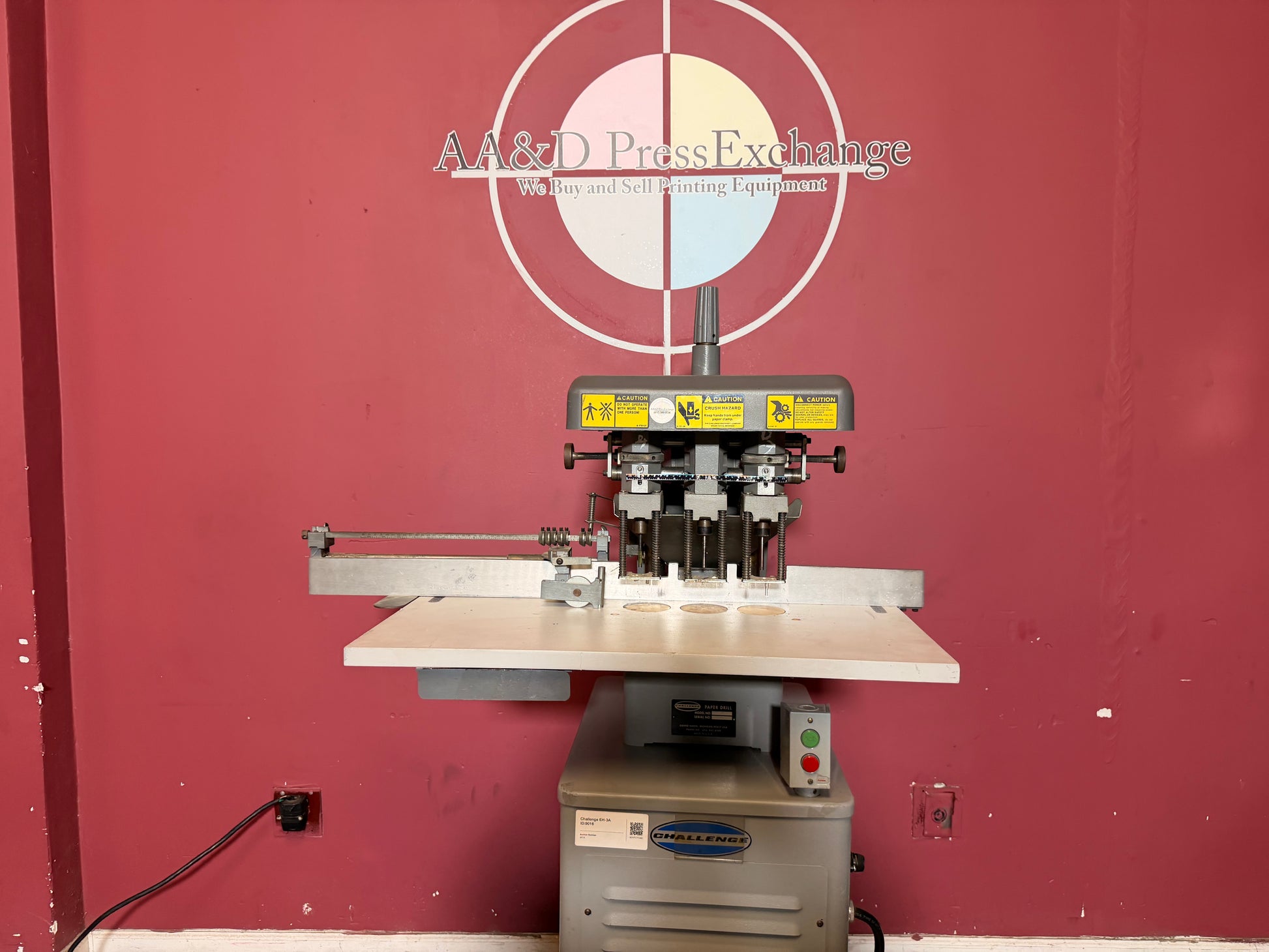

  • Used Challenge EH-3A Paper Drill adjustable backgauge for precise hole alignment

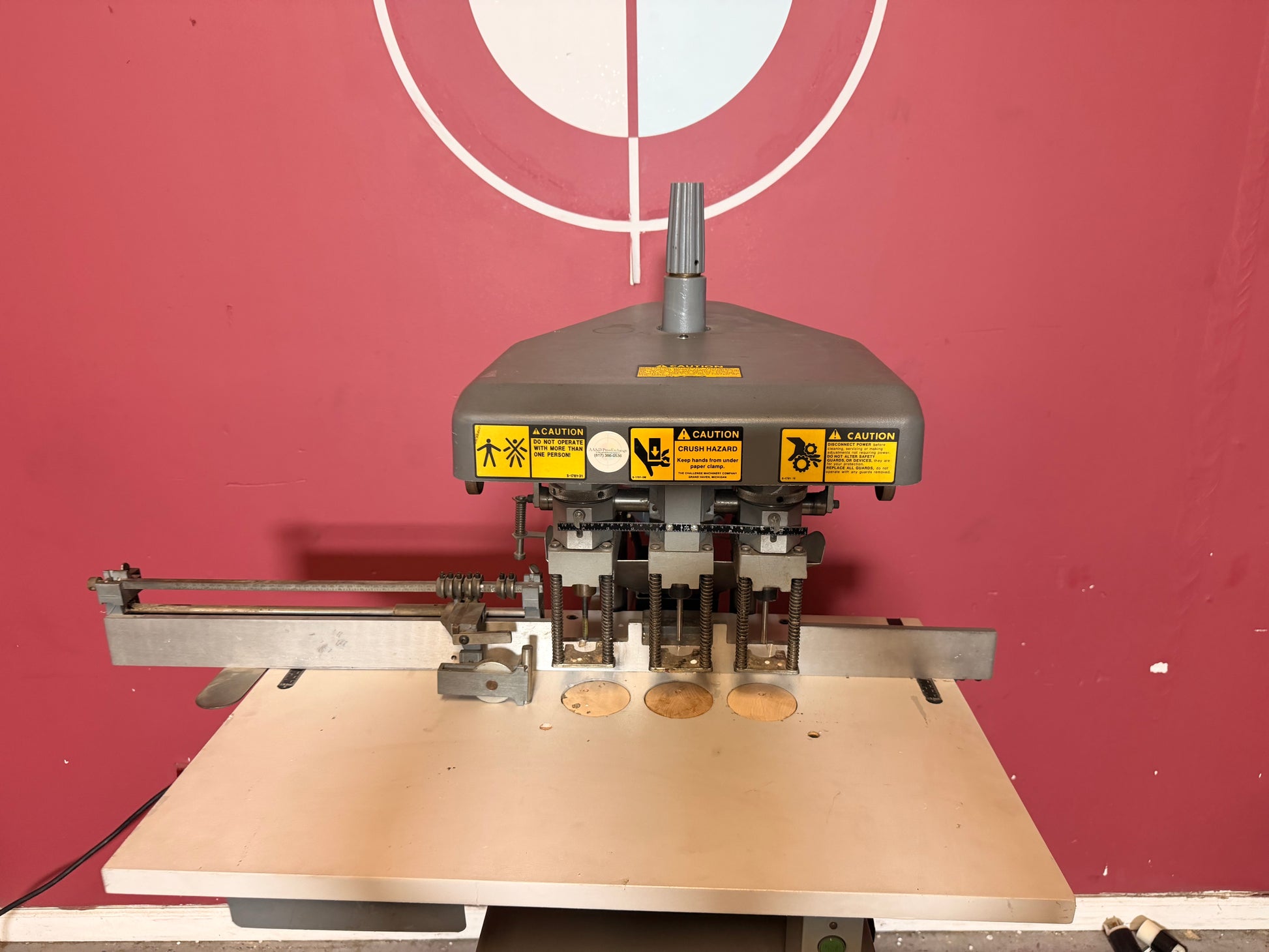

  • Used Challenge EH-3A Paper Drill drill heads close up with 3 spindle setup

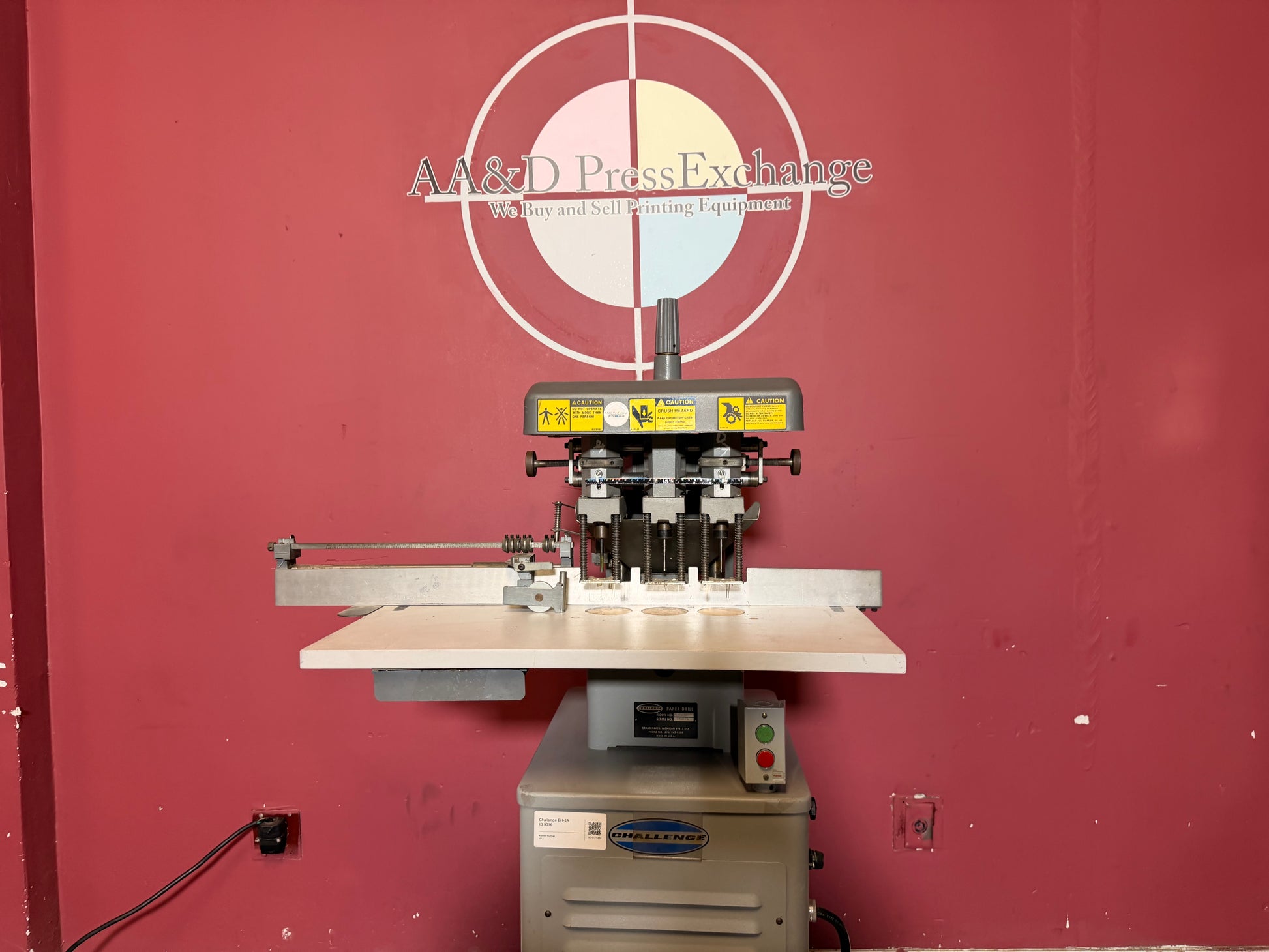

  • Used Challenge EH-3A Paper Drill rear view with durable industrial frame

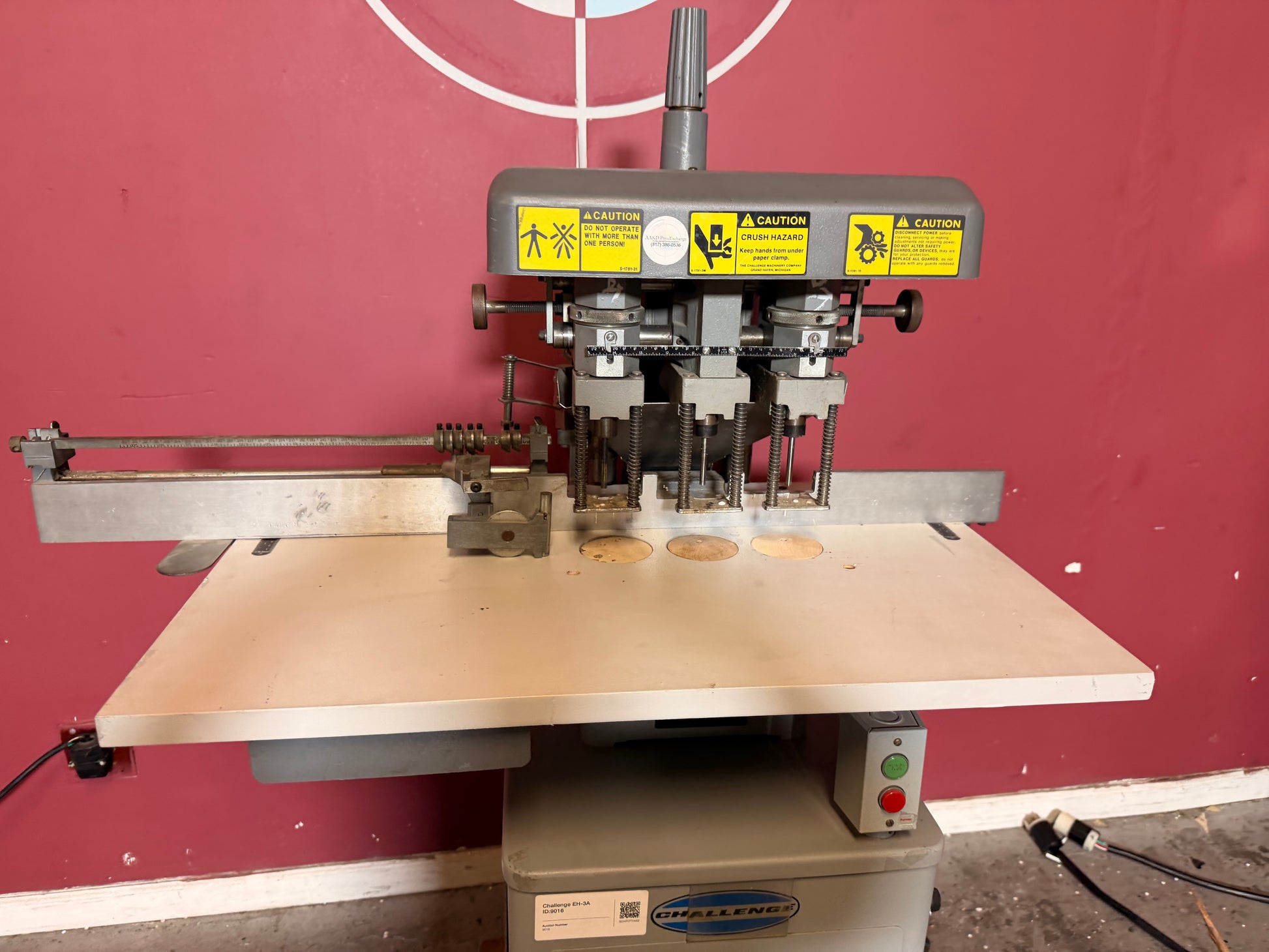

  • Used Challenge EH-3A Paper Drill close up of drill bits for clean consistent holes
  • Used Challenge EH-3A Paper Drill in operation challenge 3 hole paper drill drilling paper stacks
1 10

AA&D PressExchange

Challenge EH-3A Paper Drill

Challenge EH-3A Paper Drill

$2,000.00 USD
$2,000.00 USD
Sale Sold out

PAPER DRILL SPECIFICATIONS



Number of Drill Heads: 3

Range Between Drills: 2 3/4″ to 4 1/2″

Range Between Outside Drills: 5 1/2″ to 9″

Maximum Drilling Capacity: 2 1/2″

Strokes Per Minute (adjustable): Up to 18

Backgauge Adjustment: 0 to 4 1/2″

Vertical Adjustment of Individual Heads: 1/4″

Table Size: 19 1/2″ x 31 1/2″

Table Height: 37″

Overall Height: 59 1/4″

Floor Space Needed: 36″ x 41 1/2″

Net Weight (approximate): 520 lbs
