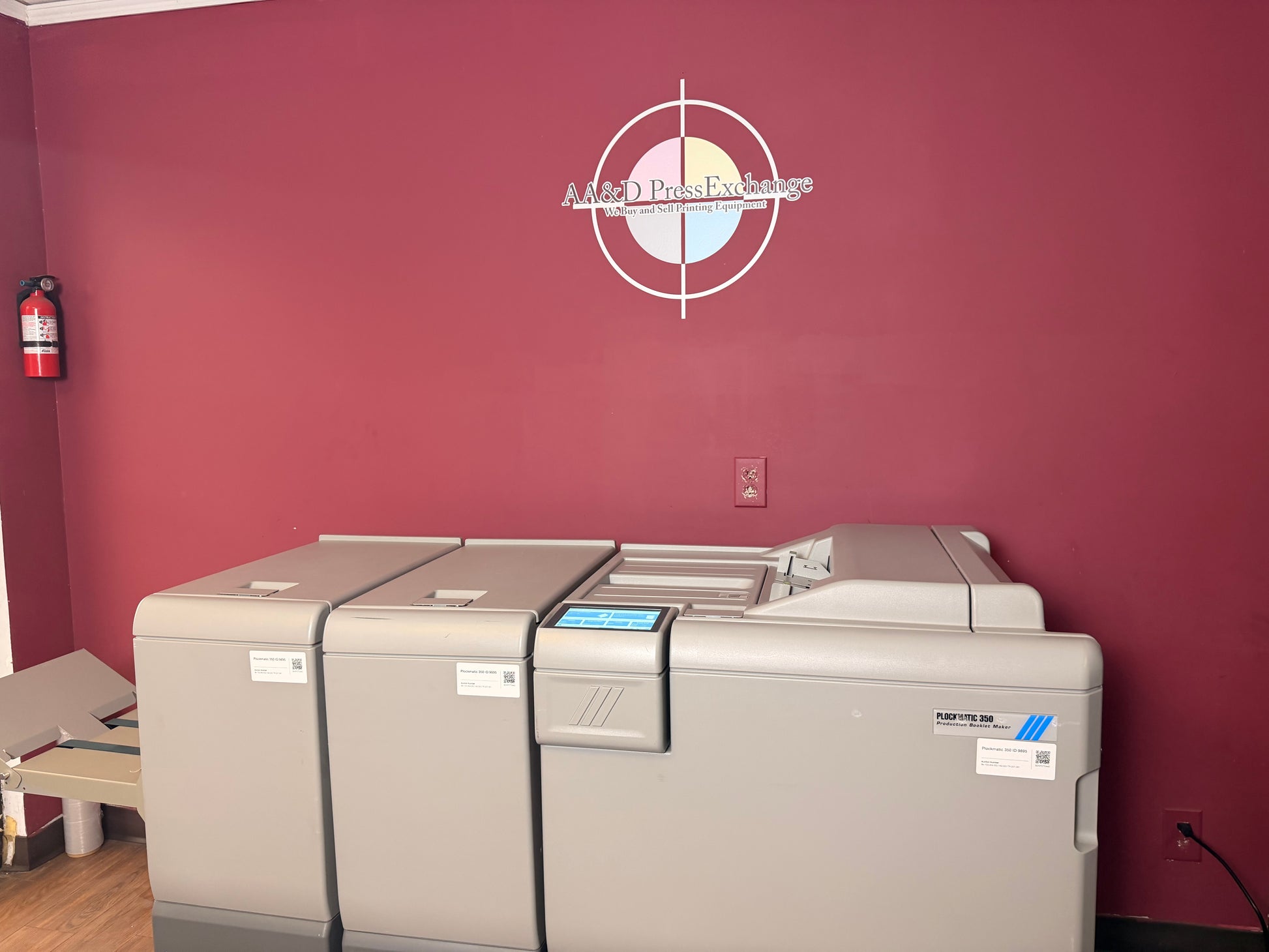

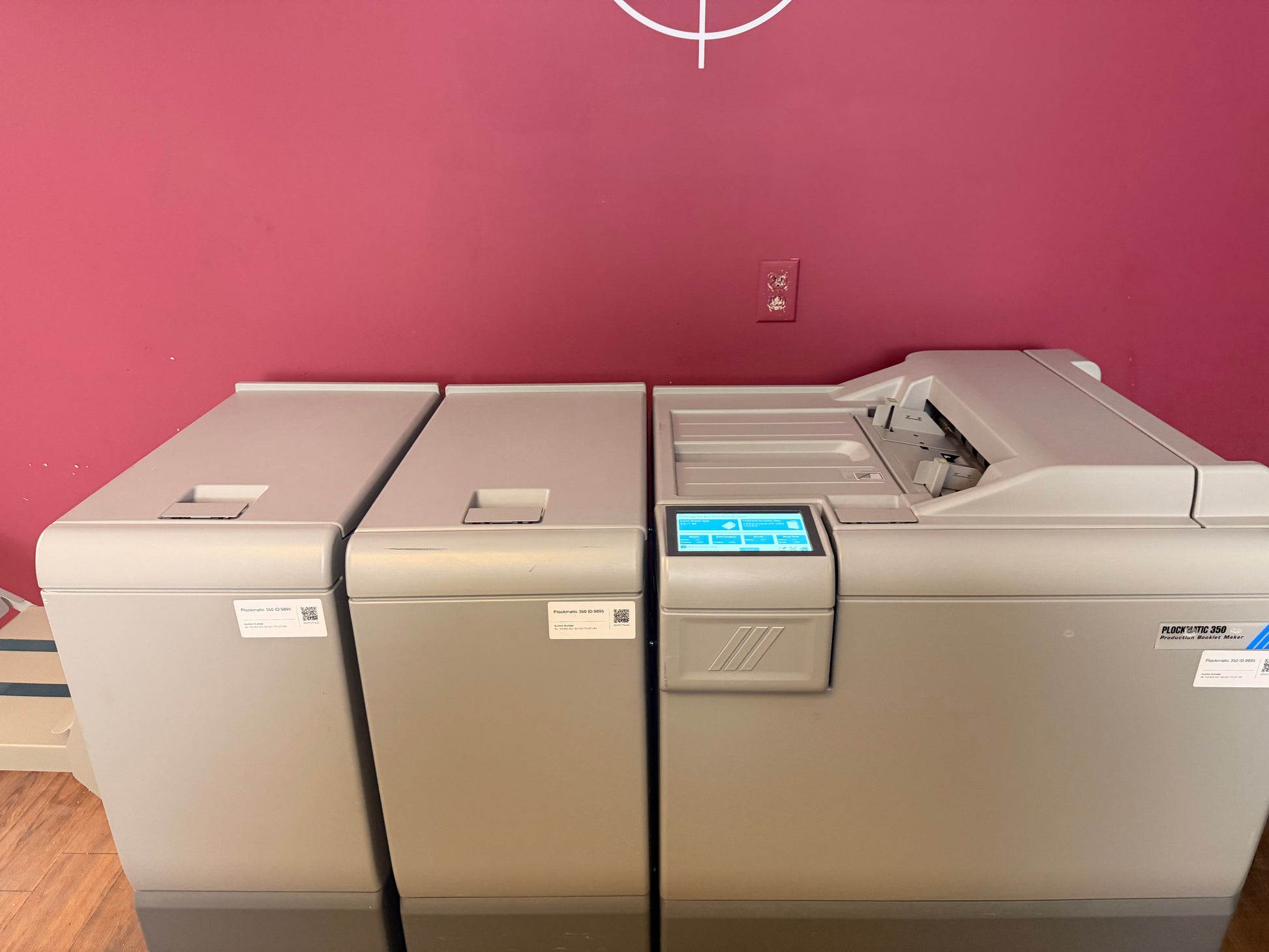

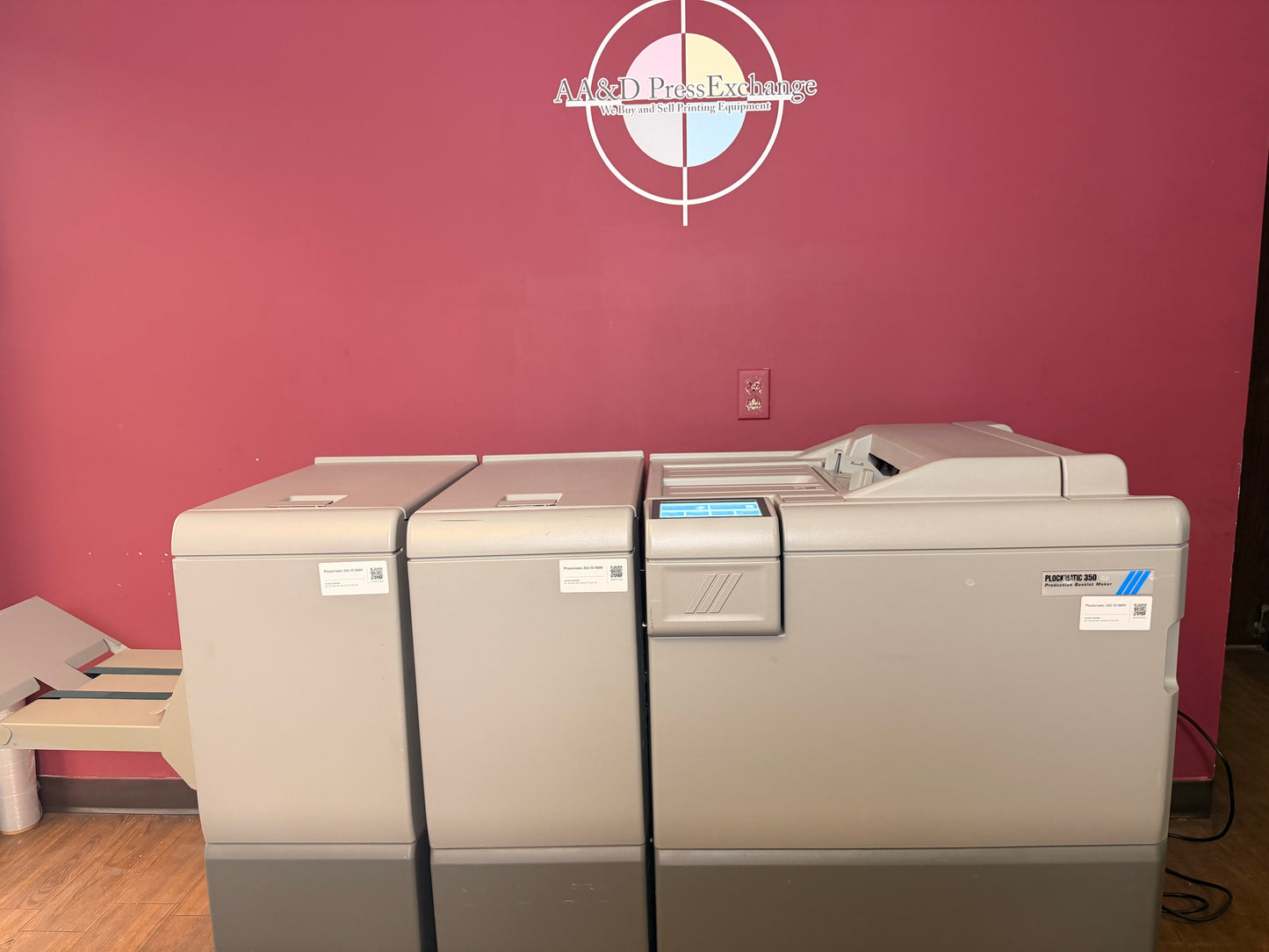

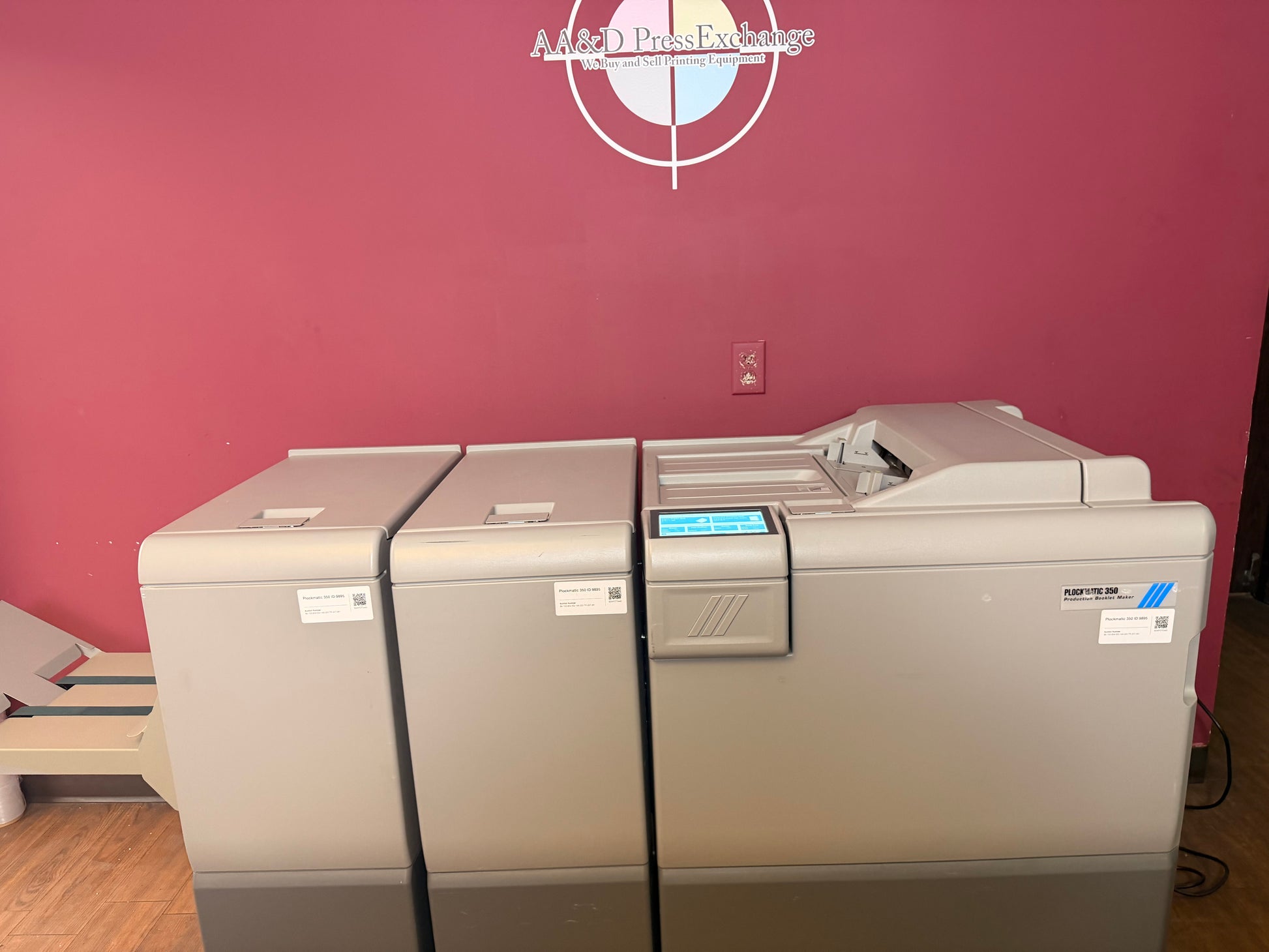

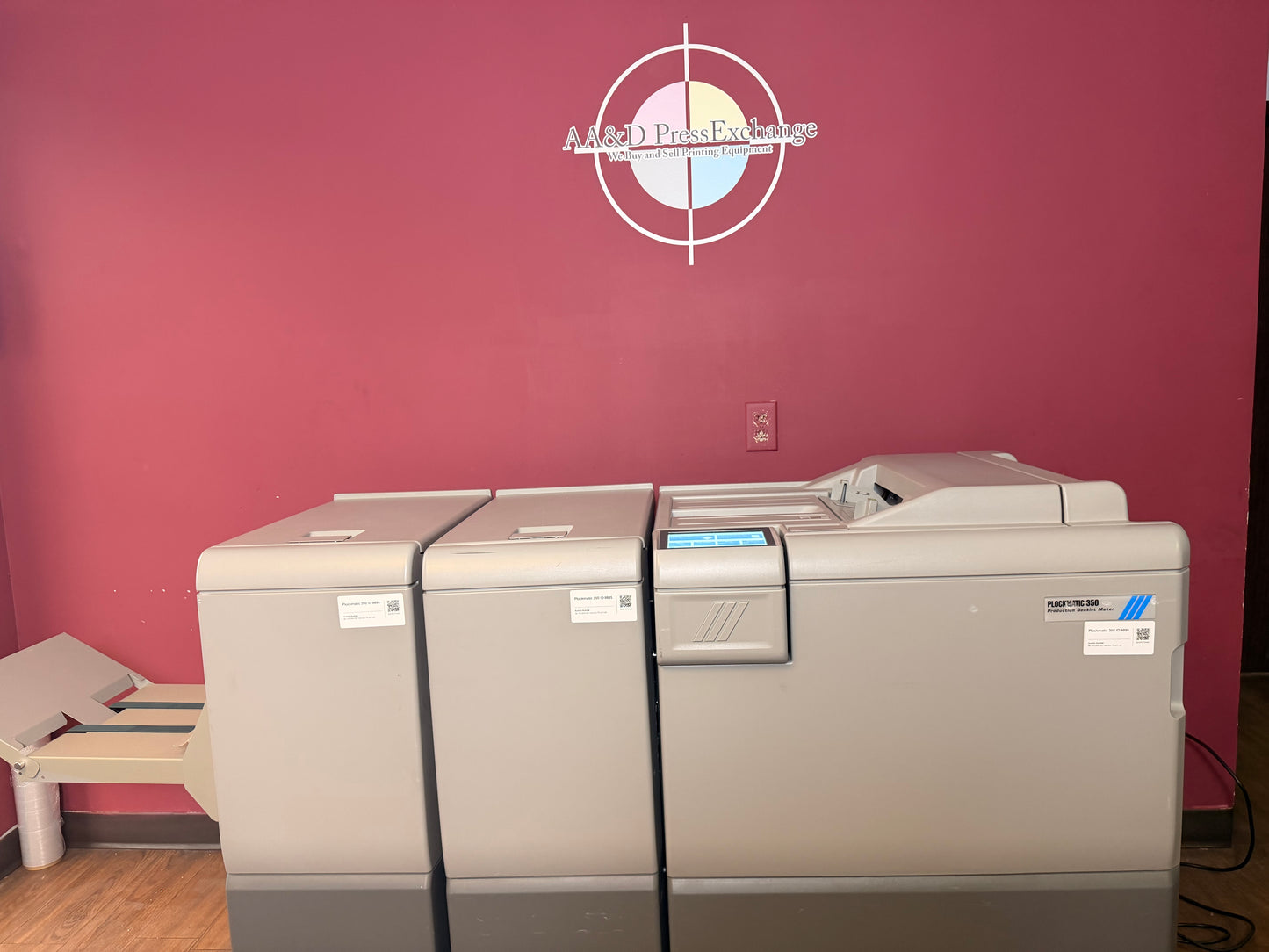

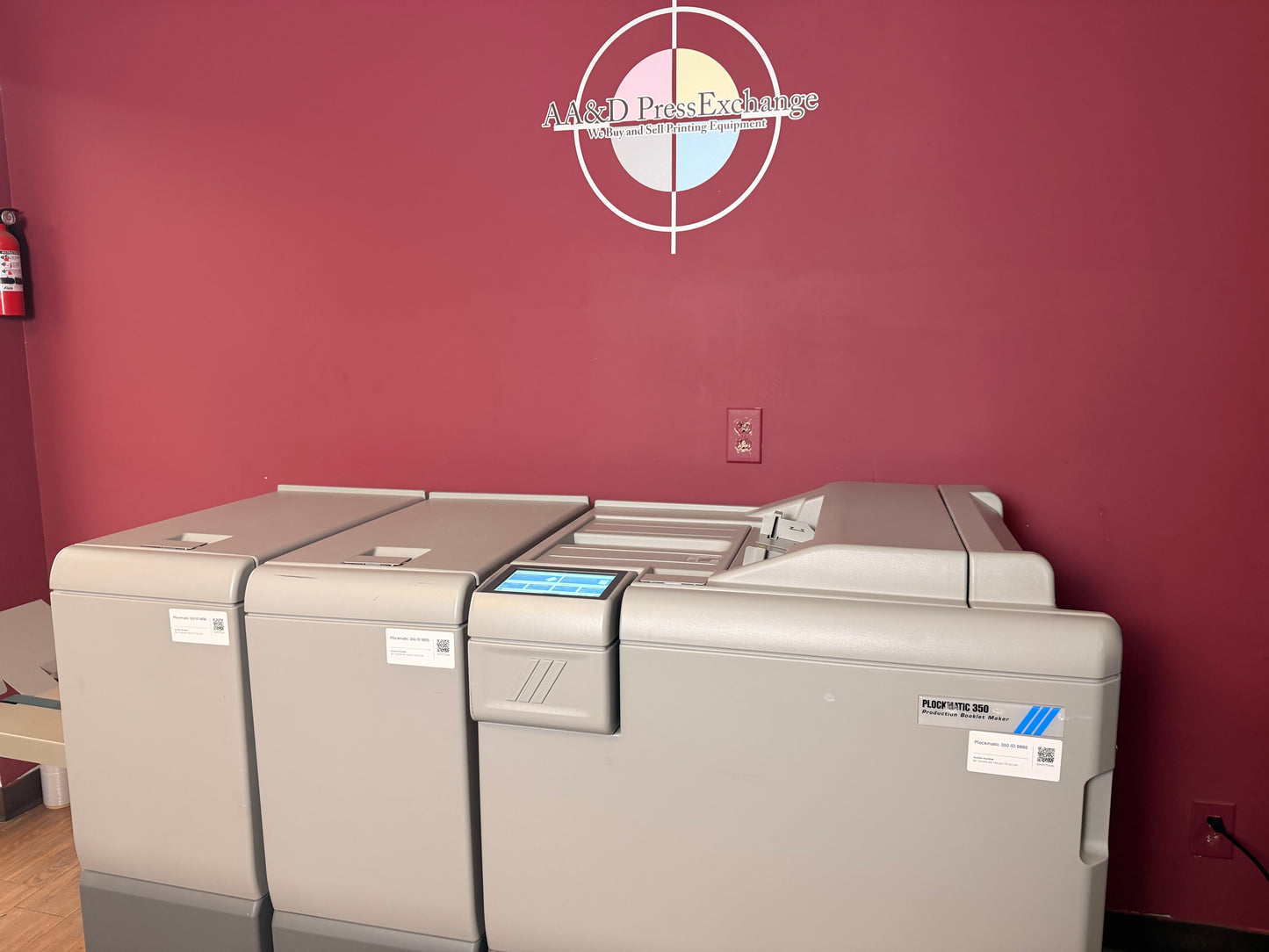

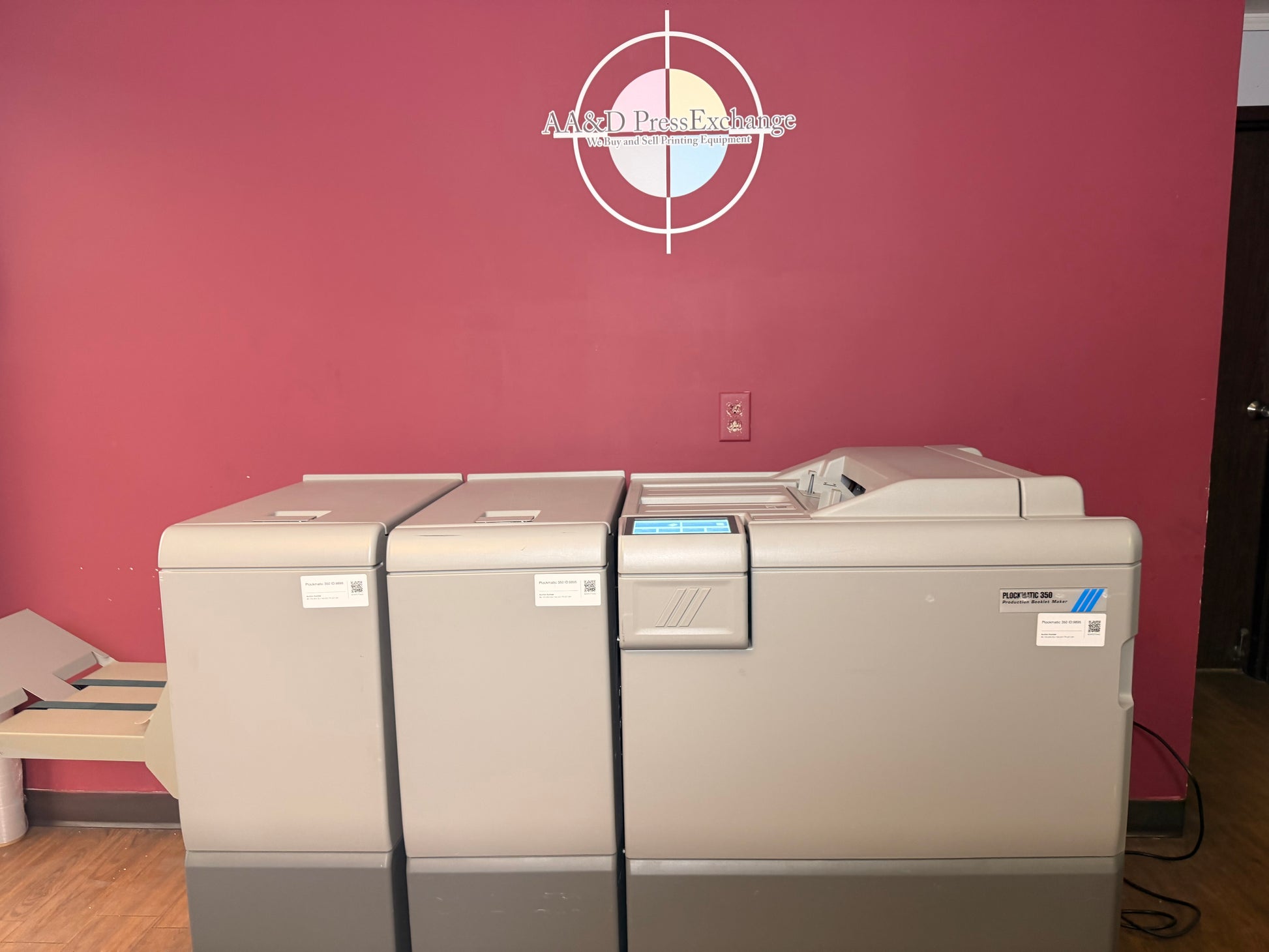

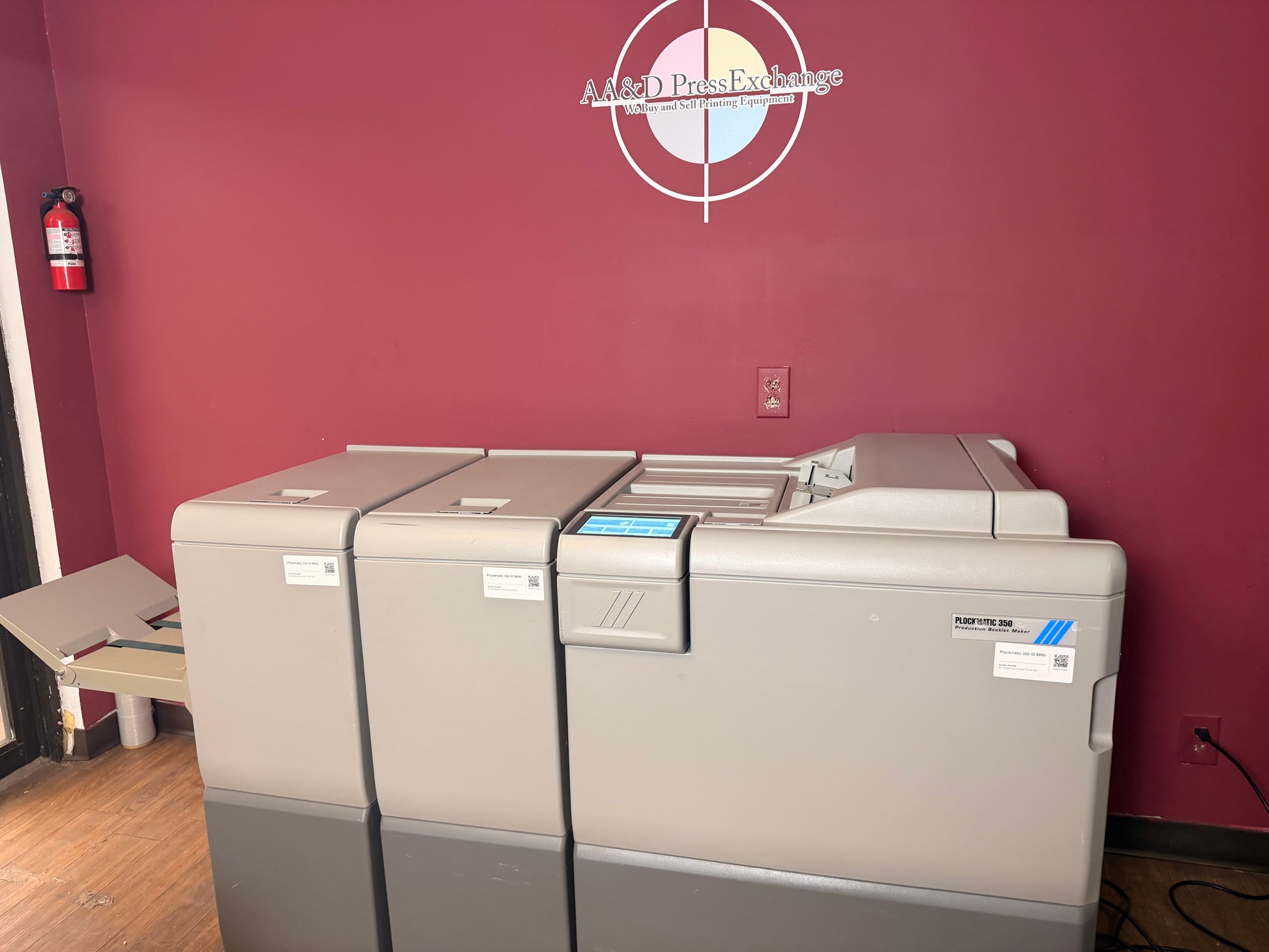

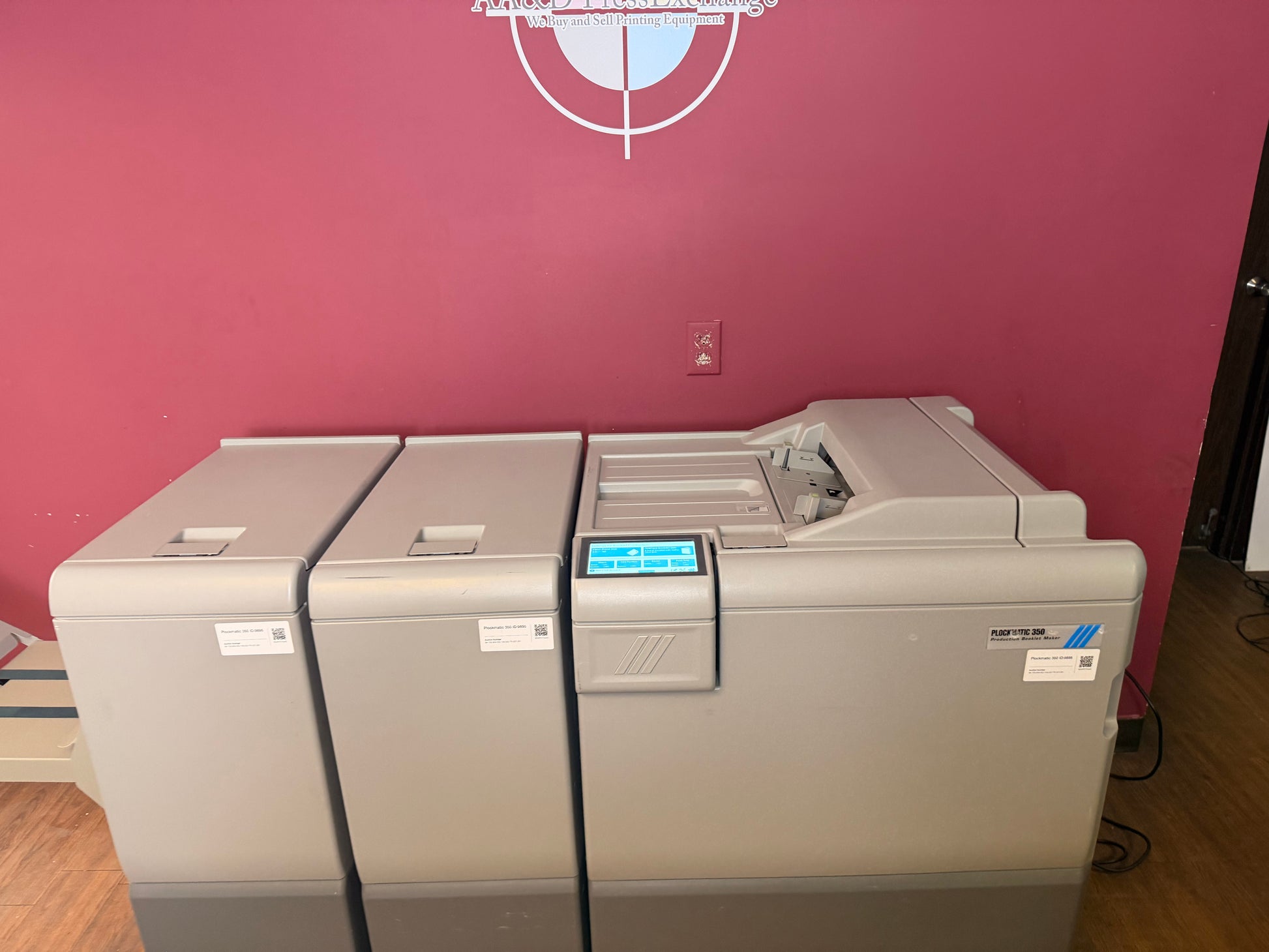

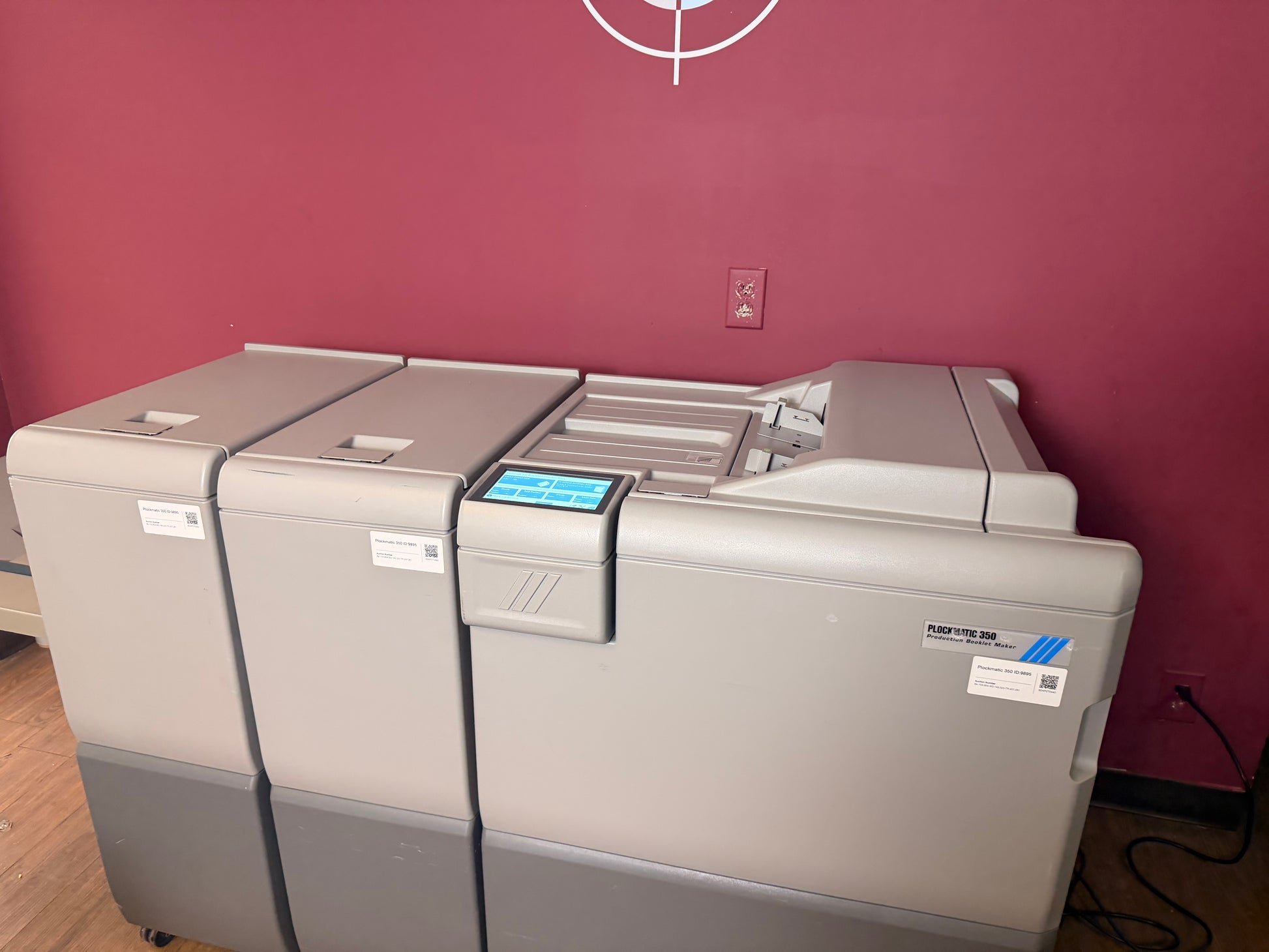

208k Meter Warranty! Plockmatic 350 Stitch/Fold/Square Back/Trim !Video!

We are now offering a 30-day warranty on all electronic parts for our Plockmatics.

AA&D PressExchange can help crate or palletize this item and also help arrange shipping to your location.

!!FREE CRATING!!

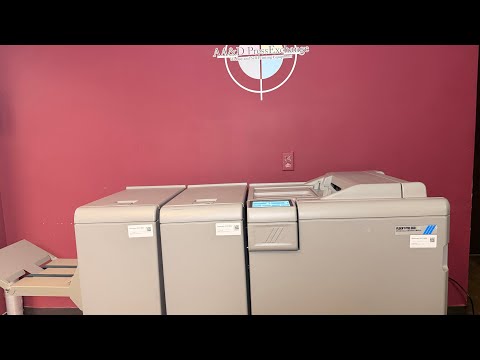

CONTACT US FOR VIDEO!

Bookletmaker - 154,000

Squarespine - 149,020

Trimmer - 207,061

Booklet Maker

Speed Maintain engine speed*

*Actual speed depends on number of sheets per booklet

Standard paper sizes A4, A3, B4, 8.5x11”, 8.5x14”, 9x12”, 11x17”, 12x18”, SRA4, SRA3, Custom size possible

Paper size (min) Width 206 mm / 8.1” Length 275 mm / 10.8”

Paper size (max) Width 320 mm / 12.6” Length 457.2 mm / 18”

Paper weight uncoated (min) 64 gsm / 16 lb Bond

Paper weight coated (min) 105 gsm / 28 lb Bond

Paper weight (max) 300 gsm / 110 lb Cover*

*350 gsm/132lb Cover supported on some media

Set size (stapled folding) 2-50 sheets PBM500, 2-35 sheets PBM350 (80 gsm / 20 lb Bond)

Set size (non stapled folding) 1-2 sheets

Offline use Yes

Noise emission 62dB

Rotate, Crease, Bleed Trimmer module

Paper sizes Same as Booklet Maker

Minimum trimming 5+5 = 10 mm / 0.39”

Maximum trimming 30+30 = 60 mm / 2.36”

Asymmetrical trimming Yes

Face Trimmer module

Paper sizes Same as Booklet Maker

Minimum trimming 1 mm / (0.0394”)*

*When trimming SRA3 (450 mm) Booklets minimum trimming is 5 mm, when trimming 18" Booklets minimum trimming is 9 mm.

Maximum trimming 25 mm / (0.984”)

The Trimmer support “multi-cut” operation. This allows customers to create a 105 mm/4.35” long booklet cut down from a larger sheet size.

BookFold module

Paper sizes Same as Booklet Maker

Set size (stapled folding) Same as Booklet Maker

Power source From Booklet Maker

Paper sizes Same as Booklet Maker

Paper weight (min) 64 gsm / 18 lb Bond

Paper weight (max) 250 gsm / 93 lb Cover

Cover Feeder capacity 20 mm / 0.79”: Approx. 200 sheets of 80 gsm paper or approx. 200 sheets 20 lb Bond paper

Power source From Booklet Maker

The Cover Feeder dimensions are included in the Booklet maker dimensions and will not add to the footprint.

Stacking capacity Up to 1000 A4 / 8.5x11” sized booklets of 4 sheets

Note: These specs have been taken from the manufacturer's website for a brand new item. There may be mention of optional accessories/supplies, which may or may not be included with the used item actually being sold here. There may have been improvements in production specifications between the used item's date of manufacture and brand new items. To be clear, you are bidding on the item in the photographs, not the item described in the manufacturer's latest literature or description below. If there is no link to the video of the item you are bidding on, we have not tested the machine. Our testing does not go any further than what is shown in the video. Minimal Inspection done.
