Morgana PowerSquare™ 224VF booklet maker Product Details
Morgana PowerSquare™ 224VF booklet maker Product Details
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Couldn't load pickup availability
This item is not for sale and is provided for informational purposes only. Not an authorized dealer.

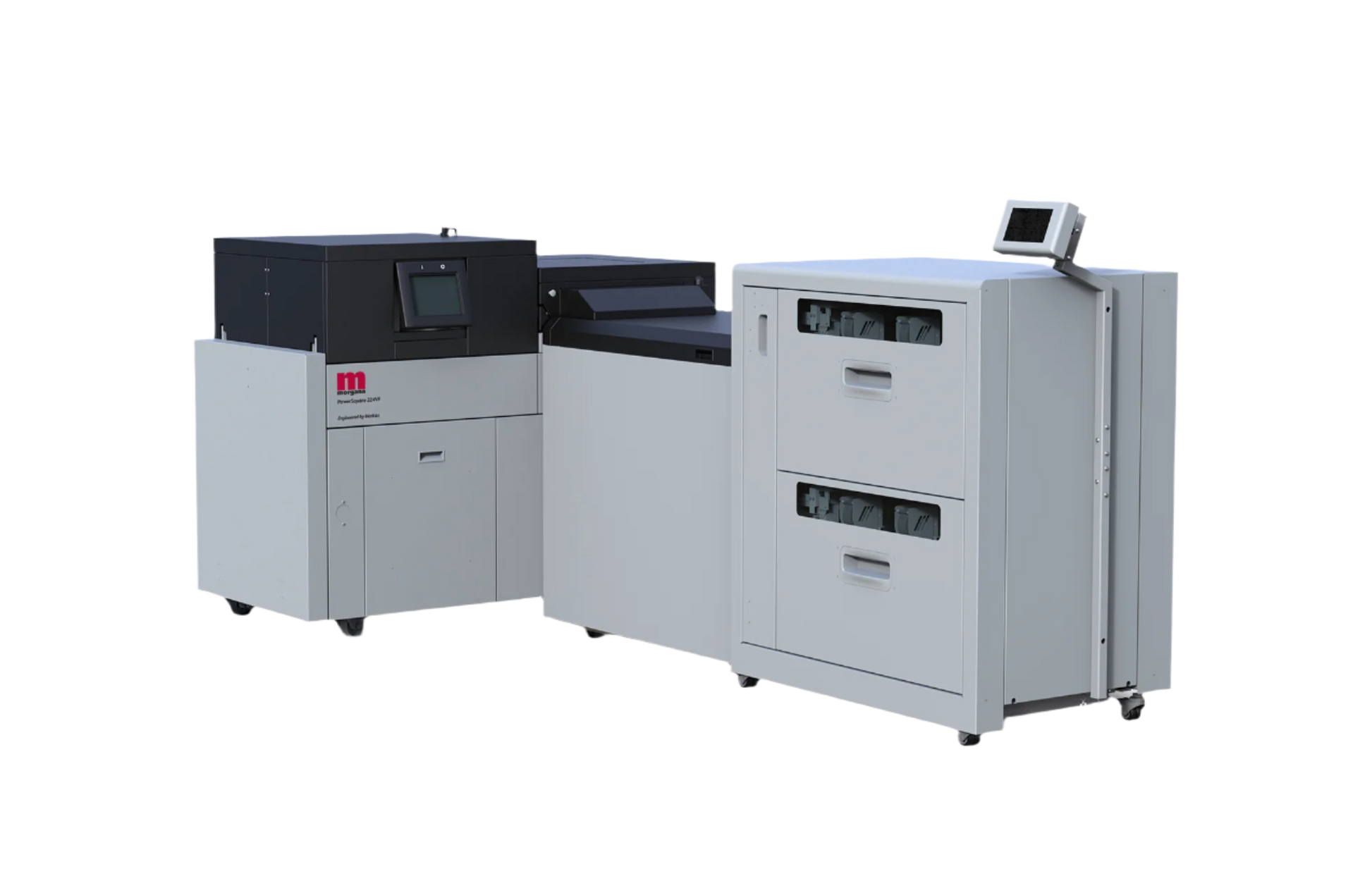

The Morgana PowerSquare™ 224VF booklet maker with its high capacity dual bin feeder offers a flexible solution for a wide range of booklet types and sizes. The system is fed by the VFX vacuum assisted feeder which has a loading capacity of up to 540mm / 21″, giving long uninterrupted production runs. Pre-collated sets can be placed into both bins for longer runs, or covers can be placed into one of the bins when they need to be merged with collated sets. The feeder can also be loaded on the run with automatic bin switching.
Optional barcode readers can be fitted to the VFX feeder for variable page count jobs or to ensure set integrity.
Specifications
PowerSquare™ 224VF Specifications
Input sheet size (Min) 200 x 210mm / 7.8" x 8.25"
Input sheet size (Max) 350 x 500mm / 13.7" x 24.4"
Paper weight (Min) 60gsm / 16 lb Bond
Paper weight (Max) 400 gsm / 150 lb Cover
Book thickness (Min) Minimum set thickness - 1 sheet 21lb bond (when folded makes an 4 page leaflet)
Book thickness (Max) Maximum finished book thickness - 0.4” (approx 208 pages 21lb bond, 224 pages 70gsm)
Power 100-230V 50-60Hz
VFX Dual Bin Feeders
No. of bins 2
Bin capacity 2 x 270mm / 10.6”
Sheet size, max 350 x 660mm / 13.8” x 26”
Sheet size, min 120 x 210mm / 4.72” x 8.26”
Paper weight, max 300gsm / 110 lb Cover
Paper weight, min 60gsm / 18 lb Bond
Centre registration Yes
Air separation Yes
Error detection Double feed, misfeed, empty bin, paper jam
Dimensions H1260 x W1017 x D700mm / H49.6” x W40” x D27.6”
Weight 250kg / 551lbs
